Liftgate Module / Trunk Module Connector - C4174A

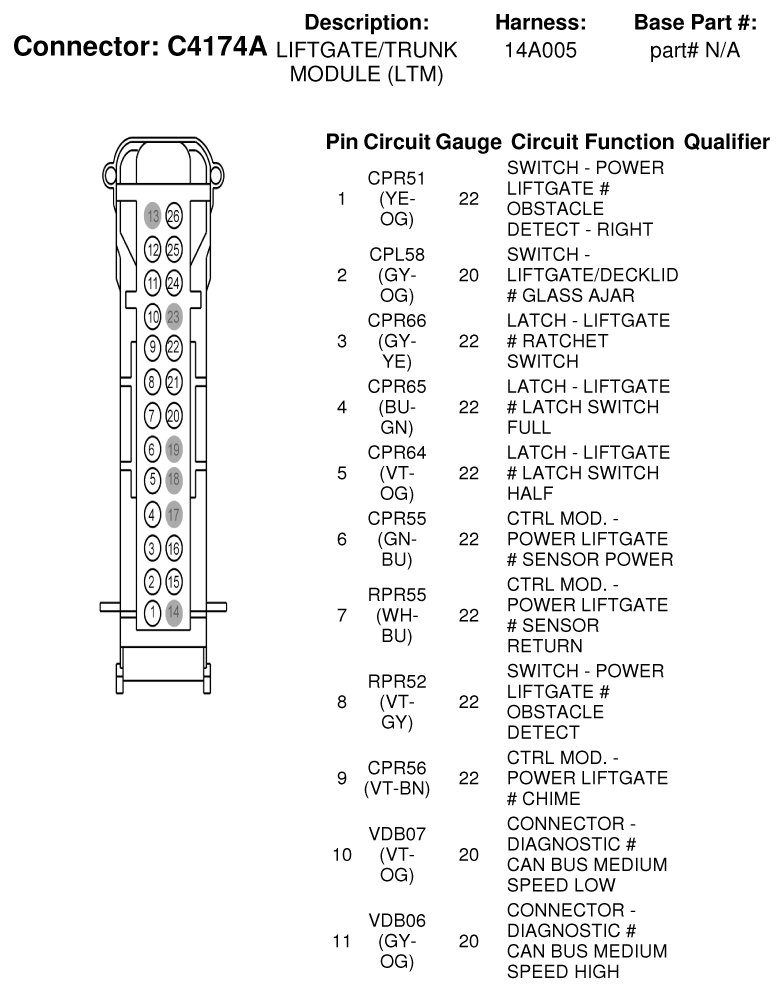

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174A) (1 Of 2)

Courtesy of FORD MOTOR CO.

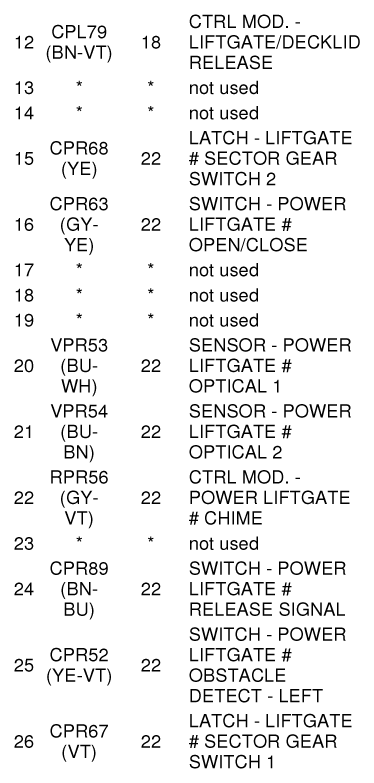

Fig 2: Liftgate Module / Trunk Module Connector End View (C4174A) (2 Of 2)

Courtesy of FORD MOTOR CO.
