Component Location Views

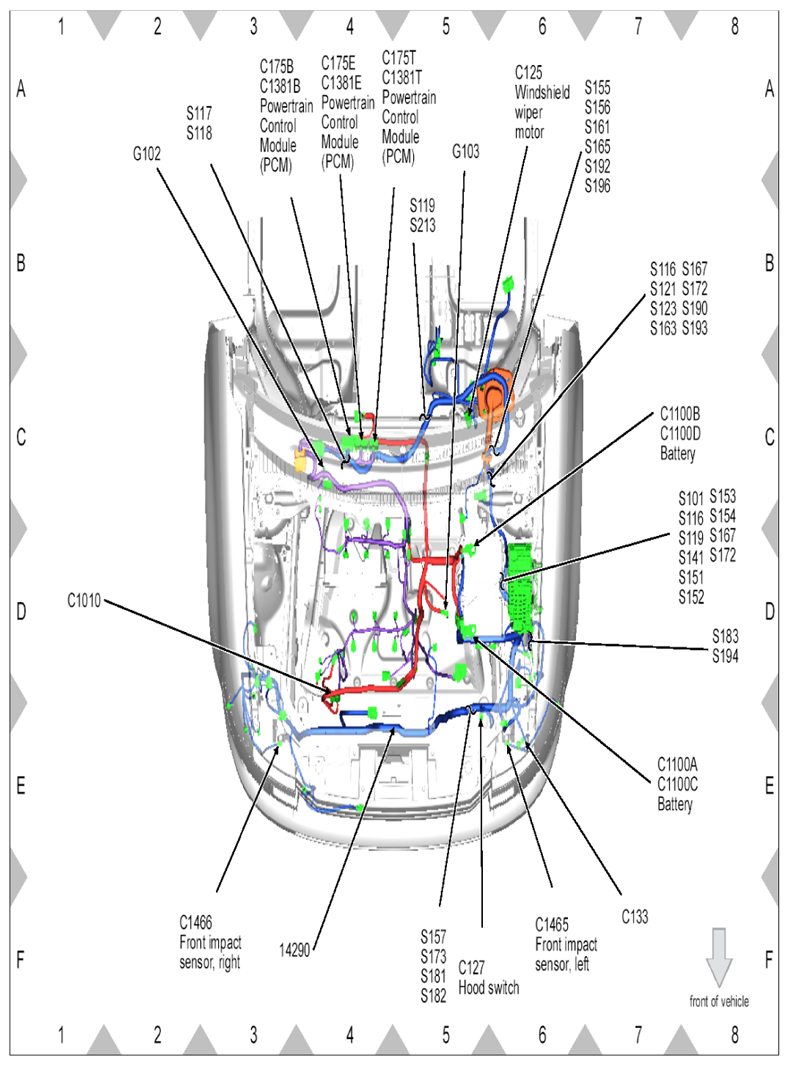

Fig 1: Engine Compartment Connectors Locations (1 Of 3)

G07860553

Courtesy of FORD MOTOR CO.

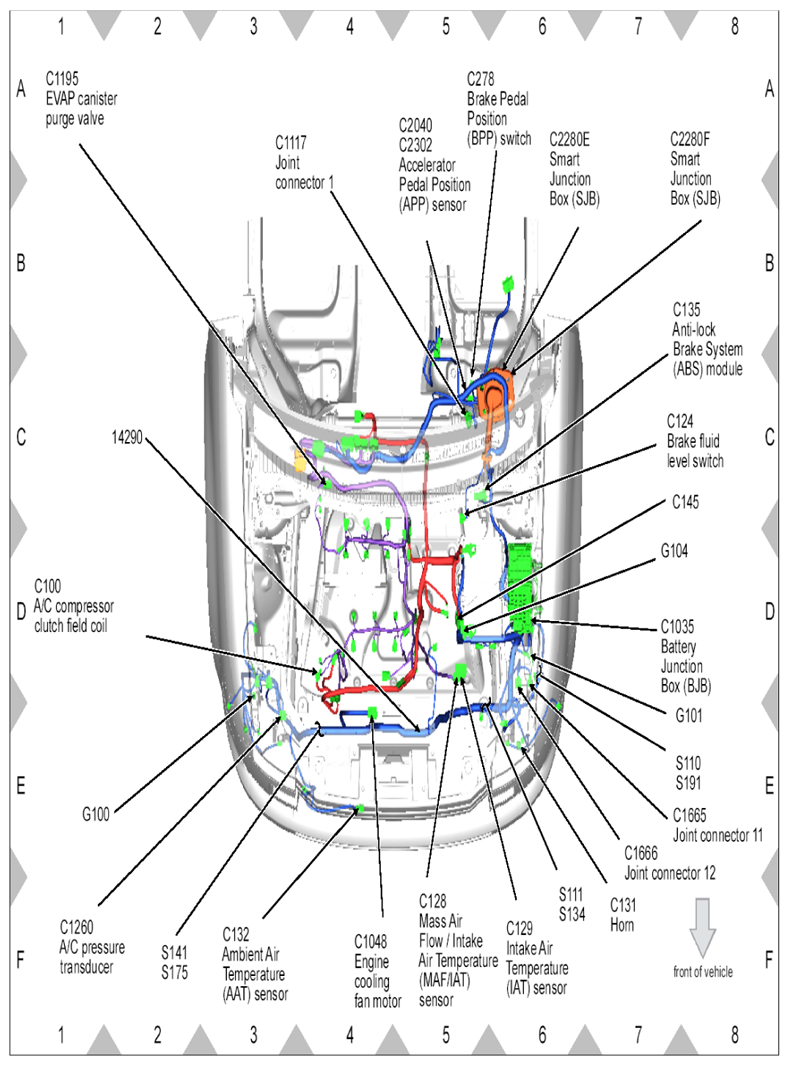

Fig 2: Engine Compartment Connectors Locations (2 Of 3)

G07860554

Courtesy of FORD MOTOR CO.

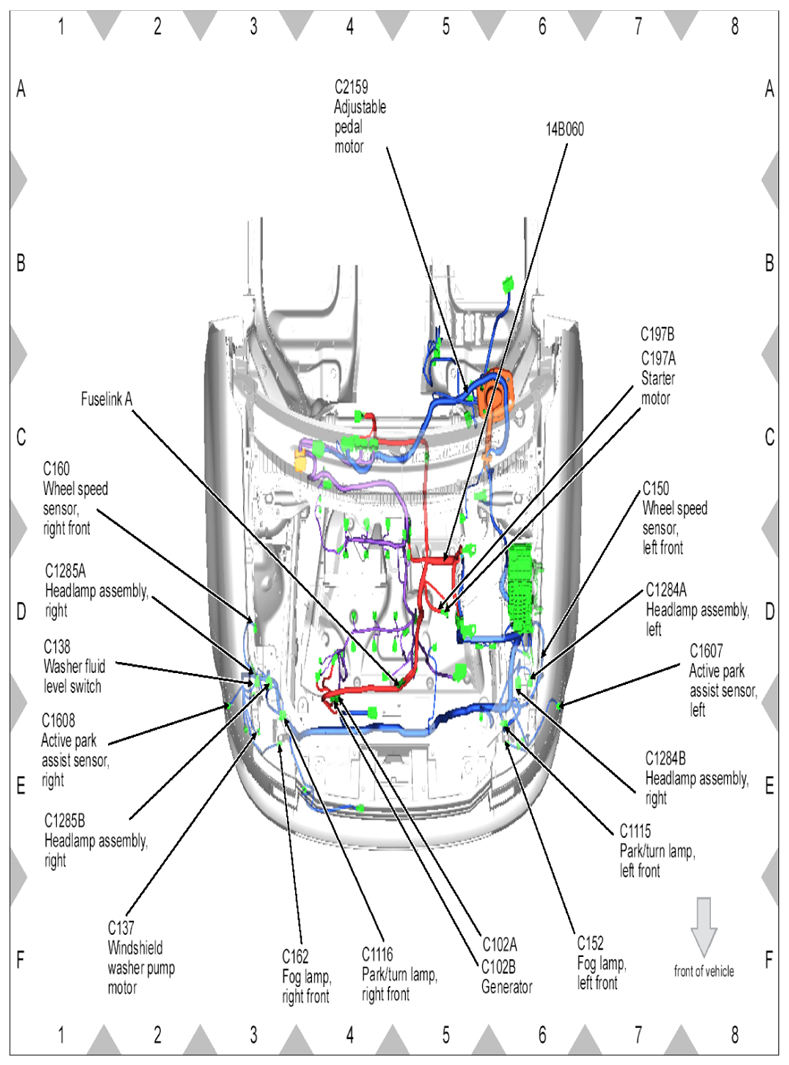

Fig 3: Engine Compartment Connectors Locations (3 Of 3)

G07860555

Courtesy of FORD MOTOR CO.

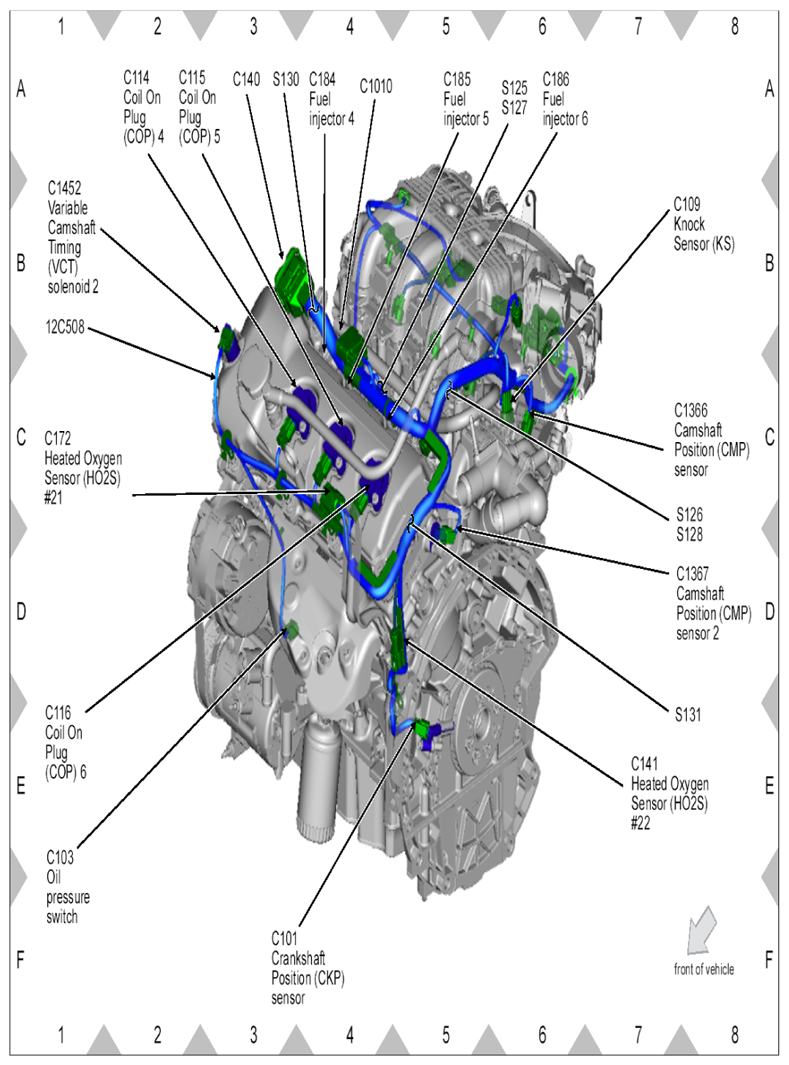

Fig 4: Engine Connectors Locations (1 Of 4)

G07860556

Courtesy of FORD MOTOR CO.

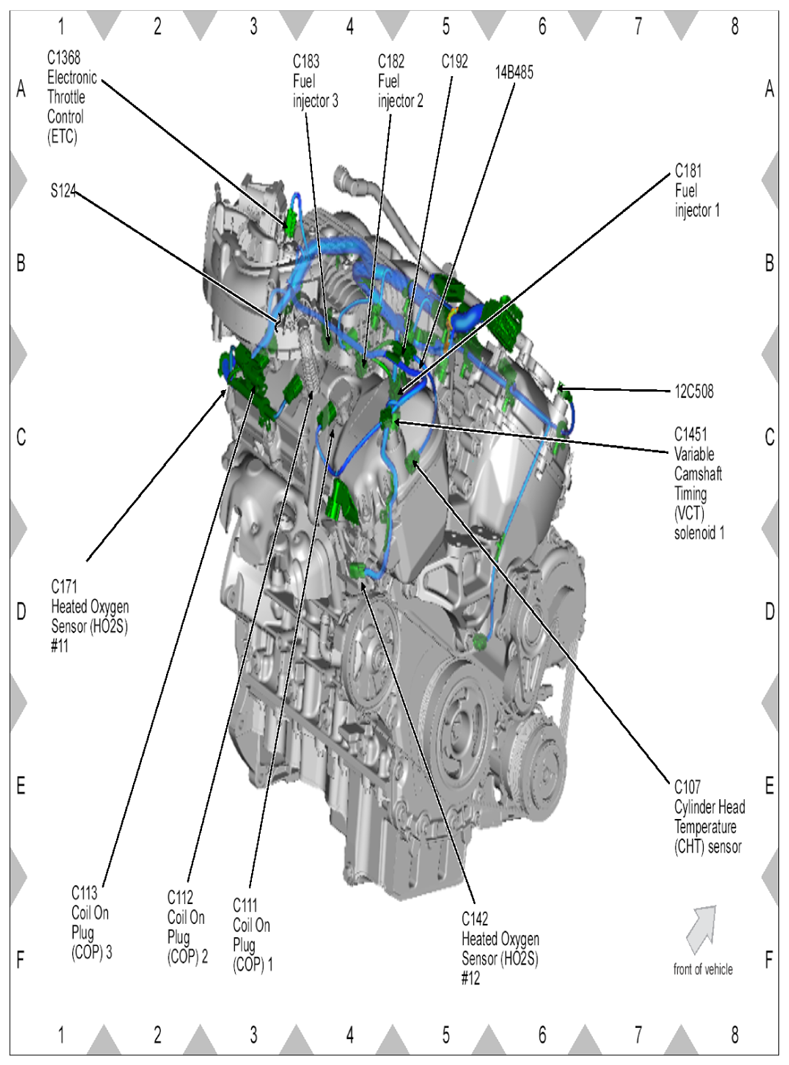

Fig 5: Engine Connectors Locations (2 Of 4)

G07860557

Courtesy of FORD MOTOR CO.

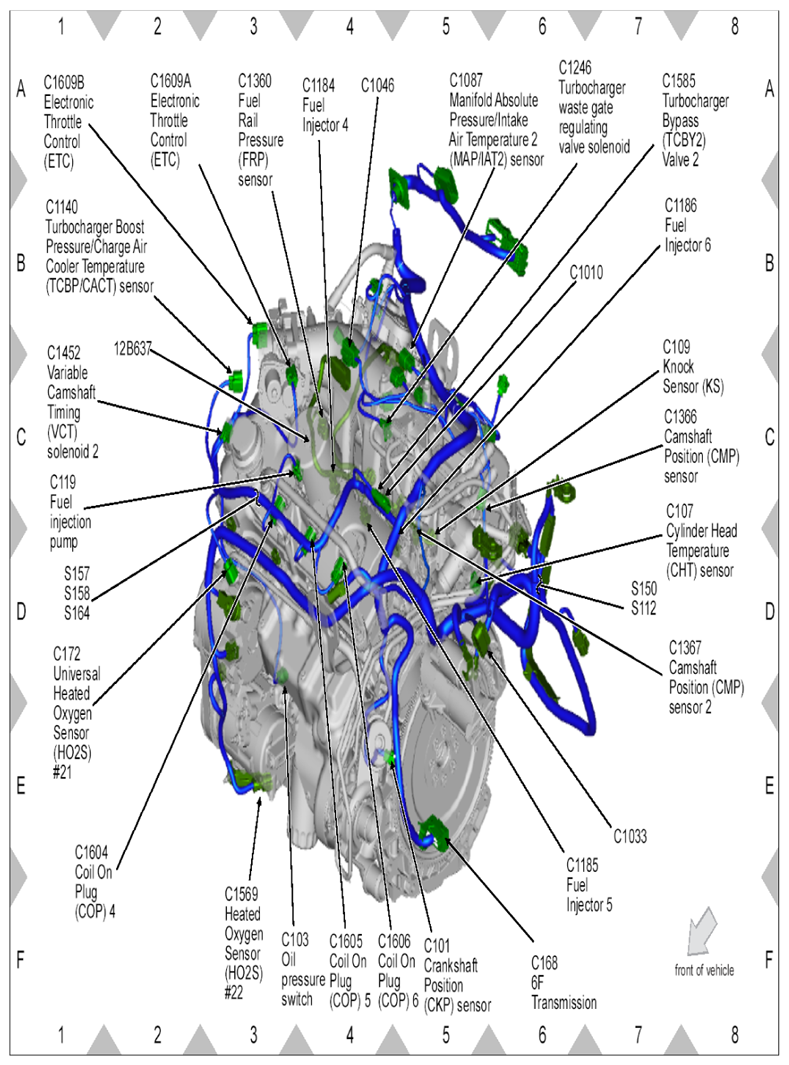

Fig 6: Engine Connectors Locations (3 Of 4)

G07860558

Courtesy of FORD MOTOR CO.

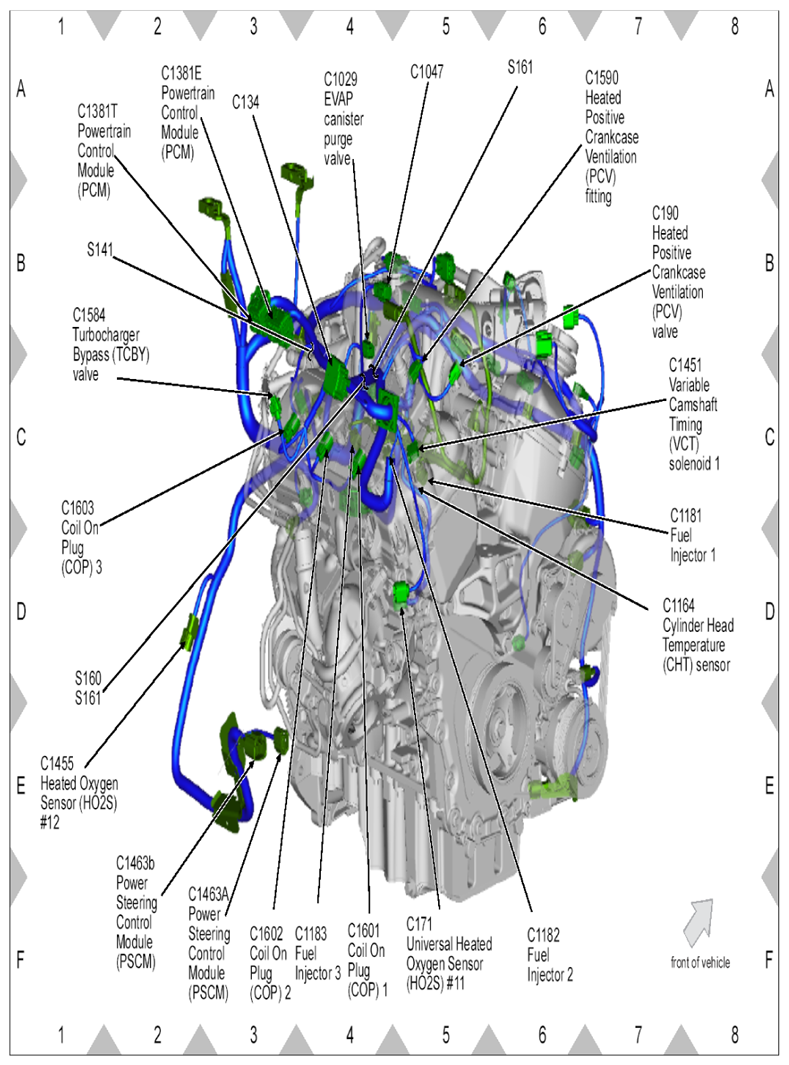

Fig 7: Engine Connectors Locations (4 Of 4)

G07860559

Courtesy of FORD MOTOR CO.

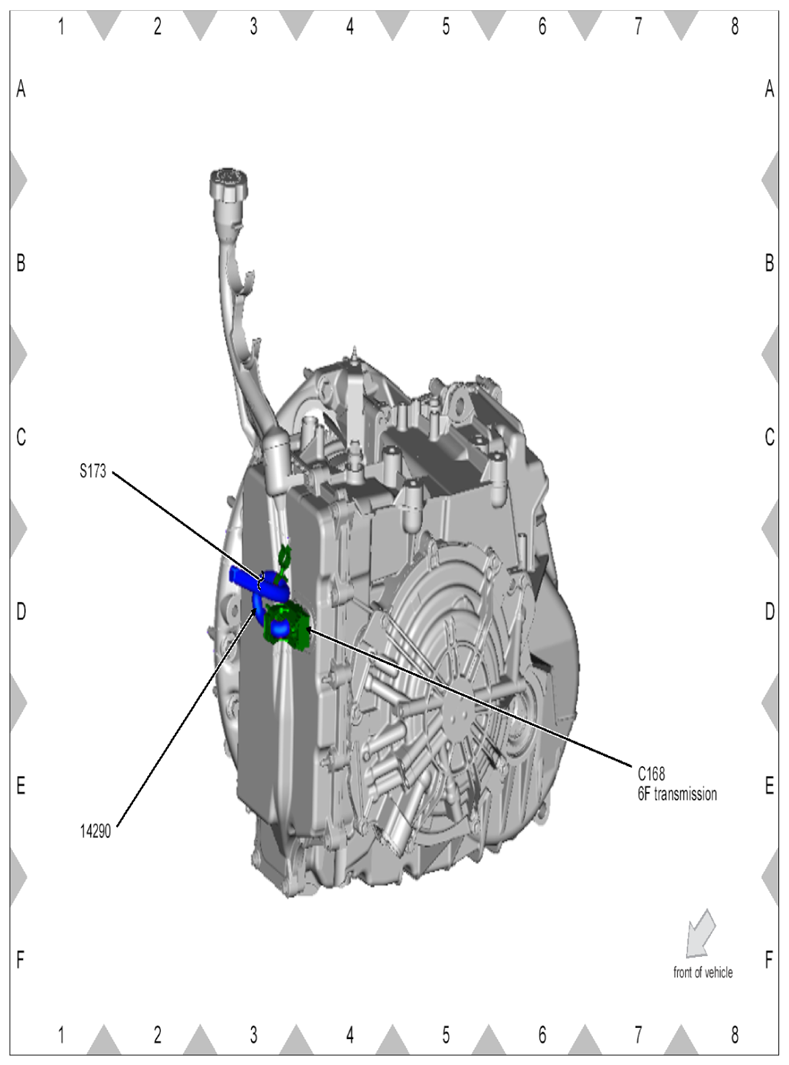

Fig 8: Transmission Connectors Locations

G07860560

Courtesy of FORD MOTOR CO.

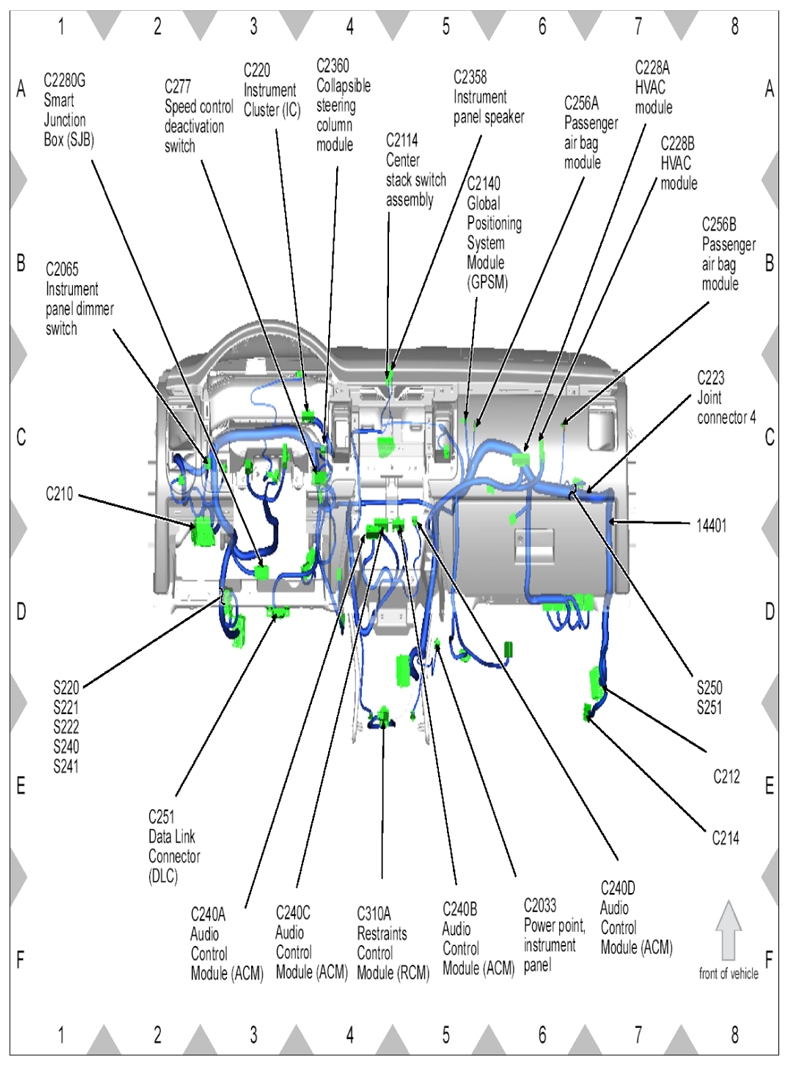

Fig 9: Dashboard Connectors Locations (1 Of 2)

G07860561

Courtesy of FORD MOTOR CO.

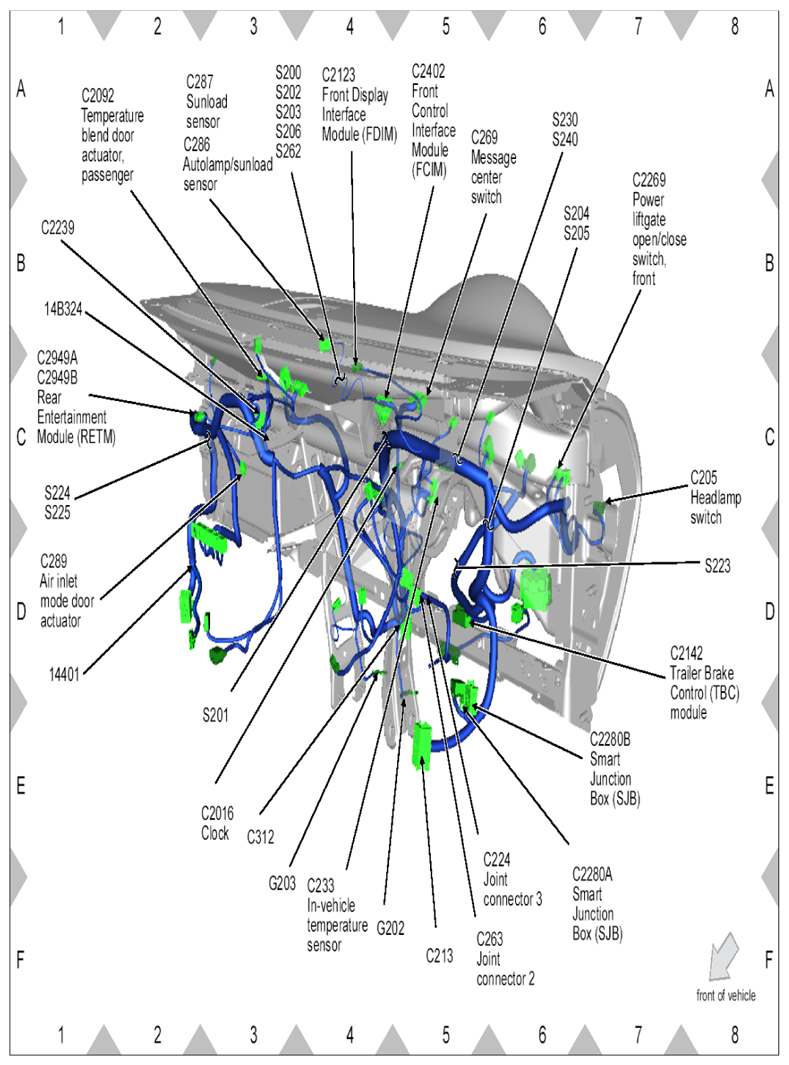

Fig 10: Dashboard Connectors Locations (2 Of 2)

G07860562

Courtesy of FORD MOTOR CO.

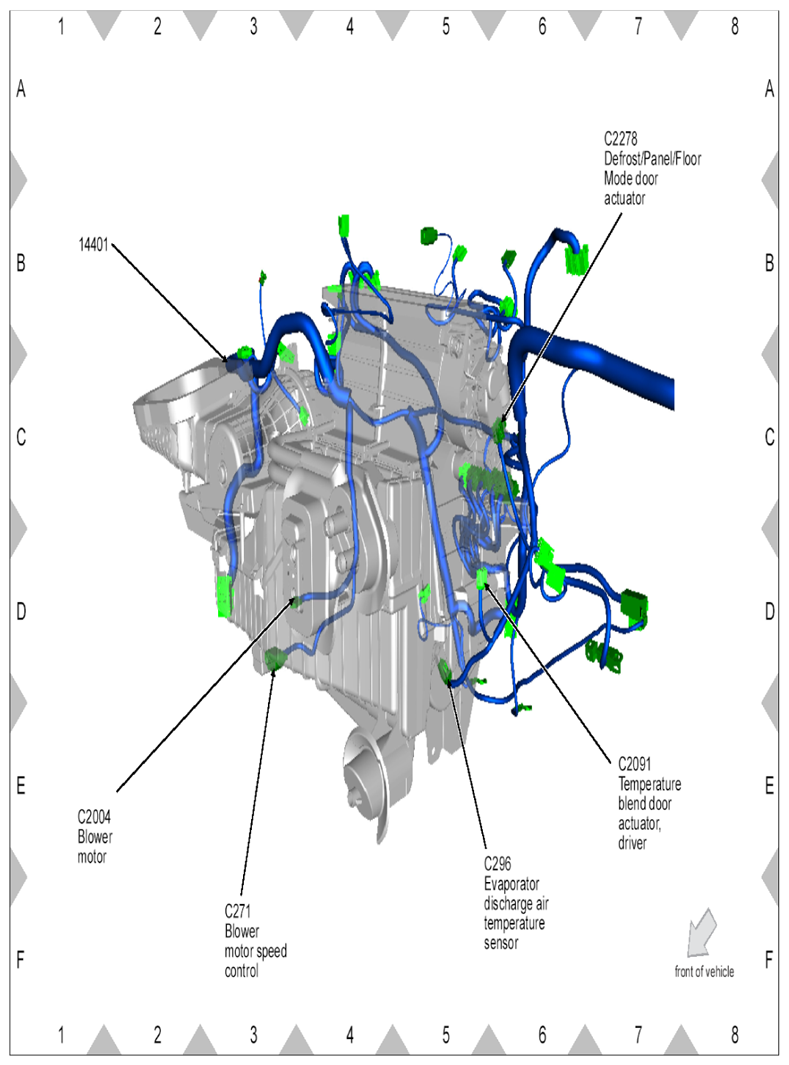

Fig 11: Blower Motor Assembly Connectors Locations

G07860563

Courtesy of FORD MOTOR CO.

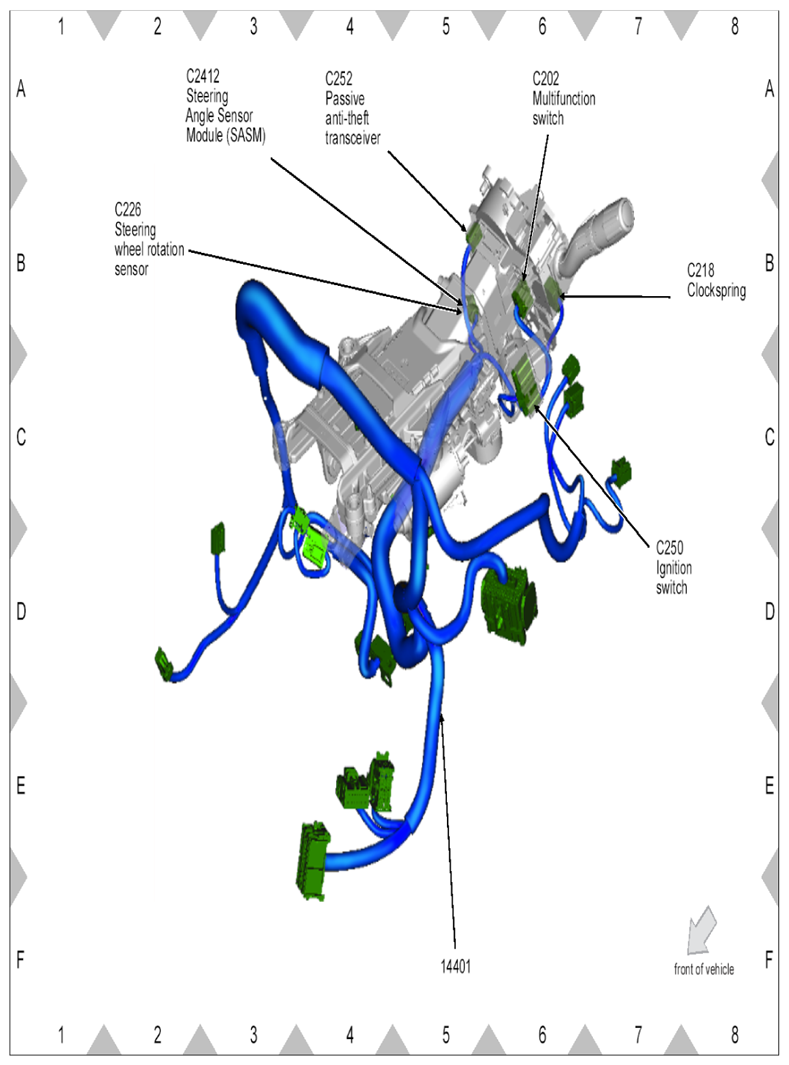

Fig 12: Steering System Connectors Locations

G07860564

Courtesy of FORD MOTOR CO.

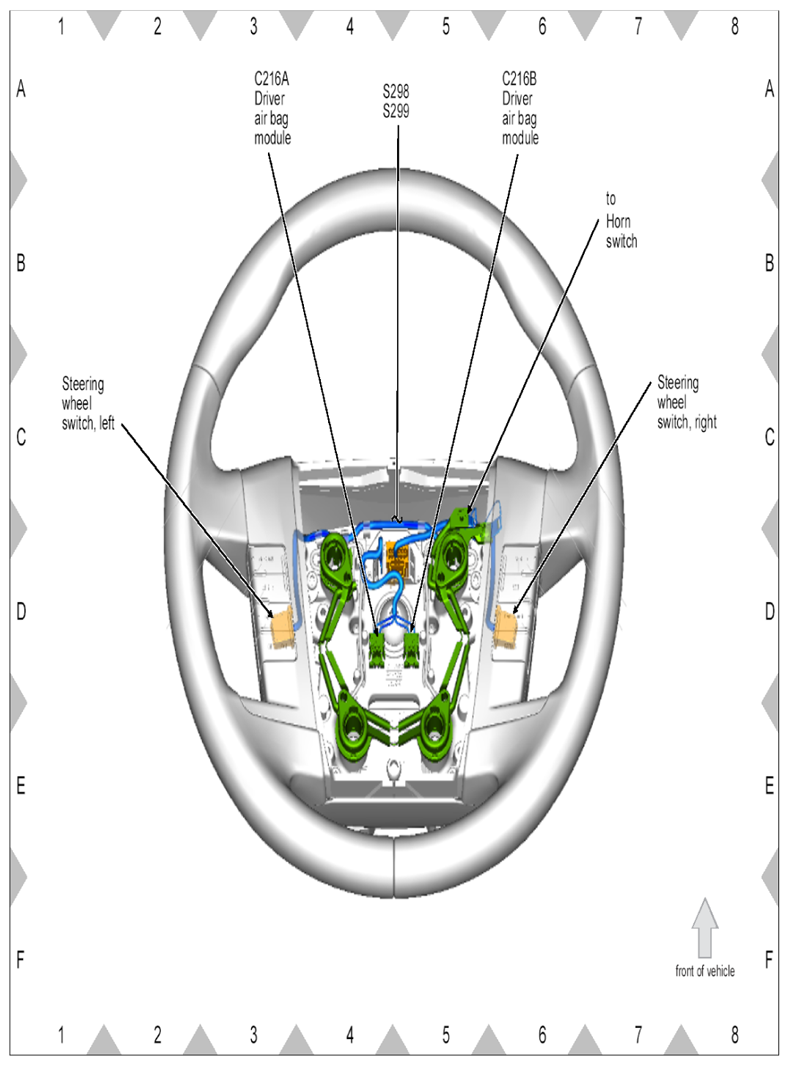

Fig 13: Steering Wheel Connectors Locations

G07860565

Courtesy of FORD MOTOR CO.

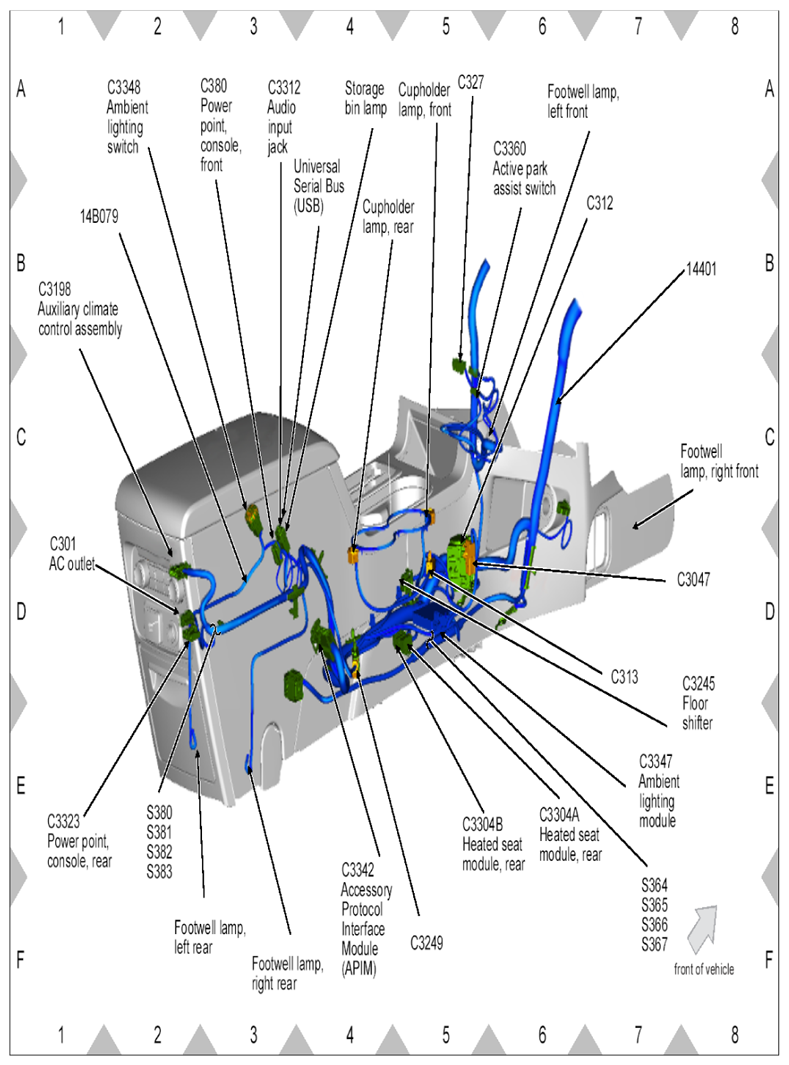

Fig 14: Central Console Rear Connectors Locations

G07860566

Courtesy of FORD MOTOR CO.

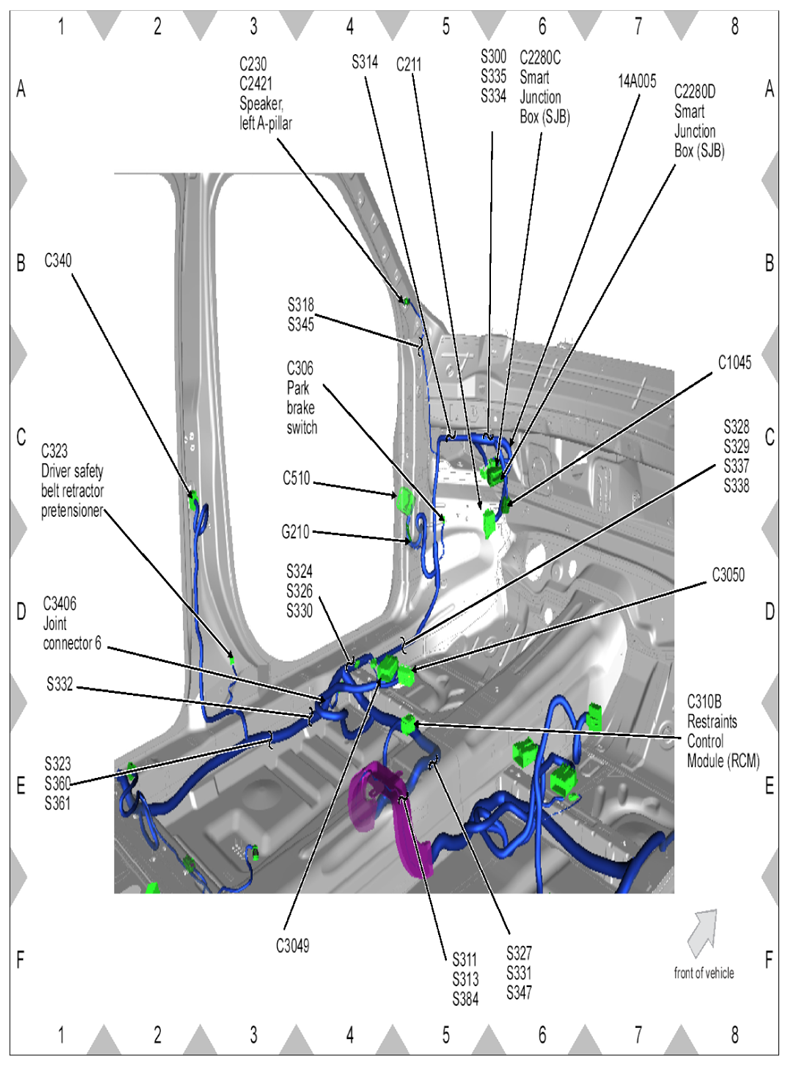

Fig 15: Body Panel Connectors Locations (1 Of 5)

G07860567

Courtesy of FORD MOTOR CO.

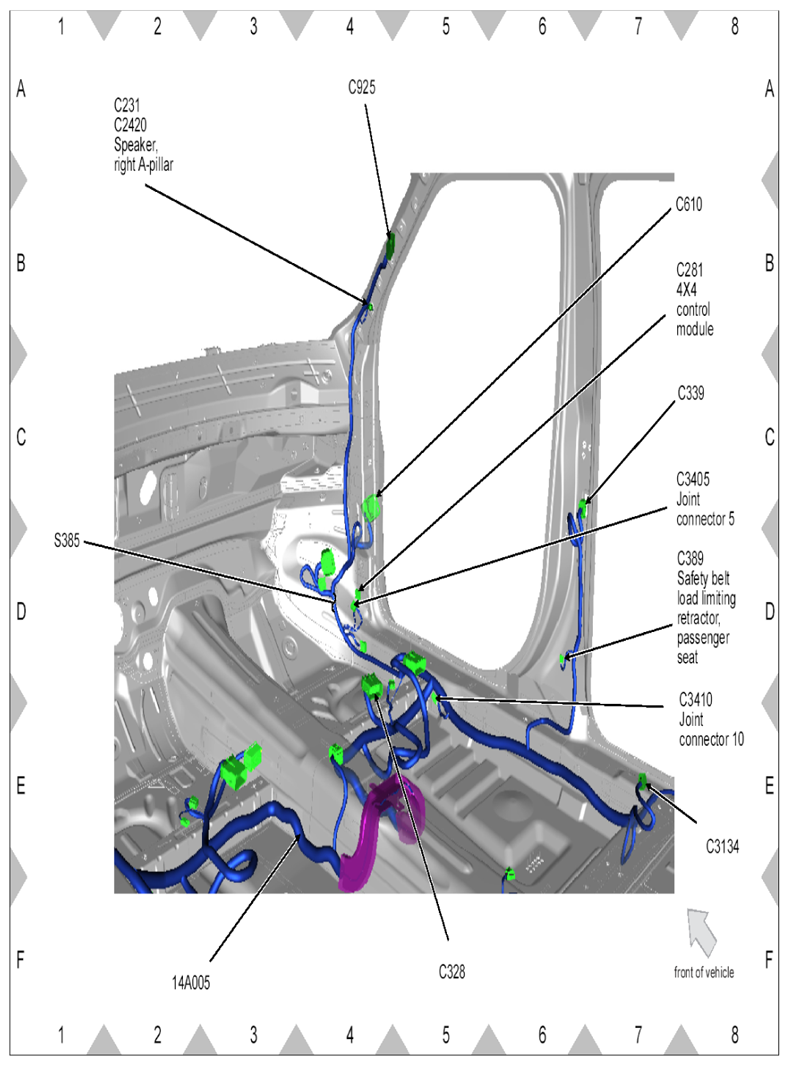

Fig 16: Body Panel Connectors Locations (2 Of 5)

G07860568

Courtesy of FORD MOTOR CO.

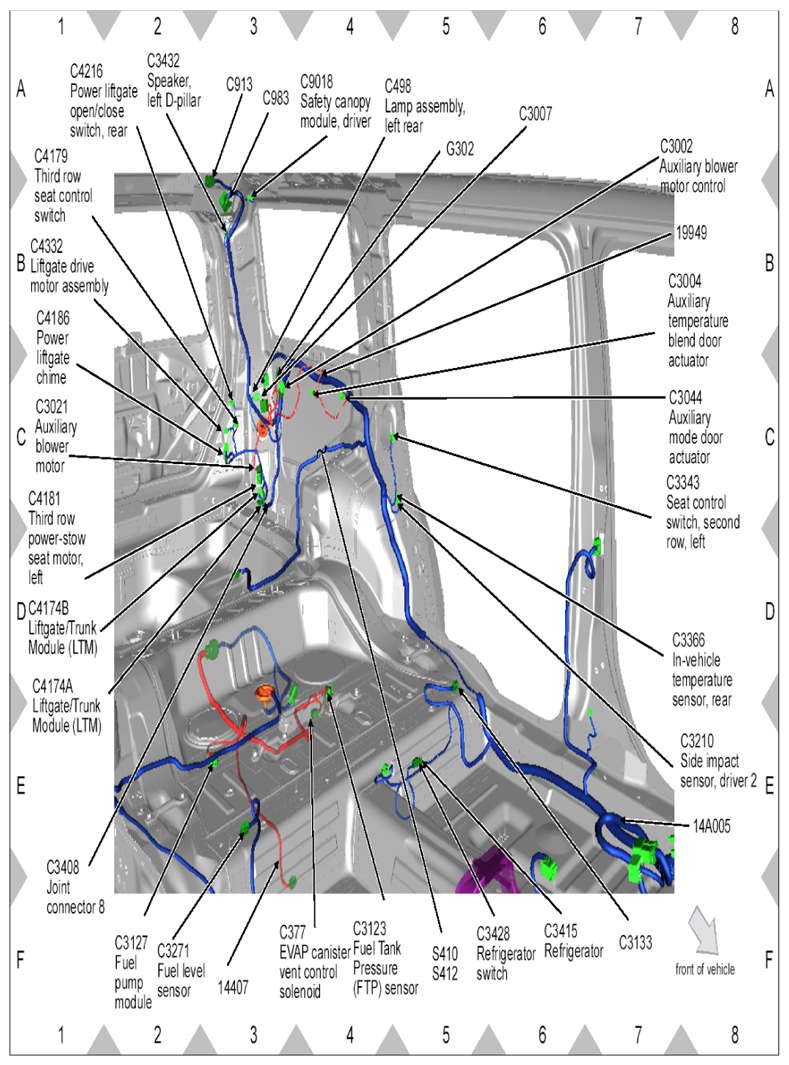

Fig 17: Body Panel Connectors Locations (3 Of 5)

G07860569

Courtesy of FORD MOTOR CO.

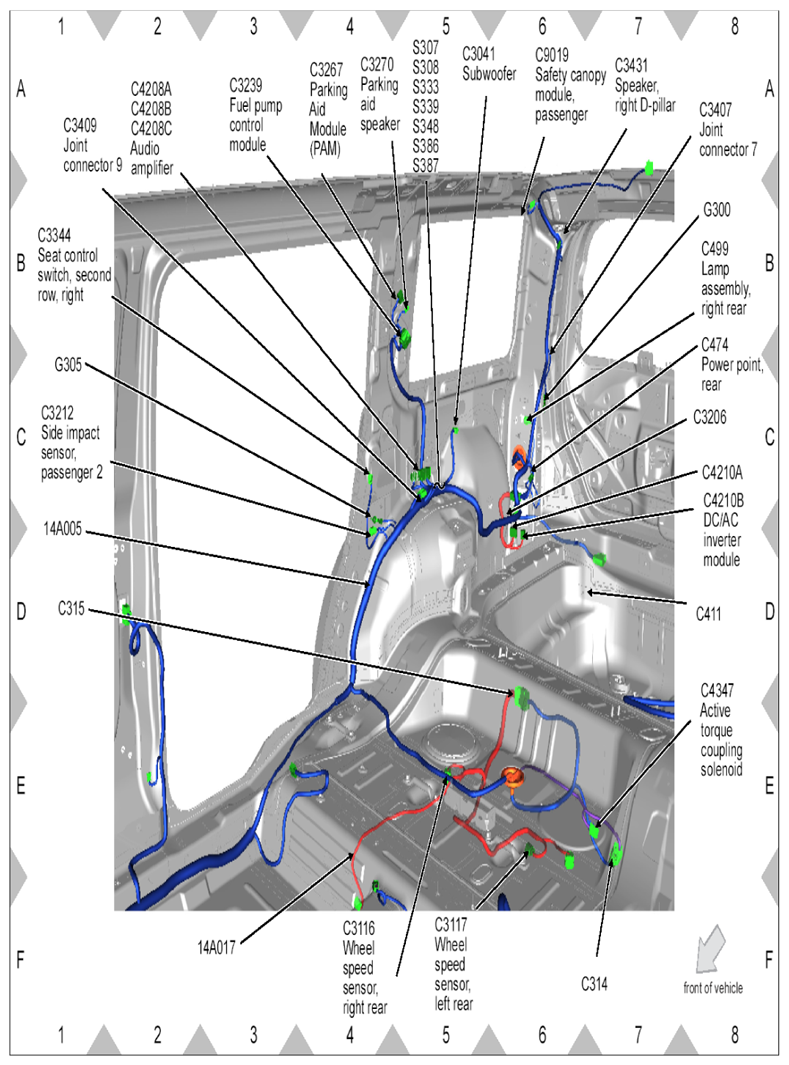

Fig 18: Body Panel Connectors Locations (4 Of 5)

G07860570

Courtesy of FORD MOTOR CO.

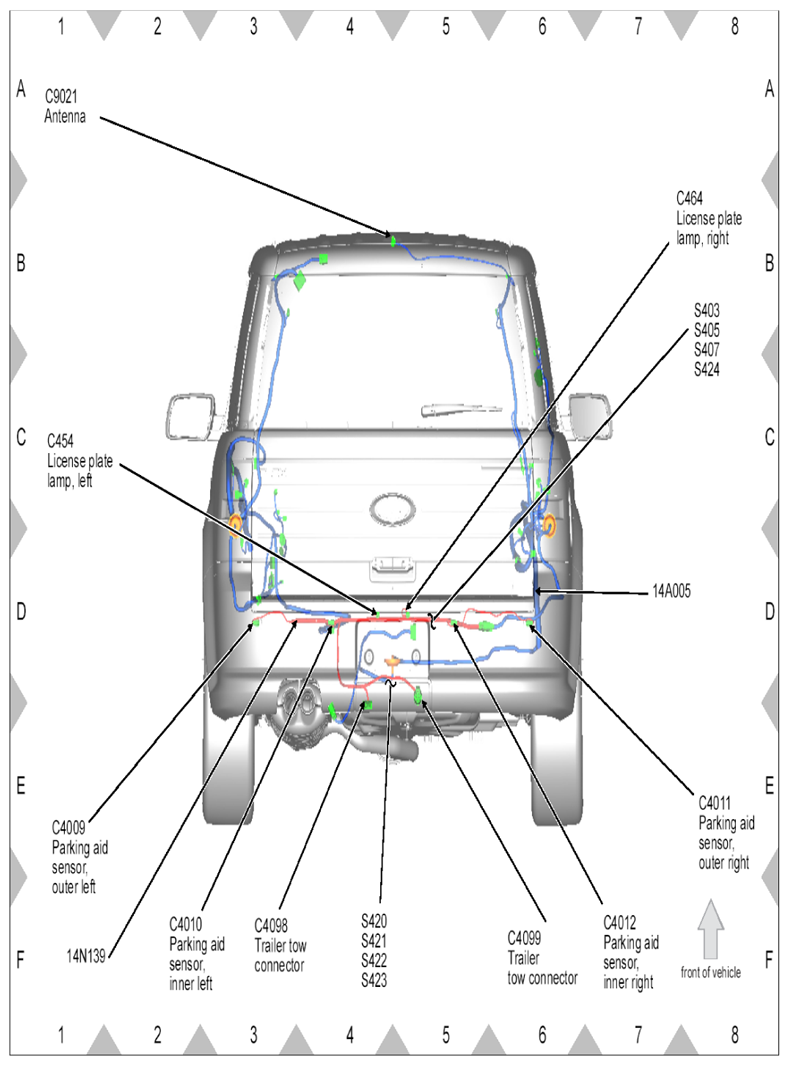

Fig 19: Body Panel Connectors Locations (5 Of 5)

G07860571

Courtesy of FORD MOTOR CO.

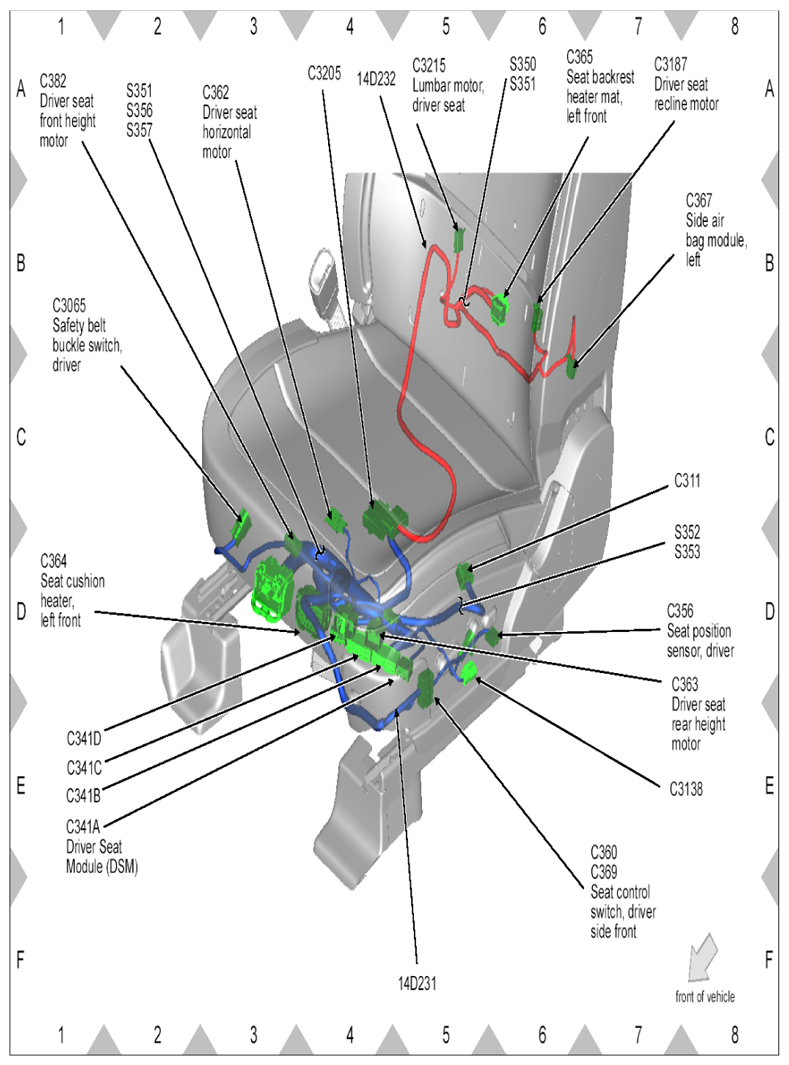

Fig 20: Driver Seat Connectors Locations

G07860572

Courtesy of FORD MOTOR CO.

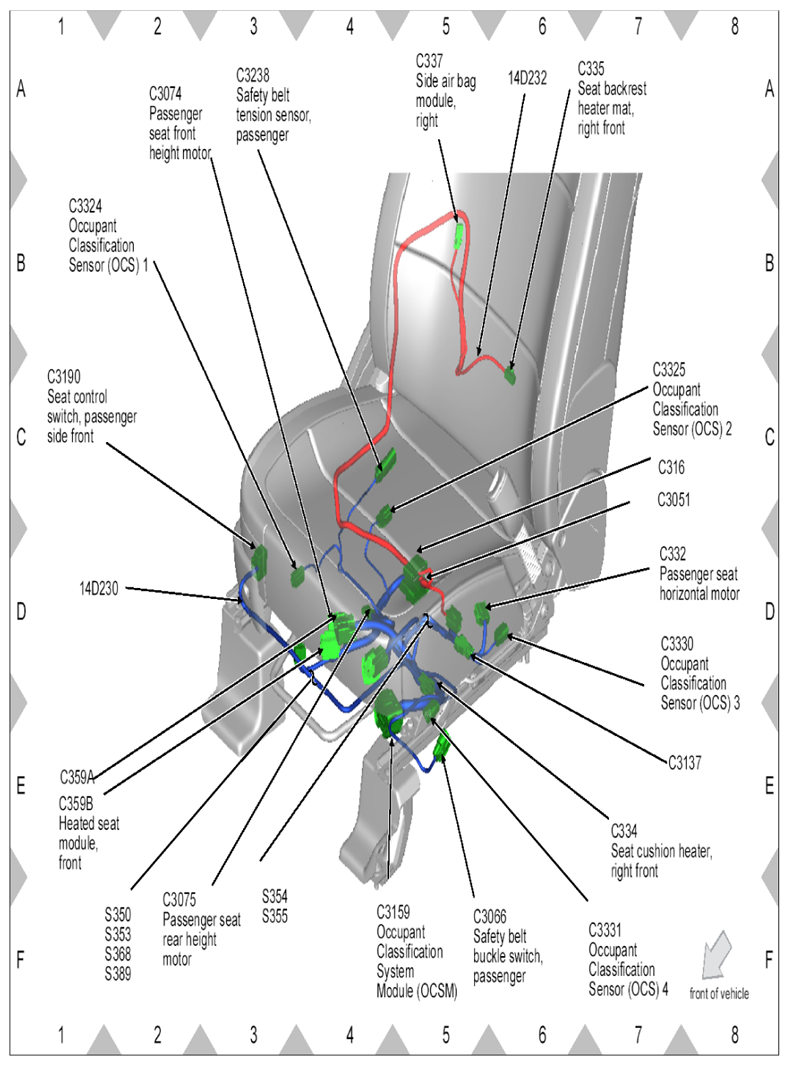

Fig 21: Passenger Seat Front Connectors Locations

G07860573

Courtesy of FORD MOTOR CO.

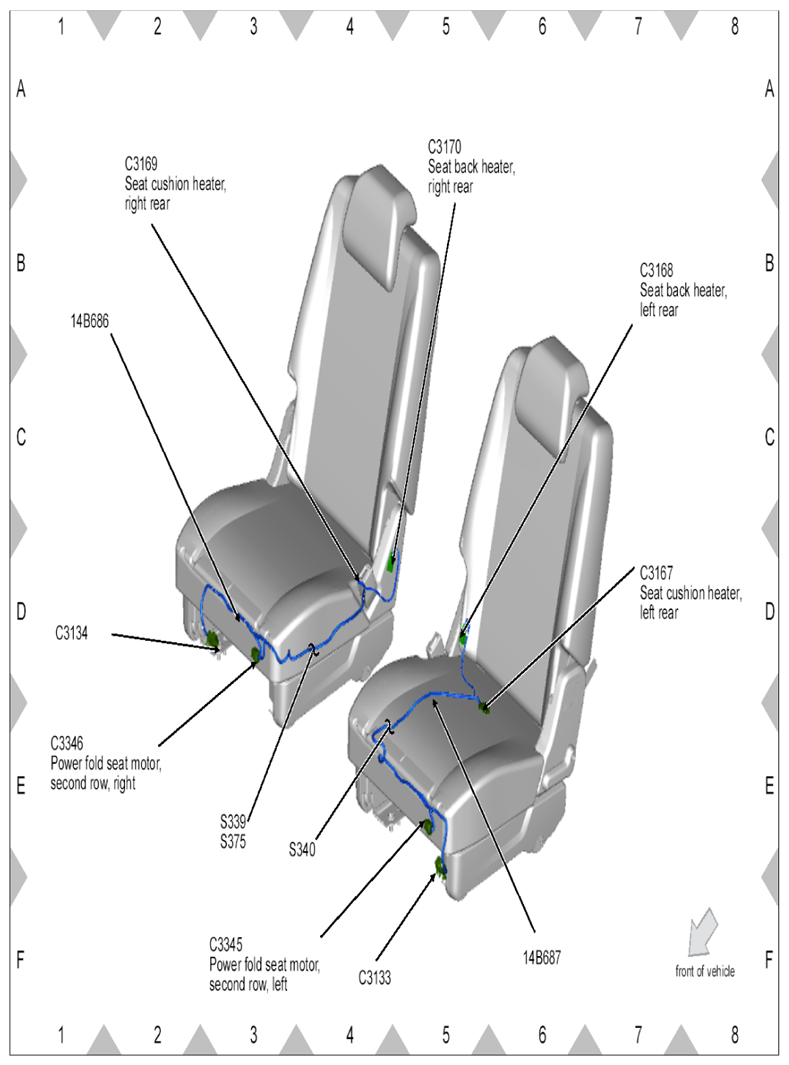

Fig 22: Rear Seats Connectors Locations

G07860574

Courtesy of FORD MOTOR CO.

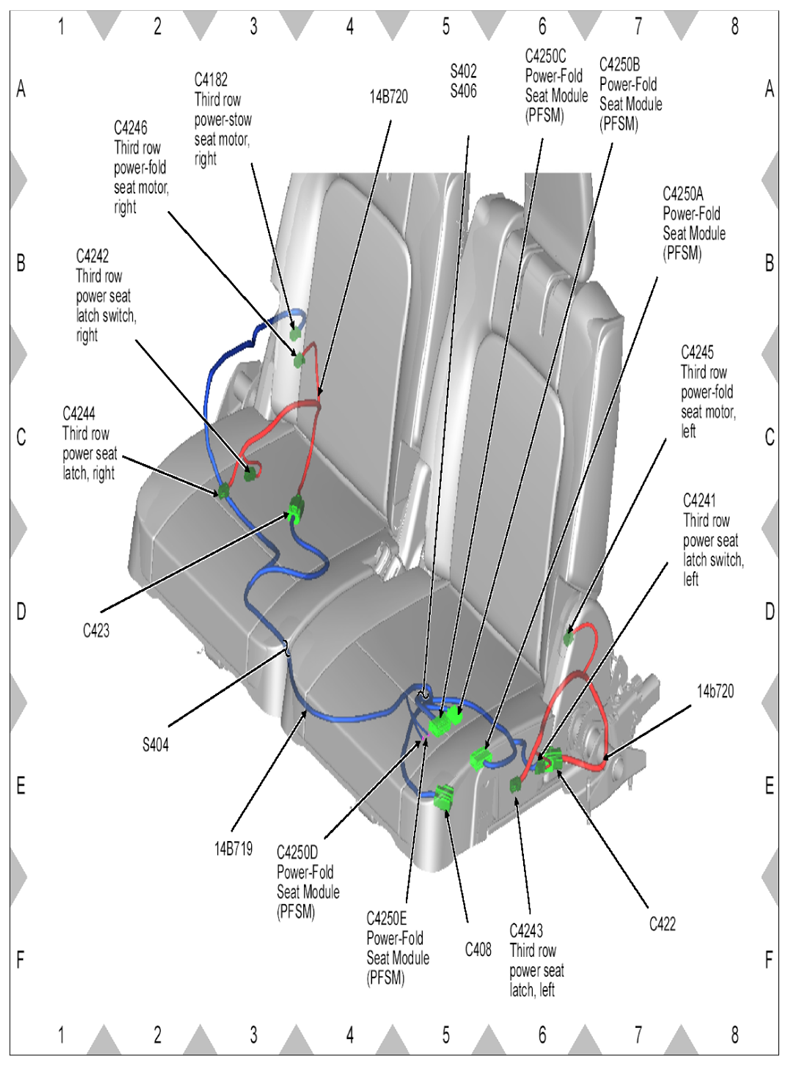

Fig 23: Third Row Seats Connectors Locations

G07860575

Courtesy of FORD MOTOR CO.

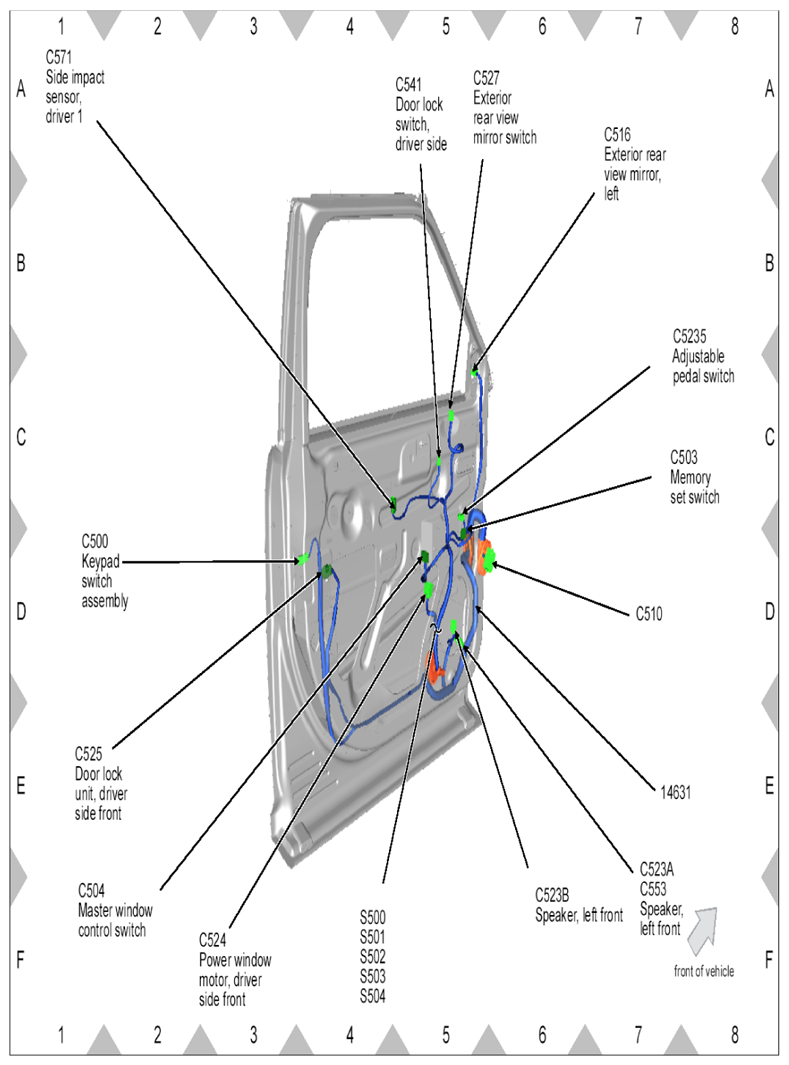

Fig 24: Door Panel Connectors Locations (1 Of 5)

G07860576

Courtesy of FORD MOTOR CO.

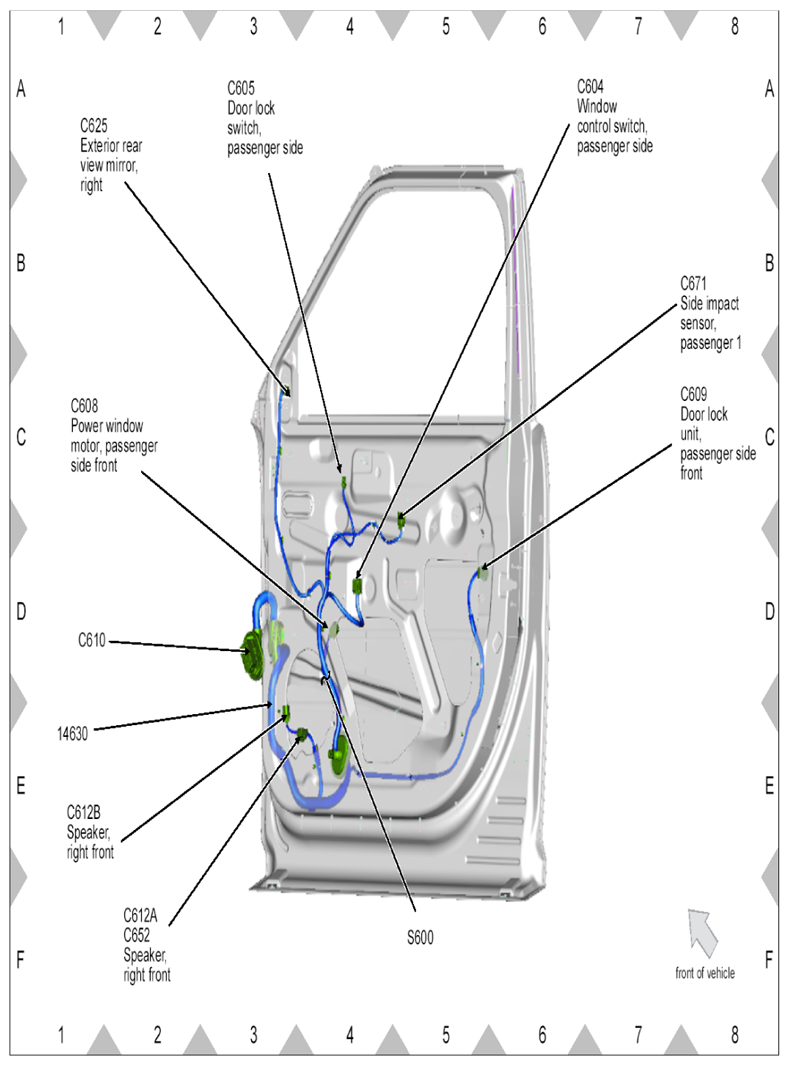

Fig 25: Door Panel Connectors Locations (2 Of 5)

G07860577

Courtesy of FORD MOTOR CO.

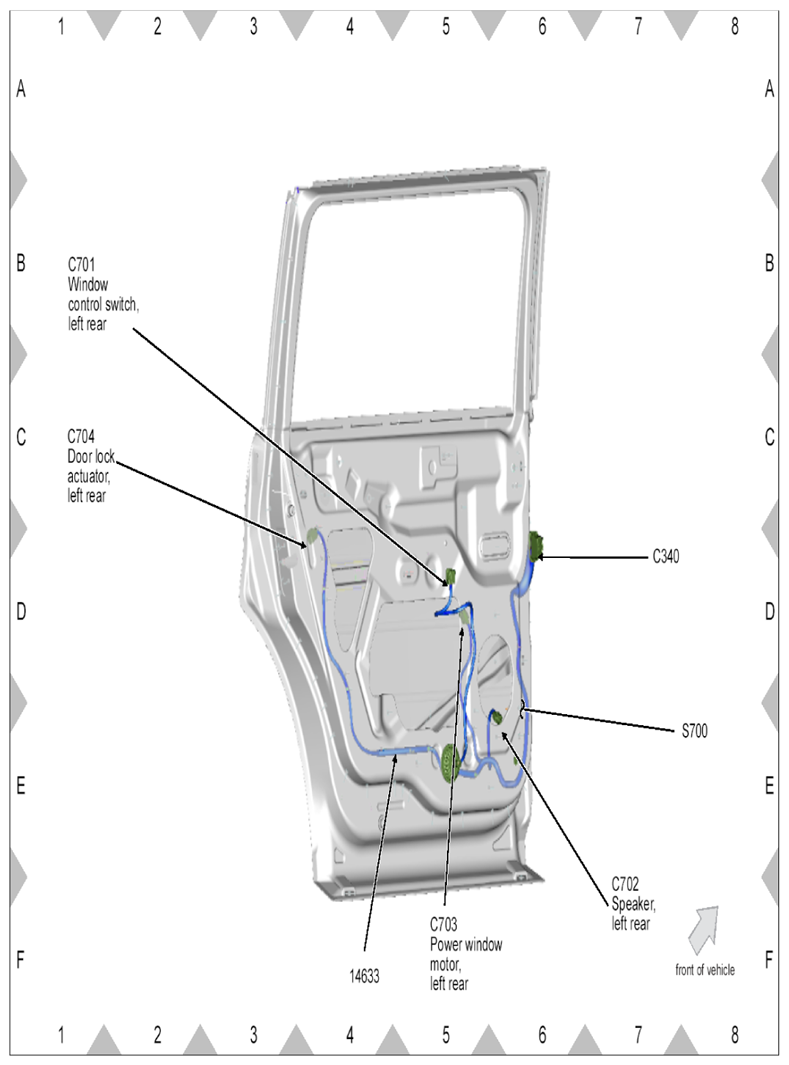

Fig 26: Door Panel Connectors Locations (3 Of 5)

G07860578

Courtesy of FORD MOTOR CO.

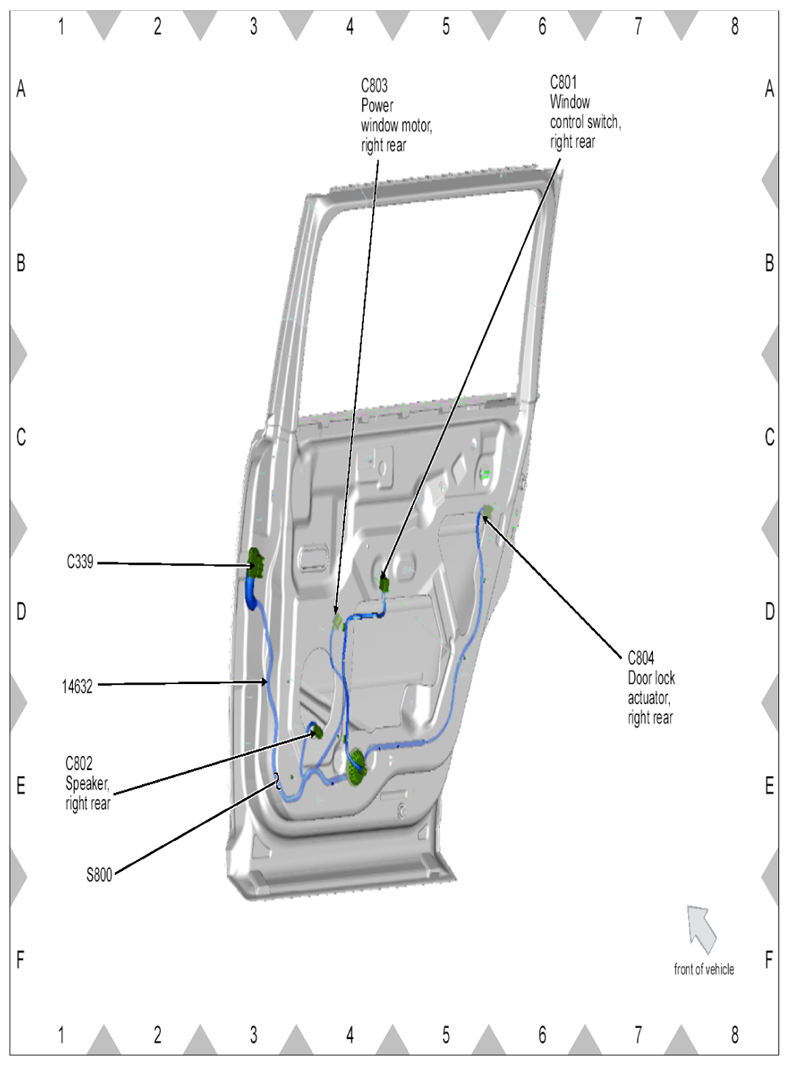

Fig 27: Door Panel Connectors Locations (4 Of 5)

G07860579

Courtesy of FORD MOTOR CO.

Fig 28: Door Panel Connectors Locations (5 Of 5)

G07860580

Courtesy of FORD MOTOR CO.

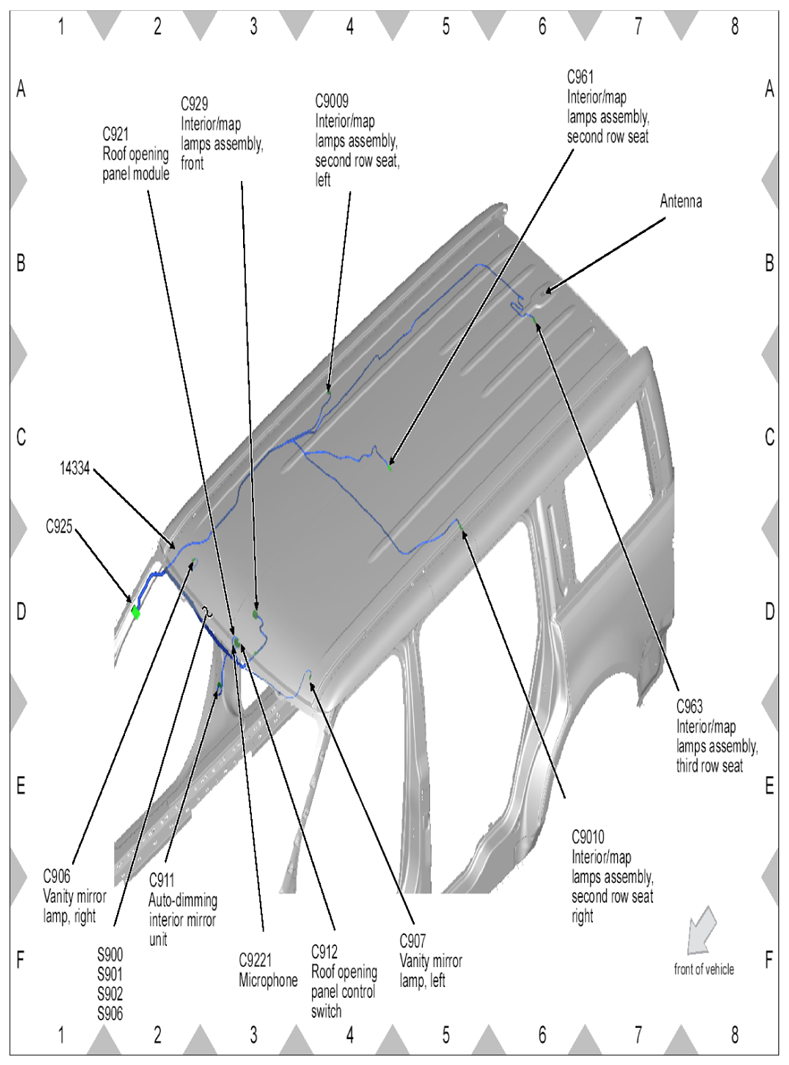

Fig 29: Roof Panel Connectors Locations

G07860581

Courtesy of FORD MOTOR CO.

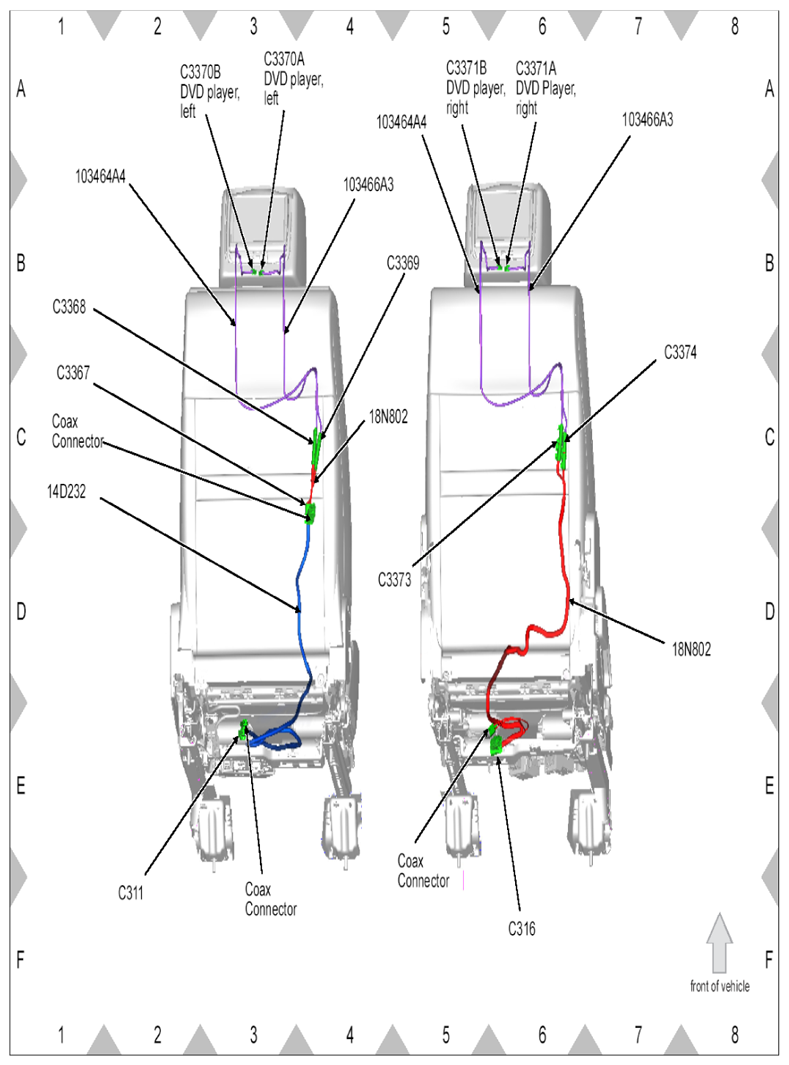

Fig 30: Seat Back Side Connectors Locations

G07860582

Courtesy of FORD MOTOR CO.
