Removal And Installation: Resonator: Installation

Grind the spot weld and the tac weld from the Torca® clamp and remove the clamp.
Clean the uneven surface area and position the new Torca® clamp.

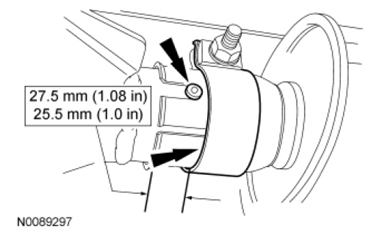

Fig 1: Locating Torca® Clamp Position
Courtesy of FORD MOTOR CO.
Install the resonator with a new exhaust Y-pipe-to-resonator gasket and fasteners.
- Tighten to 40 Nm (30 lb-ft).
NOTE: Make sure the clamp position is no more than 27.5 mm (1.08 in) or less than 25.5 mm (1 in) from the inlet of the resonator pipe.

Make sure the back of the slot is covered by the clamp and the resonator button is fully seated inside the notch.

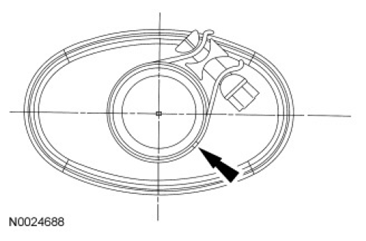

Fig 2: Locating Resonator Pipe Clamp Position
Courtesy of FORD MOTOR CO.
Tighten the Torca® clamp.
- Tighten to 55 Nm (41 lb-ft).
