Spring Lock Couplings: Connect

NOTE: Lubricate the tube with clean engine oil.

Align and push the spring lock coupling onto the tube until fully seated.

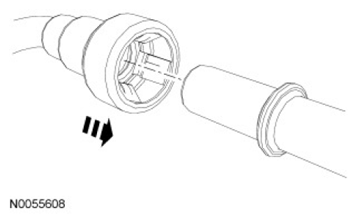

Fig 1: Pushing Spring Lock Coupling Onto Tube
Courtesy of FORD MOTOR CO.
Pull on the coupling to make sure it is fully engaged.
Connect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING SYSTEM & BATTERY CABLES .
