Steering Wheel: Notes

NOTE: Steering wheel with paddle shiftier shown in the illustration, steering wheel without paddle shiftier similar.

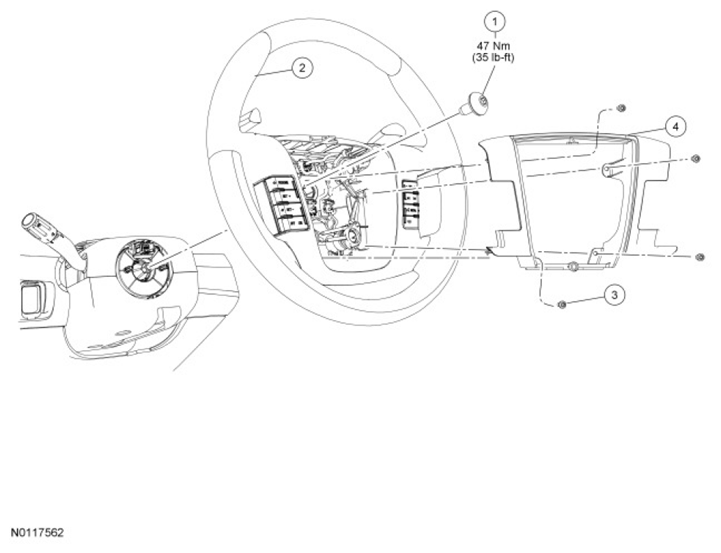

Fig 1: Exploded View Of Steering Wheel Components With Torque Specification
G07467213Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W708887 Steering wheel bolt
2 3600 Steering wheel
3 W790213 Steering wheel bezel screw (4 required)
4 3D758 Steering wheel bezel
