Selector Lever Bezel: Installation

All vehicles

1. NOTE: Do not lock the 4 selector lever bezel tabs in the selector lever bezel.

   Position the selector lever bezel on the selector lever.

   Vehicles equipped with a TCS

2. Route the TCS  wiring harness through the selector lever bezel and connect the TCS  connector.

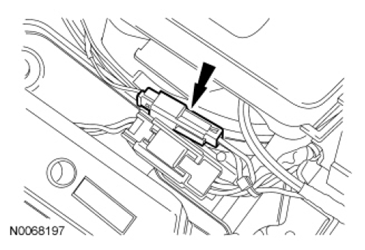

   Fig 1: Locating TCS Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

3. Connect the selector lever bezel light to the selector lever.

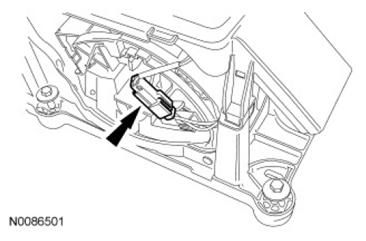

   Fig 2: Locating Selector Lever Bezel Light Electrical Connector

   Courtesy of FORD MOTOR CO.
4. NOTE: Selector lever removed for clarity.

   Position the selector lever bezel in place.

   • Be sure the 4 tabs are locked in place.

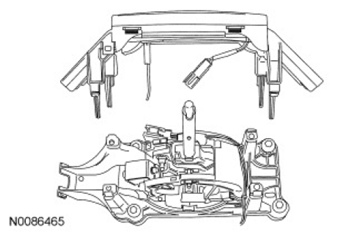

   Fig 3: Locating Selector Lever Tabs

   Courtesy of FORD MOTOR CO.

   Vehicles not equipped with a TCS

5. Position the selector lever knob bezel and the selector lever knob in place.

   All vehicles

6. Position the selector lever knob and knob bezel in place and install the screws.

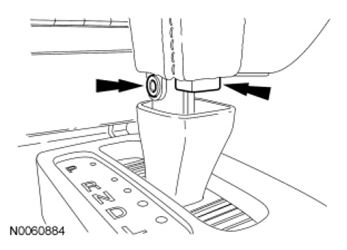

   Fig 4: Locating Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.
7. Slide the lower selector lever knob bezel up and snap it into place.

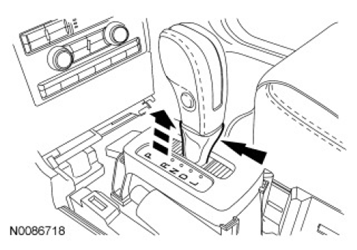

   Fig 5: Sliding Lower Selector Lever Knob Bezel

   Courtesy of FORD MOTOR CO.
8. Install the upper console panel.

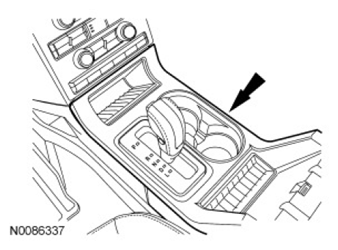

   Fig 6: Locating Upper Console Panel

   Courtesy of FORD MOTOR CO.
9. Install the selector lever bezel trim ring.

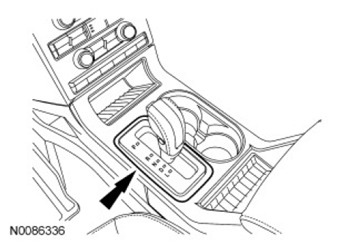

   Fig 7: Locating Selector Lever Bezel Trim Ring

   Courtesy of FORD MOTOR CO.
