Selector Lever Cable: Notes

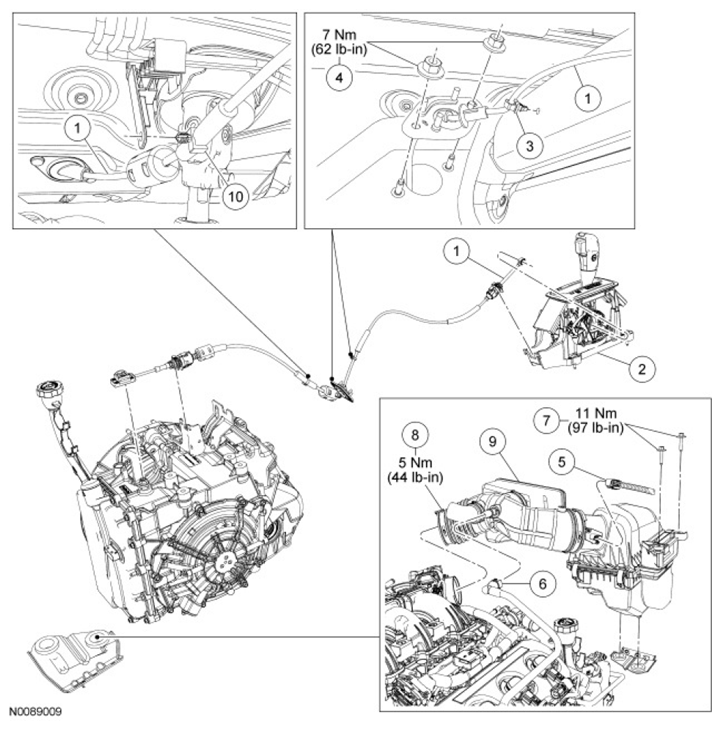

Fig 1: Exploded View Of Selector Lever Cable With Torque Specifications

Courtesy of FORD MOTOR CO.

SELECTOR LEVER CABLE PARTS DESCRIPTION CHART

Item	Part Number	Description
1	7E395	Selector lever cable
2	7K004	Selector lever
3	13A506	Selector lever cable retainer
4	W707142	Selector lever cable grommet retaining nuts
5	14A464	Mass Air Flow (MAF) sensor electrical connector
6	6758	Engine vent tube
7	N606678	Air Cleaner (ACL) assembly bolts
8	9C632	ACL outlet pipe clamp
9	9C662	ACL assembly
10	13A506	Selector lever cable retainer
