Selector Lever Knob: Notes

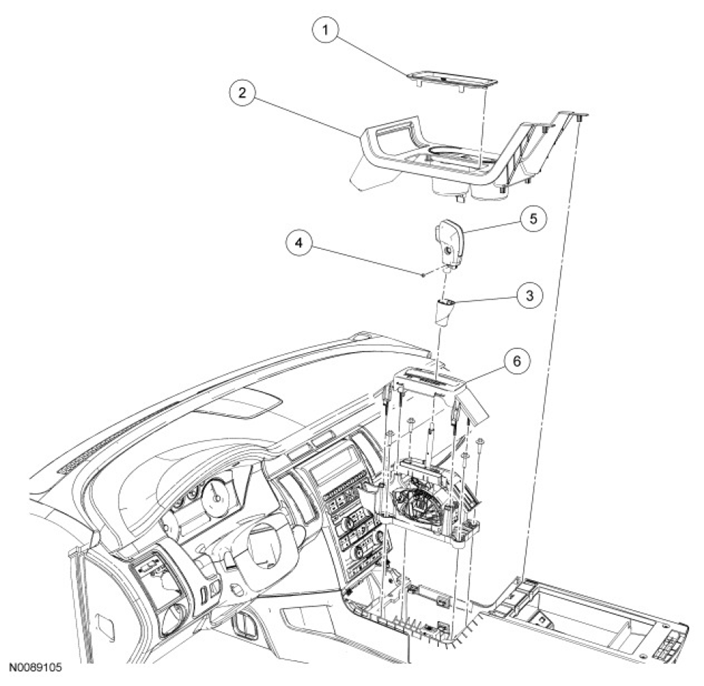

Fig 1: Exploded View Of Selector Lever Knob
G07465121Courtesy of FORD MOTOR CO.
SELECTOR LEVER KNOB PARTS DESCRIPTION CHART

Item Part Number Description
1 54061A16 Selector lever trim ring
2 54045A76 Center console cup holder panel
3 - Lower selector lever knob bezel (part of 7L010)
4 - Selector lever knob screw (part of 7L010)
5 7L010 Selector lever knob
6 7E034 Selector lever bezel
