Selector Lever: Installation

Install the selector lever and the 4 selector lever bolts.
- Tighten to 11 Nm (97 lb-in).

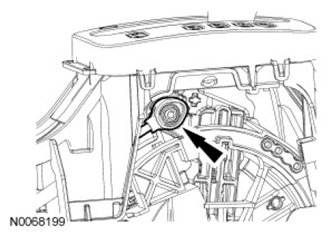

Fig 1: Locating Selector Lever Bolts
Courtesy of FORD MOTOR CO.
Connect the electrical connector.

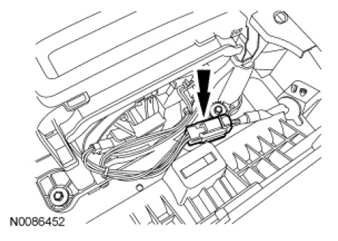

Fig 2: Locating Electrical Connector
Courtesy of FORD MOTOR CO.
Install the selector lever cable on the selector lever bracket. Make sure the 2 clips are securely in place on the selector lever bracket.

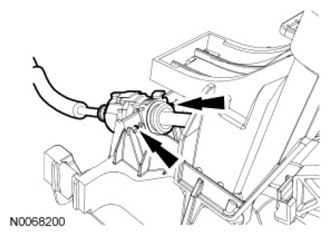

Fig 3: Locating Selector Lever Cable Clips
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end to the selector lever.

Fig 4: Locating Selector Lever Cable End On Selector Lever
Courtesy of FORD MOTOR CO.
NOTE: Damage may occur to the center console if cardboard is not used to install the floor console trim panel.

Insert the floor console trim panel and cardboard simultaneously between the seat and center console.

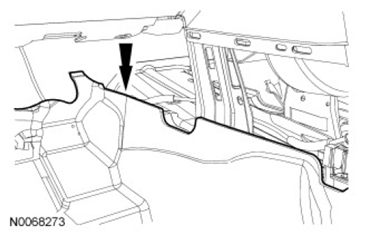

Fig 5: Locating Floor Console Trim Panel
Courtesy of FORD MOTOR CO.
Push the front of the floor console trim panels upward to attach the trim panel from the pin-type retainer.

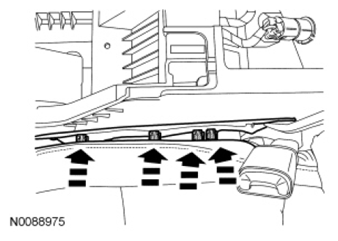

Fig 6: Locating Front Of Floor Console Trim Panel
Courtesy of FORD MOTOR CO.
Push the floor console trim panel inward to attach the retaining clips.

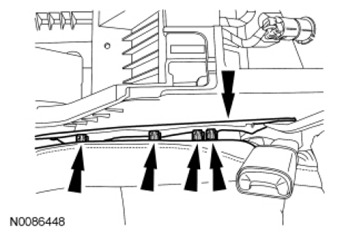

Fig 7: Pushing Floor Console Trim Panel Retaining Clips
Courtesy of FORD MOTOR CO.
Install the floor console finish panel.

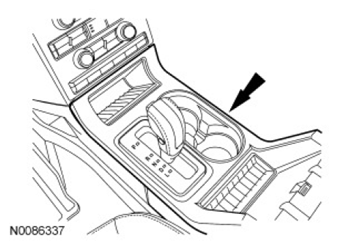

Fig 8: Locating Floor Console Finish Panel
Courtesy of FORD MOTOR CO.
Install the selector lever trim ring.

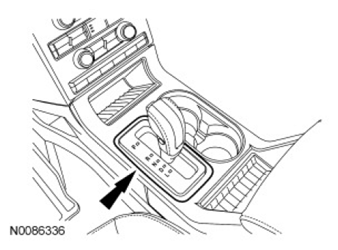

Fig 9: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to SELECTOR LEVER CABLE ADJUSTMENT in this information.
