Selector Lever: Notes

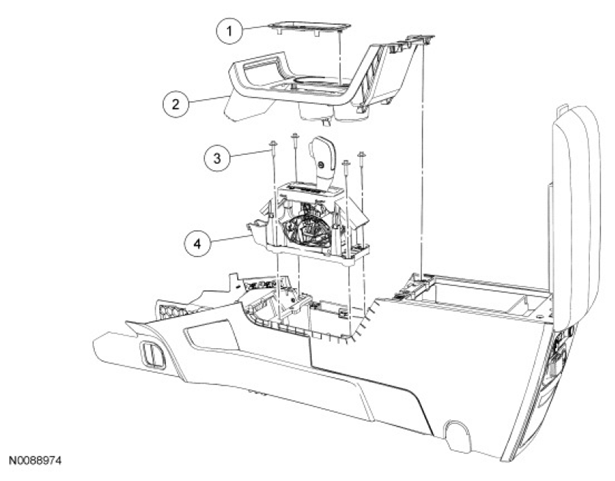

Fig 1: Exploded View Of Selector Lever
G07465100Courtesy of FORD MOTOR CO.
SELECTOR LEVER PARTS DESCRIPTION CHART

Item Part Number Description
1 7E391 Selector lever trim ring
2 045A76 Upper console finish panel
3 N606678 Selector lever bolt
4 7K004 Selector lever
