Audio Control Module (ACM)

Audio Control Module (ACM)









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) in order to retrieve the part number. For additional information, refer to Audio Control Module (ACM) Self-Diagnostic Mode Audio Control Module (ACM) Self-Diagnostic Mode.

1. NOTE: Module configuration is only required if a new ACM is being installed.

Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Module Configuration Programmable Module Installation (PMI).

2. Remove the instrument panel center finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center.

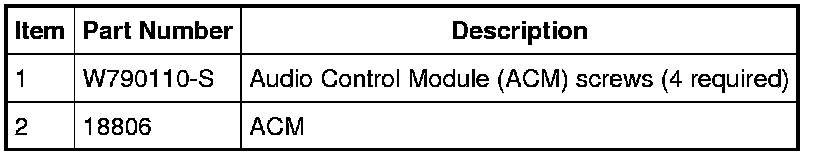

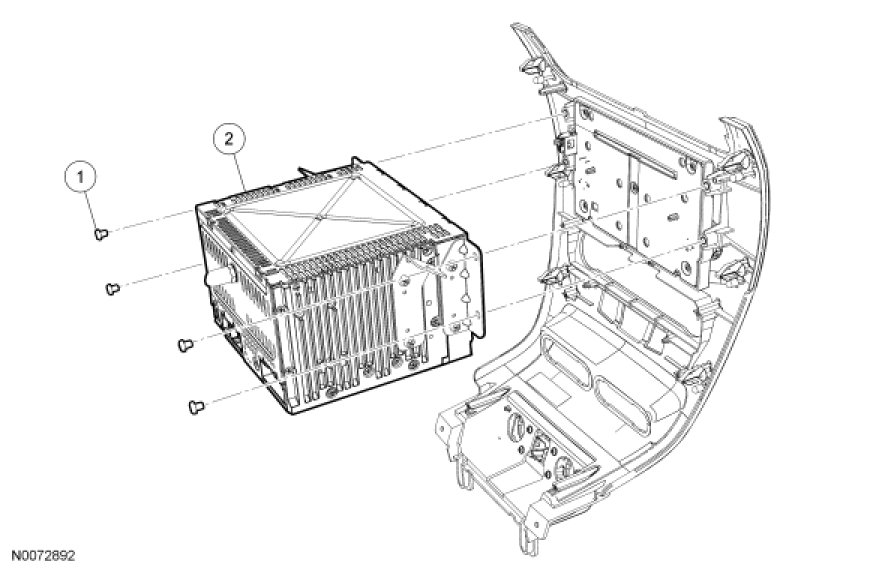

3. Remove the 4 screws and the ACM.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM. For additional information, refer to PMI in Module Configuration Programmable Module Installation (PMI).
