Impact Sensor
>>
C5209 Side Impact Sensor, Driver 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

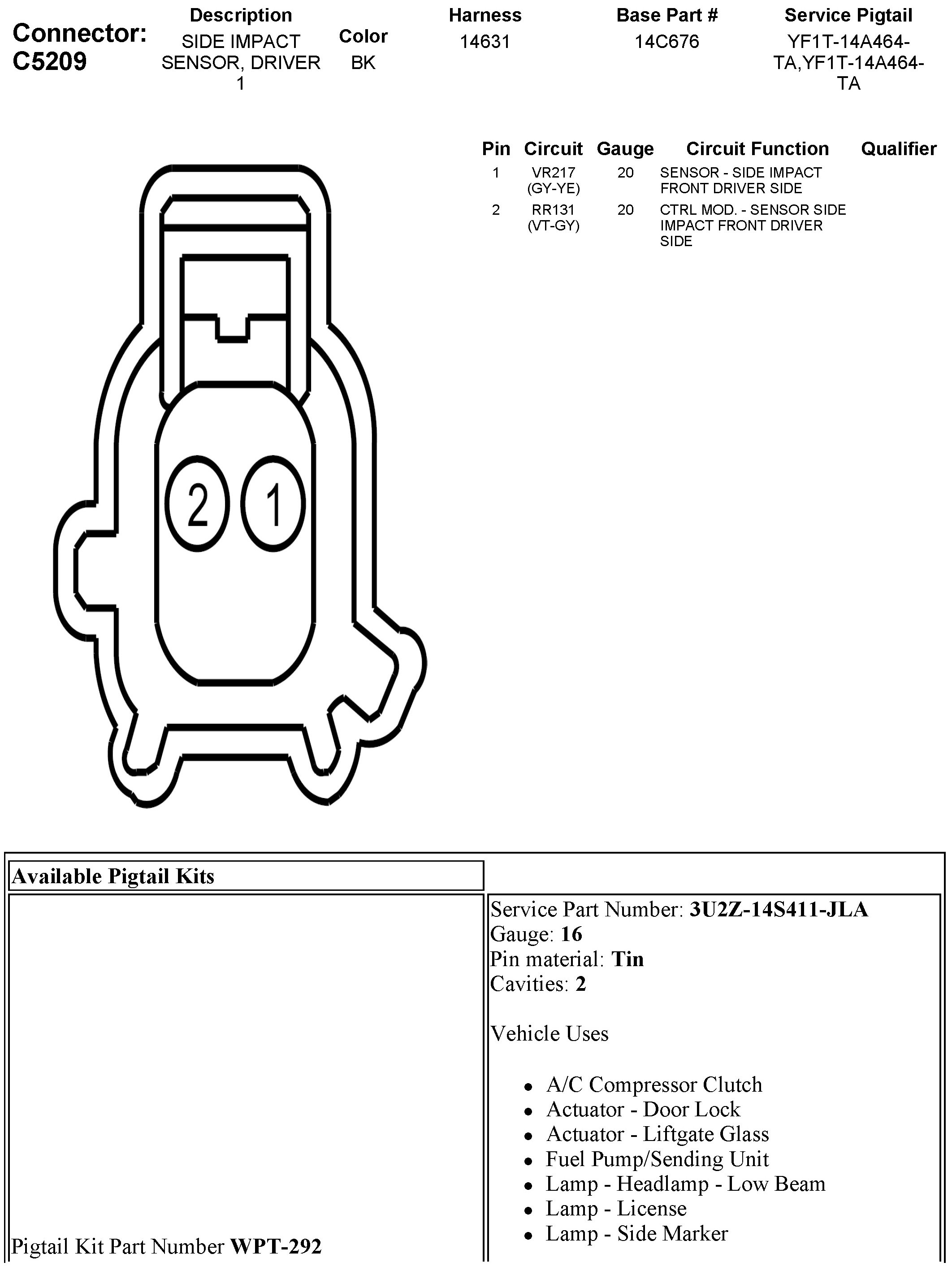

C5209 Side Impact Sensor, Driver 1
