Wiper and Washer Systems

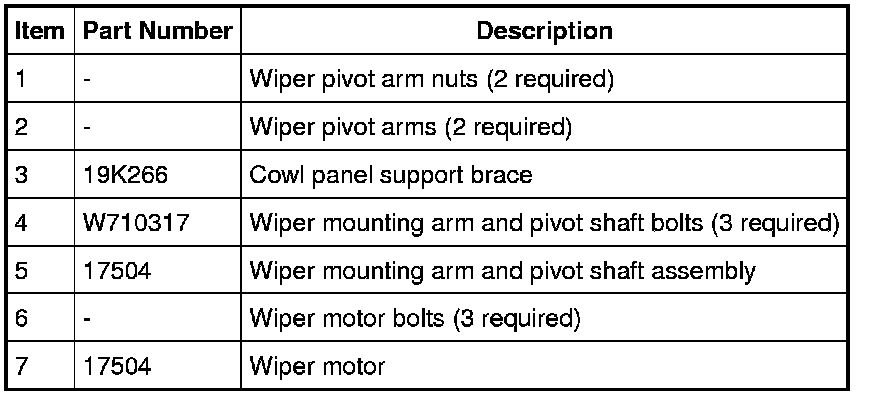

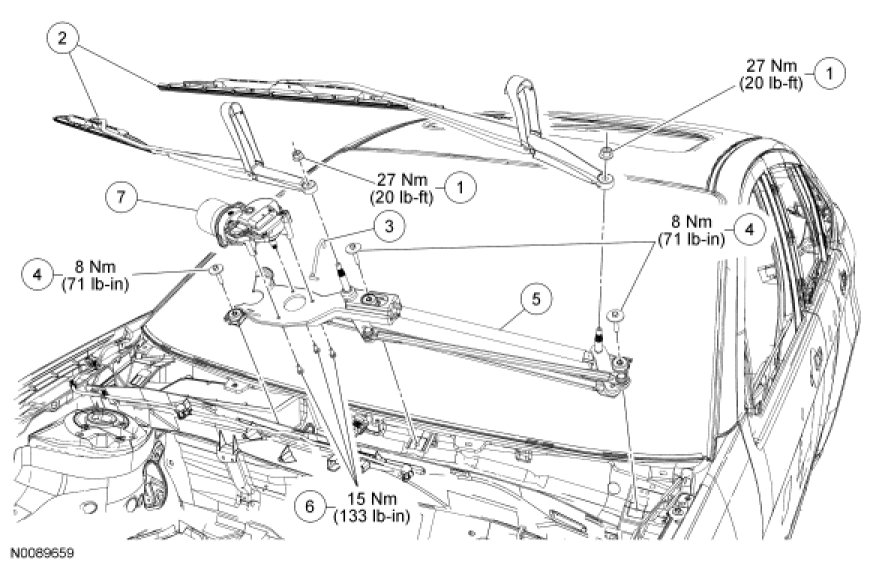

Wiper and Washer System - Exploded View

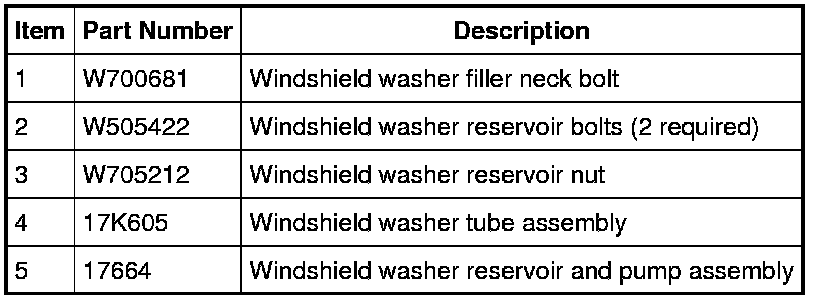

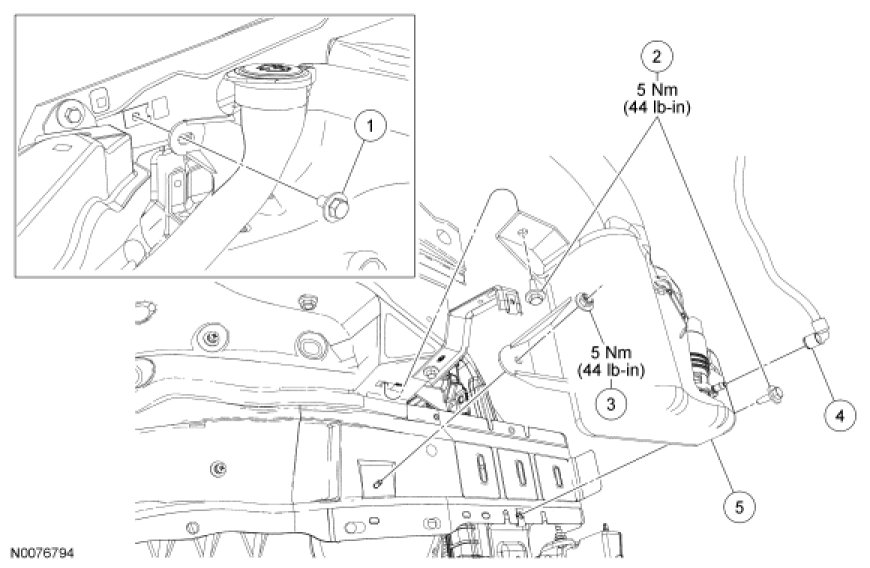

Windshield Washer Pump
and Reservoir Exploded View
