Engine Lubrication Components - Exploded View

Engine Lubrication Components - Exploded View



Oil Filter, Oil Filter Adapter and Engine Oil Pressure (EOP) Switch

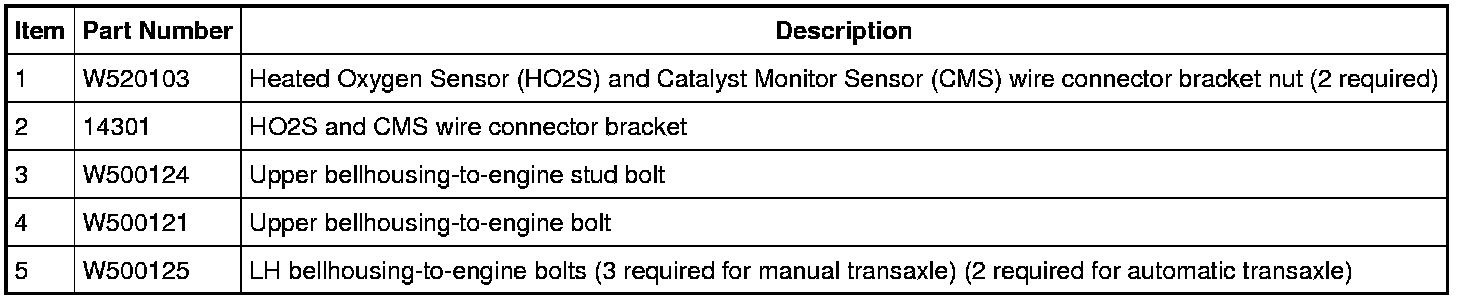

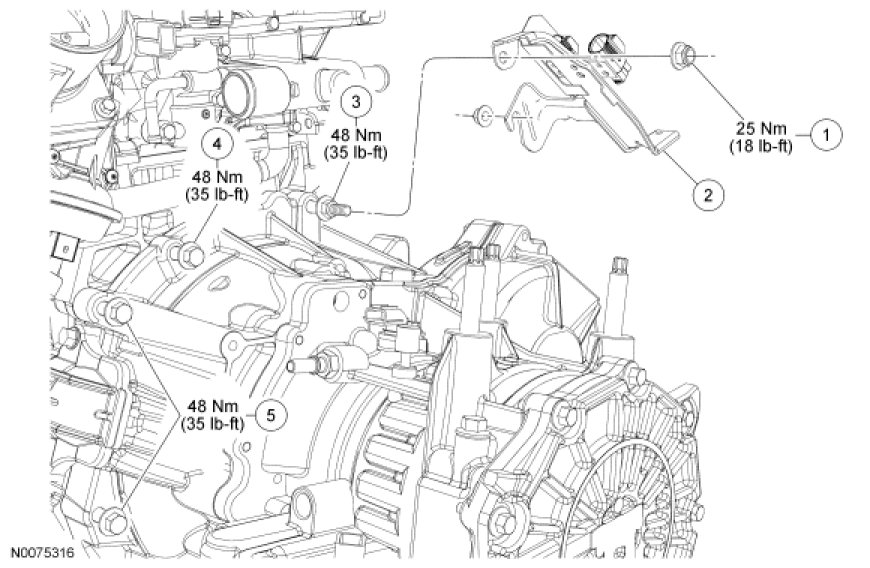

Transaxle Bolts for Oil Pan Removal

NOTE: Automatic transaxle shown, manual transaxle similar.

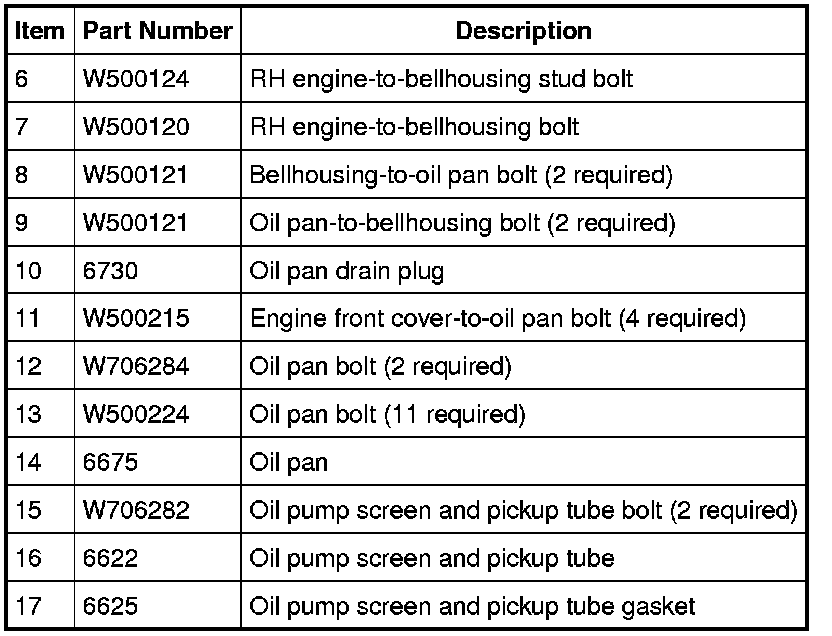

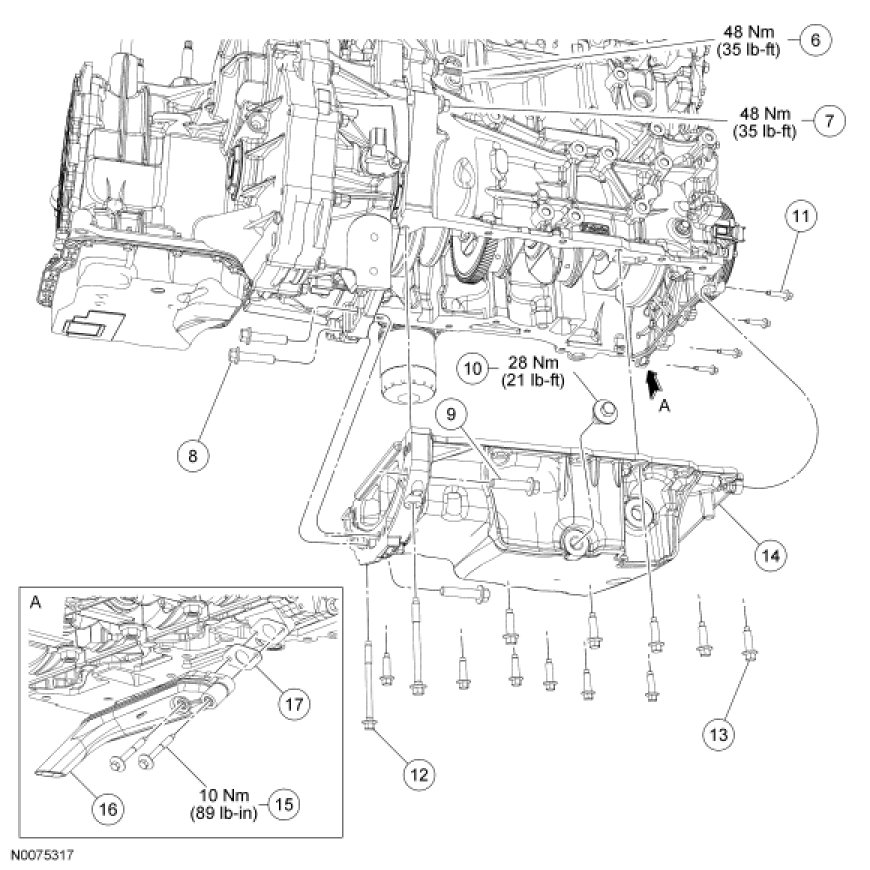

Oil Pan, Oil Pump Screen and Pickup Tube

NOTE: Automatic transaxle shown, manual transaxle similar.

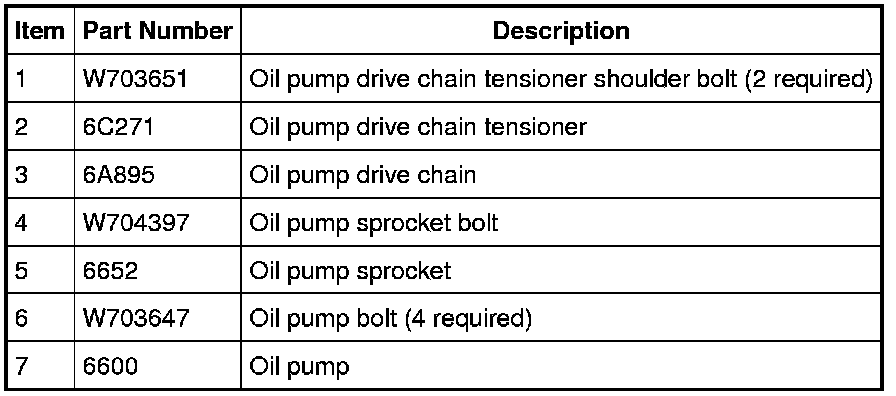

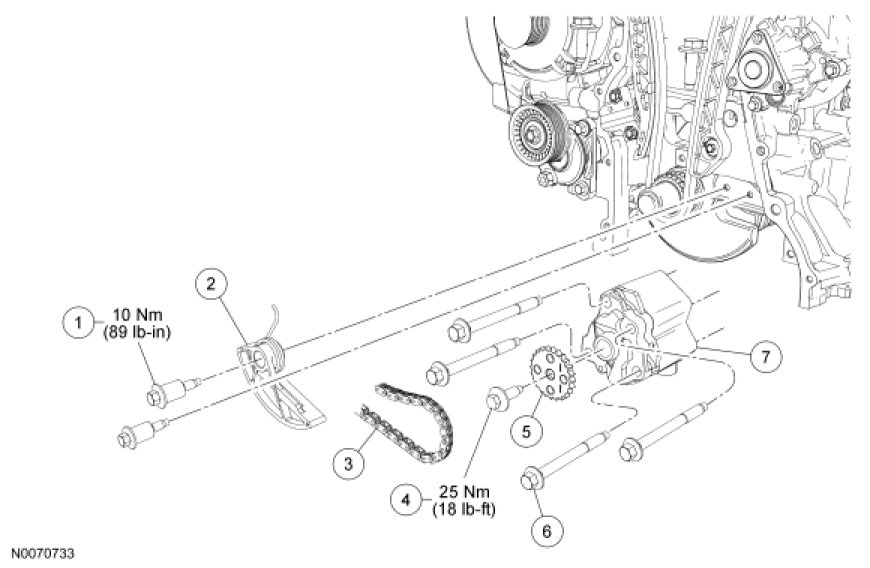

Oil Pump
