Blower Motor Switch

Blower Motor Switch









Removal and Installation

NOTE: The blower motor speed selector knob cannot be removed from the HVAC module.

1. Remove the HVAC module. For additional information, refer to Heating Ventilation Air Conditioning (HVAC) Module Heating Ventilation Air Conditioning (HVAC) Module.

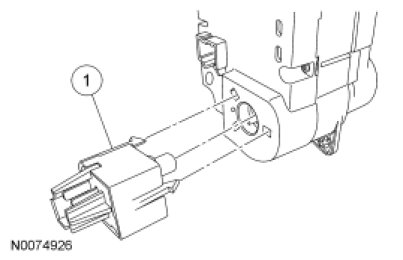

2. Release the 3 blower motor switch clips and remove the blower motor switch.

3. To install, reverse the removal procedure.
