Turn Signals: Service and Repair

Rear Lamp Assembly









Removal and Installation

1. Position the luggage compartment trim panel aside.

2. NOTE: There is a blind metal snap located on the upper portion of the rear lamp assembly which requires slight effort to disengage.

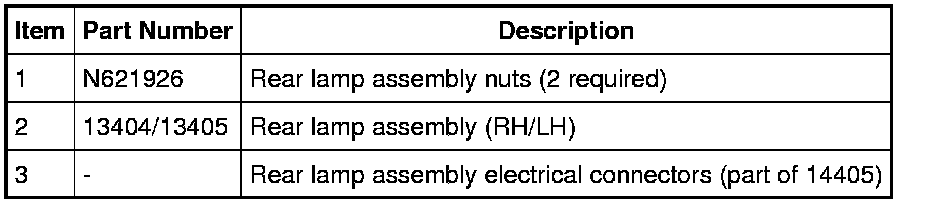

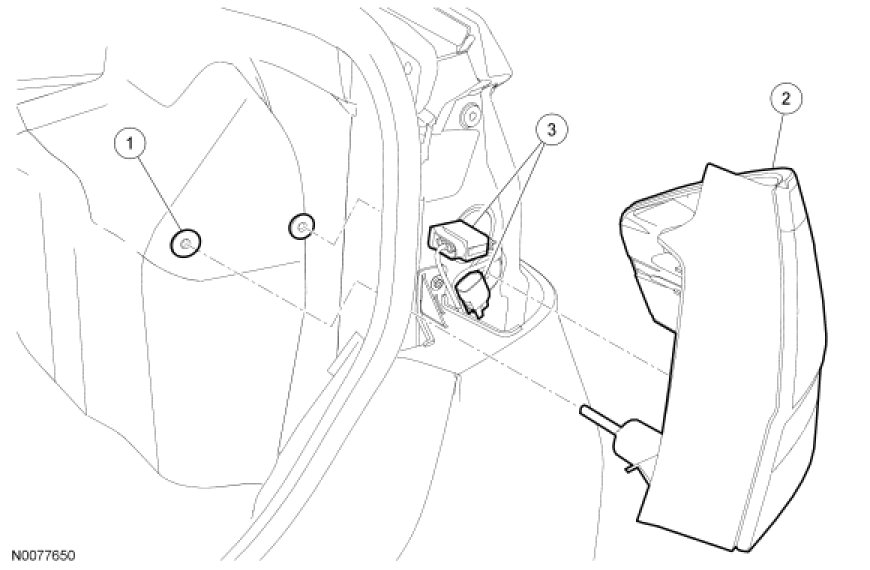

Remove the 2 nuts and the rear lamp assembly.

- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
