Toe Adjustment - Rear

Toe Adjustment - Rear

1. Jounce the vehicle to make sure that the suspension is in its normal resting position.

2. Using alignment equipment and the manufacturer's instructions, measure the toe.

3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

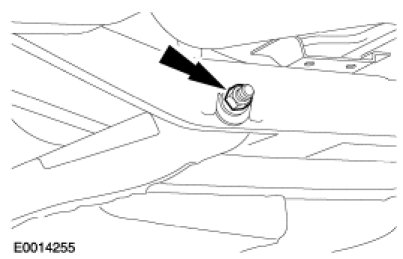

4. Loosen the rear lower arm adjustment cam nut.

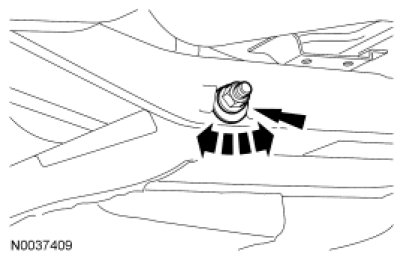

5. Adjust the toe setting by rotating the nut and eccentric washer.





6. Tighten the rear lower arm adjustment cam nut to 90 Nm (66 lb-ft).





7. Recheck the toe settings, adjust as necessary.
