Restraints Control Module (RCM) DTC Chart




Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

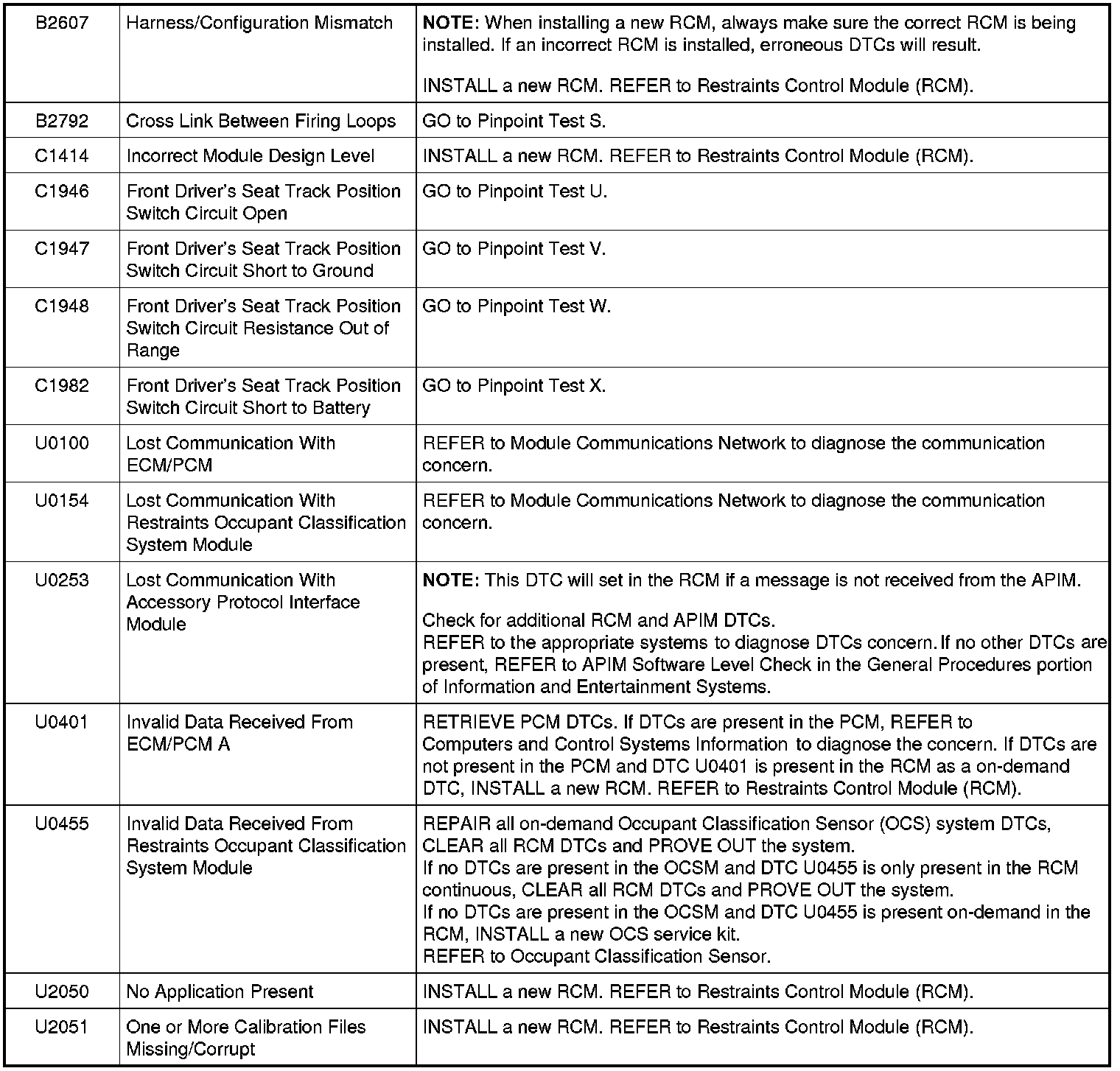

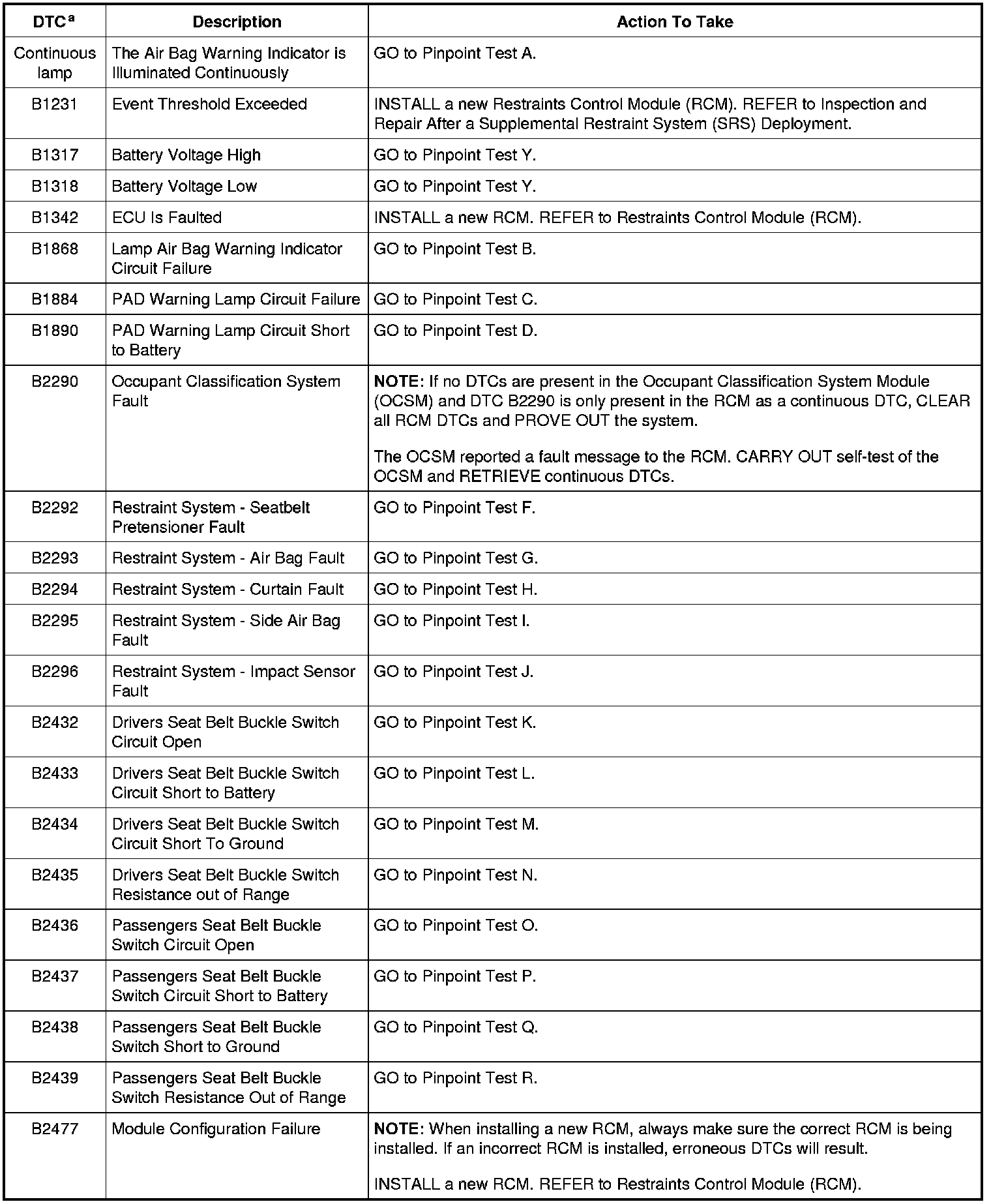

Restraints Control Module (RCM) DTC Chart









a DTC: Retrieved using scan tool.
