Exhaust Manifold

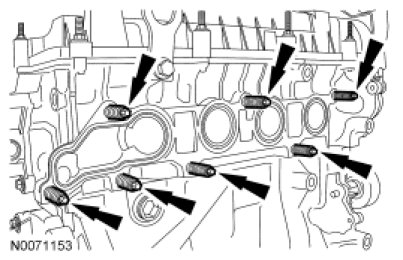

Install the 7 new catalytic converter manifold studs.
Tighten to 17 Nm (150 lb-in).

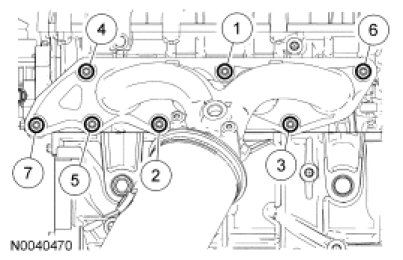

Using a new gasket and 7 new nuts, install the catalytic converter and tighten in 2 stages in the sequence shown.
Stage 1: Tighten to 55 Nm (41 lb-ft).
Stage 2: Tighten to 55 Nm (41 lb-ft).
