Main Control Valve Body

Main Control Valve Body









Disassembly

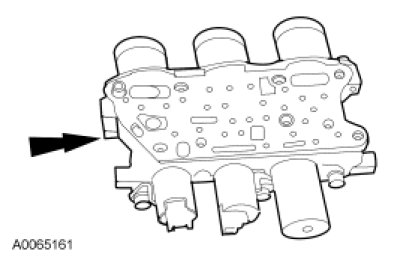

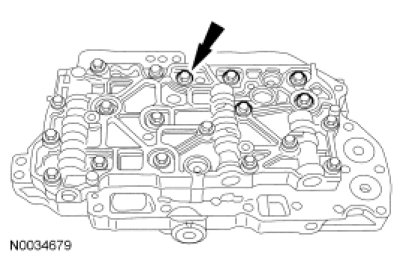

1. Remove the solenoid body bolts and the solenoid body.

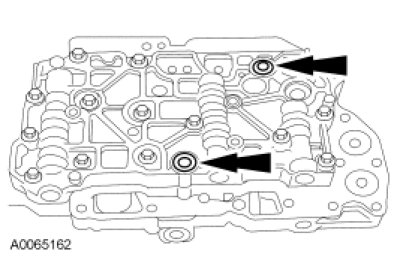

2. Remove and discard the solenoid body gaskets.

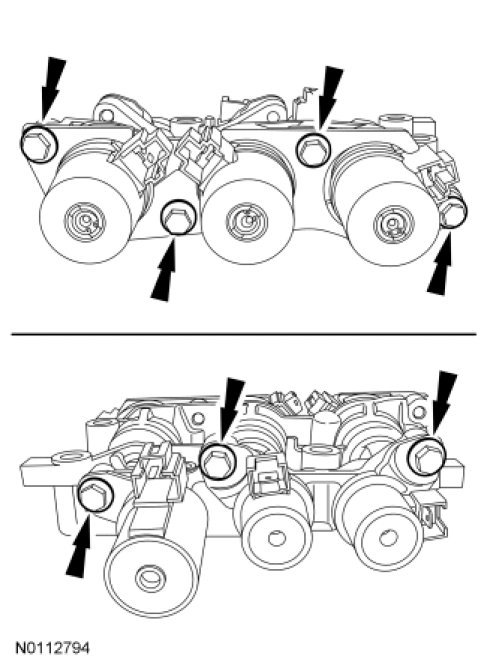

3. Remove the 4 bolts, remove the hold down bracket and remove Shift Solenoid A (SSA), Shift Solenoid B (SSB) and the Line Pressure Control (LPC) solenoid. Remove the 3 bolts and Shift Solenoid C (SSC),Shift Solenoid D (SSD) and Shift Solenoid E (SSE).





4. Remove and discard the seals.

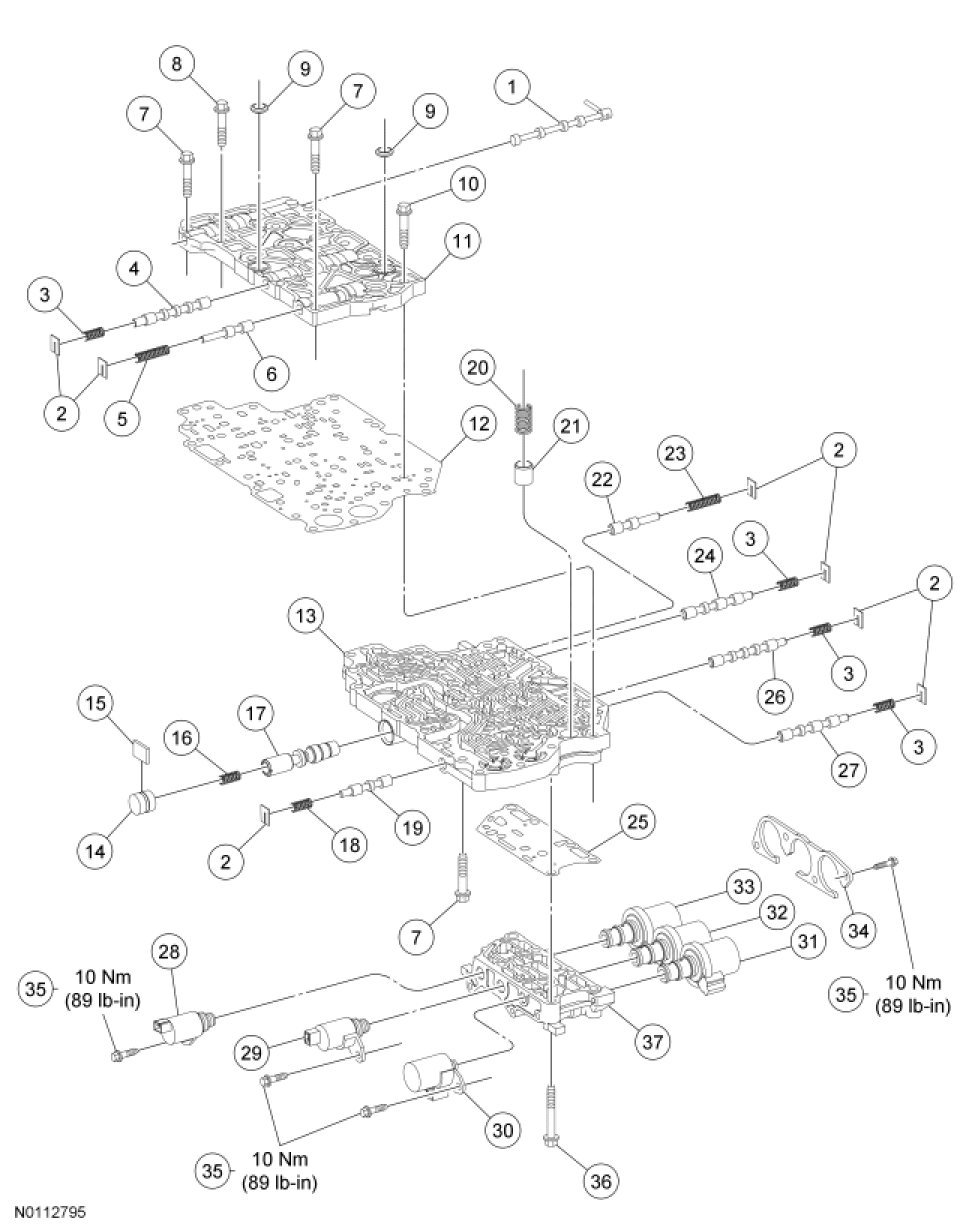

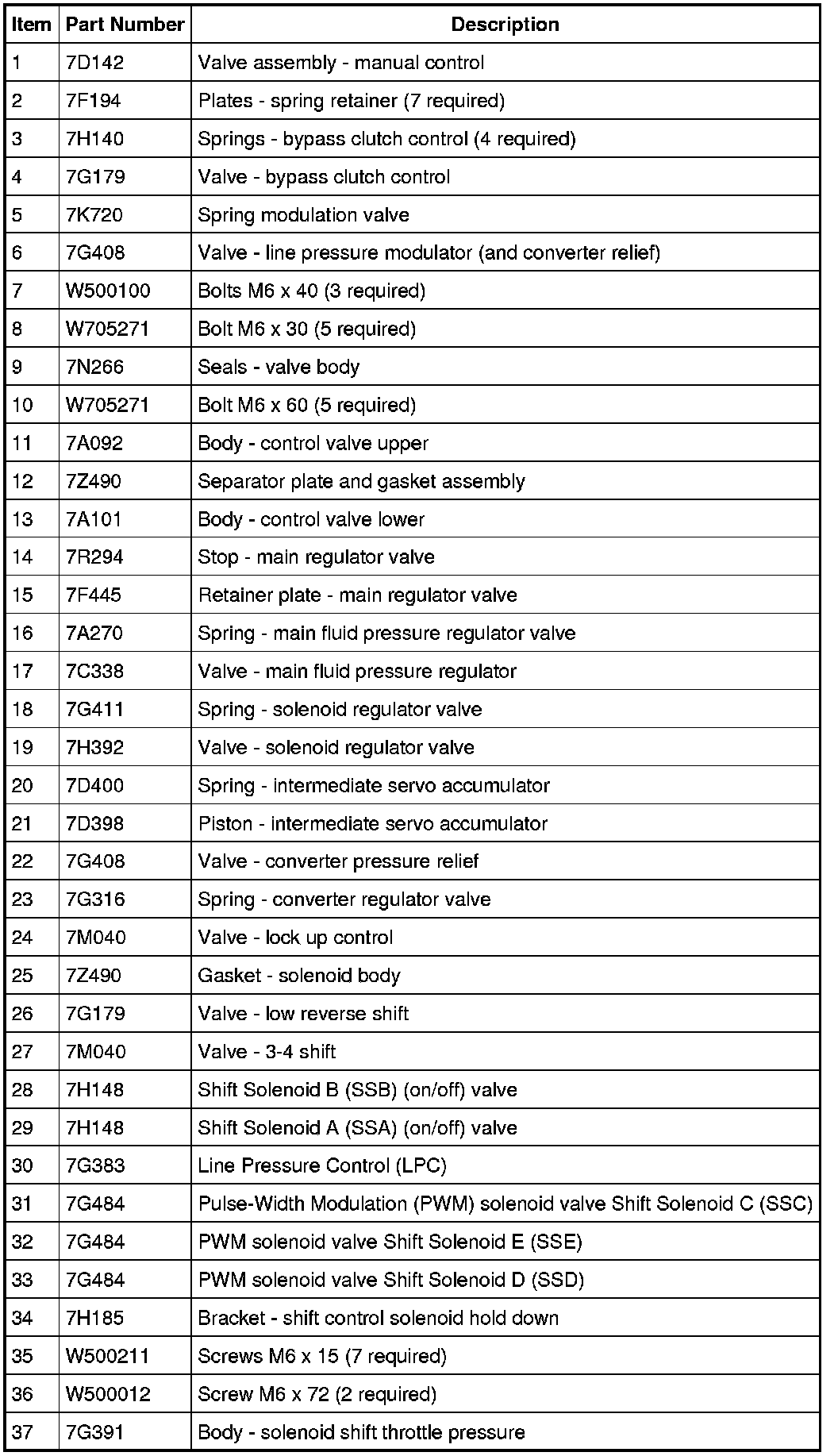

5. Disassemble the main control valve body.





Assembly

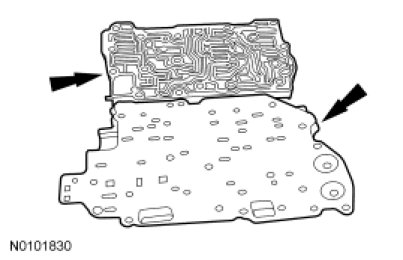

1. Install a new separator plate and gasket assembly.





2. NOTE: Do not fully tighten the bolts at this stage.

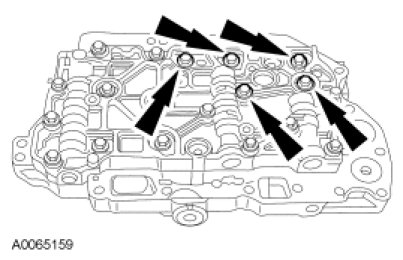

Assemble the main control valve body and loosely install the bolts.





3. Install the seals.





4. Position SSA, SSB and the LPC solenoid in the solenoid body, position the hold down bracket in place and install the 4 bolts. Position SSC,SSD and SSE in the solenoid body and install the 3 bolts.
- Tighten to 10 Nm (89 lb-In).





5. Install a new solenoid body gasket.





6. Install the solenoid body and loosely install the bolts.

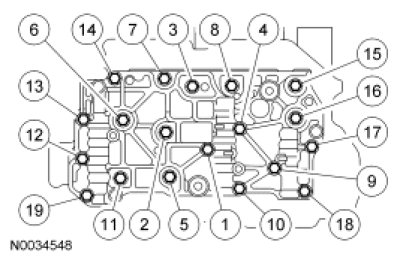

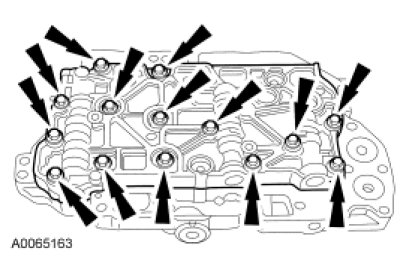

7. Tighten the solenoid body bolts in the sequence shown.
- Tighten to 9 Nm (80 lb-in).
