Restraints Control Module (RCM): Notes

SPECIAL TOOL(S)

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)
software with appropriate hardware, or equivalent scan tool

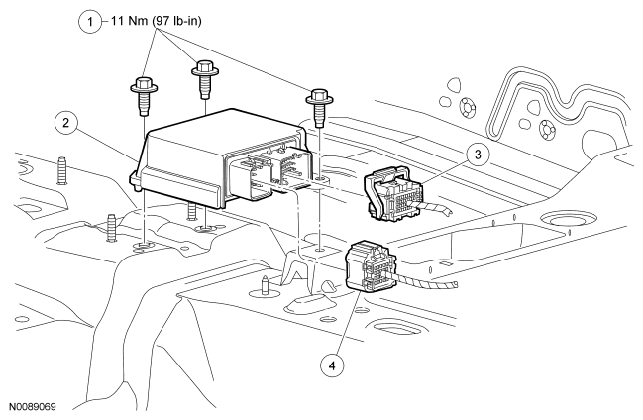

Fig 1: Exploded View Of Restraints Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W704265	Restraints Control Module (RCM) bolts (3 required)
2	14B321	RCM
3	-	Large RCM electrical connector (part of 14A005)
4	-	Small RCM electrical connector (part of 14401)
