Component Location Views

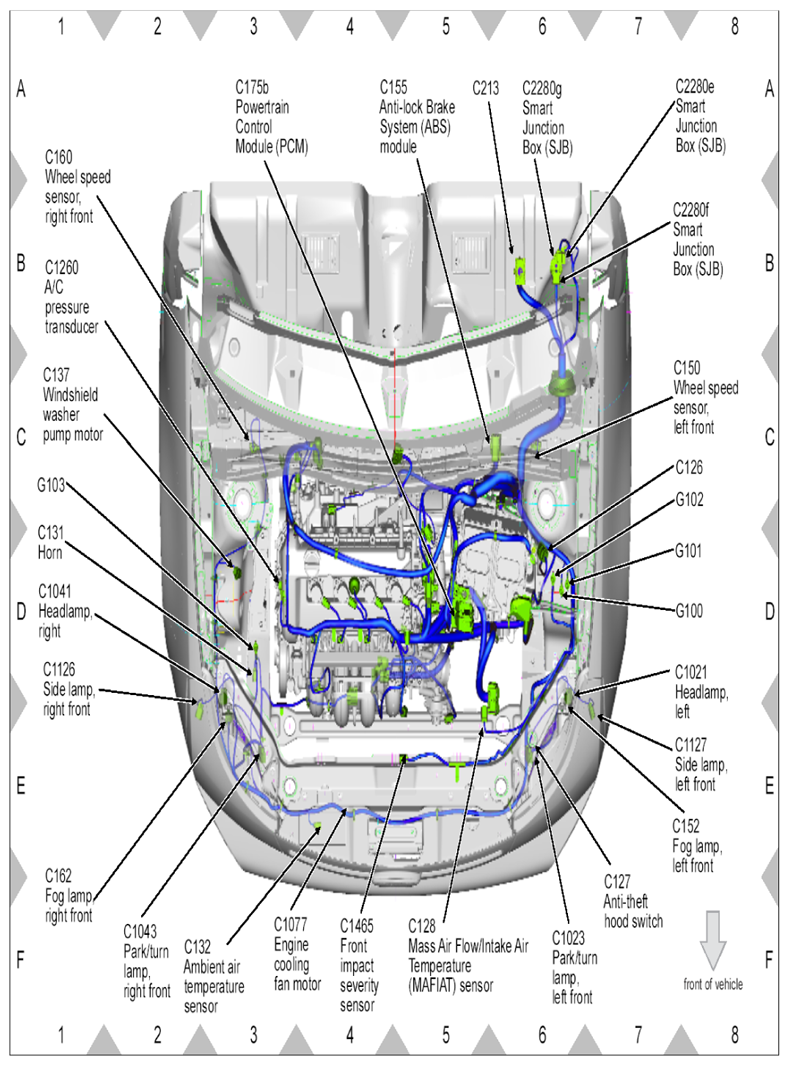

Fig 1: Identifying Engine Compartment Wiring Harness Connectors Location (1 Of 2)
G07861112Courtesy of FORD MOTOR CO.

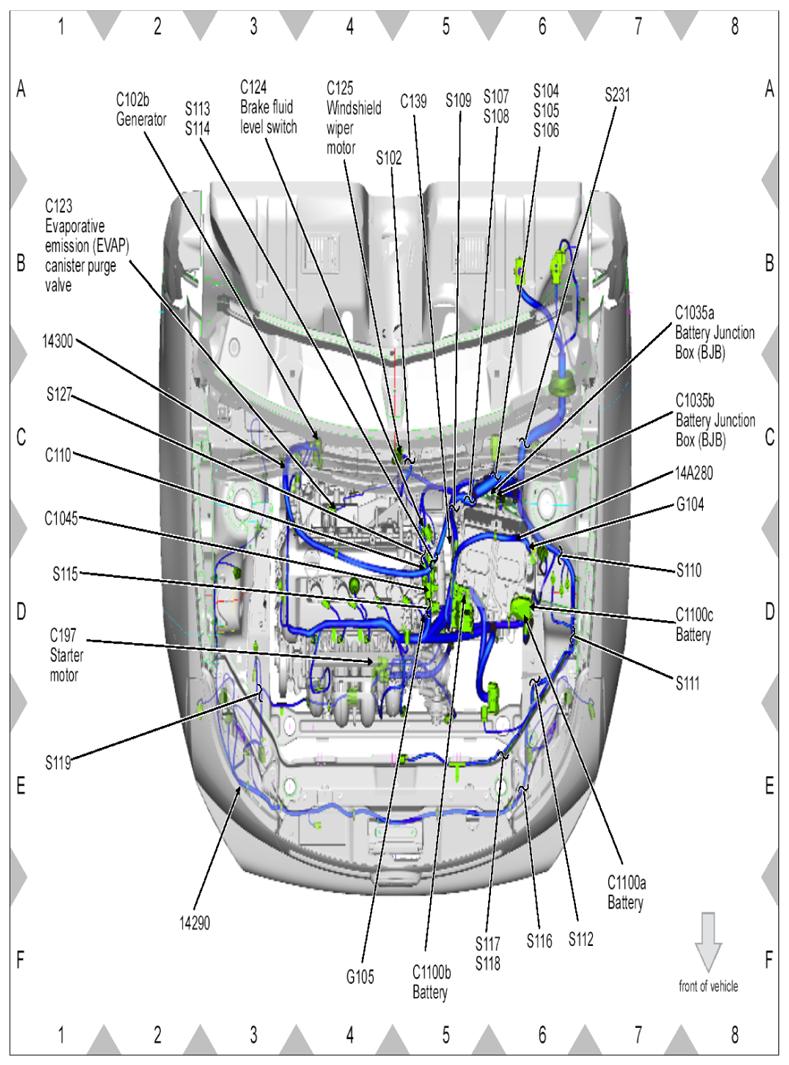

Fig 2: Identifying Engine Compartment Wiring Harness Connectors Location (2 Of 2)
G07861113Courtesy of FORD MOTOR CO.

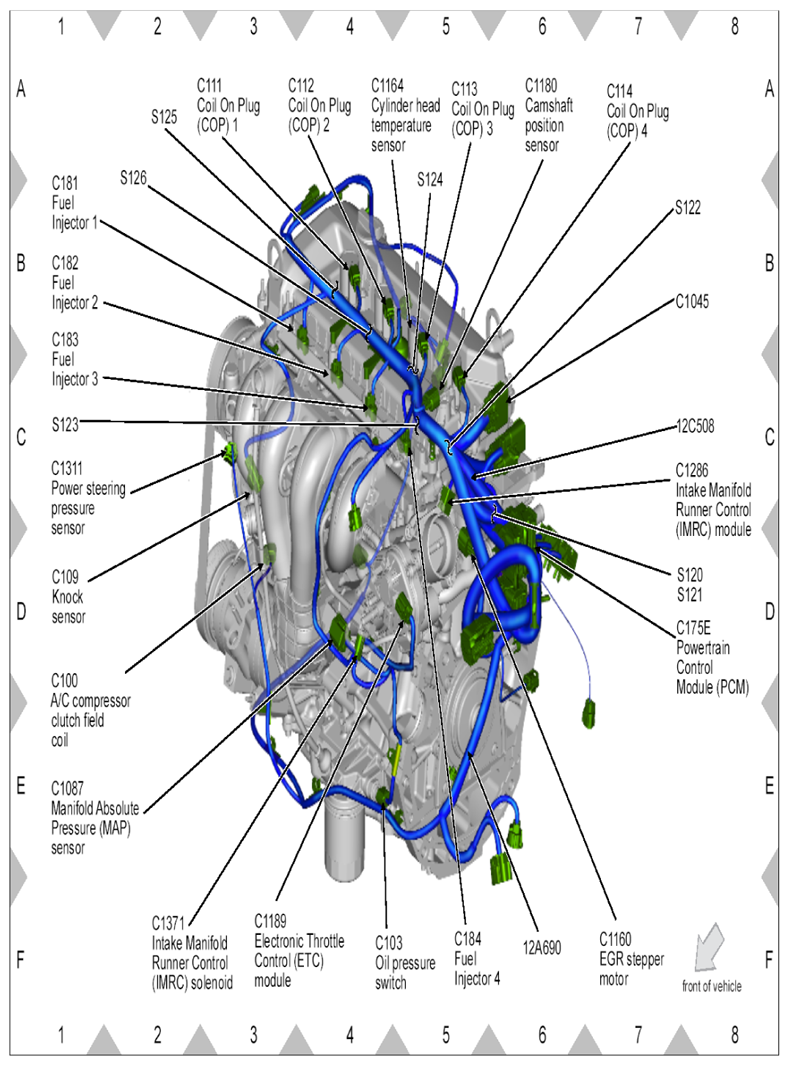

Fig 3: Identifying Engine Wiring Harness Connectors Location (1 Of 4)
G07861114Courtesy of FORD MOTOR CO.

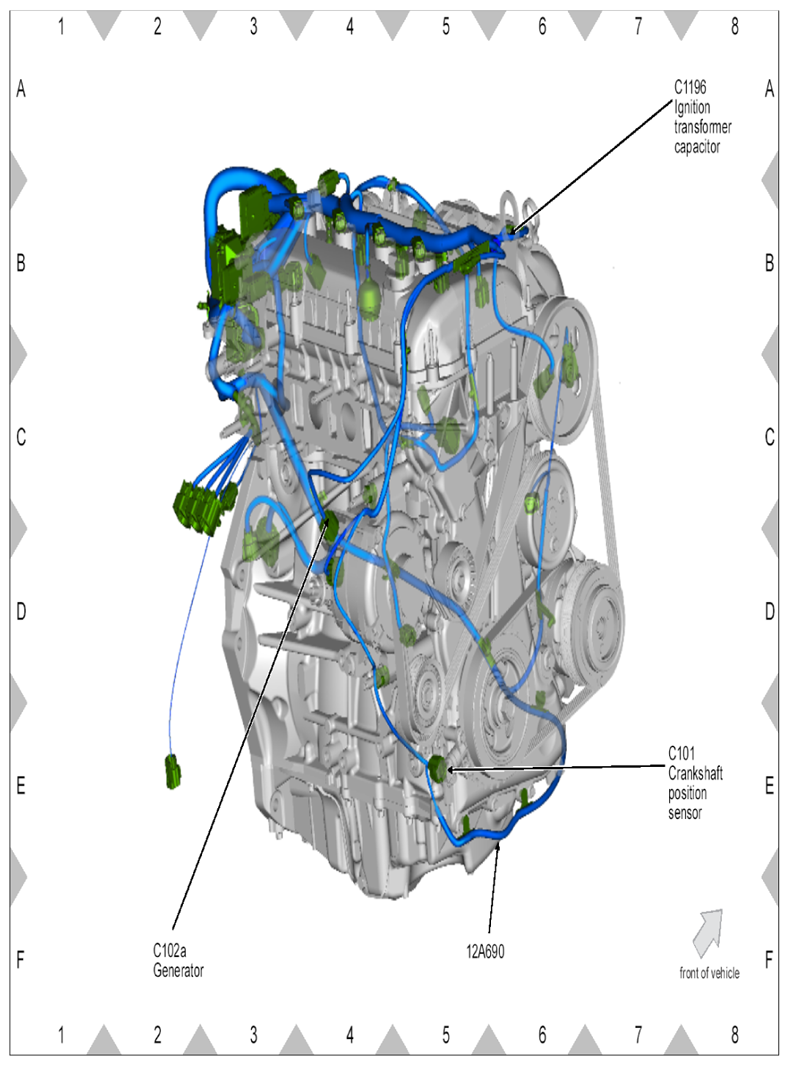

Fig 4: Identifying Engine Wiring Harness Connectors Location (2 Of 4)
G07861115Courtesy of FORD MOTOR CO.

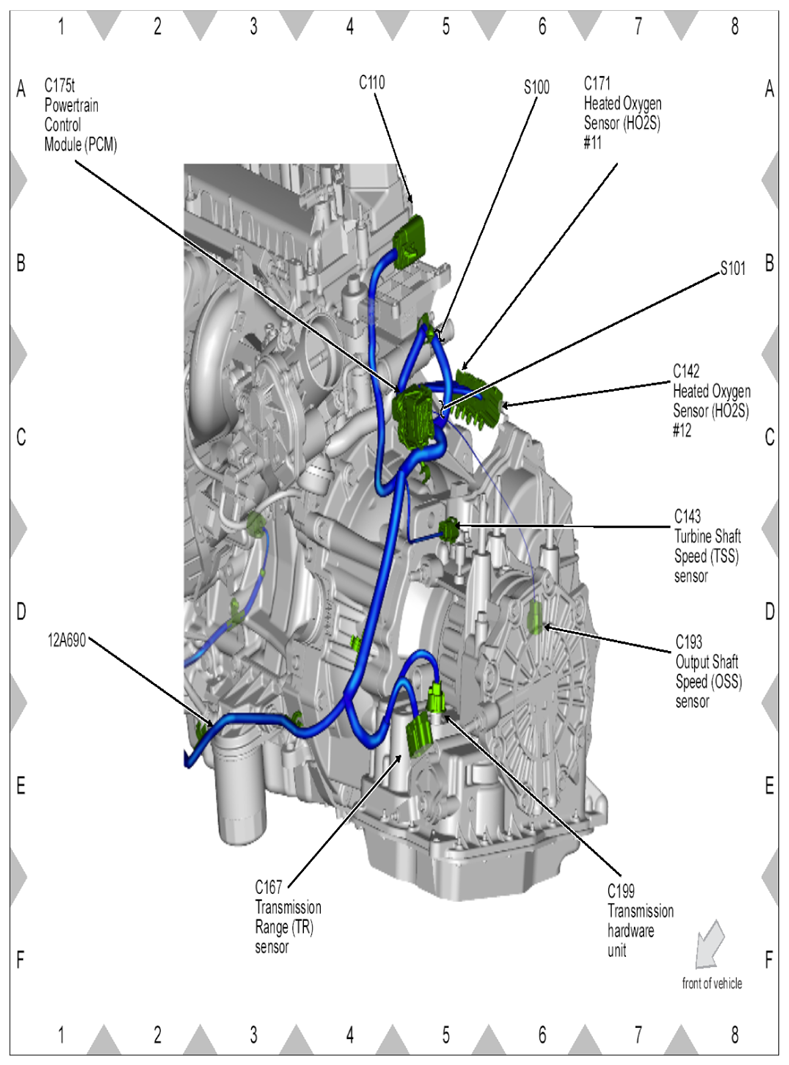

Fig 5: Identifying Engine Wiring Harness Connectors Location (3 Of 4)
G07861116Courtesy of FORD MOTOR CO.

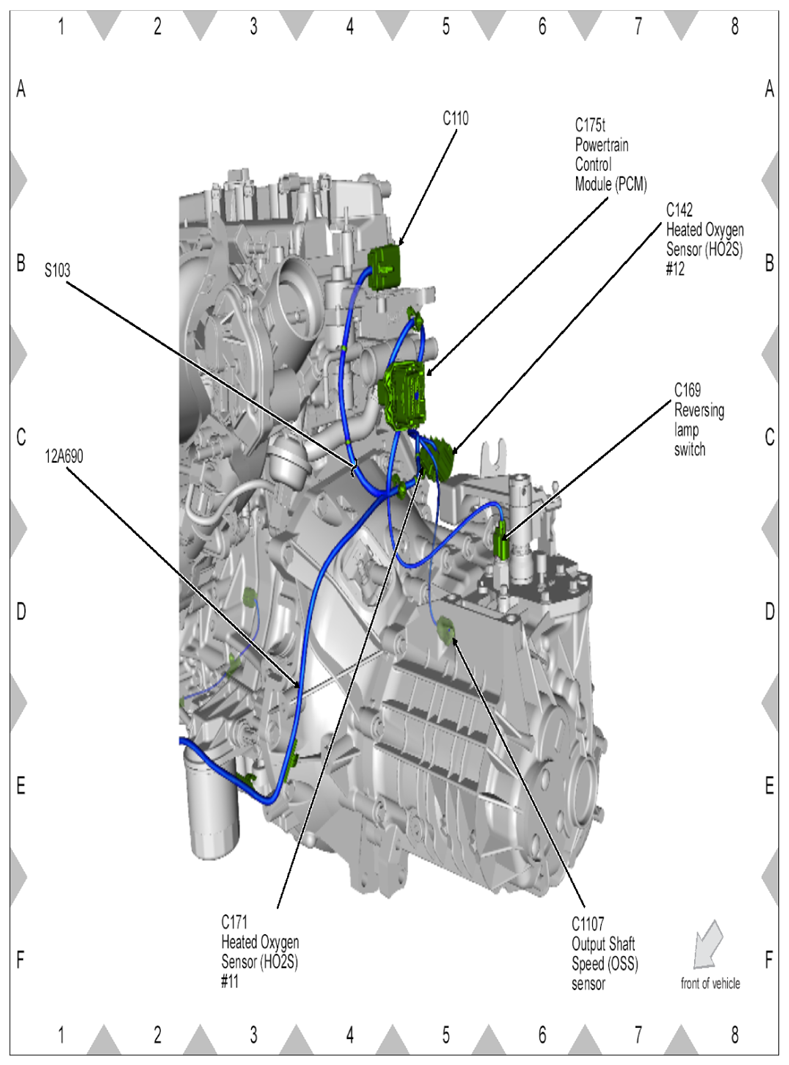

Fig 6: Identifying Engine Wiring Harness Connectors Location (4 Of 4)
G07861117Courtesy of FORD MOTOR CO.

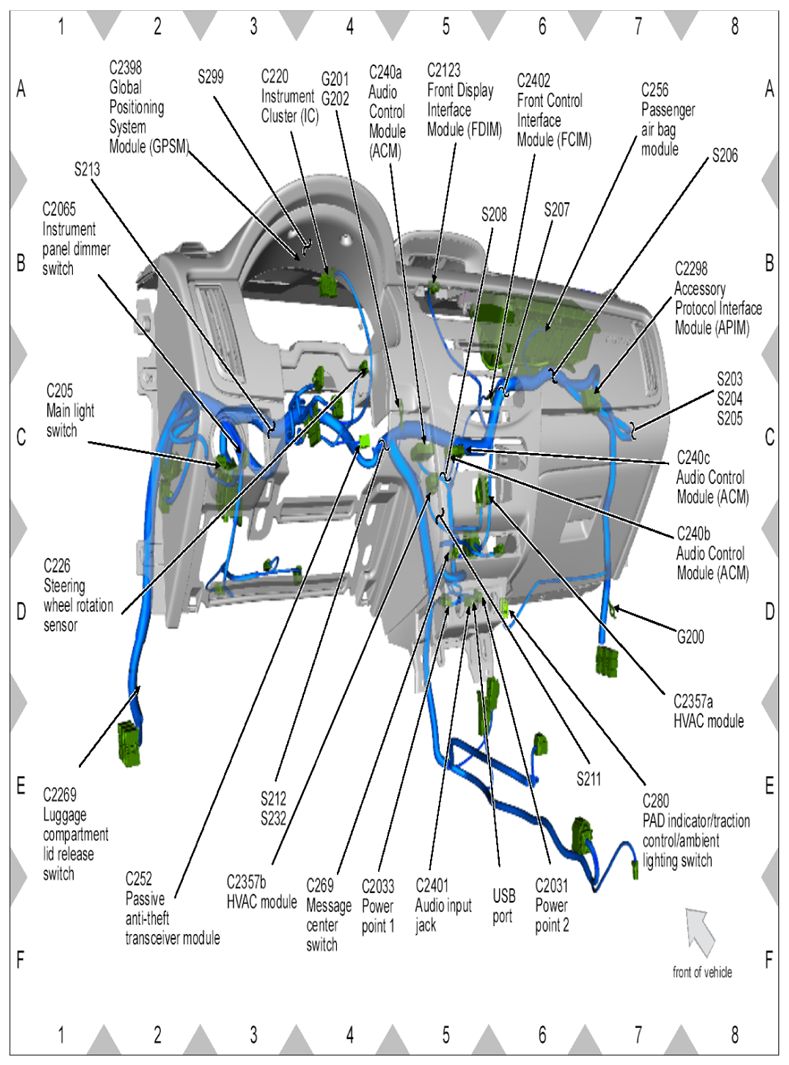

Fig 7: Identifying Dash Board Wiring Harness Connectors Location (1 Of 2)
G07861118Courtesy of FORD MOTOR CO.

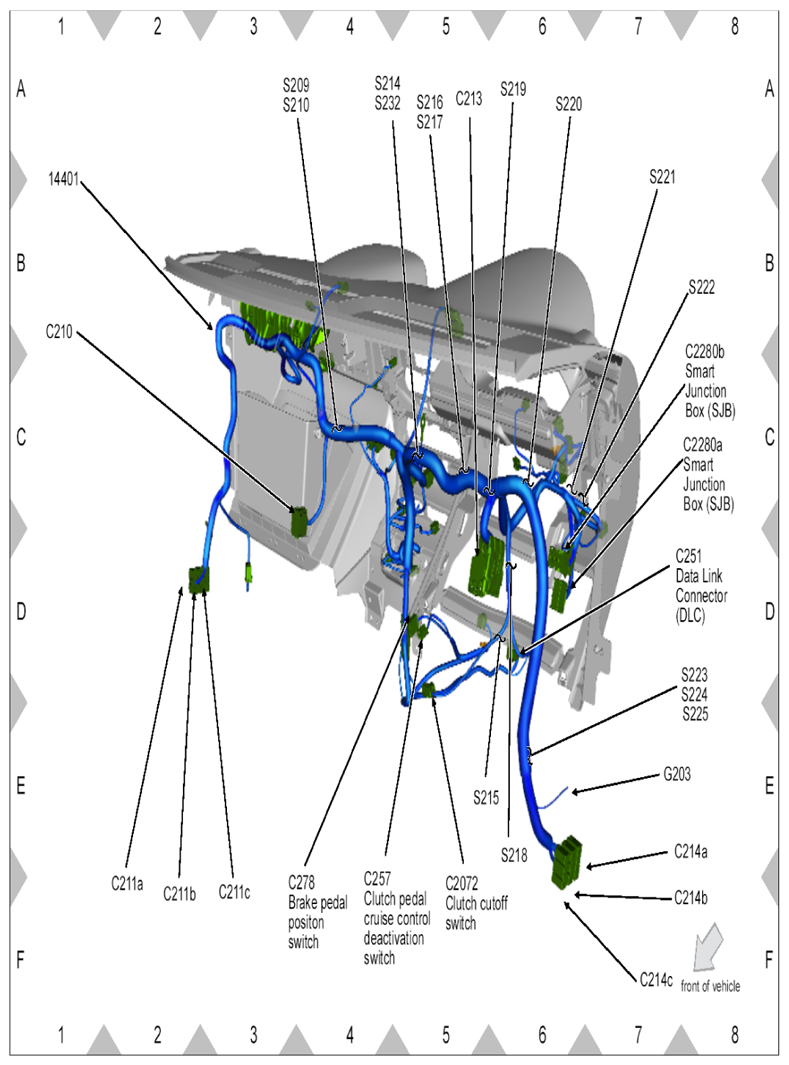

Fig 8: Identifying Dash Board Wiring Harness Connectors Location (2 Of 2)
G07861119Courtesy of FORD MOTOR CO.

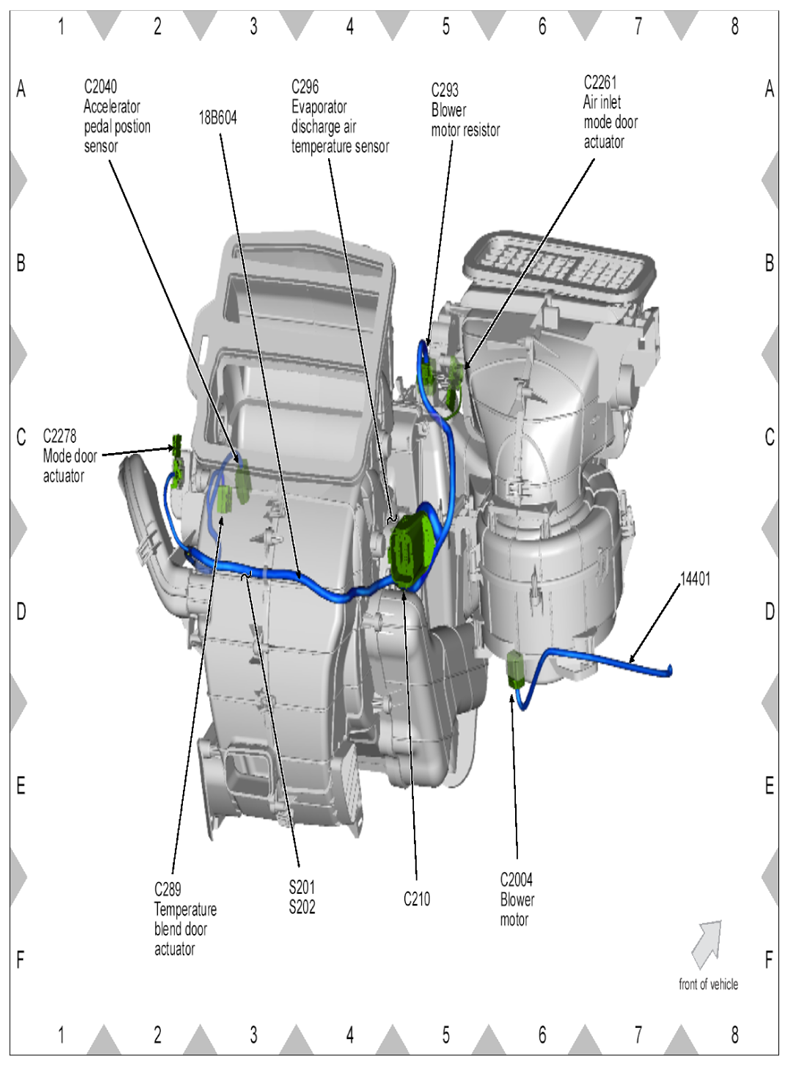

Fig 9: Identifying A/C Blower Compartment Wiring Harness Connectors Location
G07861120Courtesy of FORD MOTOR CO.

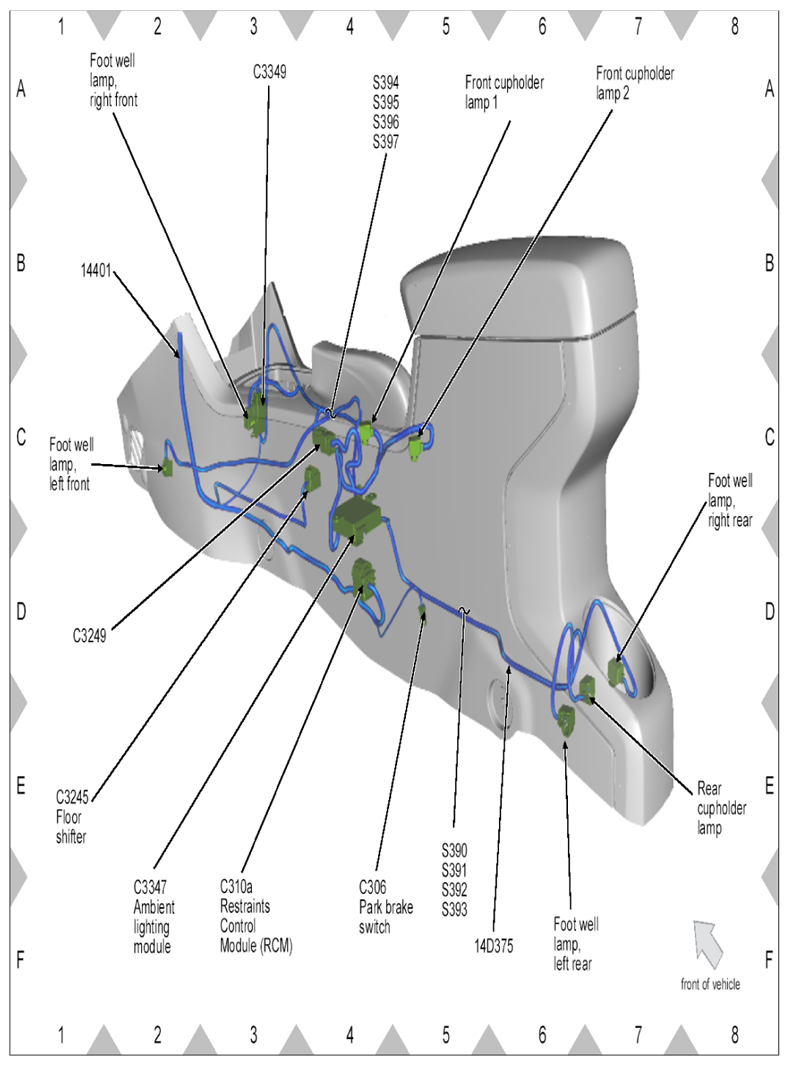

Fig 10: Identifying Center Console Wiring Harness Connectors Location
G07861121Courtesy of FORD MOTOR CO.

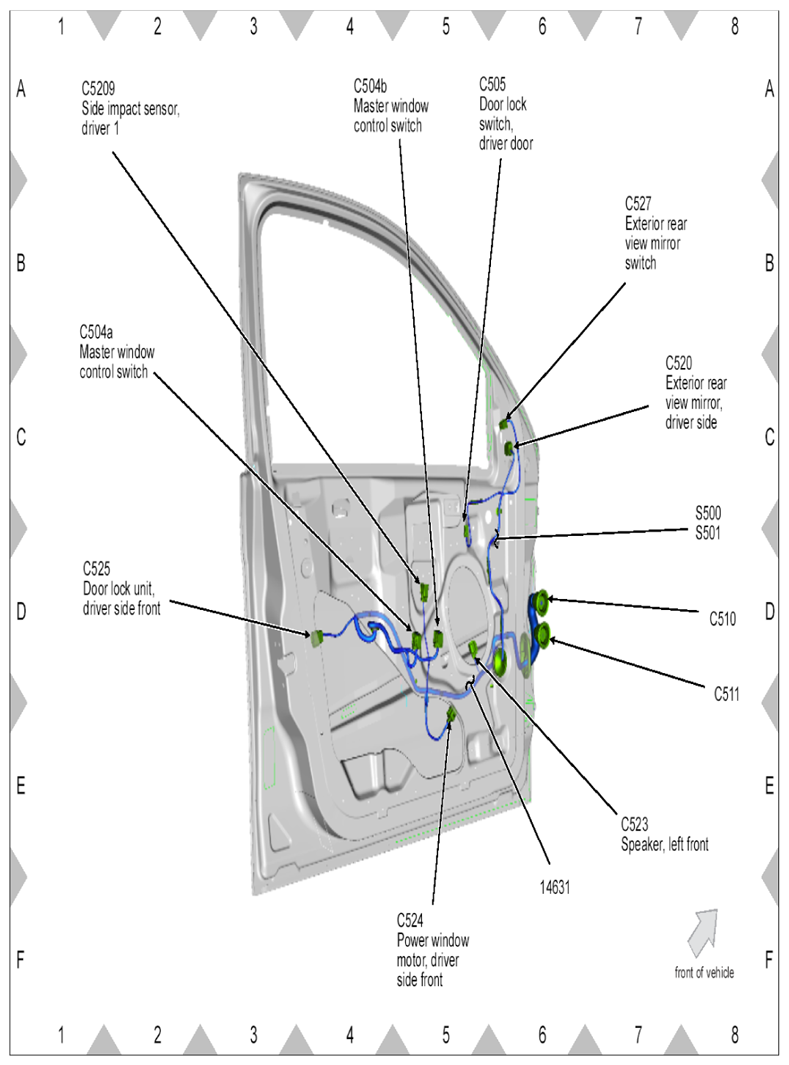

Fig 11: Identifying LH Front Door Wiring Harness Connectors Location
G07861122Courtesy of FORD MOTOR CO.

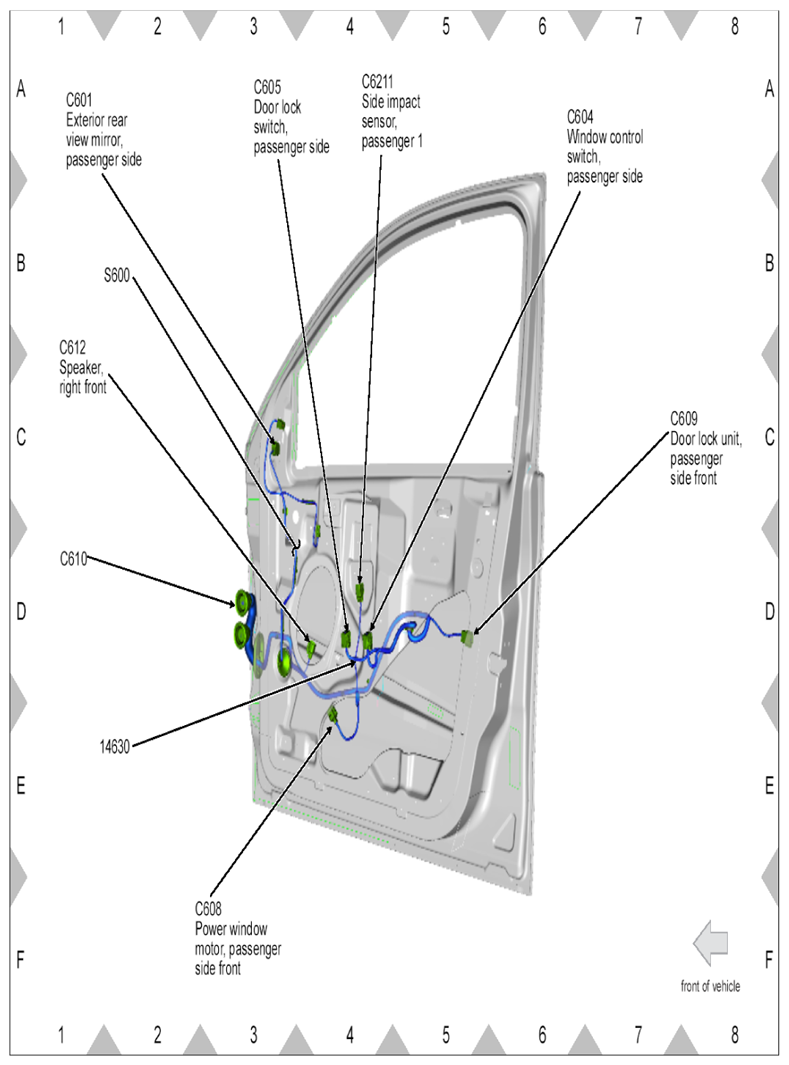

Fig 12: Identifying RH Front Door Wiring Harness Connectors Location
G07861123Courtesy of FORD MOTOR CO.

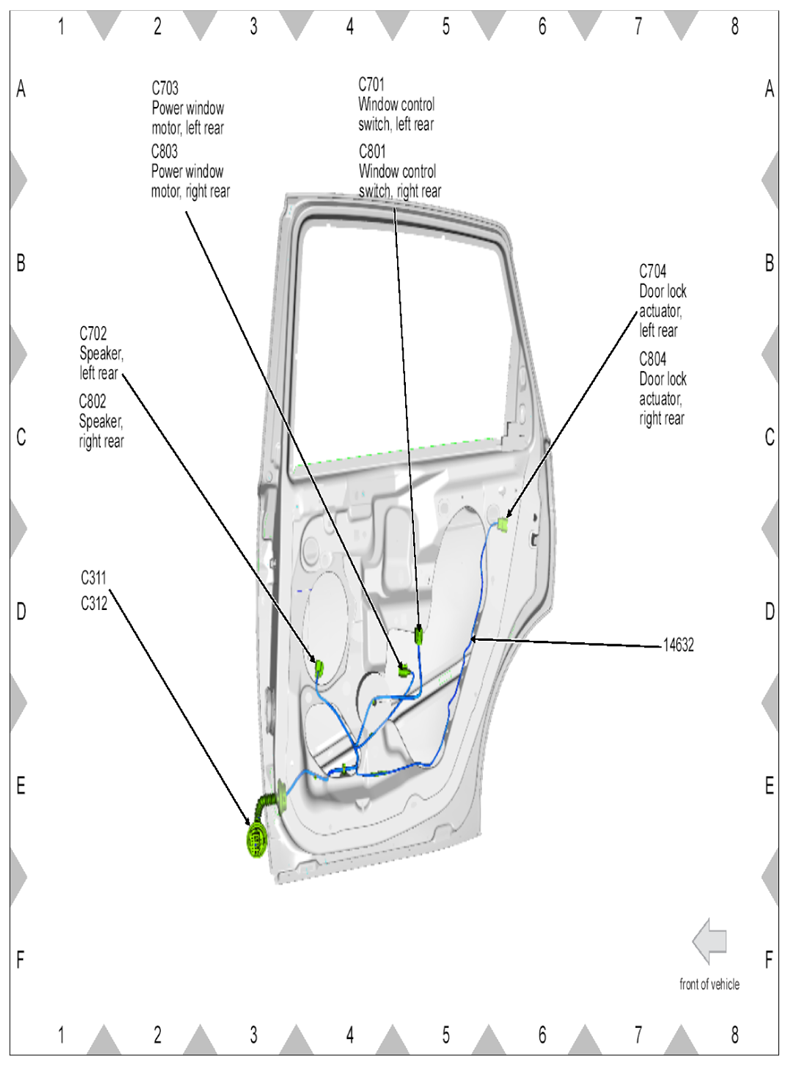

Fig 13: Identifying LH Rear Door Wiring Harness Connectors Location
G07861124Courtesy of FORD MOTOR CO.

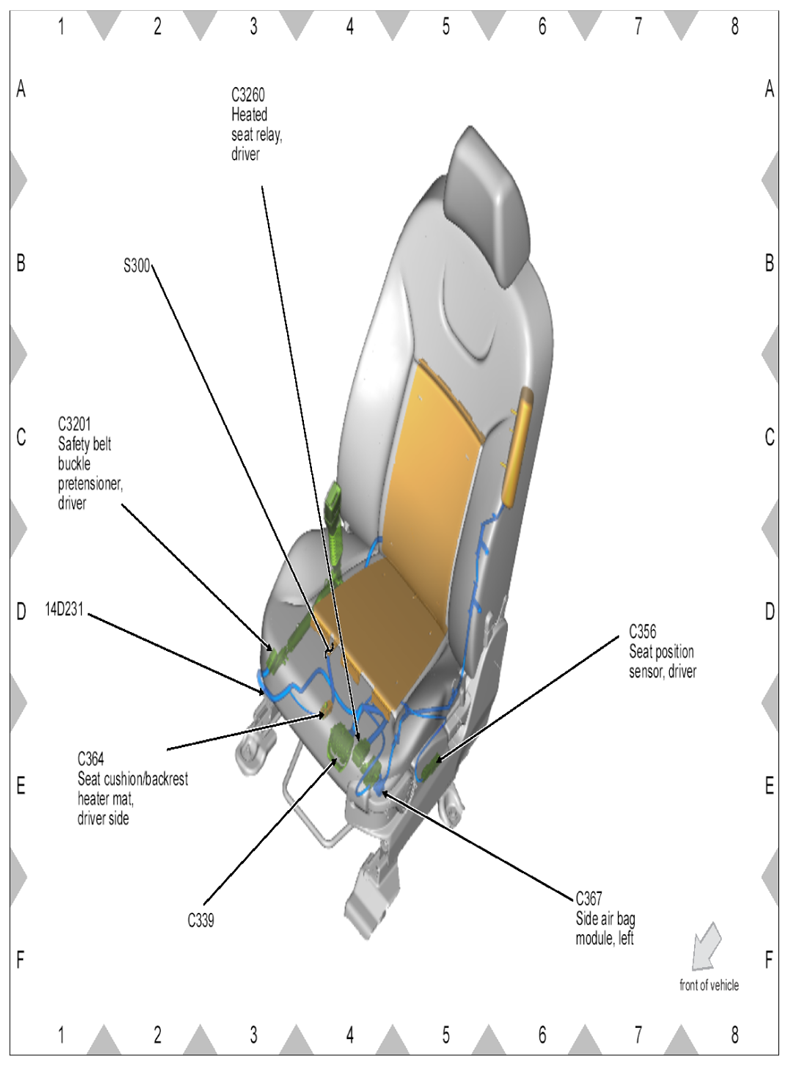

Fig 14: Identifying Driver Seat Wiring Harness Connectors Location
G07861125Courtesy of FORD MOTOR CO.

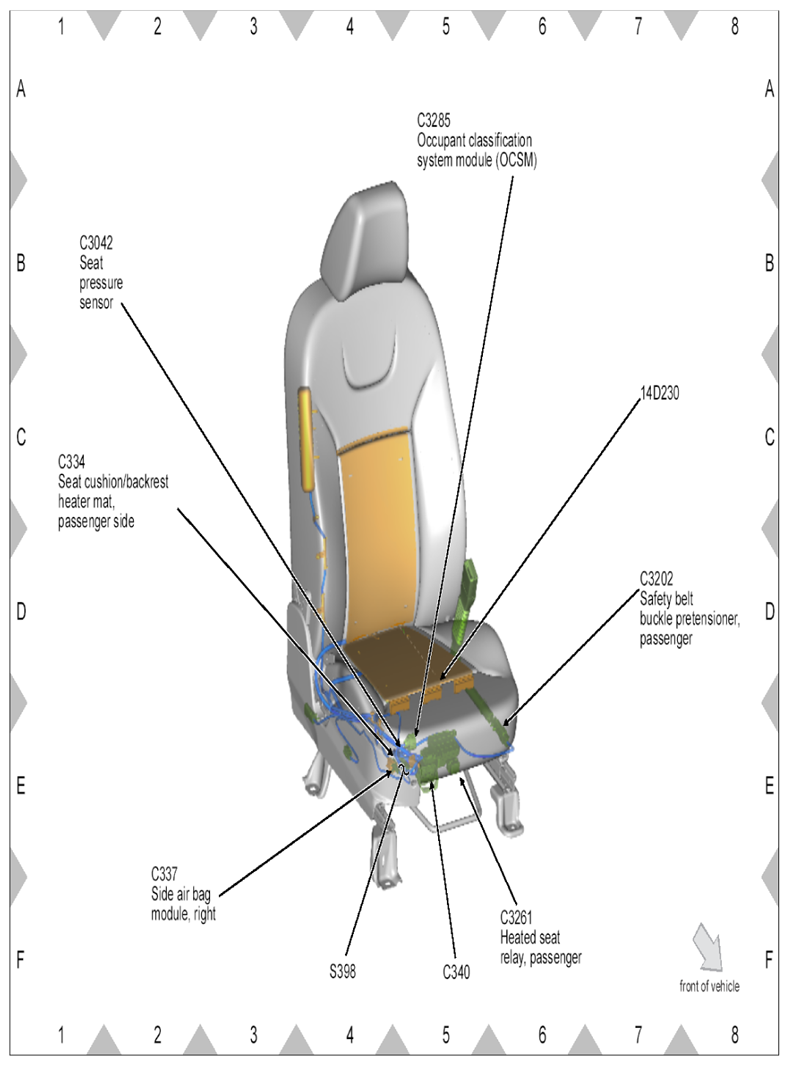

Fig 15: Identifying Passenger Seat Wiring Harness Connectors Location
G07861126Courtesy of FORD MOTOR CO.

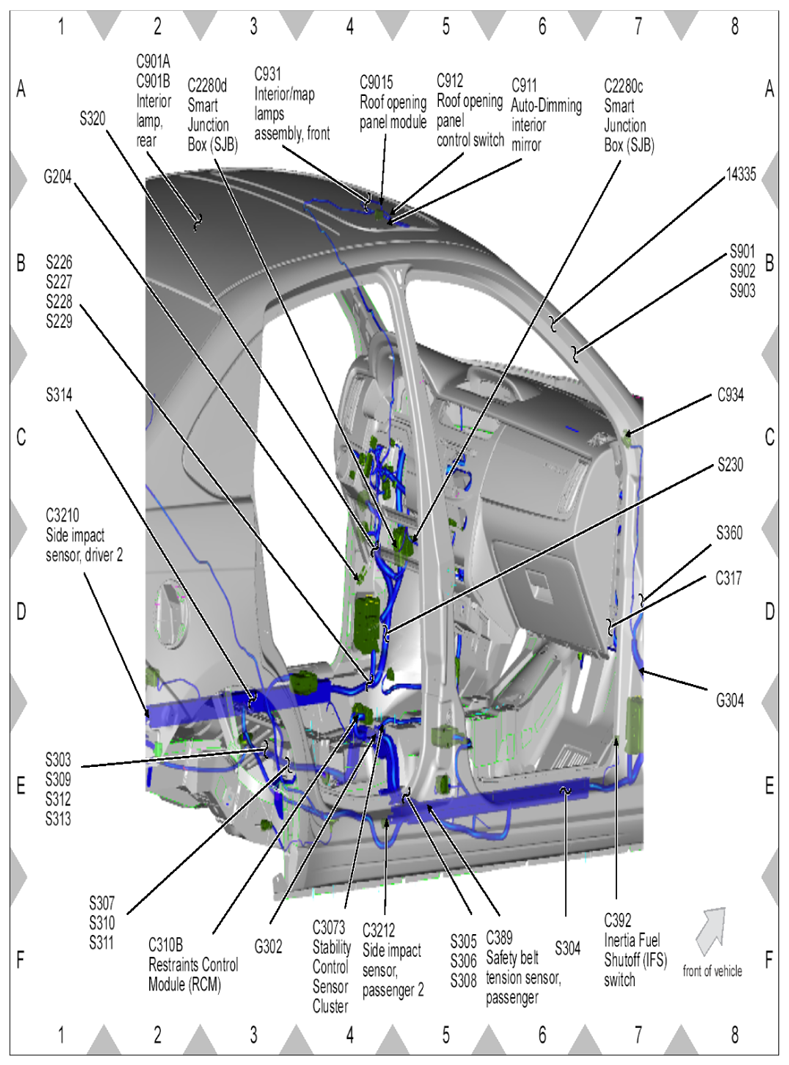

Fig 16: Identifying RH Door Opening Wiring Harness Connectors Location
G07861127Courtesy of FORD MOTOR CO.

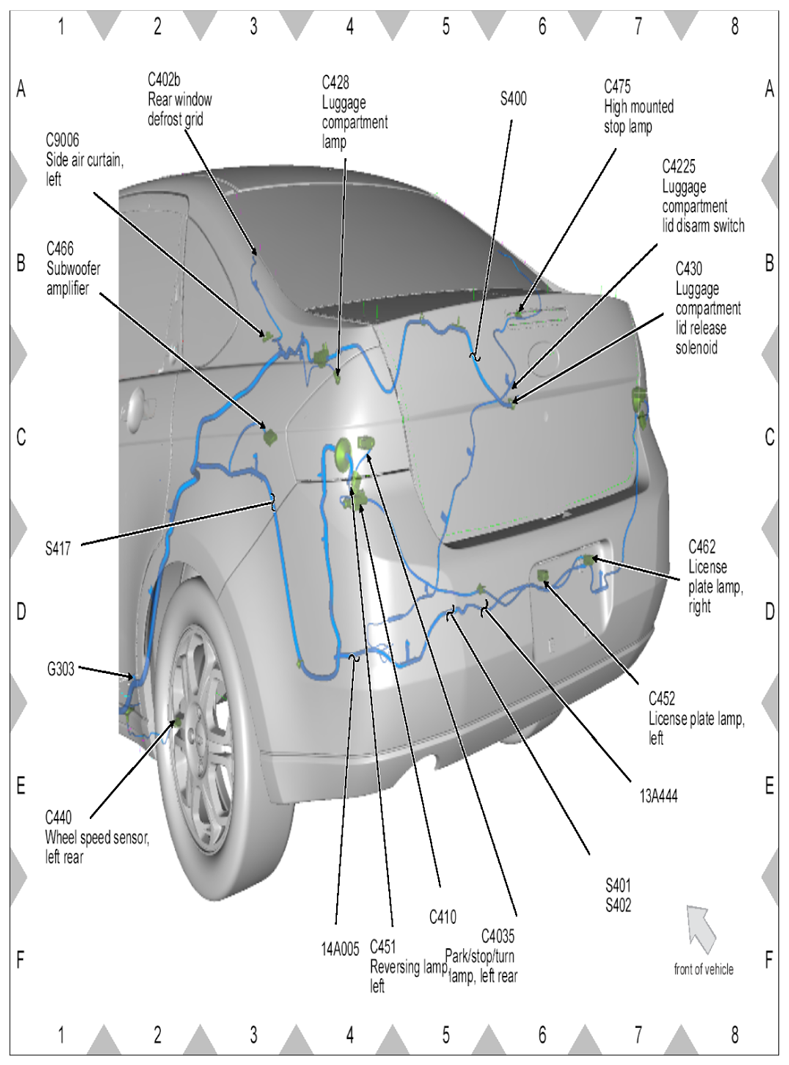

Fig 17: Identifying LH Rear Compartment Wiring Harness Connectors Location
G07861128Courtesy of FORD MOTOR CO.

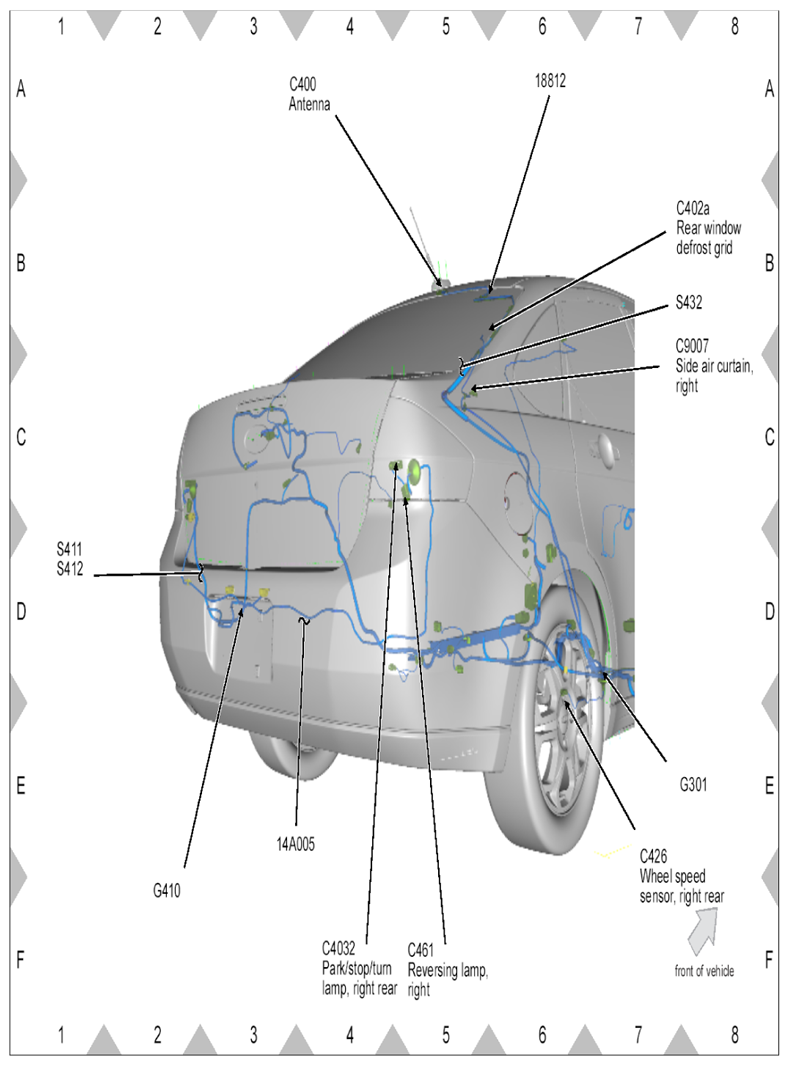

Fig 18: Identifying RH Rear Compartment Wiring Harness Connectors Location
G07861129Courtesy of FORD MOTOR CO.

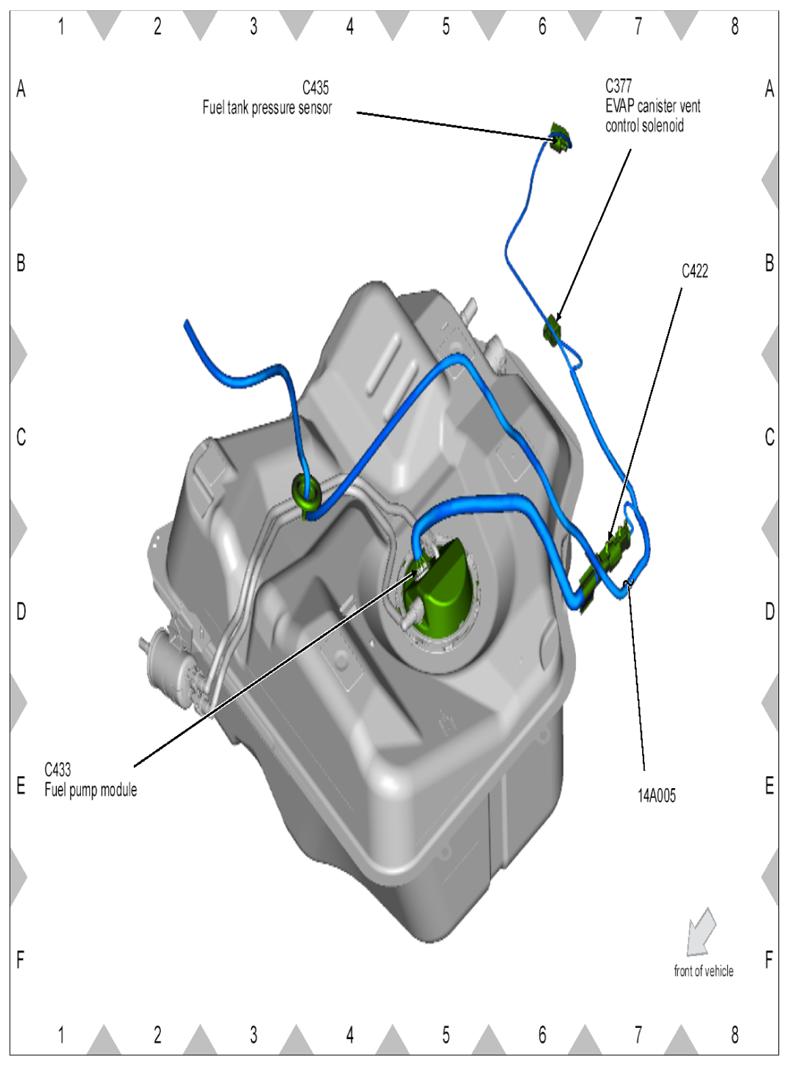

Fig 19: Identifying Fuel Tank Wiring Harness Connectors Location
G07861130Courtesy of FORD MOTOR CO.

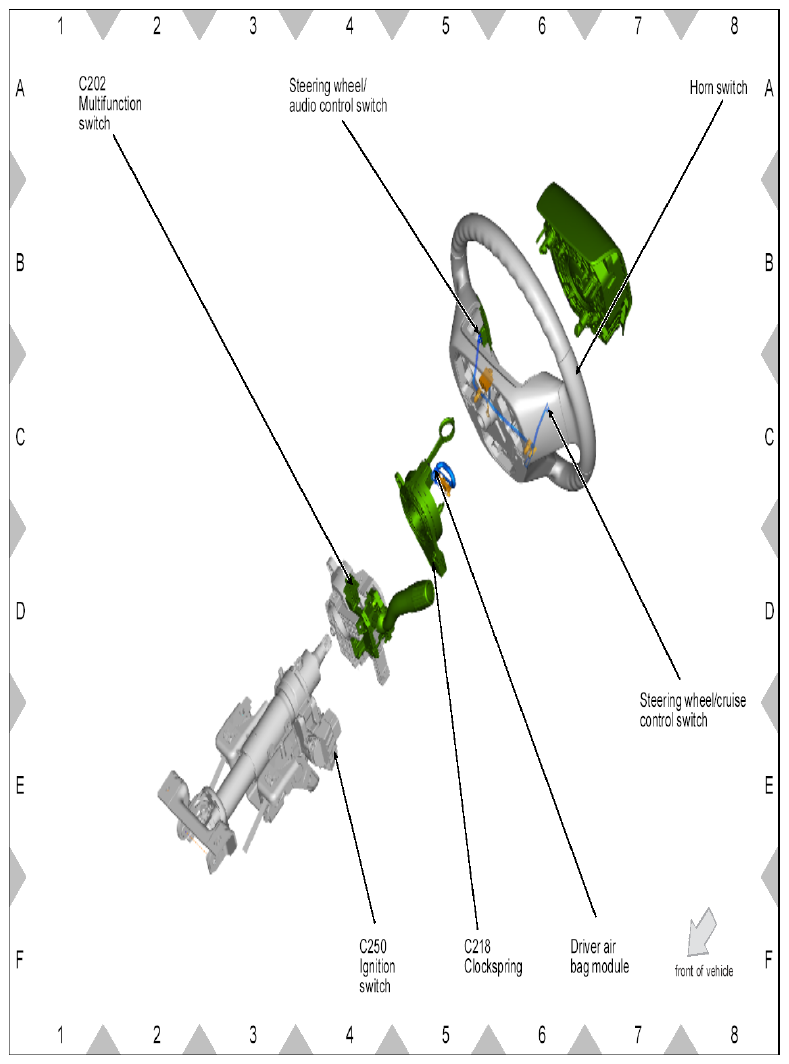

Fig 20: Identifying Steering Assembly Wiring Harness Connectors Location
G07861131Courtesy of FORD MOTOR CO.
