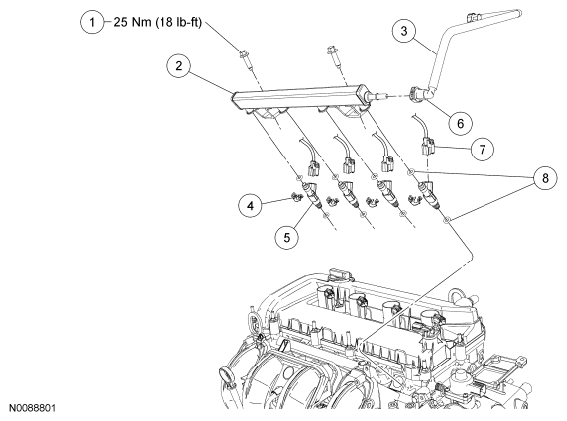

Fuel Rail and Fuel Injector - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W500224 | Fuel rail bolt (2 required) |
| 2 | 9H487 | Fuel rail |
| 3 | 9288 | Fuel tube |
| 4 | 9C995 | Fuel injector clip (4 required) |
| 5 | 9F593 | Fuel injector (4 required) |
| 6 | - | Fuel tube-to-fuel rail quick connect coupling (part of 9288) |
| 7 | 14A464 | Fuel injector electrical connector (4 required) (part of 12B637) |
| 8 | 9U509 | Fuel injector O-ring seals (2 required per injector) |
- For additional information, refer to the appropriate procedures.
