Steering Gear: Notes
SPECIAL TOOL(S)
| Remover, Tie-Rod End 211-001 (Tool-3290-D) |
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
NOTE:

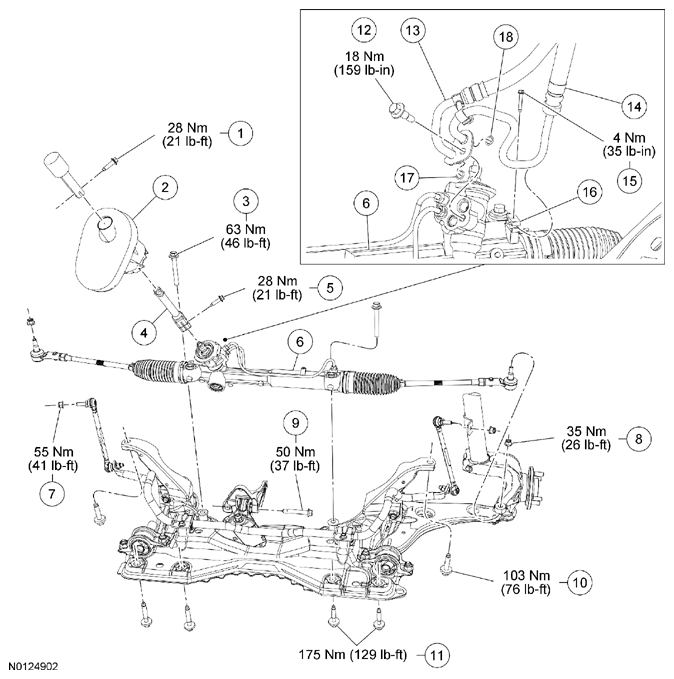

Vehicles with 15- and 16-in wheels shown in the illustration.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706229 | Upper steering column shaft-to-lower steering column shaft bolt |
| 2 | 3D677 | Dash seal |
| 3 | W706981 | Steering gear bolt (2 required) |
| 4 | 3N997 | Lower steering column shaft |
| 5 | W702825 | Lower steering column shaft-to-steering gear bolt |
| 6 | 3504 | Steering gear |
| 7 | W520103 | Stabilizer bar link upper nut (2 required) |
| 8 | W520203 | Outer tie-rod end nut |
| 9 | W702801 | Transaxle roll restrictor bolt |
| 10 | W500562 | Upper subframe bolt (2 required) |
| 11 | W703719 | Lower subframe bolts (4 required) |
| 12 | W704331 | Steering line clamp plate bolt |
| 13 | 3A713 | Return line |
| 14 | 3A719 | Pressure line |
| 15 | W702164 | Steering line-to-steering gear bolt |
| 16 | W704373 | Steering line-to-steering gear retainer |
| 17 | 3F886-BA | O-ring seal |
| 18 | 3F886-AA | O-ring seal |
