Steering Column Shroud

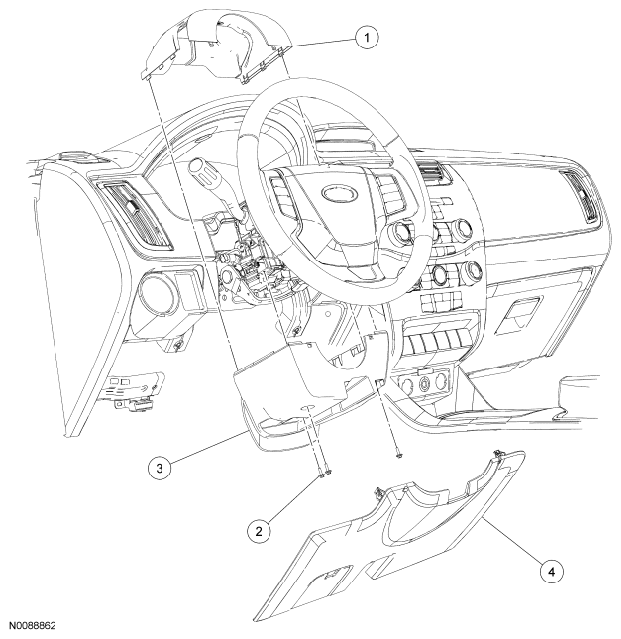

Fig 1: Exploded View Of Steering Column Shroud

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	W713494	Lower steering column shroud screw (3 required)
3	3530	Lower steering column shroud
4	04459	Steering column opening trim panel

All vehicles

Remove the steering column opening trim panel.
- Pull outward at the top of the trim panel to release the upper retainers.
- Carefully pull upward and outward on the bottom of the trim panel to release the lower retainers located at the bottom corners of the trim panel.

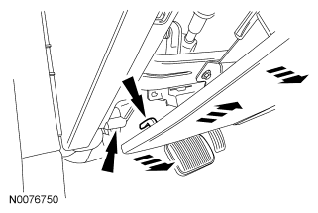

Fig 2: Removing Steering Column Opening Trim Panel
Courtesy of FORD MOTOR CO.

Vehicles with tilt steering column
Release the steering column tilt lever.
All vehicles
Remove the 3 screws and the upper and lower steering column shrouds.
- Press inward on the sides of the upper shroud and pull up to separate it from the lower shroud.
