Turn Signals: Service and Repair

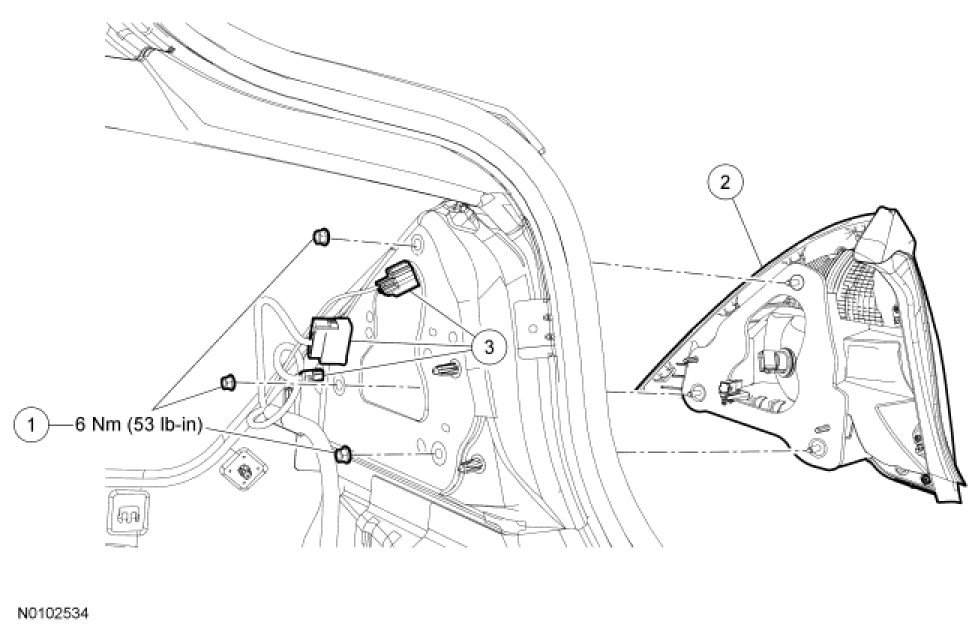

Rear Lamp Assembly

NOTE: Fusion shown, Milan and MKZ similar.











Removal and Installation

1. Remove the pin-type retainer and position the luggage compartment trim panel aside.

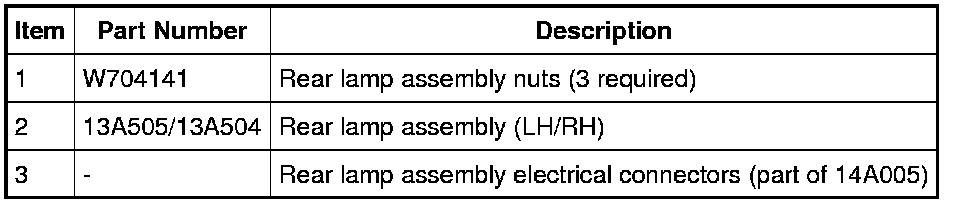

2. Remove the 3 nuts and the rear lamp assembly.
- Disconnect the electrical connectors.

- To install, tighten the nuts to 6 Nm (53 lb-in).

3. To install, reverse the removal procedure.
