Test HD: Misfire Detection Monitor
PINPOINT TEST HD: MISFIRE DETECTION MONITOR

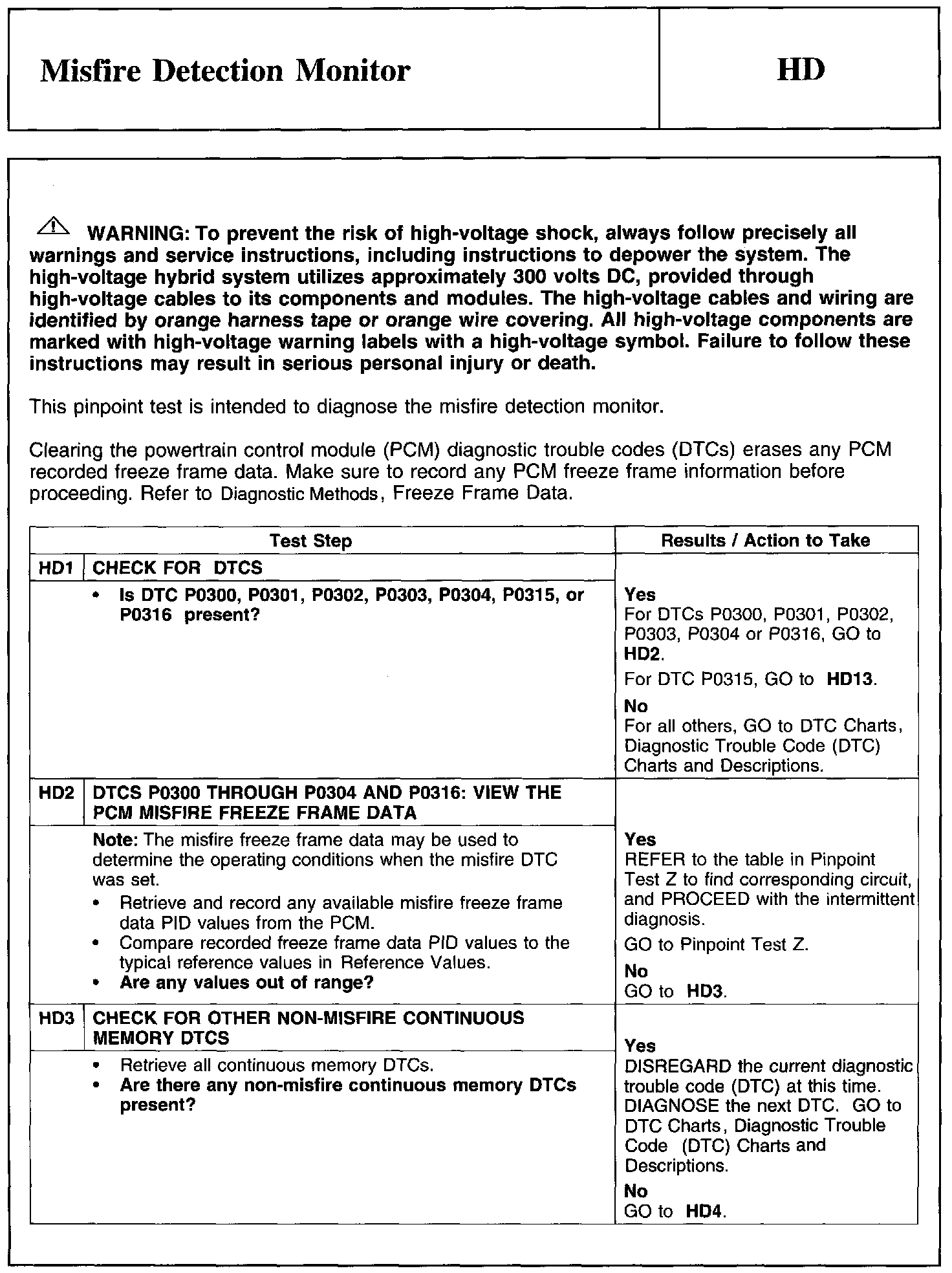

HD1-HD3:

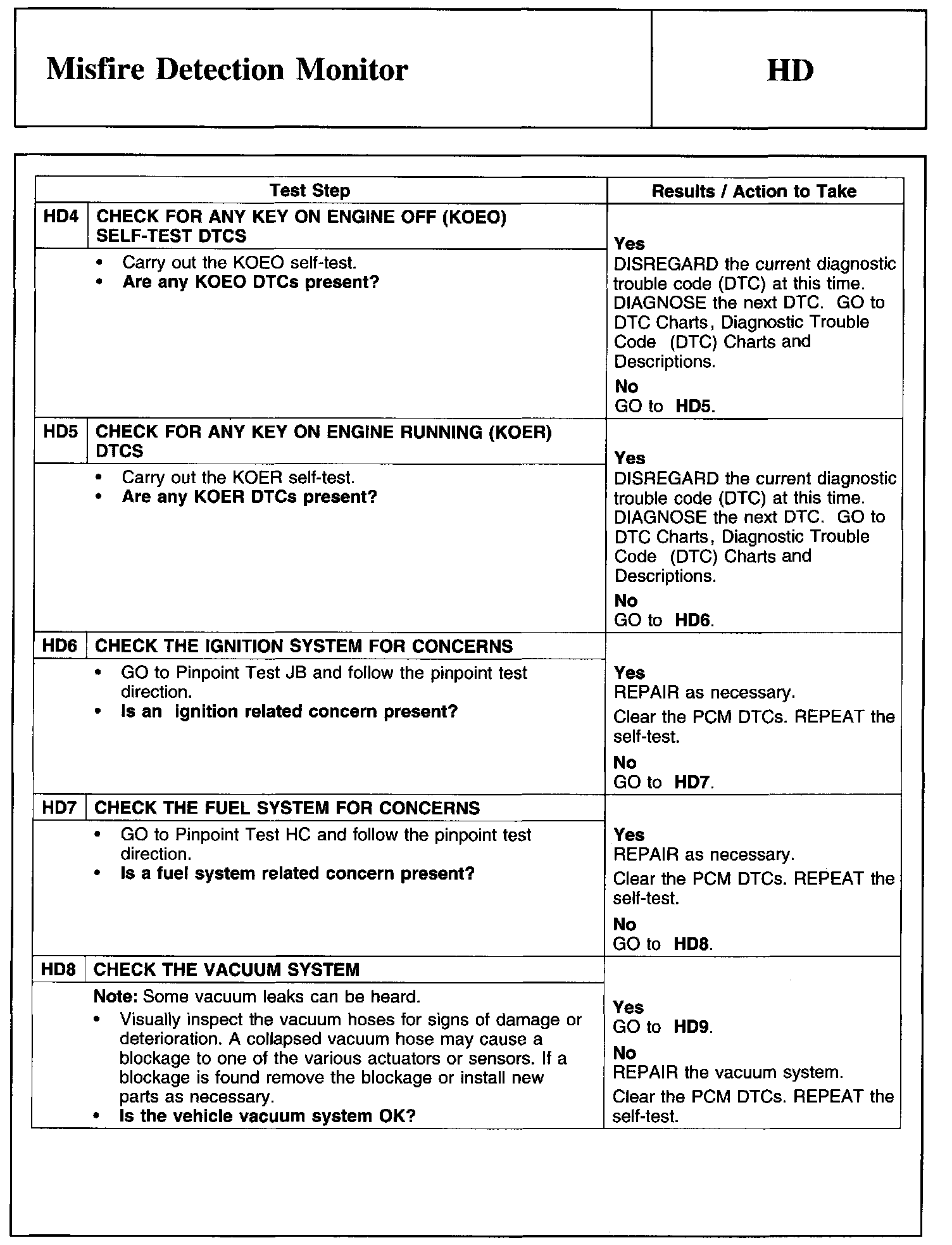

HD4-HD8:

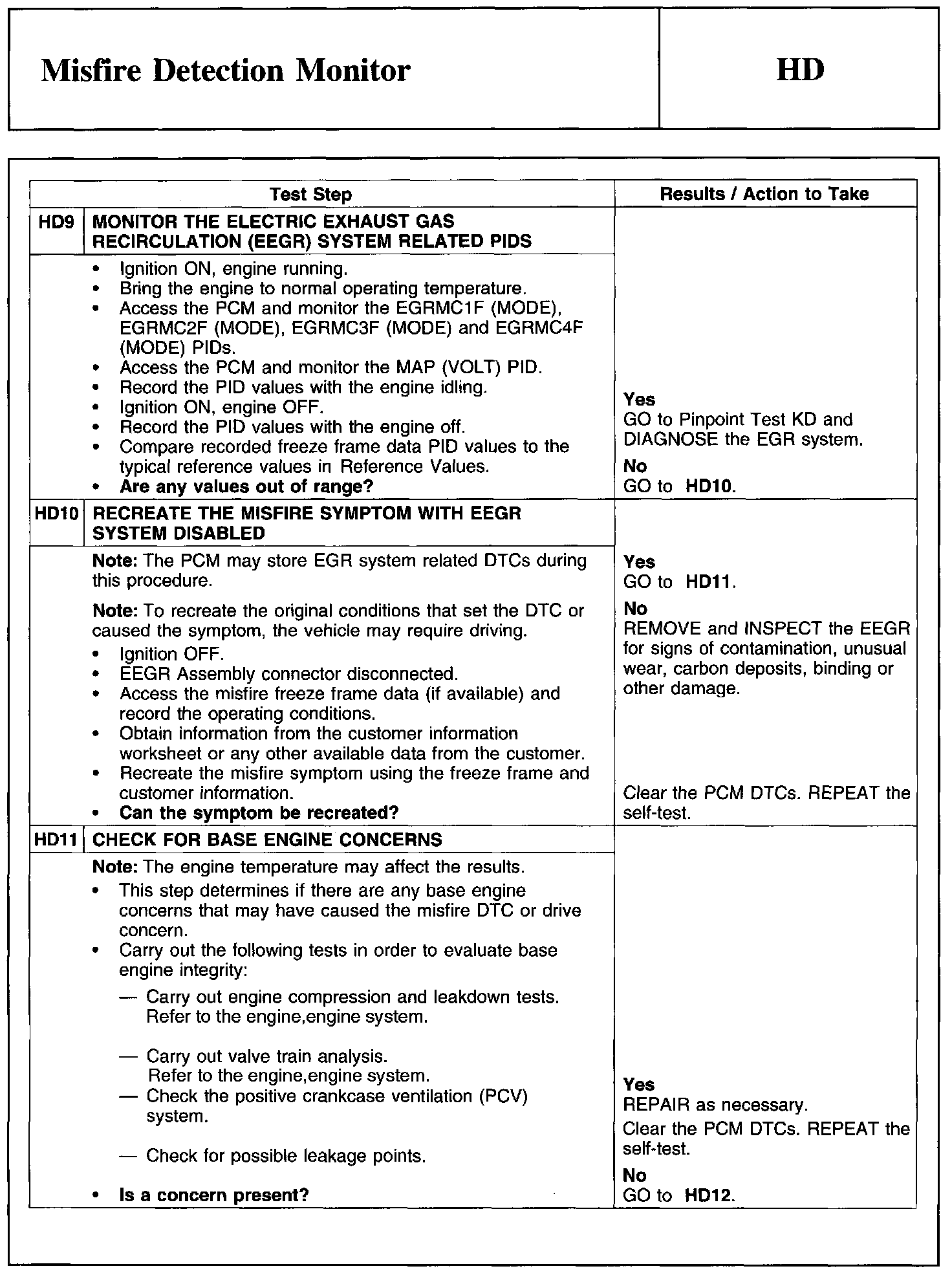

HD9-HD11:

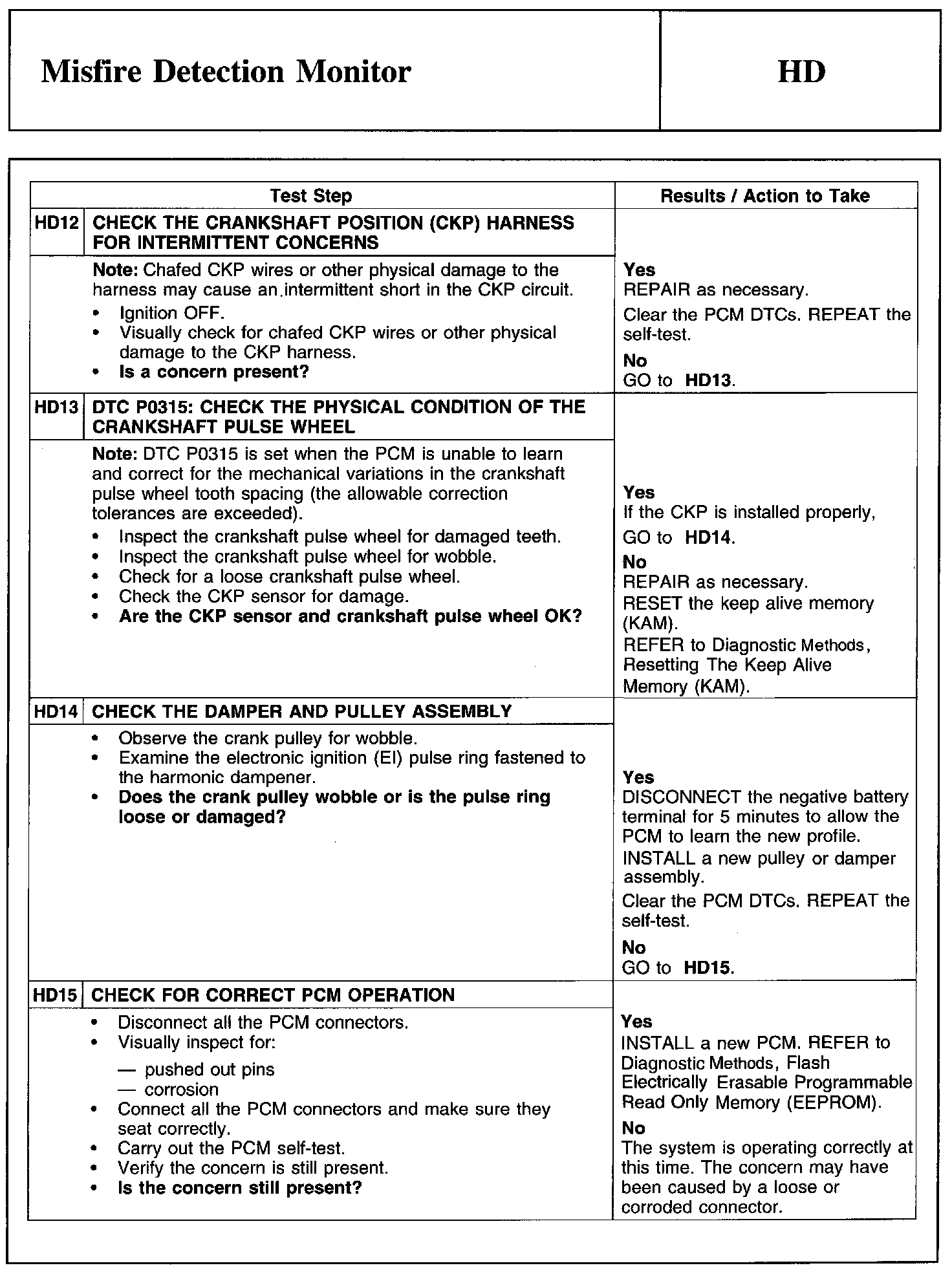

HD12-HD15:
