Test KC: Fuel Pump Control Module

PINPOINT TEST KC: FUEL PUMP CONTROL MODULE


Warning And Fuel Pump Control Module Connector:

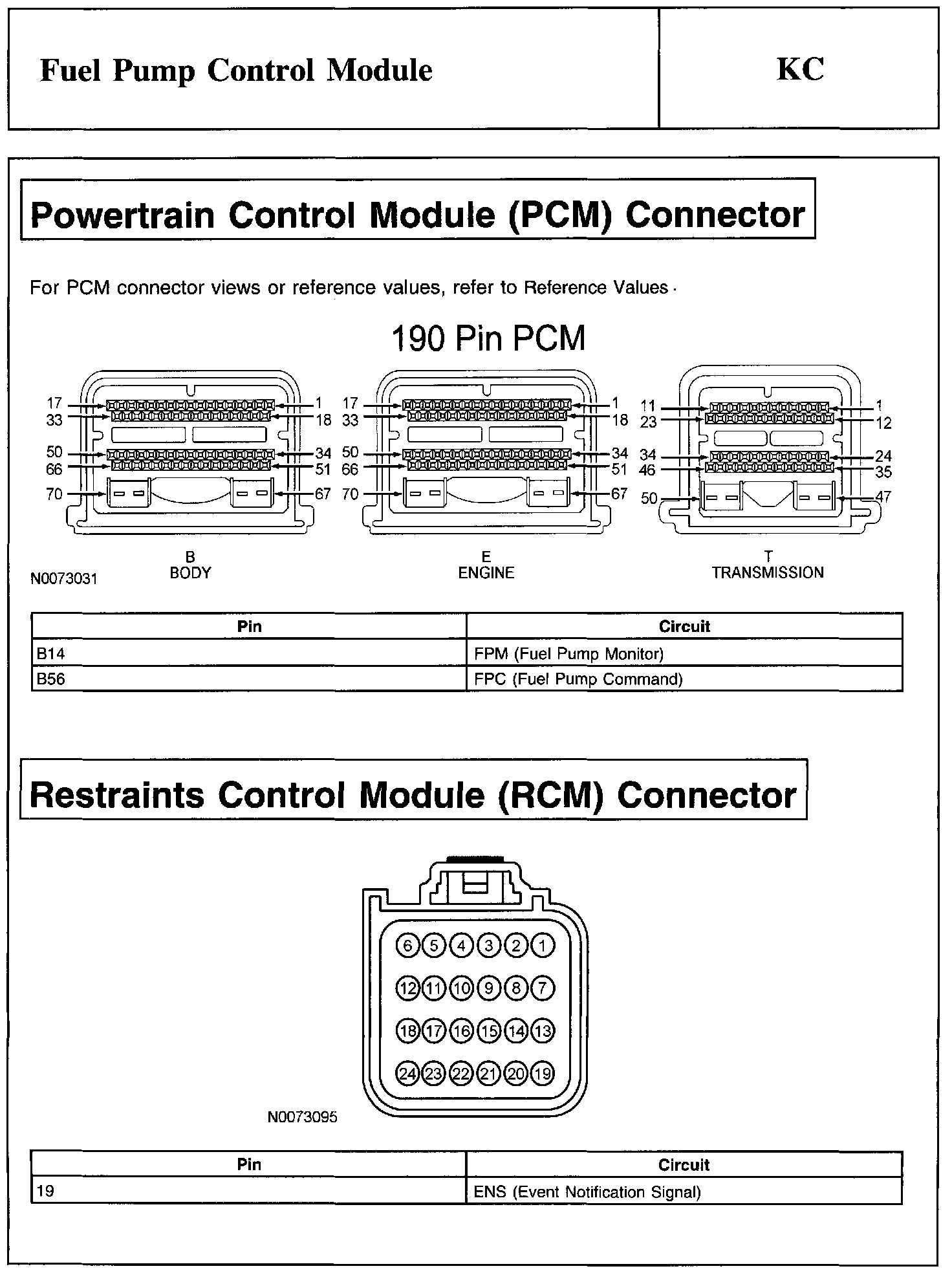

Powertrain Control Module (PCM) Connector And Restraints Control Module (RCM) Connector:

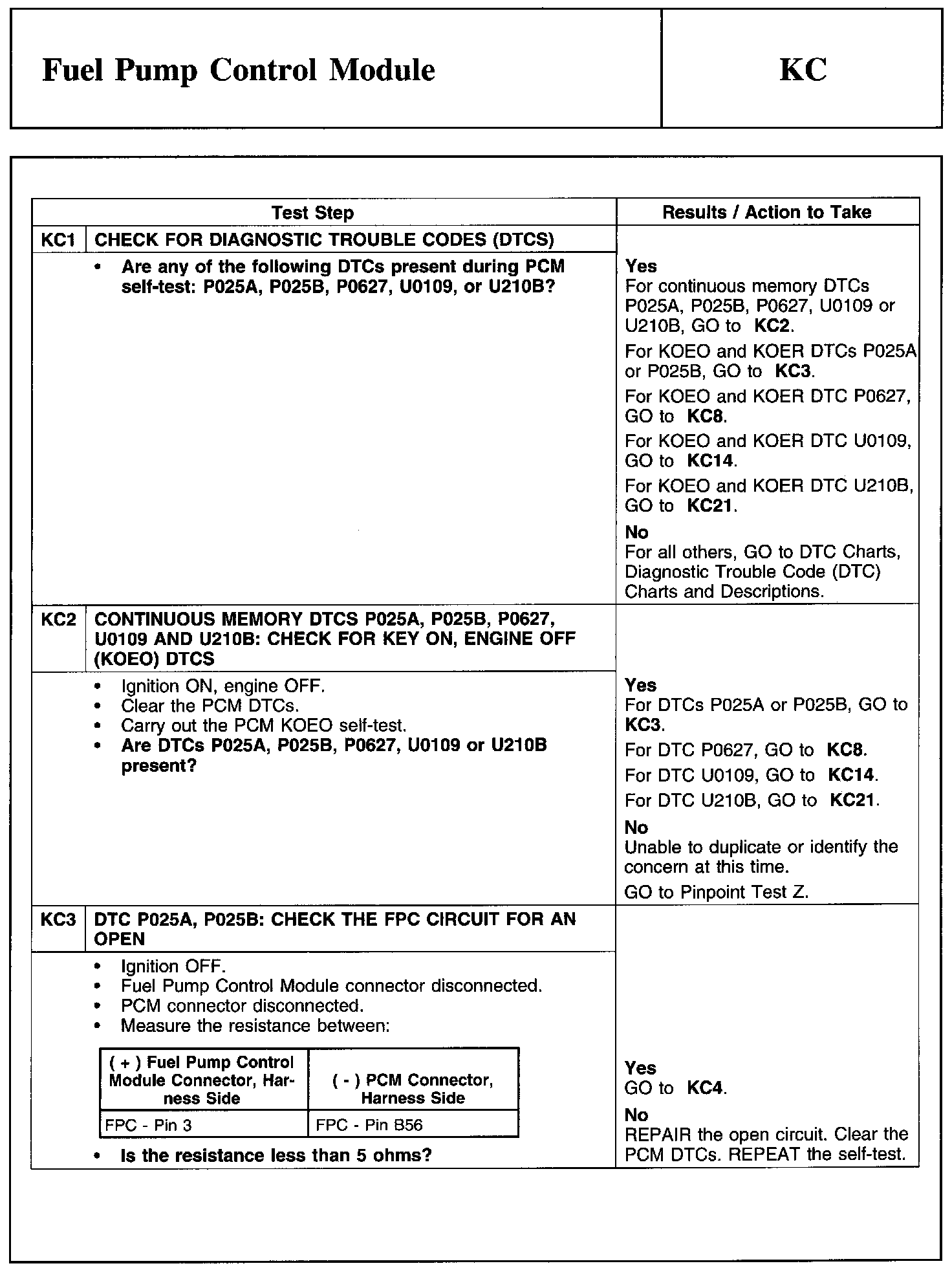

KC1-KC3:

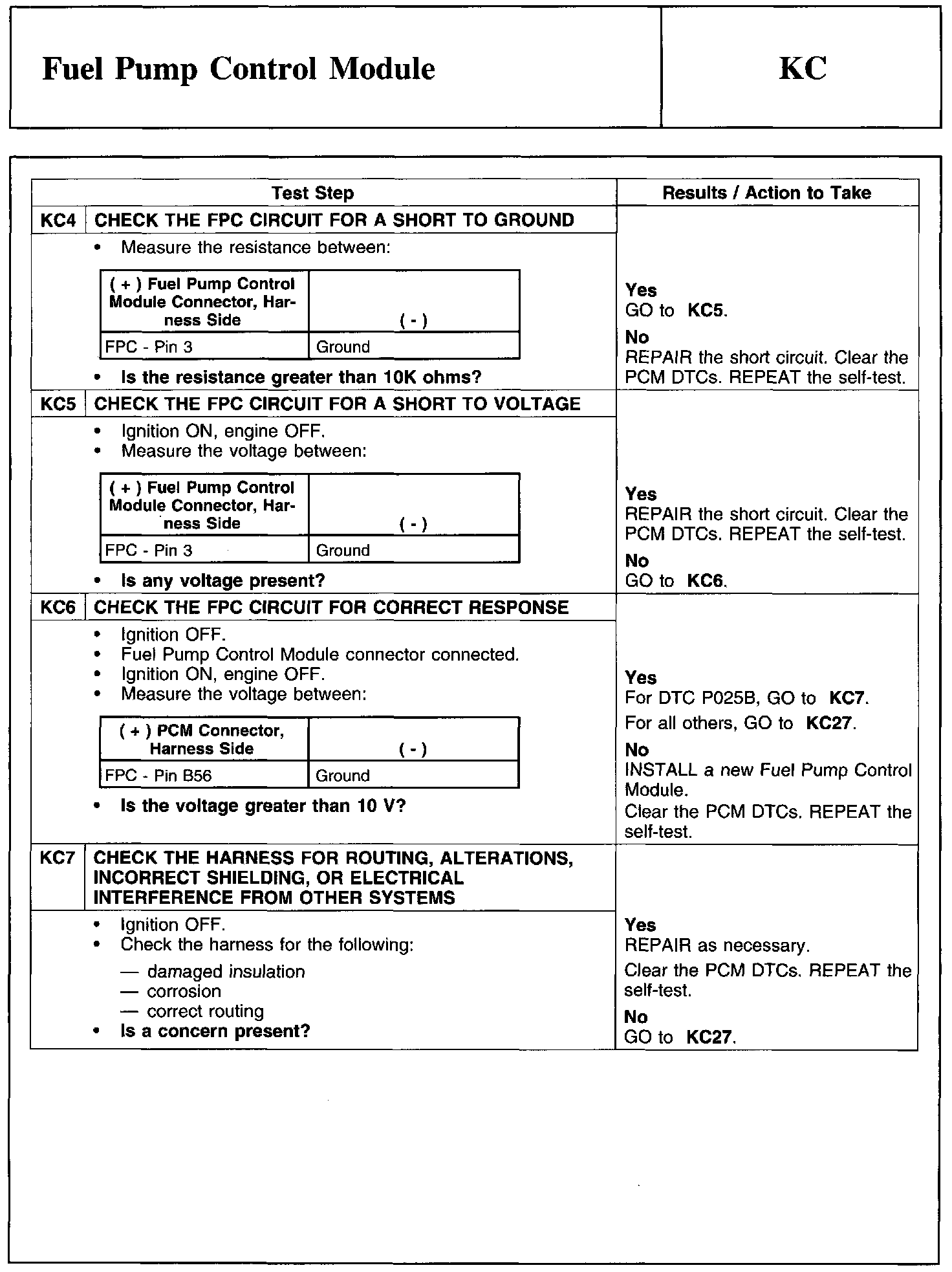

KC4-KC7:

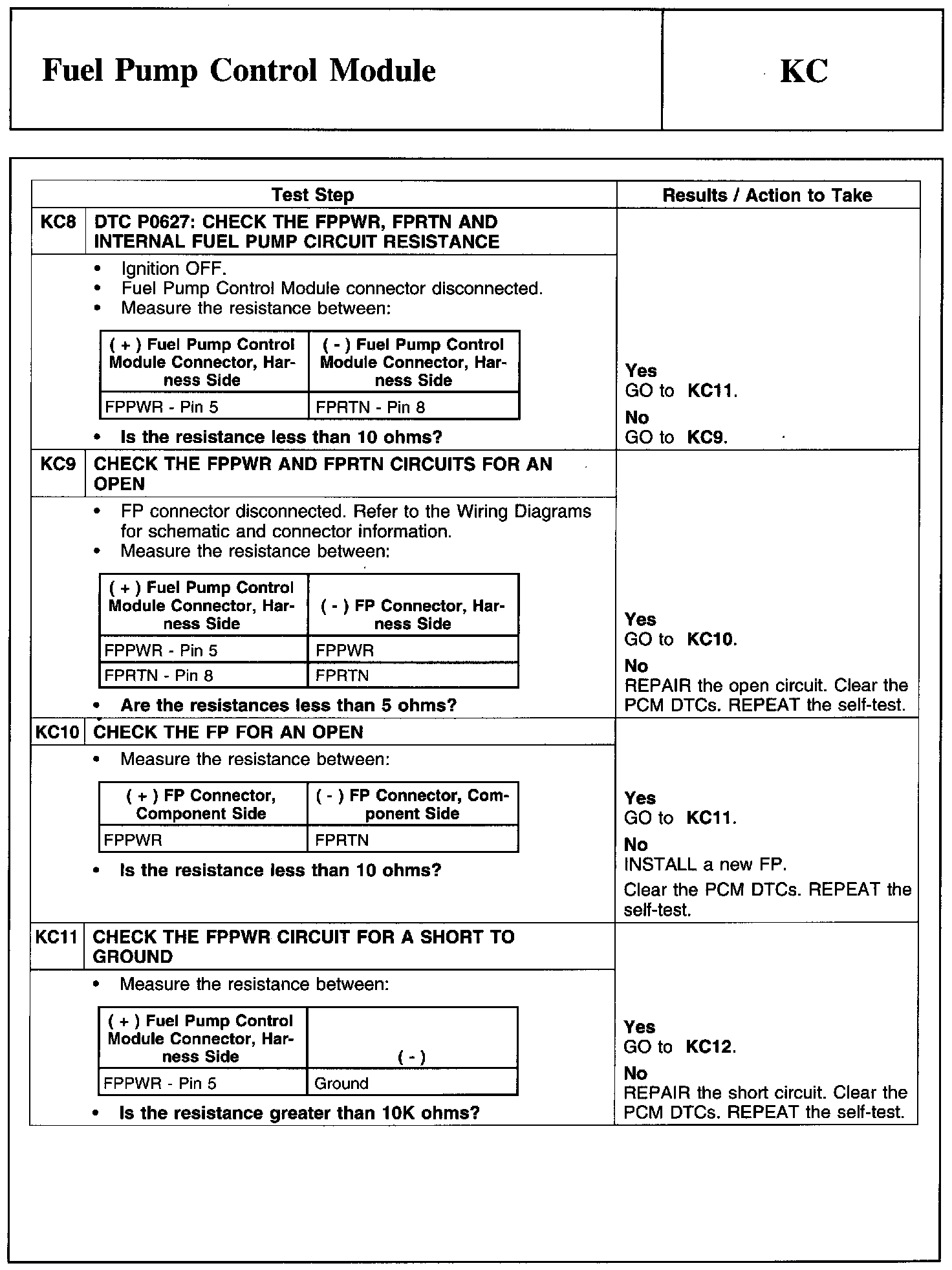

KC8-KC11:

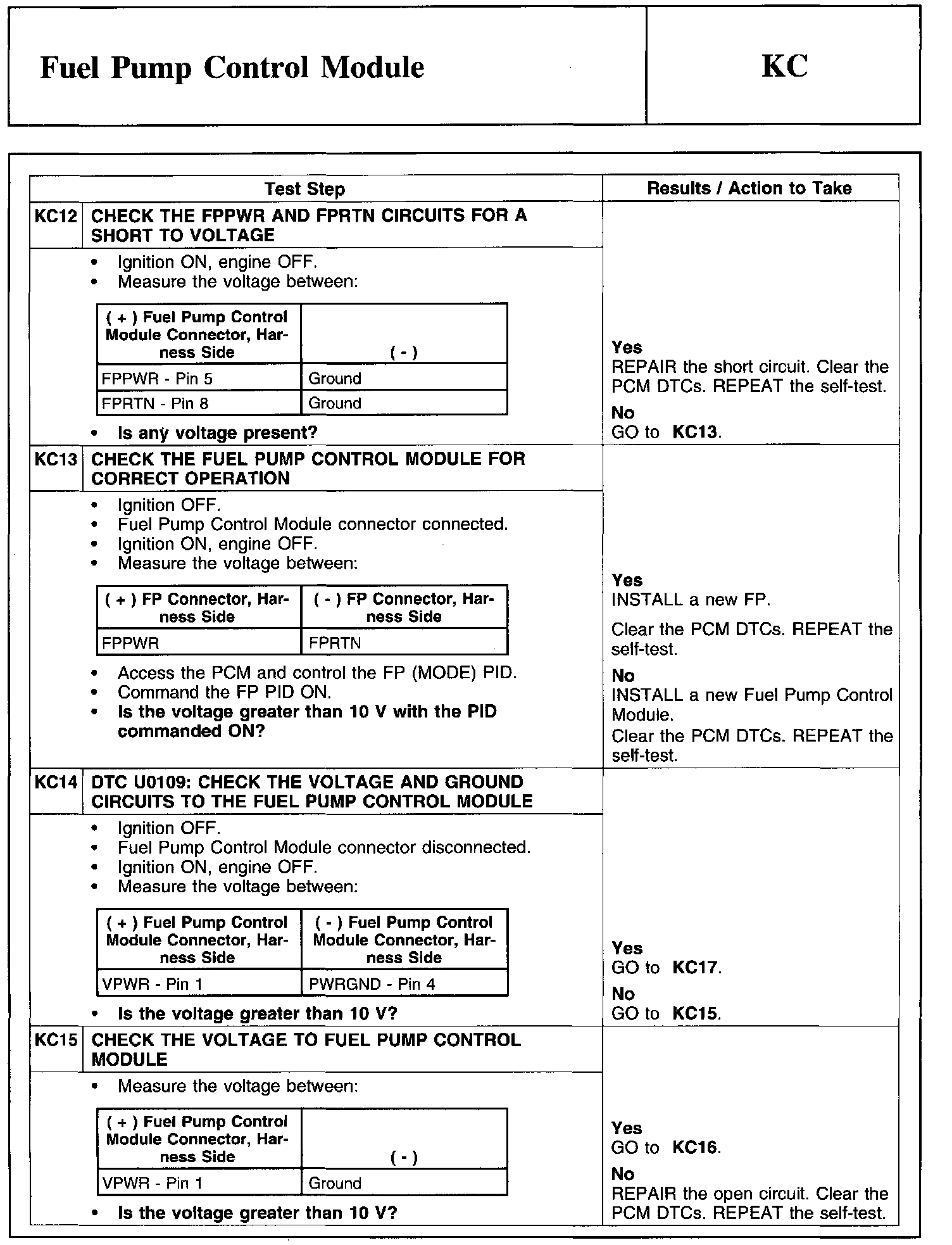

KC12-KC15:

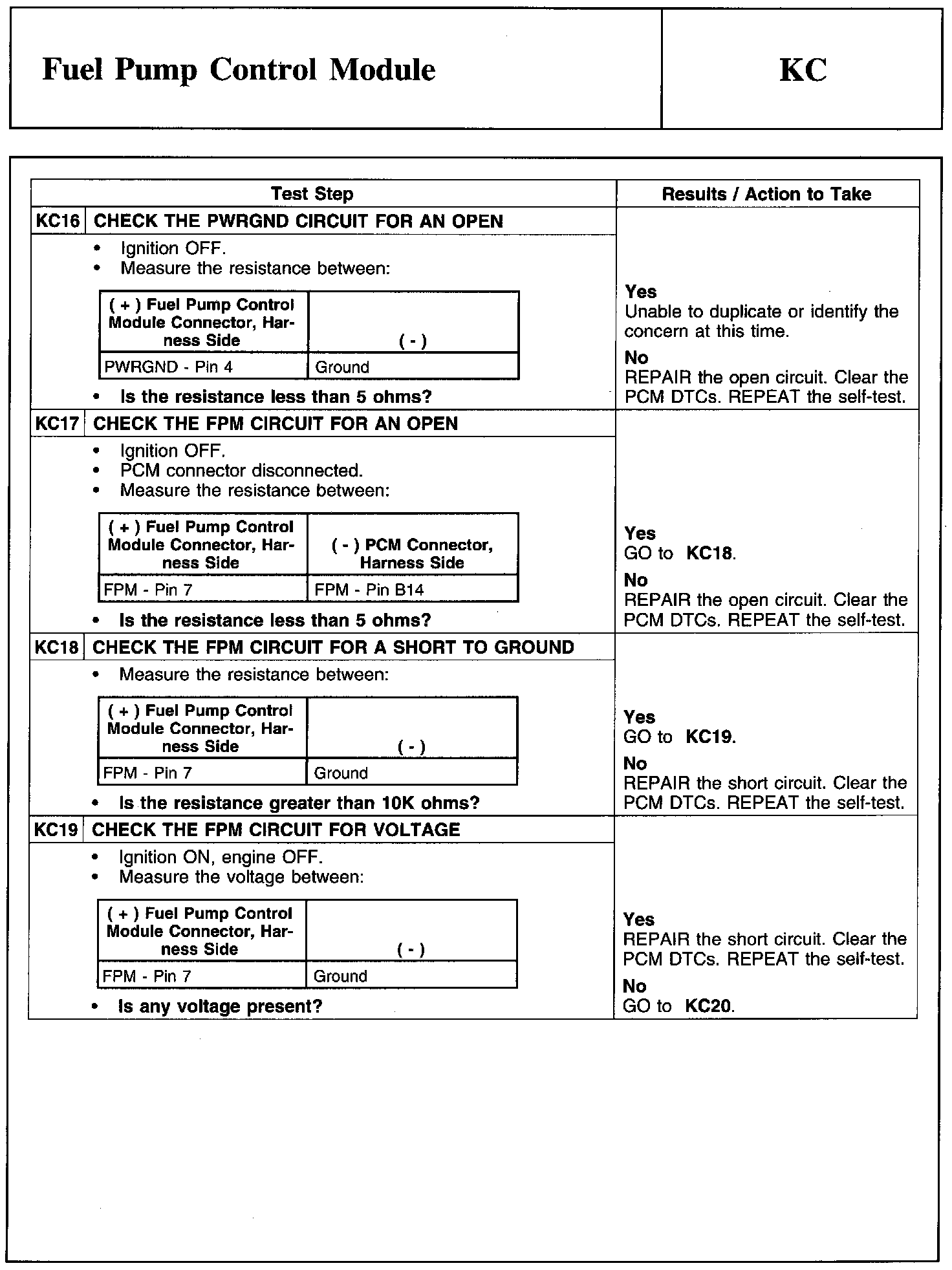

KC16-KC19:

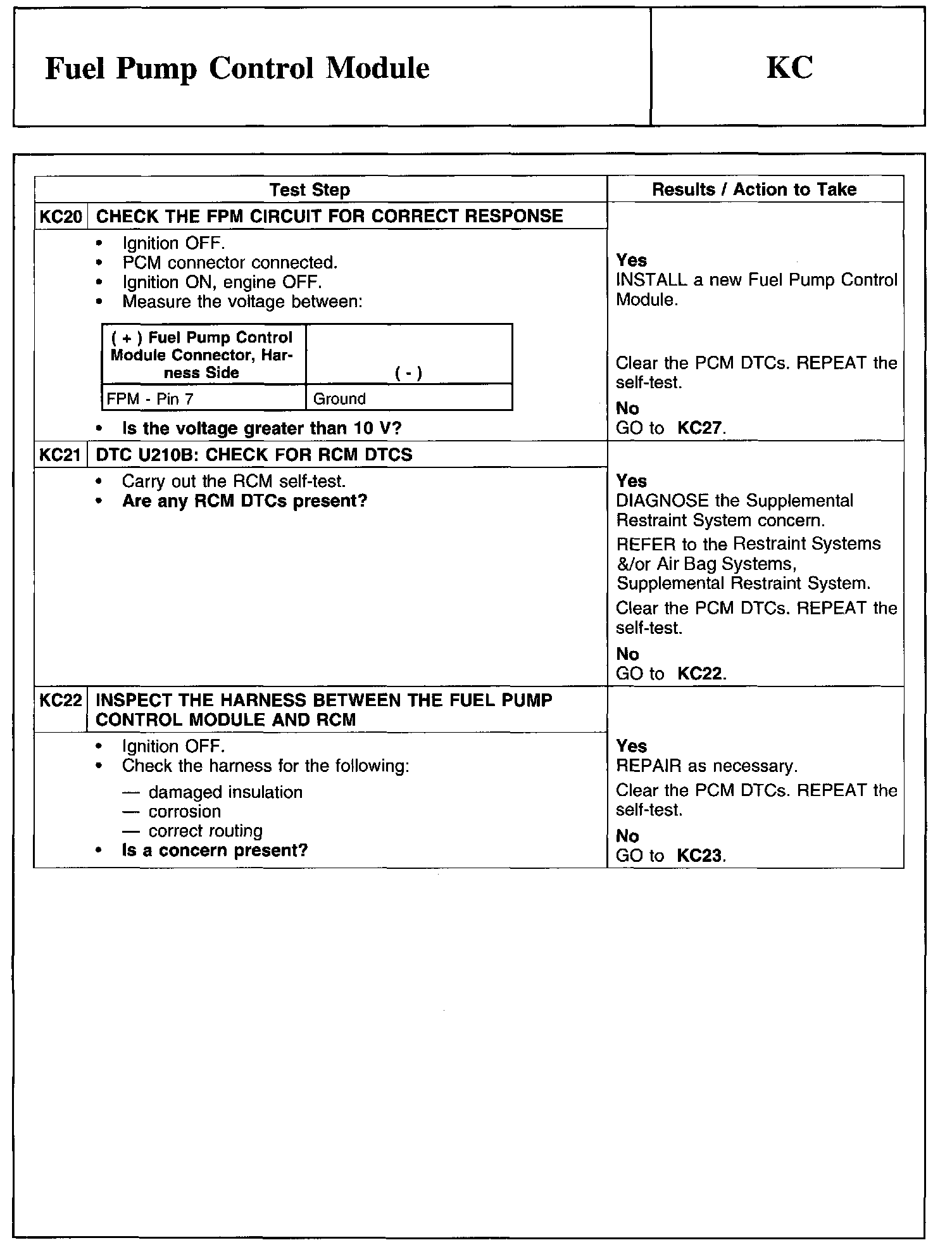

KC20-KC22:






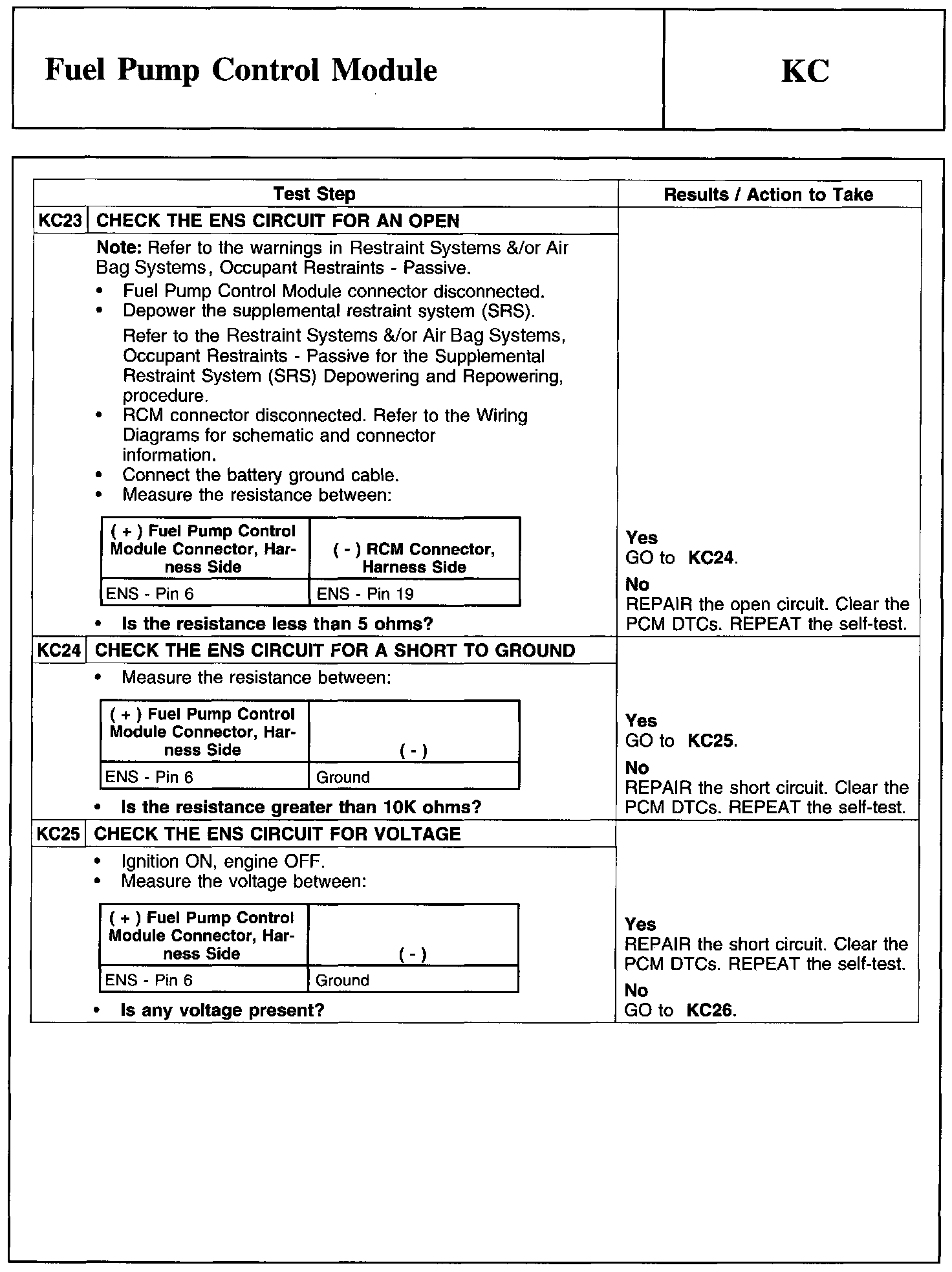

KC23-KC25:

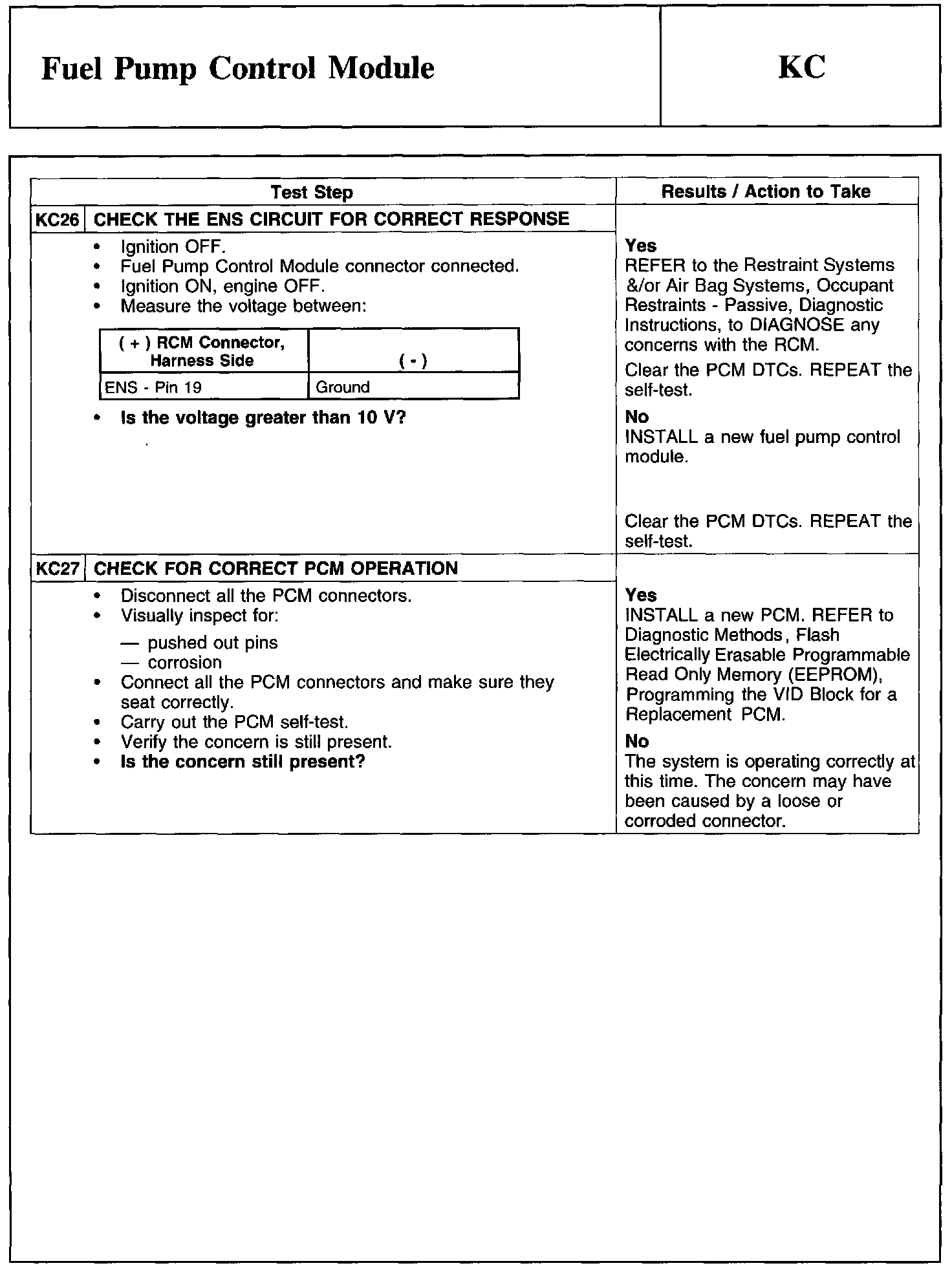

KC26-KC27:
