QT: Powertrain Control Module (PCM)/Transaxle Control Module (TCM) Quick Test
QT: POWERTRAIN CONTROL MODULE (PCM)/TRANSAXLE CONTROL MODULE (TCM) QUICK TEST

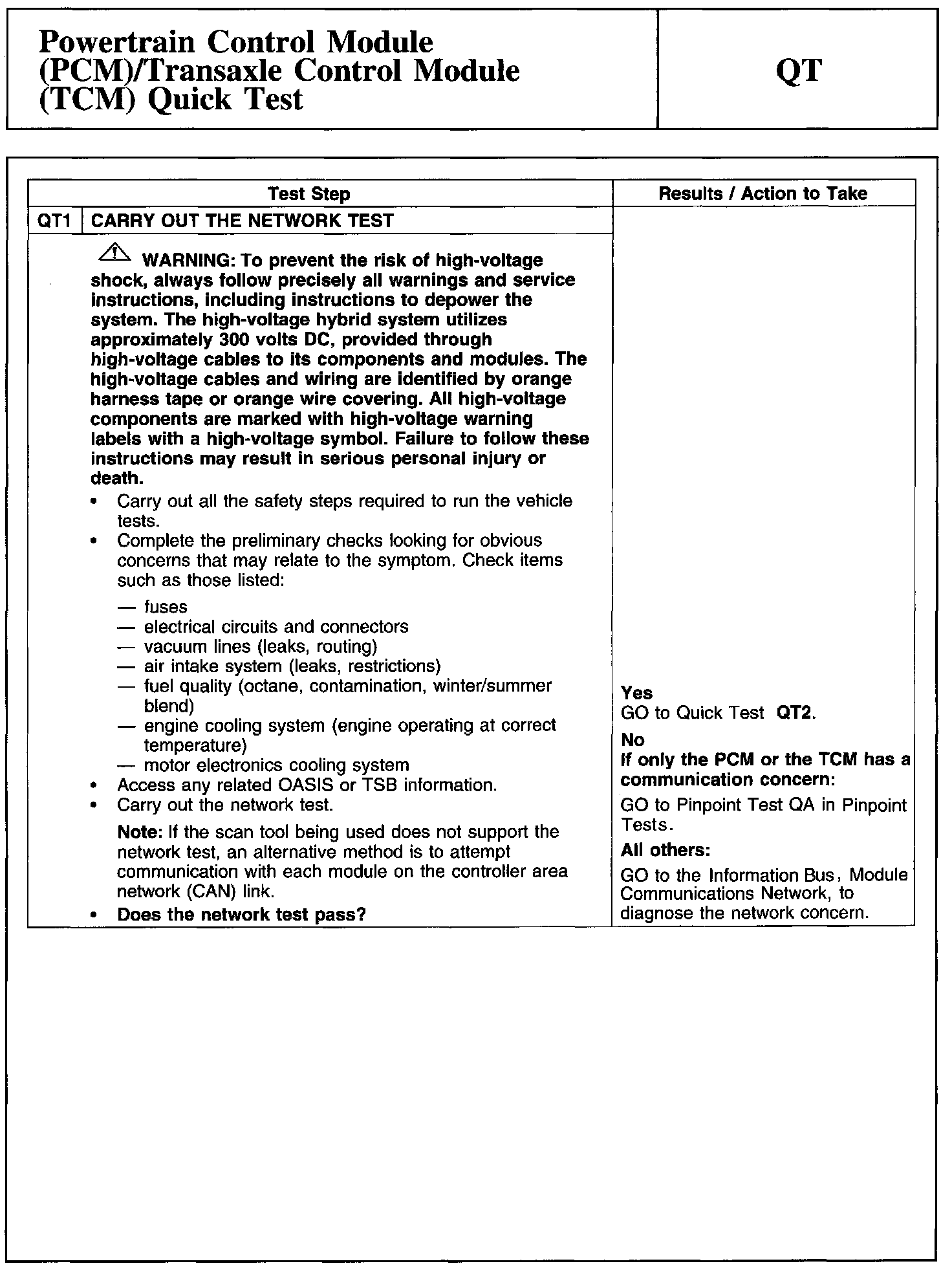

QT1:

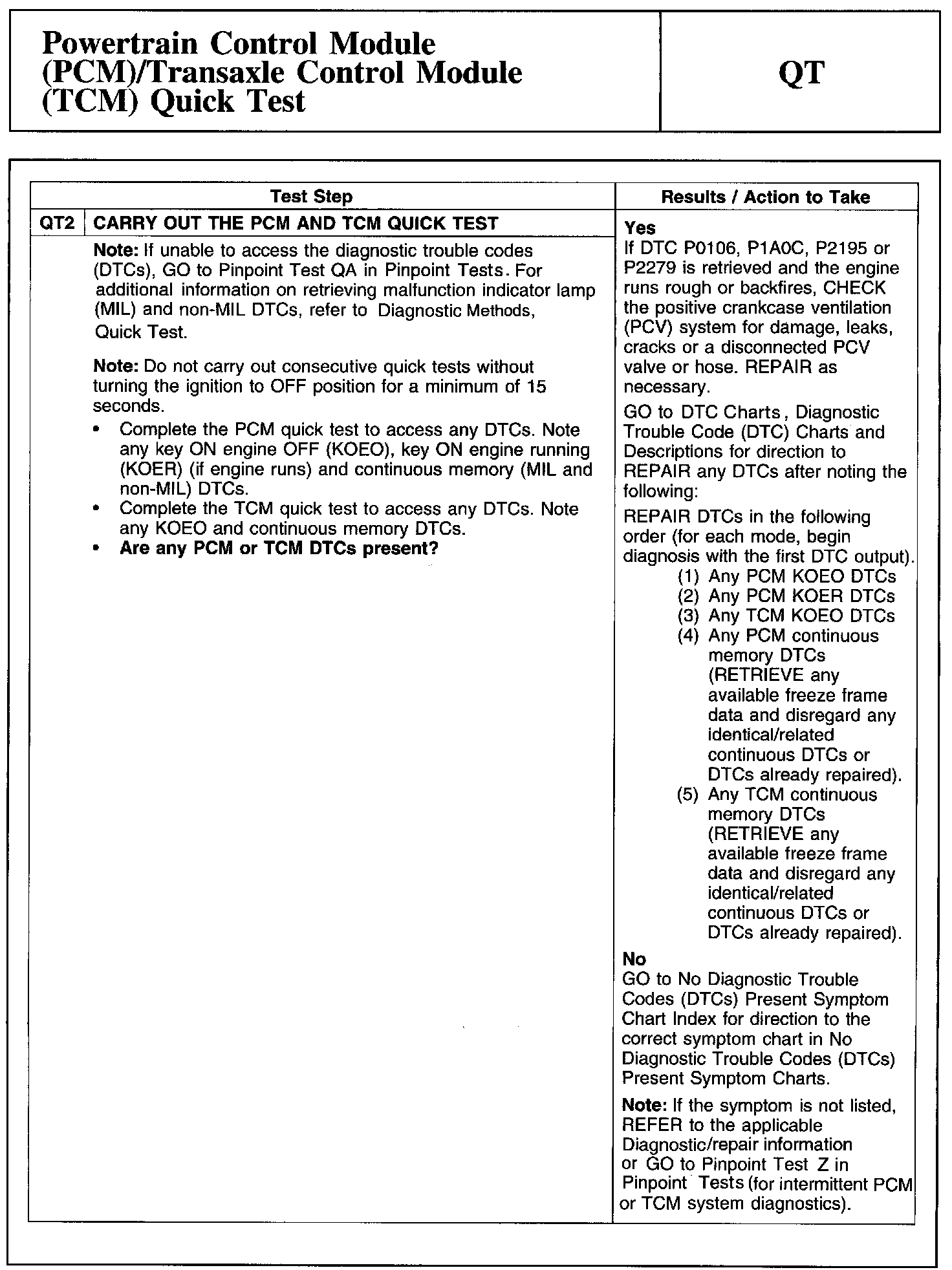

QT2:
