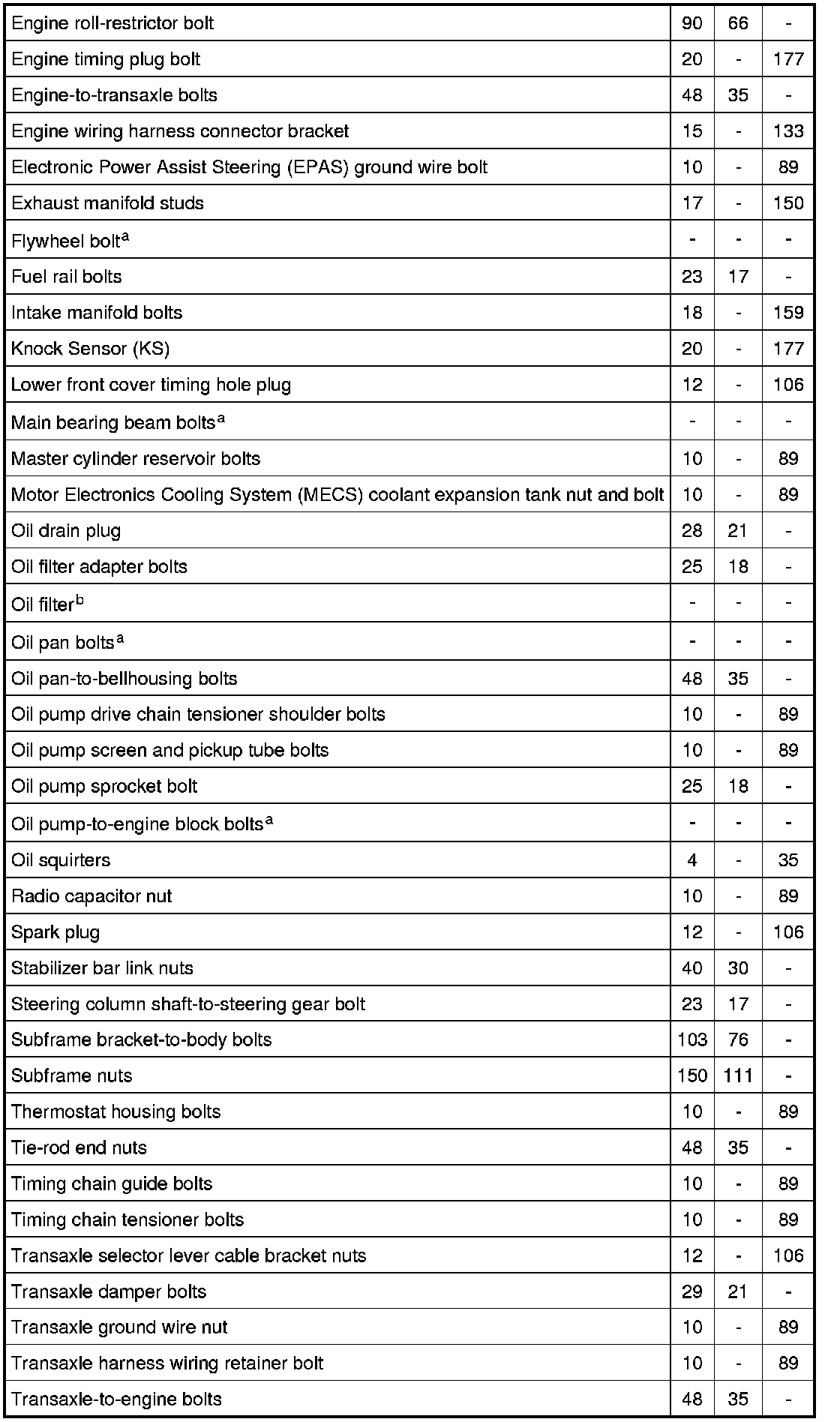

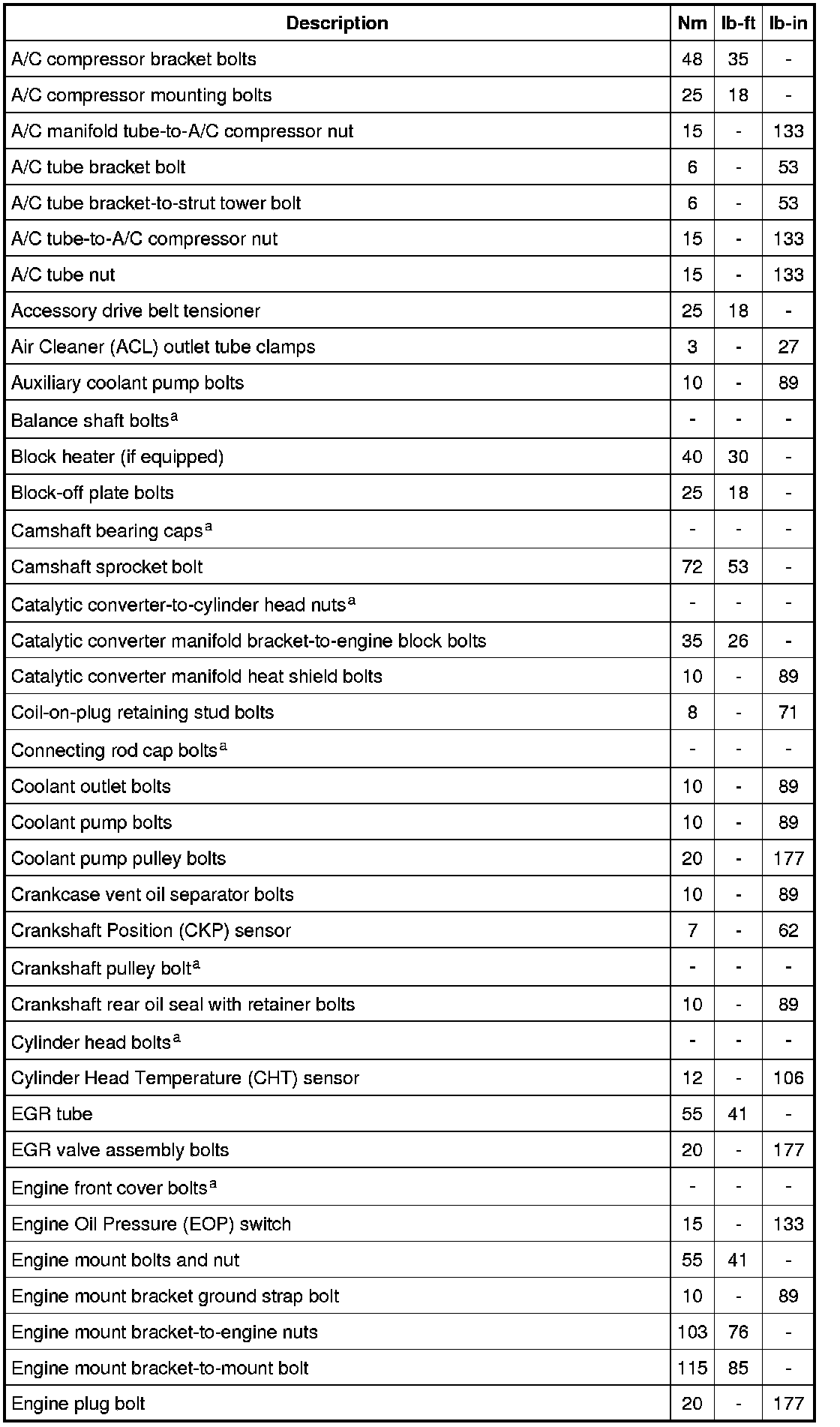

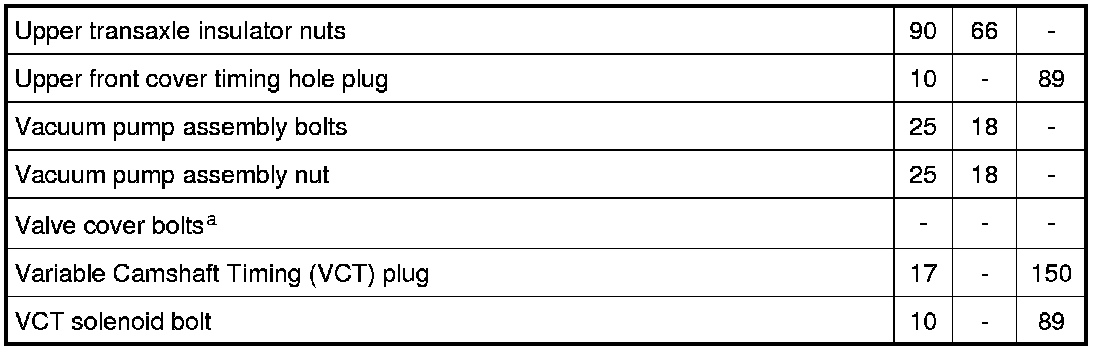

Torque Specifications

Torque Specifications













a Refer to the procedure.

b Tighten the pin-on oil filter three-fourths of a turn after the oil filter gasket makes contact with the oil filter adapter.
