Seats: Adjustments

Seat Latch Adjustment - Rear

1. Remove the parcel shelf. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

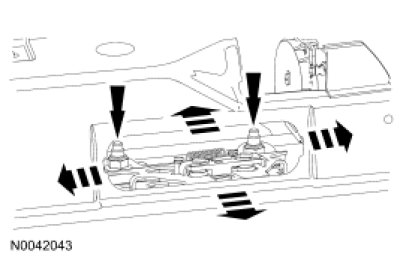

2. Loosen the 2 rear seat backrest latch nuts. Adjust the latch position as necessary for good backrest fit and latch closure when upright.
- Tighten to 48 Nm (35 lb-ft).





3. Install the parcel shelf. For additional information, refer to Interior Trim and Ornamentation Service and Repair.
