Wiper and Washer Systems

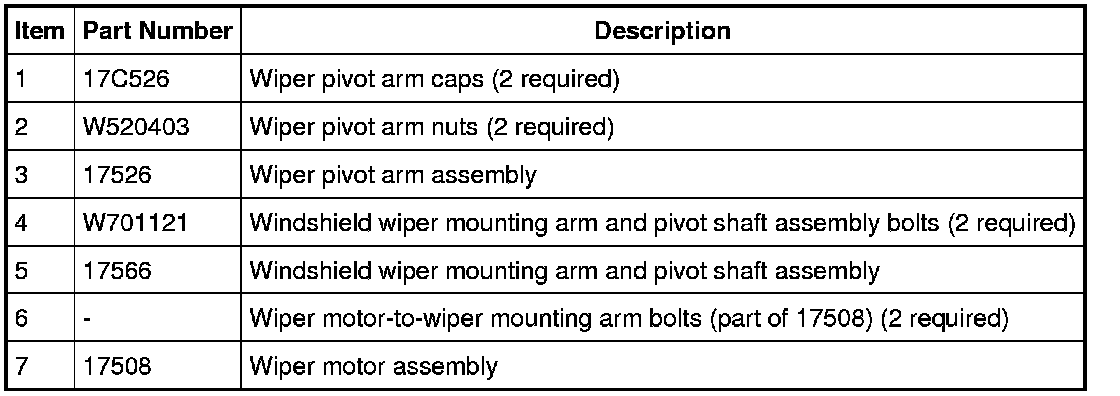

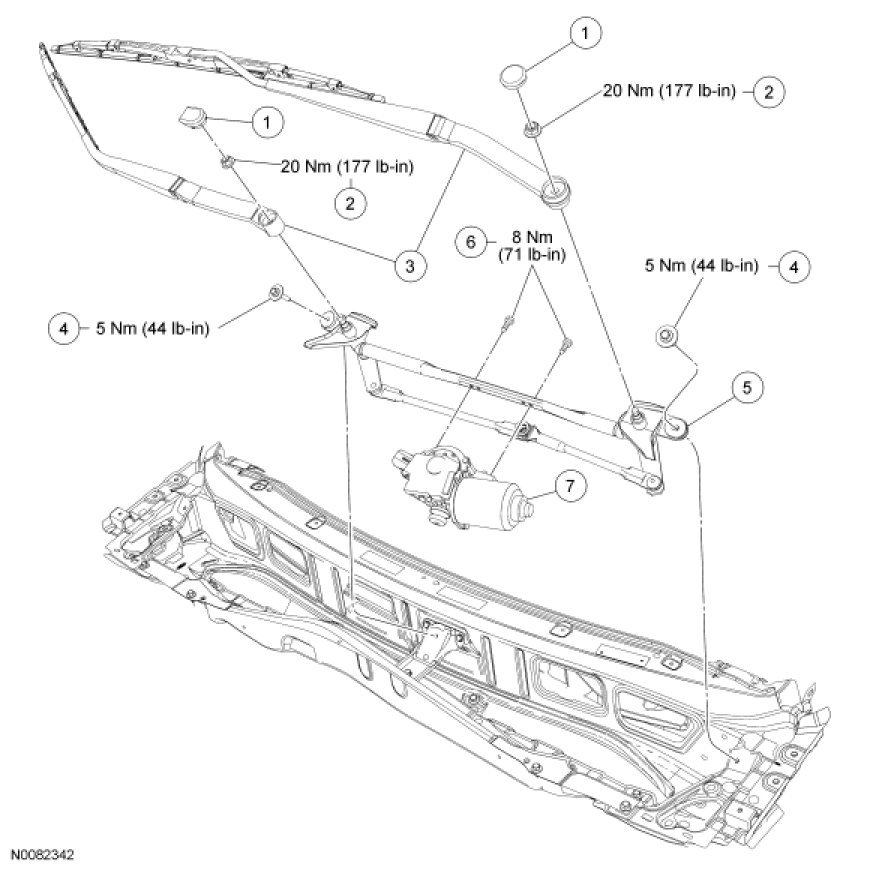

Wiper and Washer System - Exploded View

Windshield Wipers

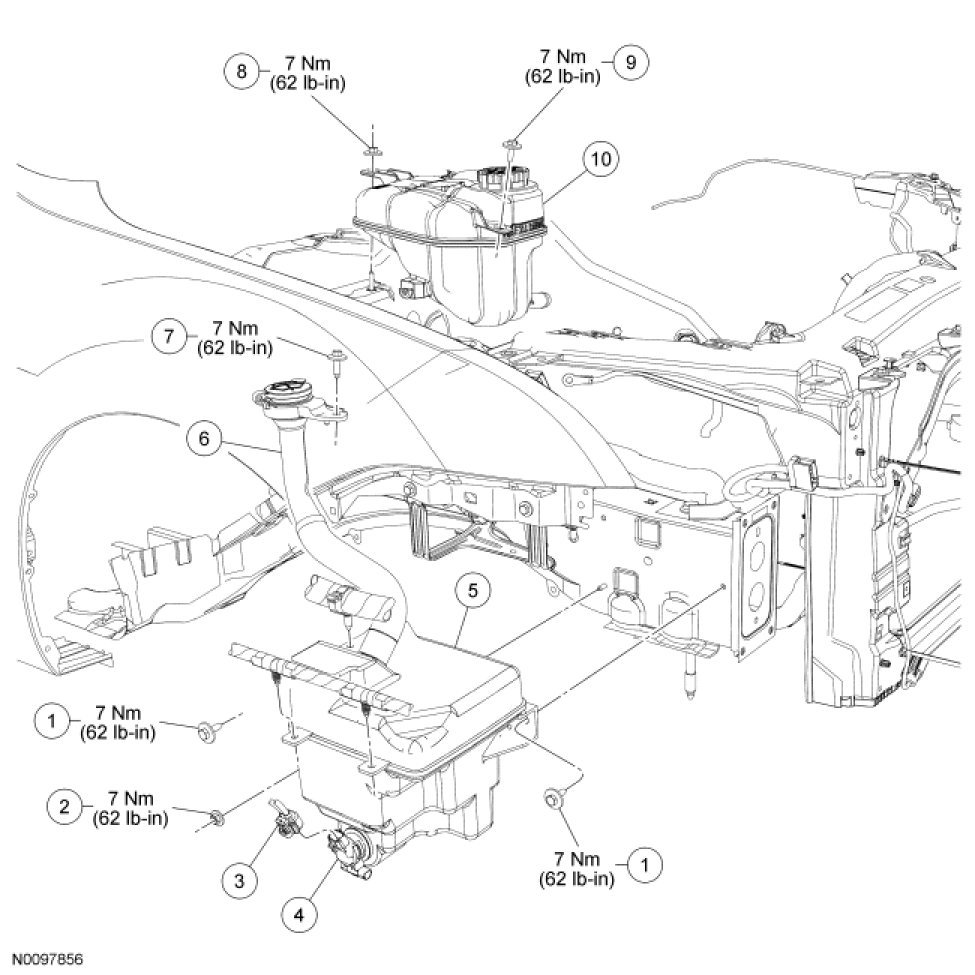

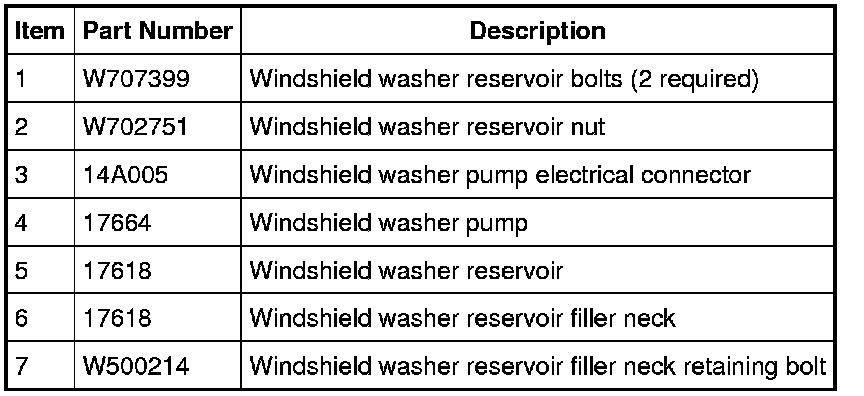

Washer Pump and Reservoir - Hybrid

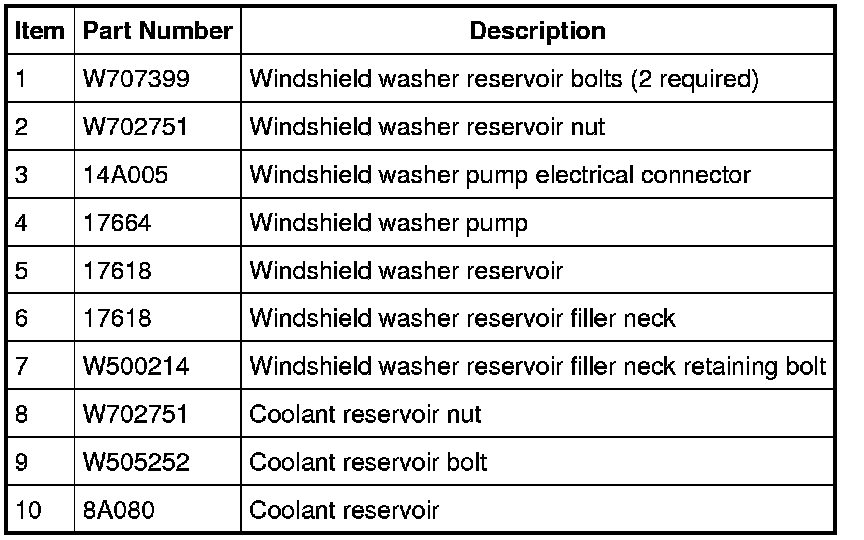

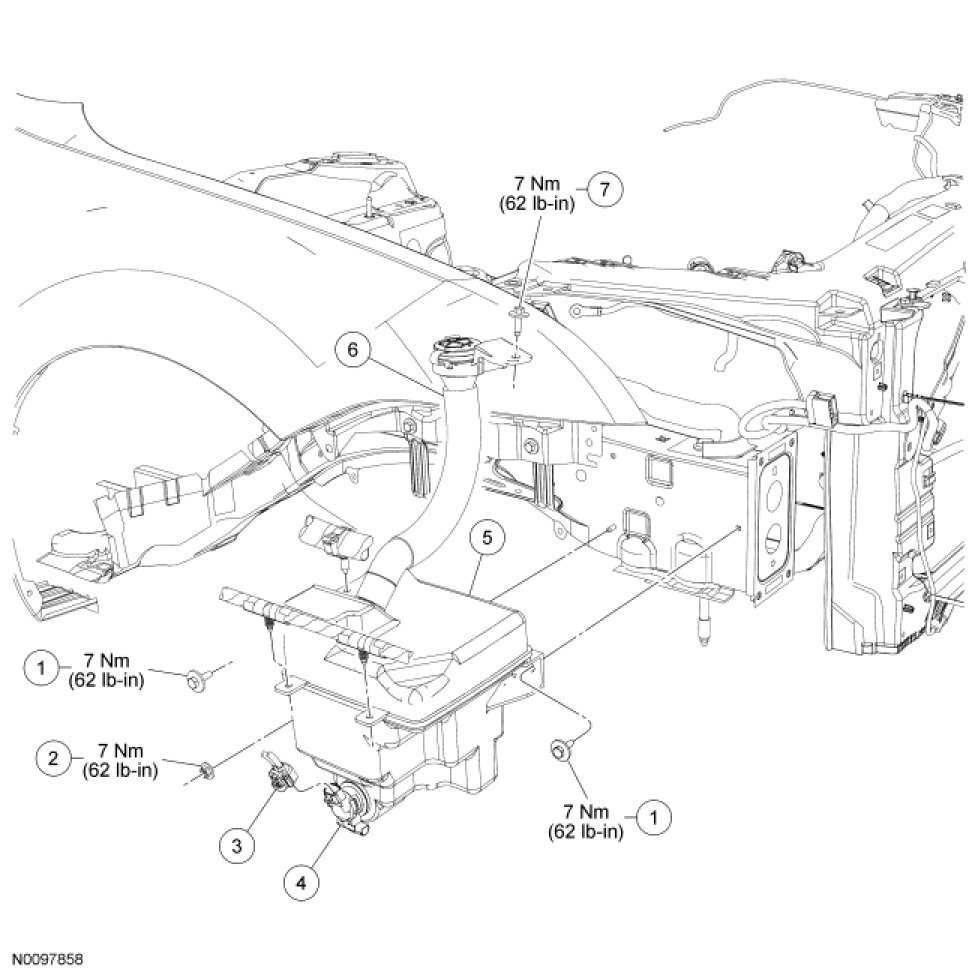

Washer Pump and Reservoir - Non-Hybrid
