Connector Locations

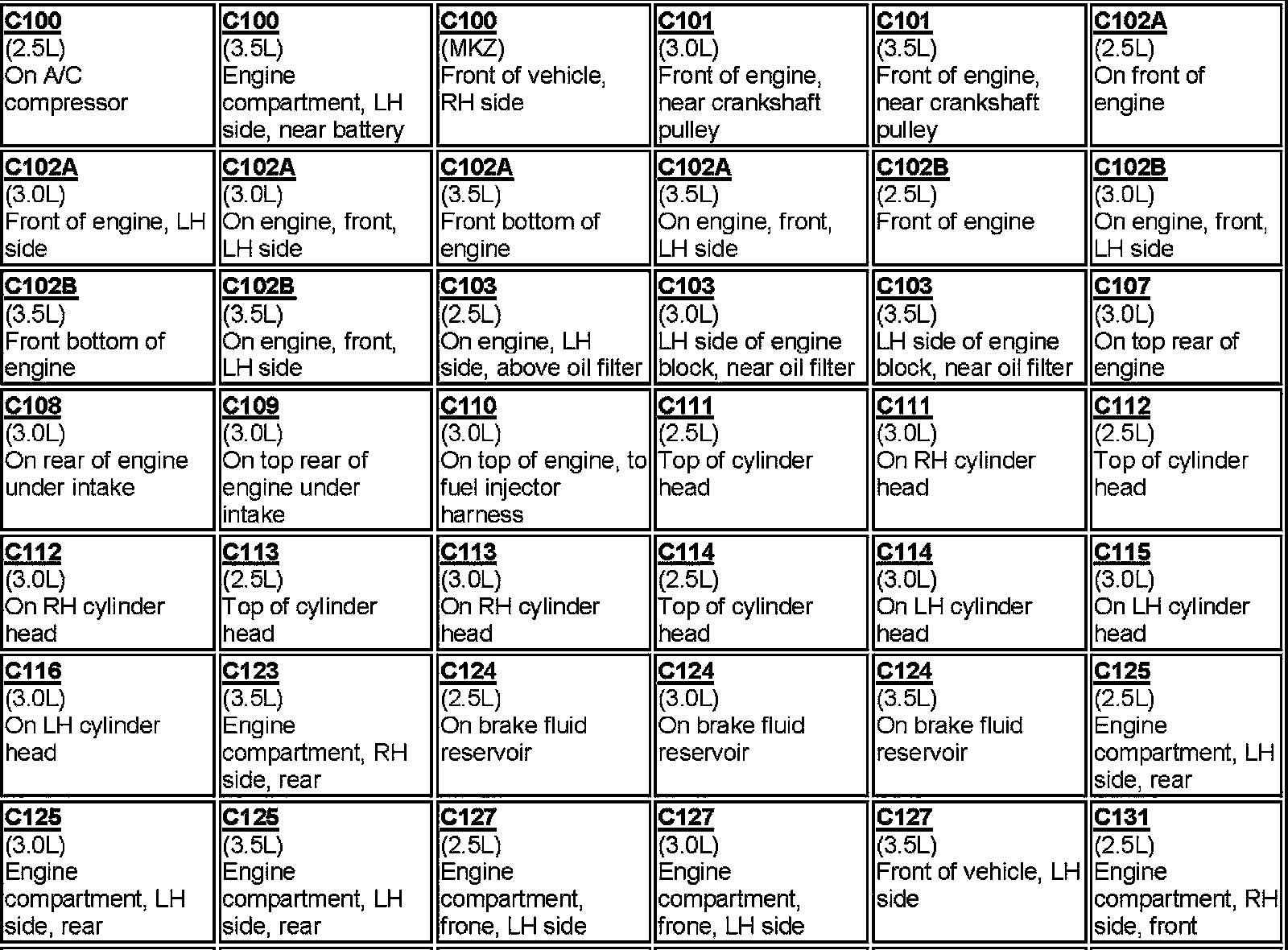

C100-C131:

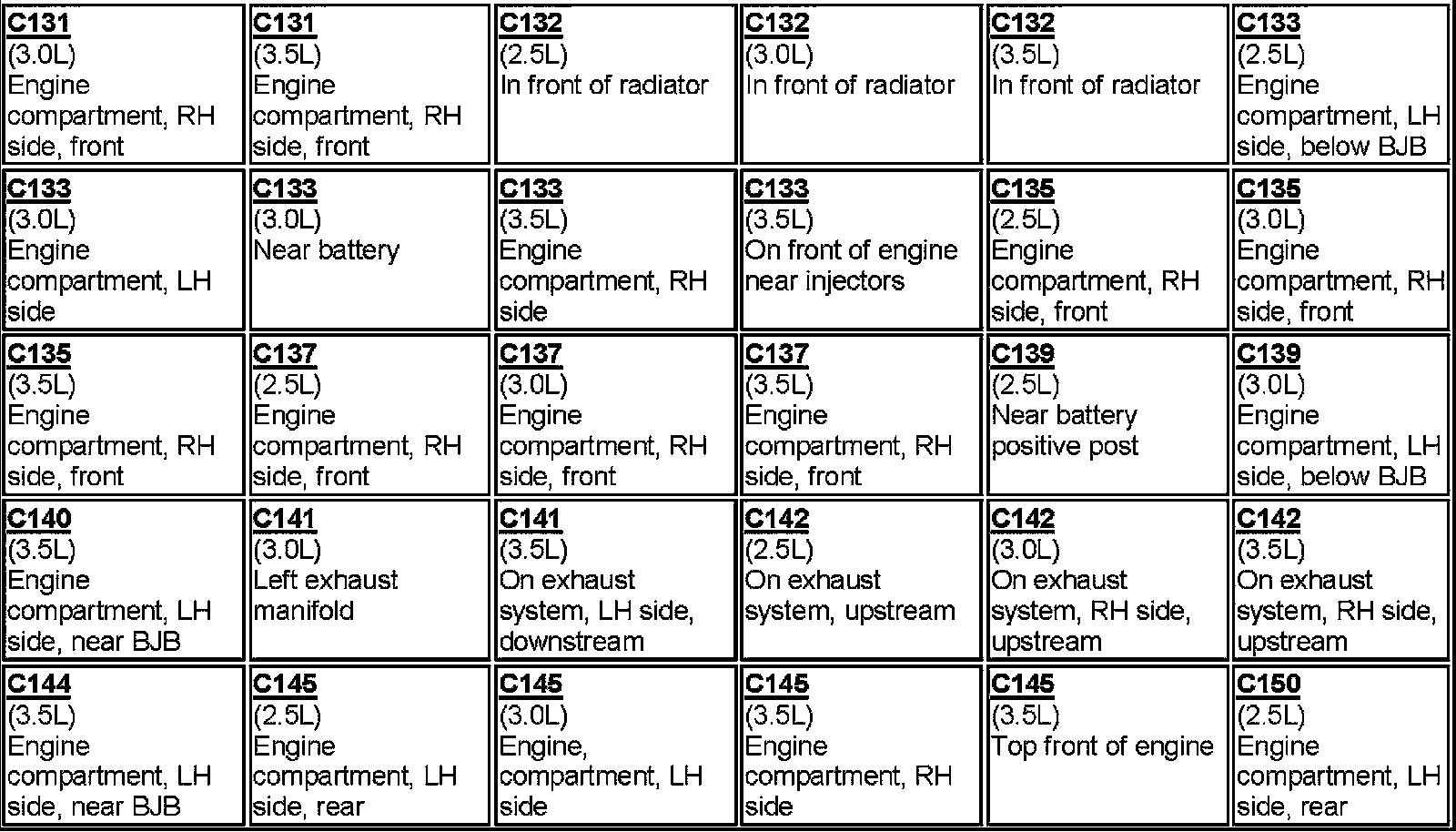

C131-C150:

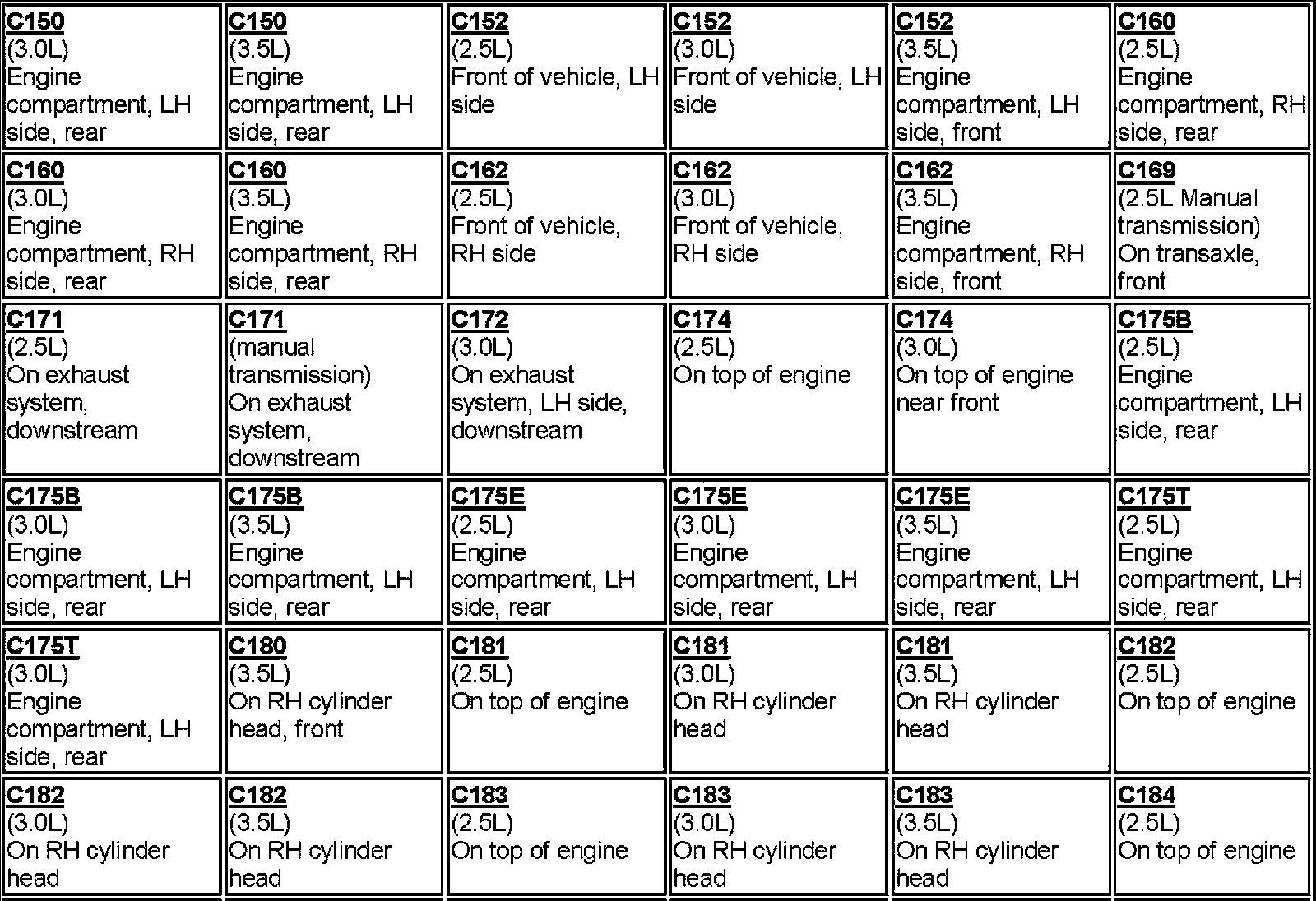

C150-C184:

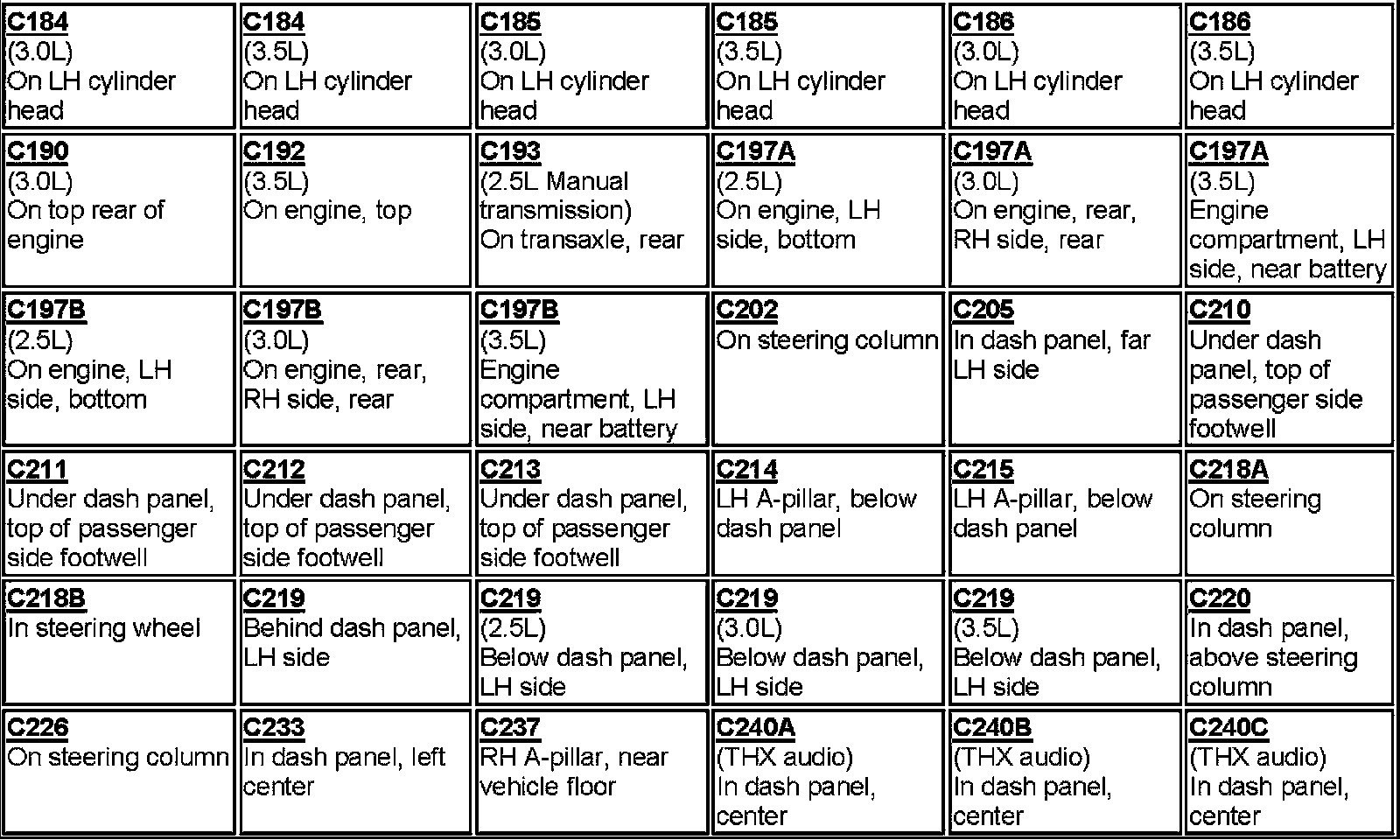

C184-C240C:

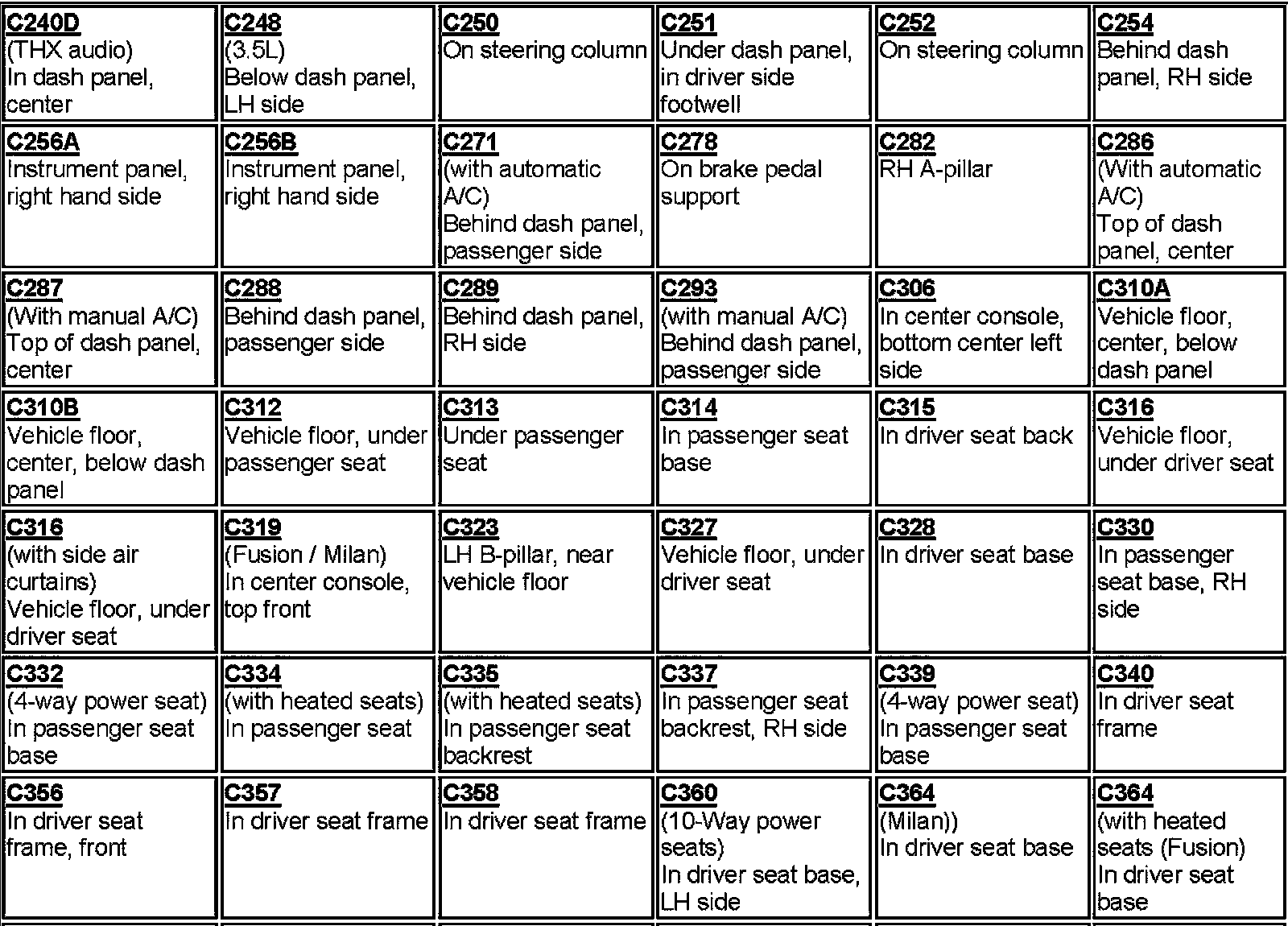

C240D-C364:

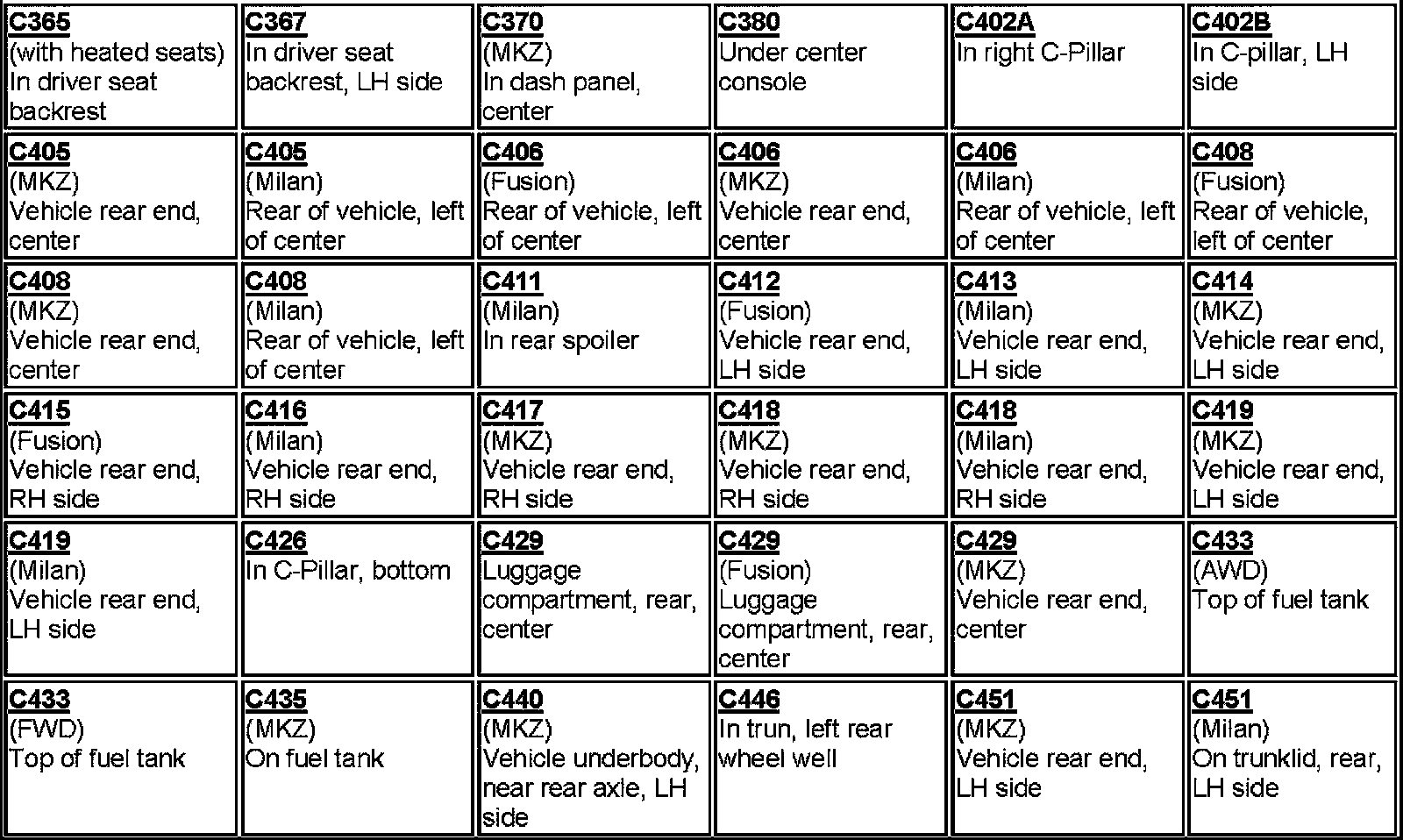

C365-C451:

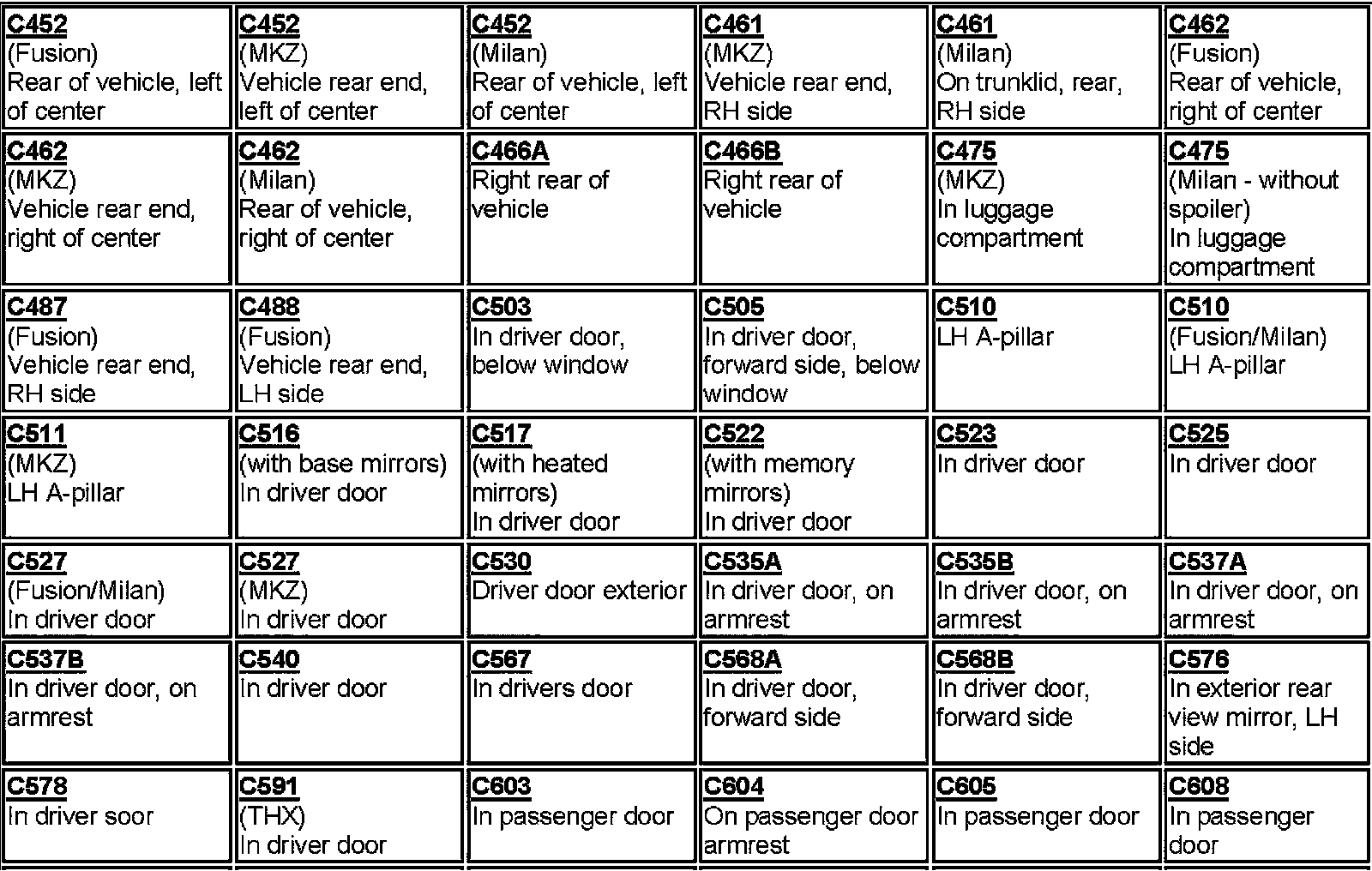

C452-C608:

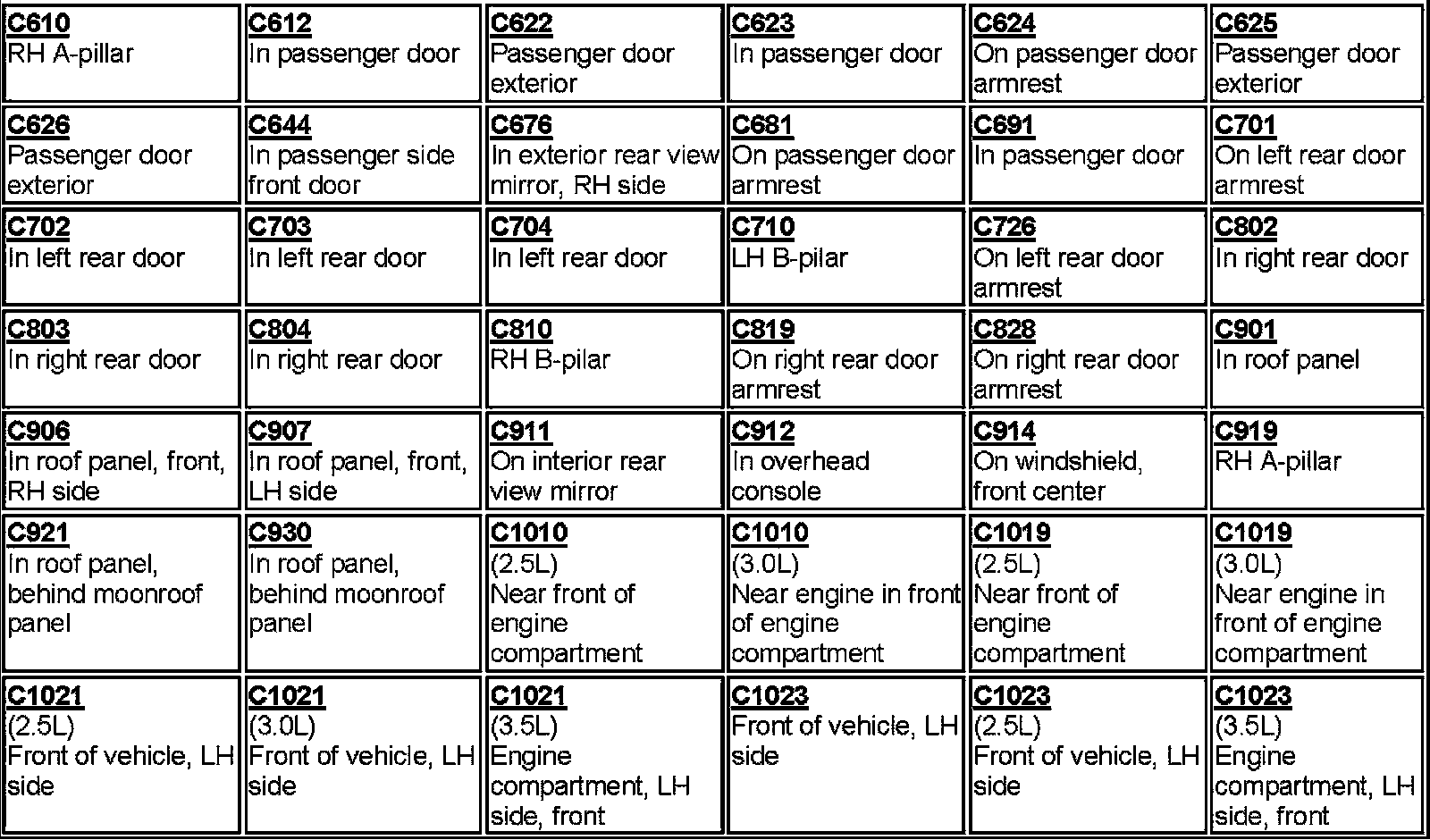

C610-C1023:

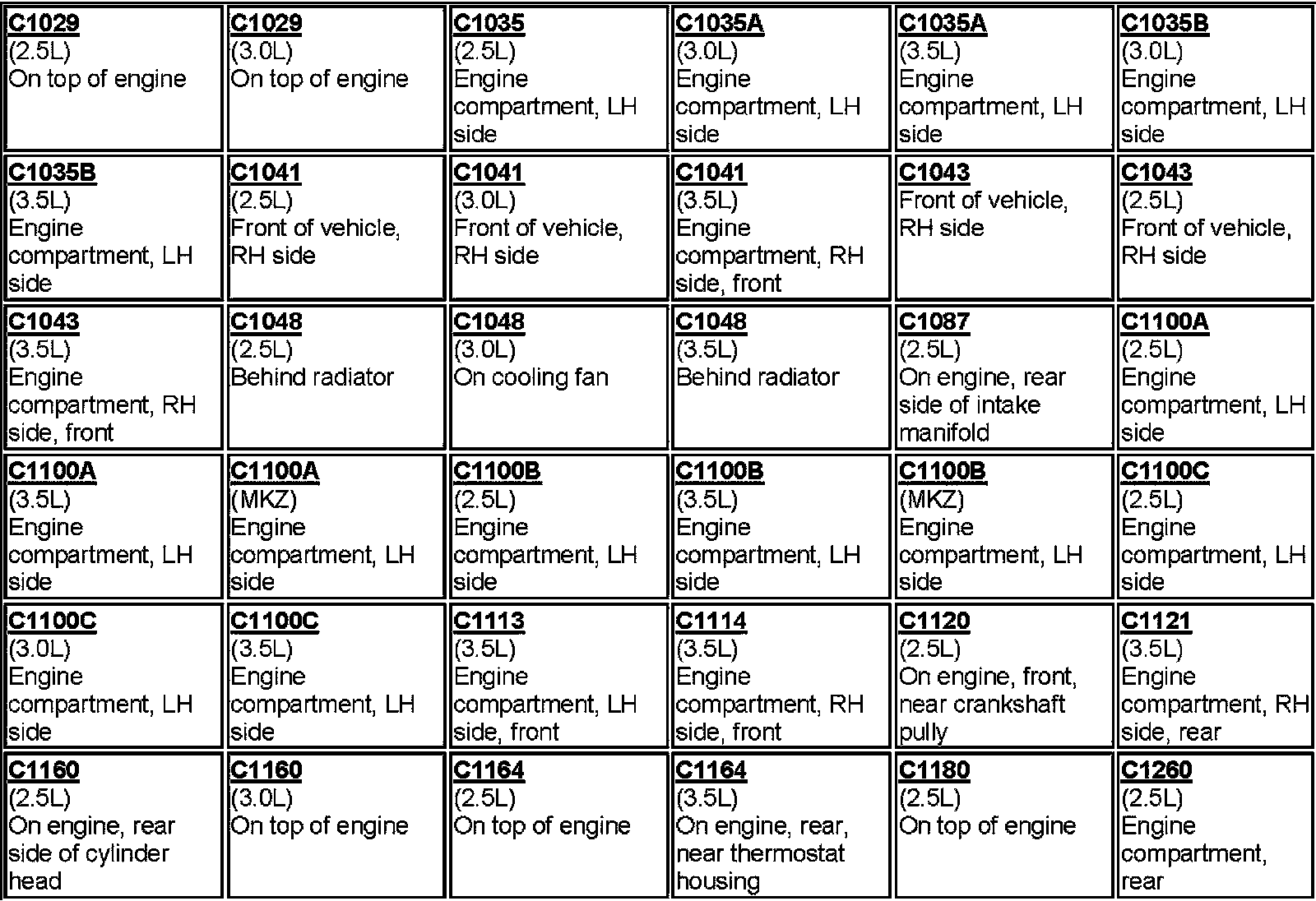

C1029-C1260:

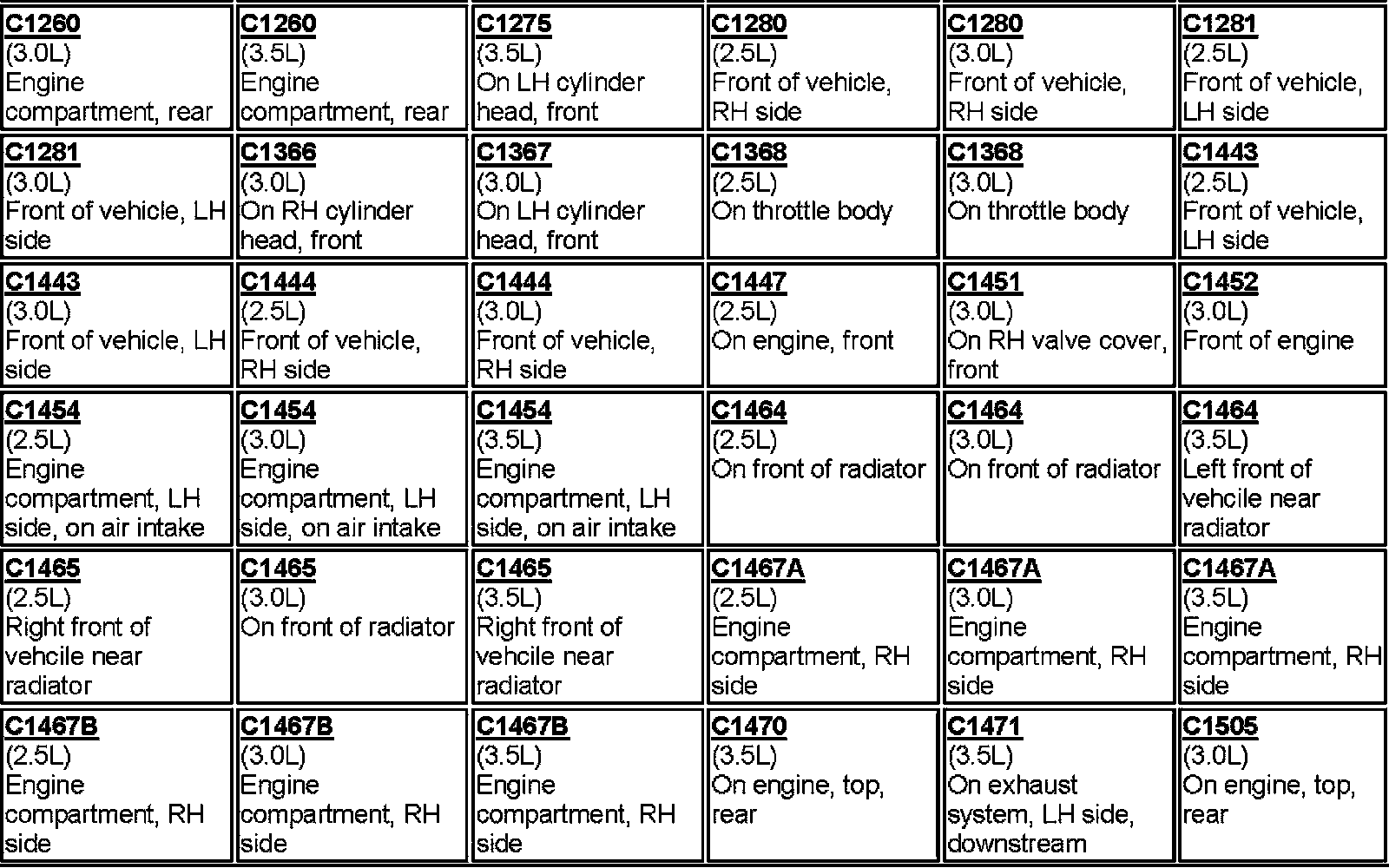

C1260-C1505:

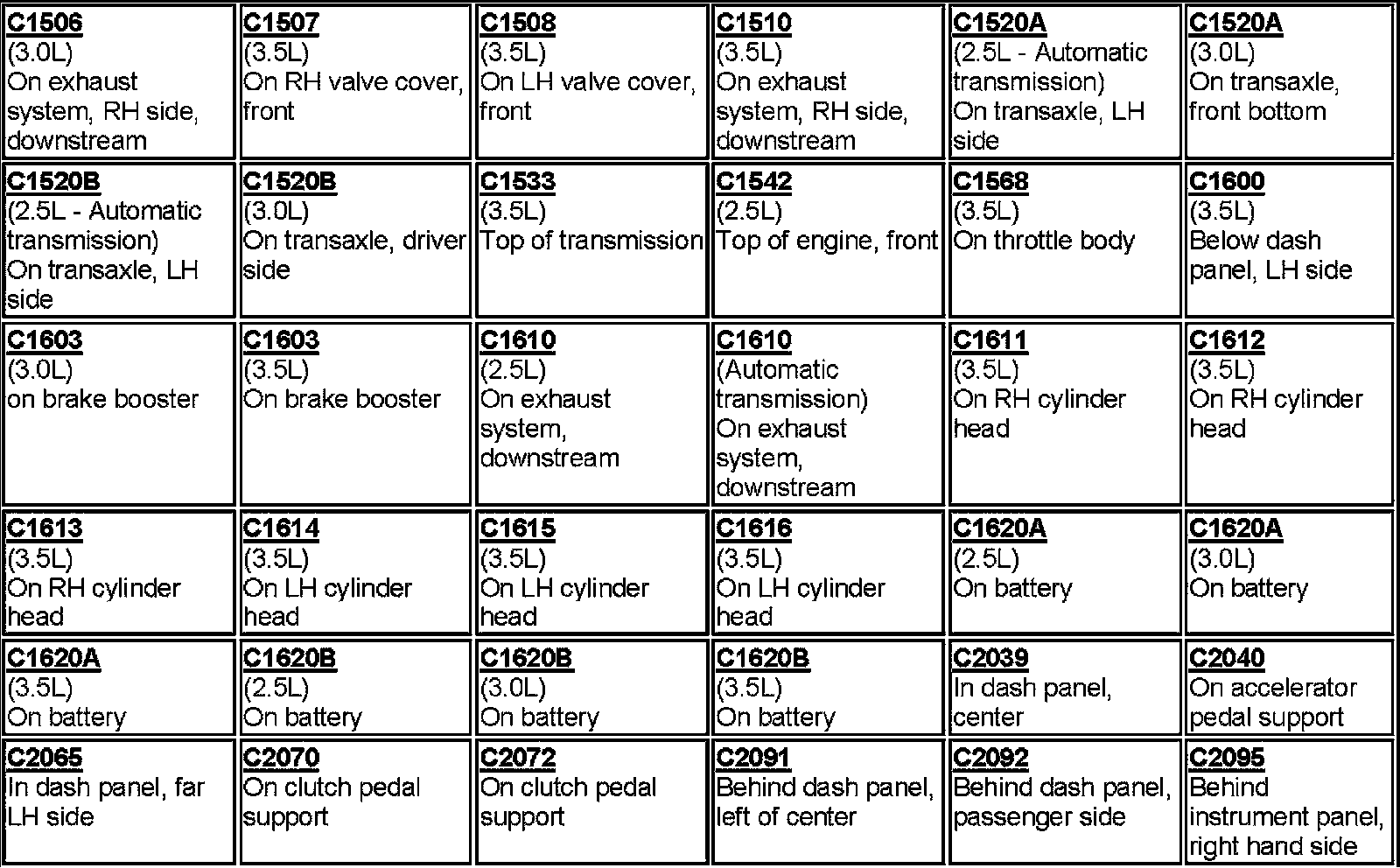

C1506-C2095:

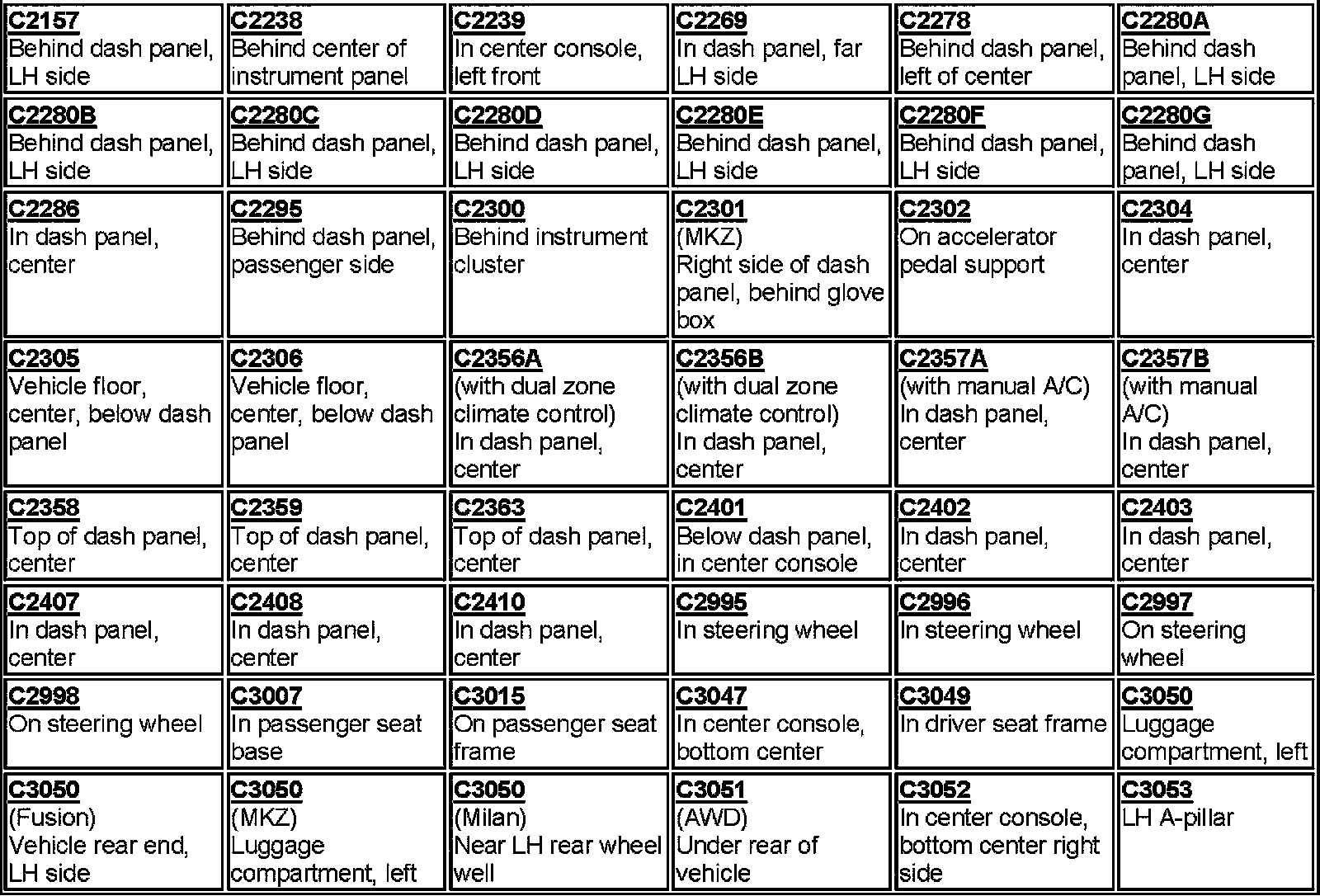

C2157-C3053:

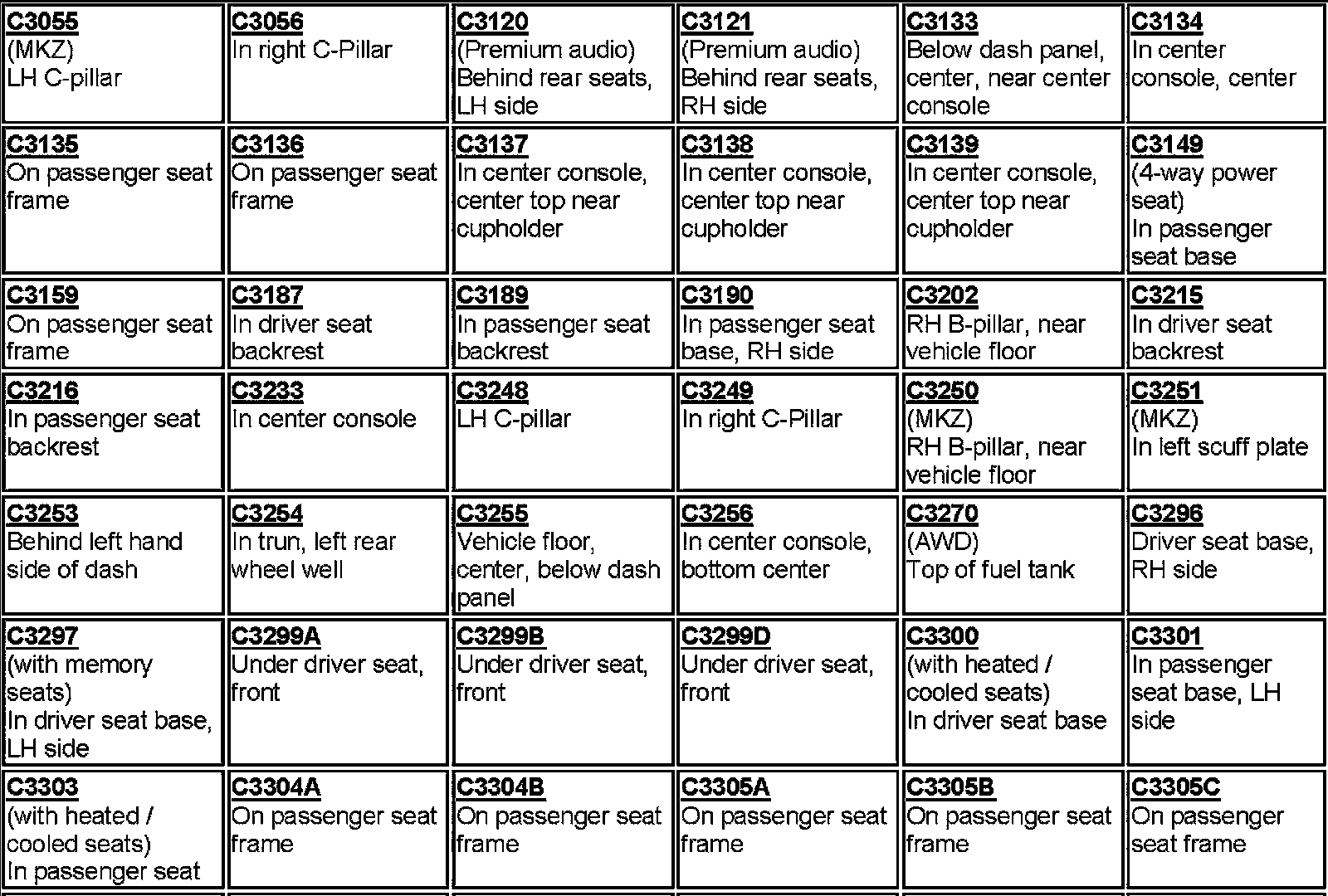

C3055-C3305C:

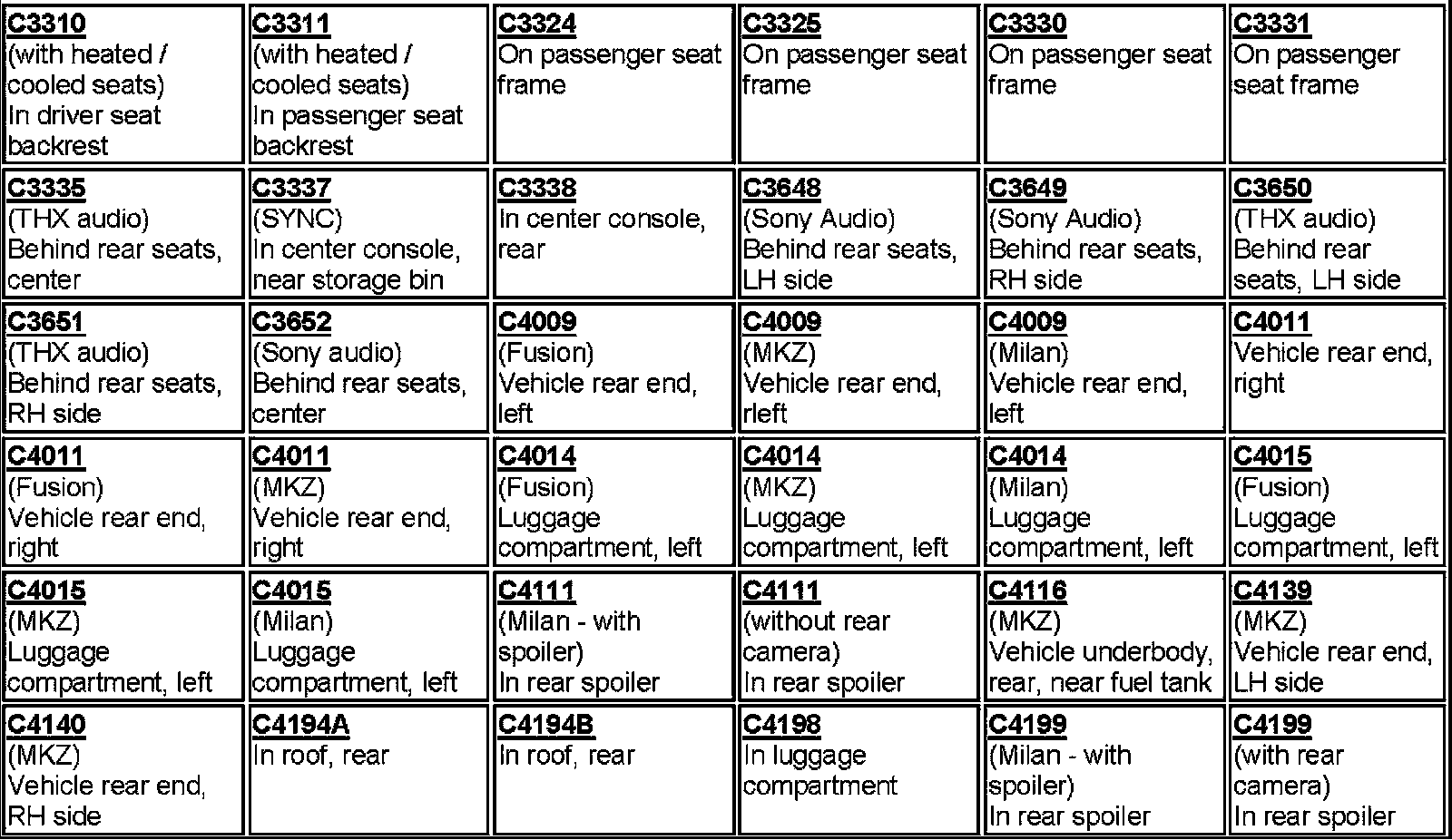

C3310-C4199:

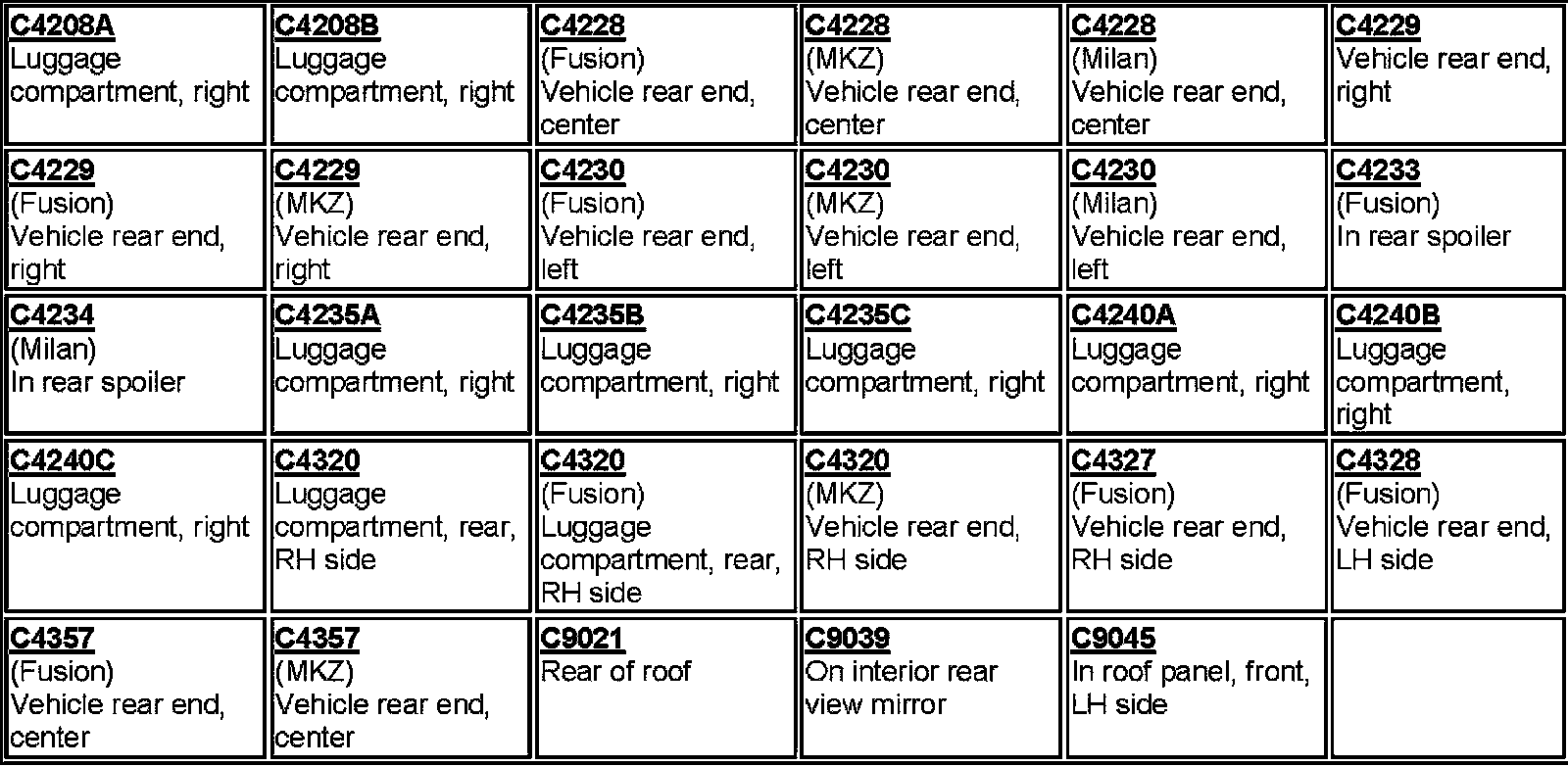

C4208A-C9045:
