Variable Valve Timing Solenoid: Service and Repair

Variable Camshaft Timing (VCT) Oil Control Solenoid









Removal and Installation

1. Remove the valve cover. For additional information, refer to Engine - 2.5L Valve Cover.

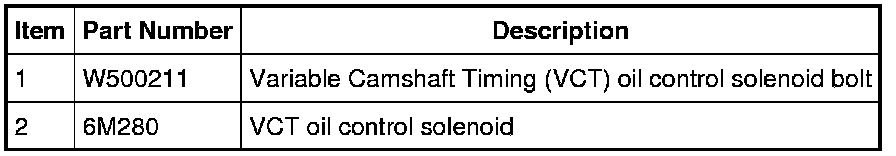

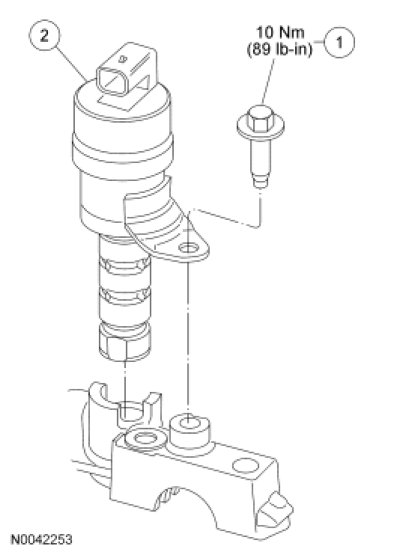

2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
