Removal And Installation: Clutch: Notes

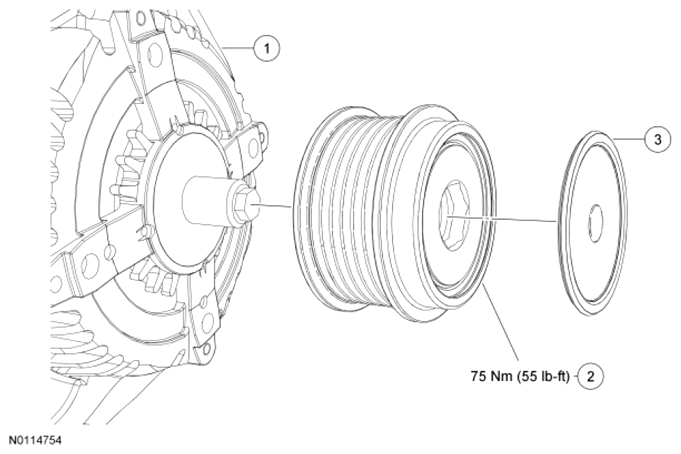

Fig 1: Clutch Replacement Components With Torque Specifications
G07476790Courtesy of FORD MOTOR CO.
DESCRIPTION CHART

Item Part Number Description
1 10346 Generator
2 10344 Generator clutch pulley
3 10325 Cap
