Crossmember Brace - Exploded View




Crossmember Brace - Exploded View

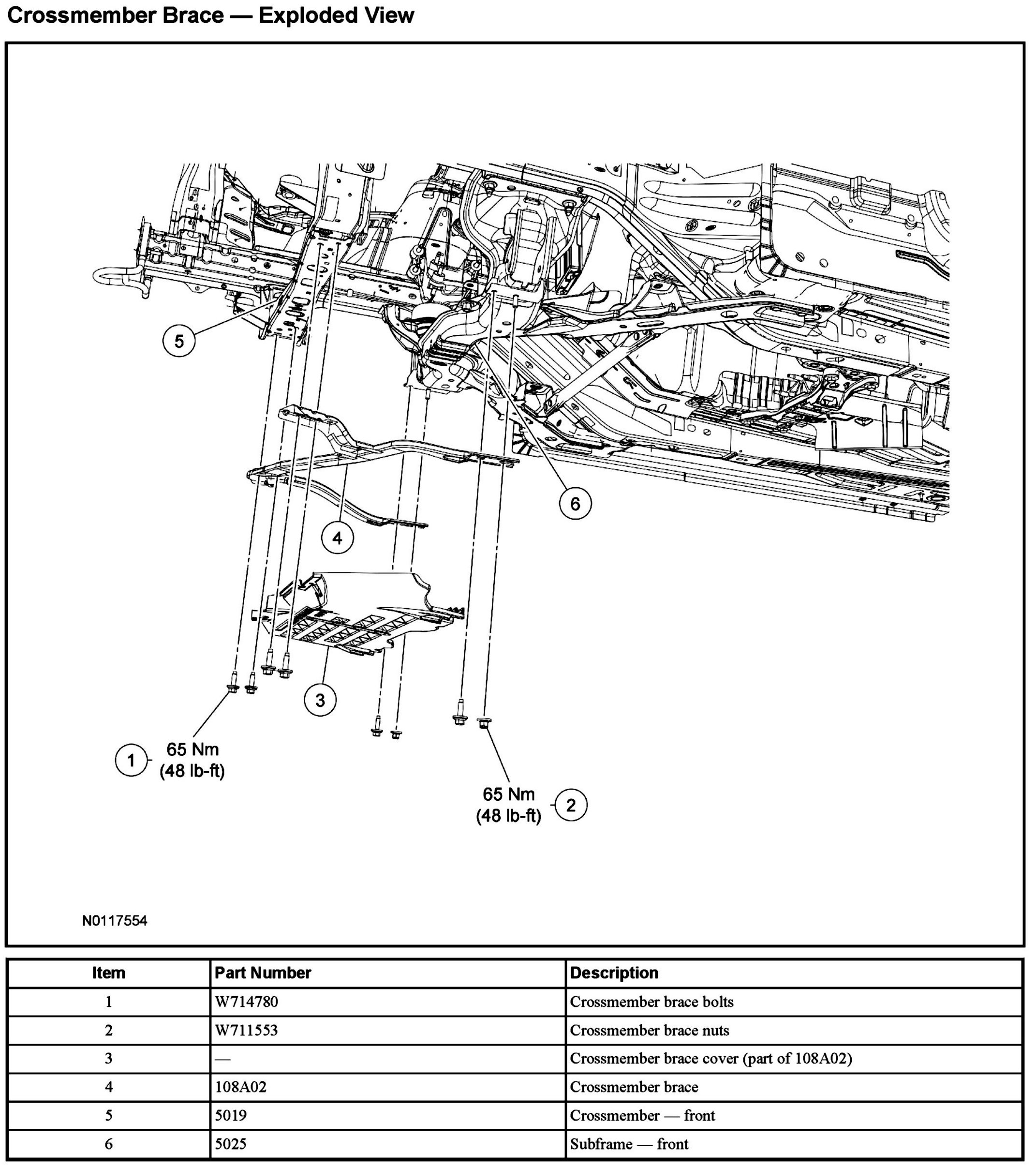

Crossmember Brace - Exploded View:






1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
