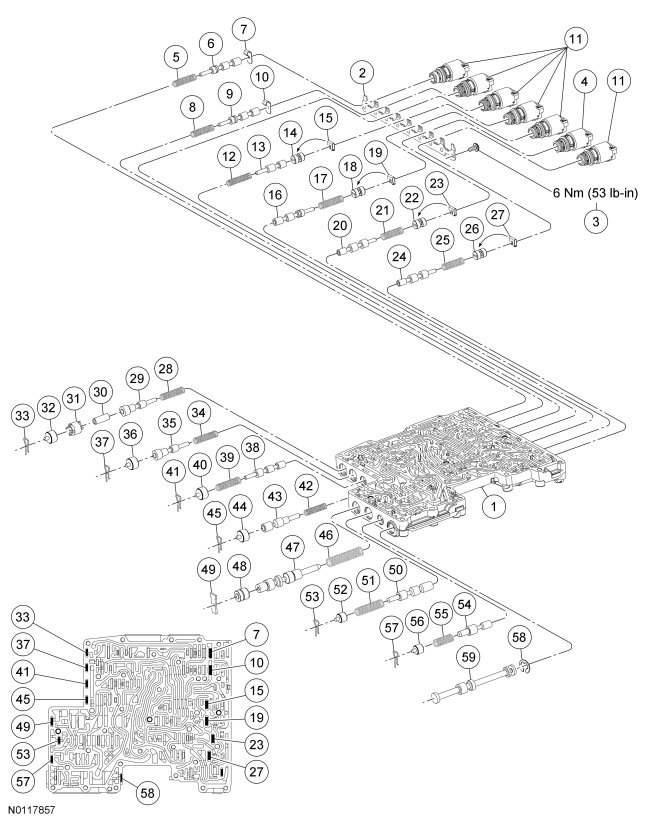

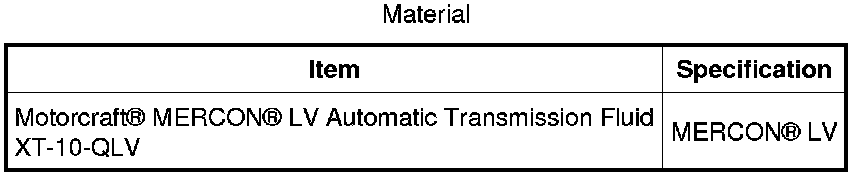

System Diagram




Main Control

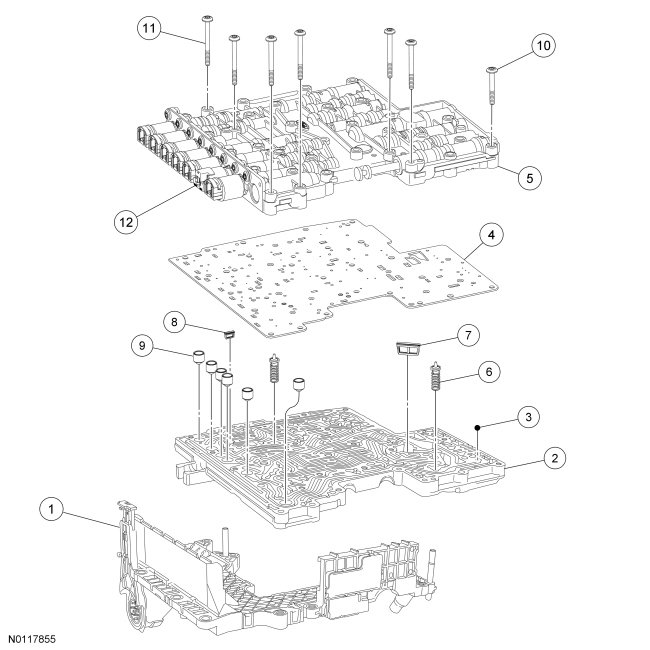

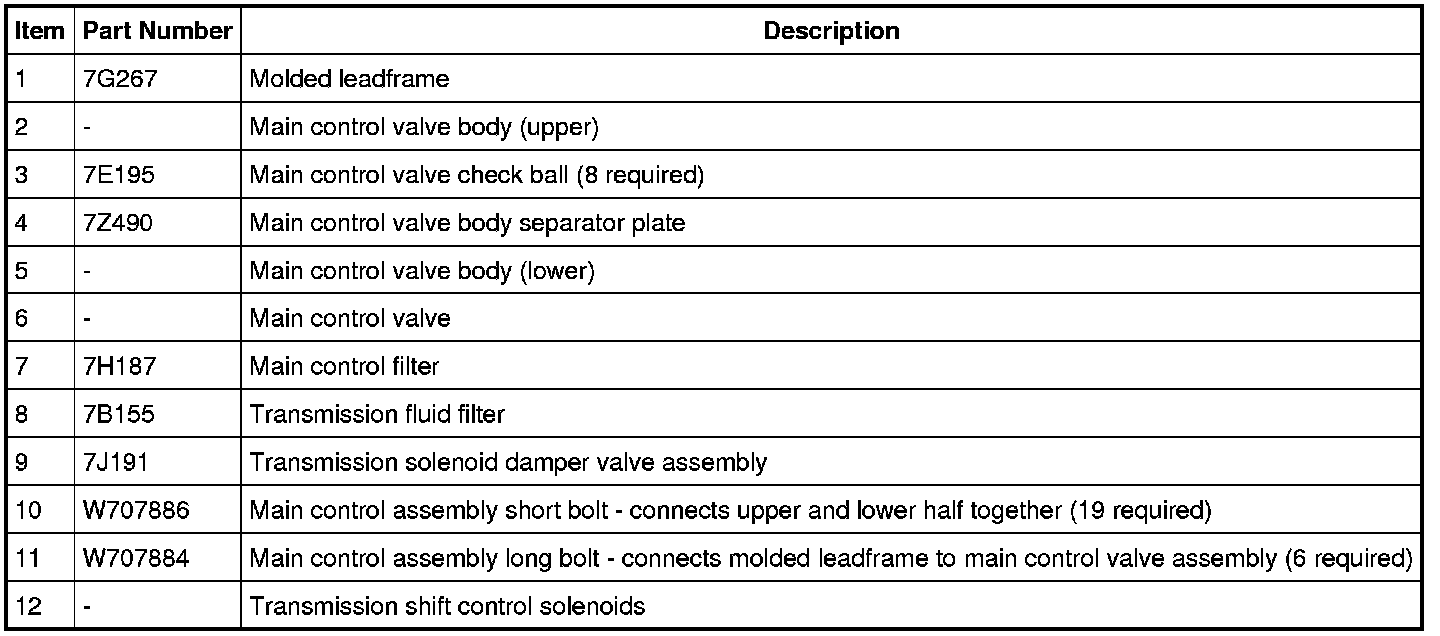

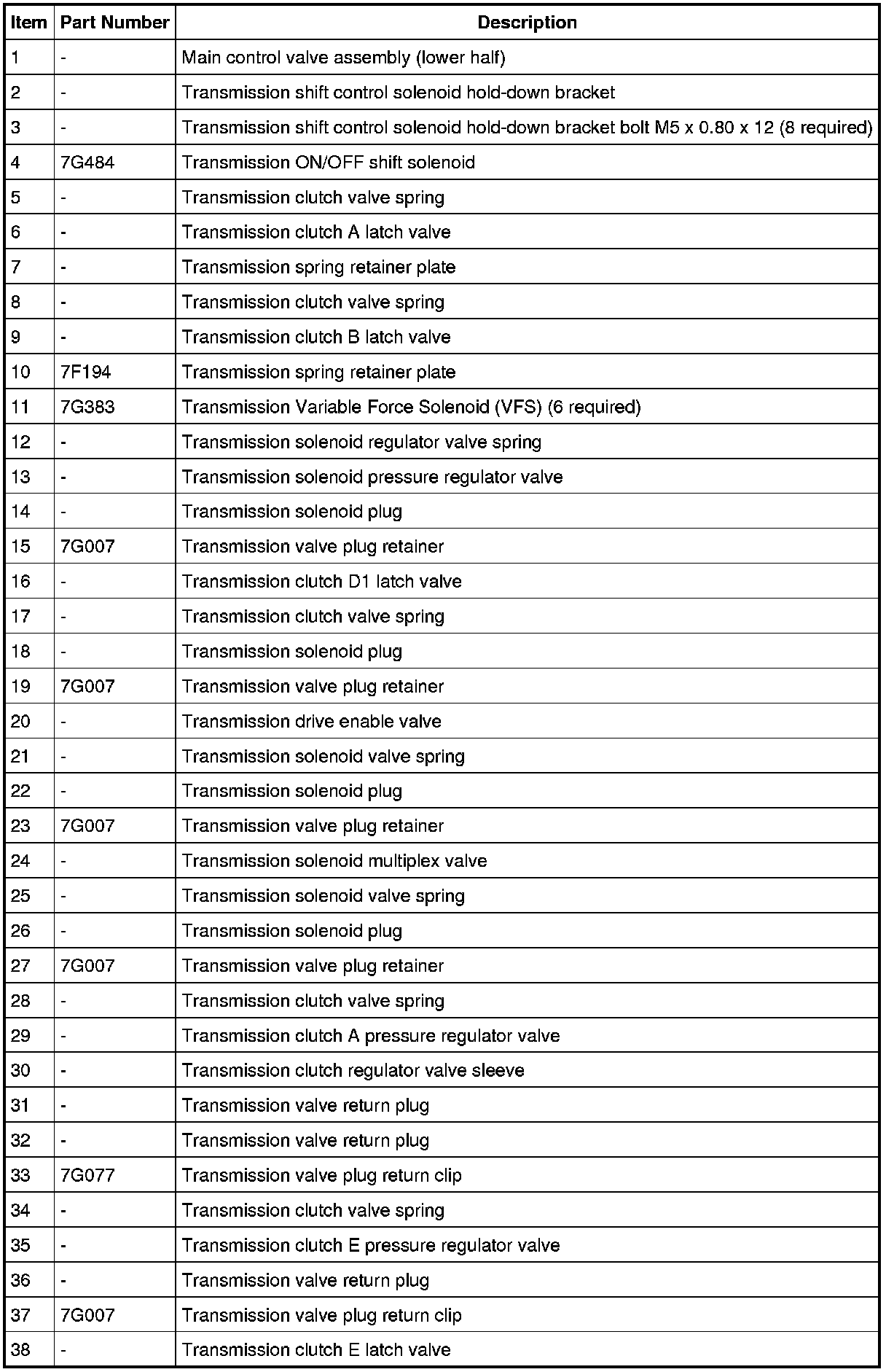

Main Control Assembly

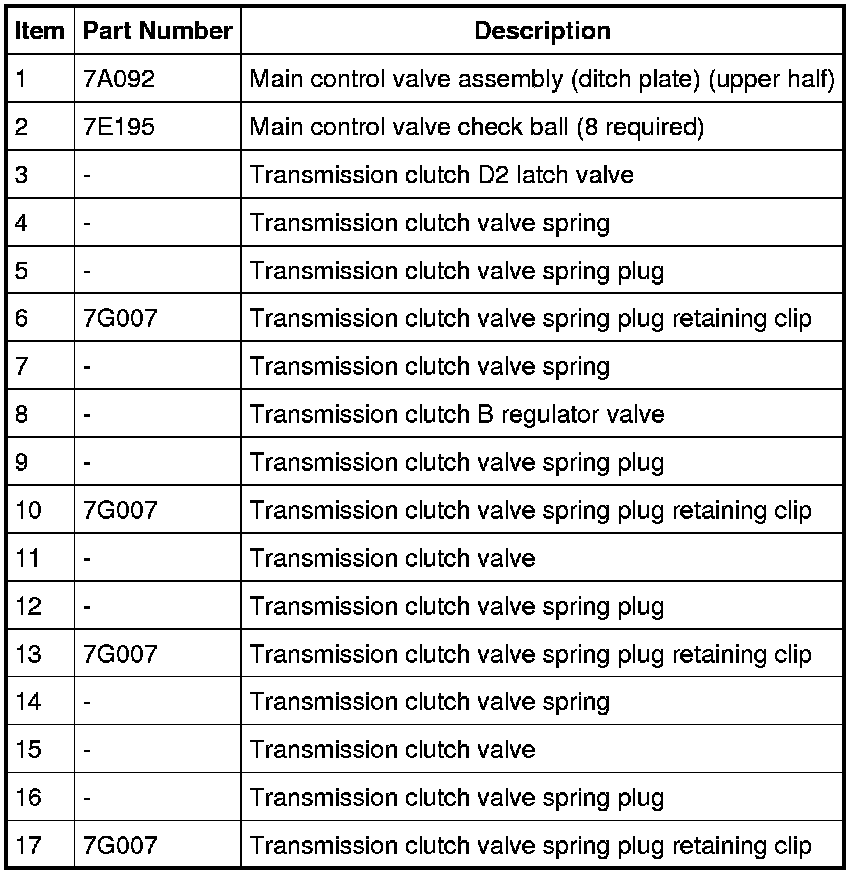

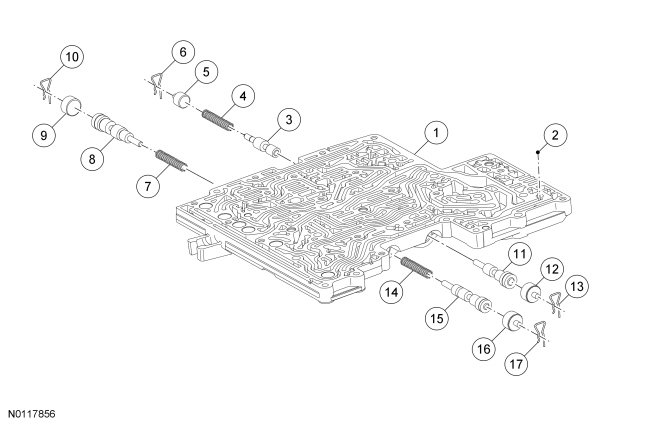

Main Control Upper Half

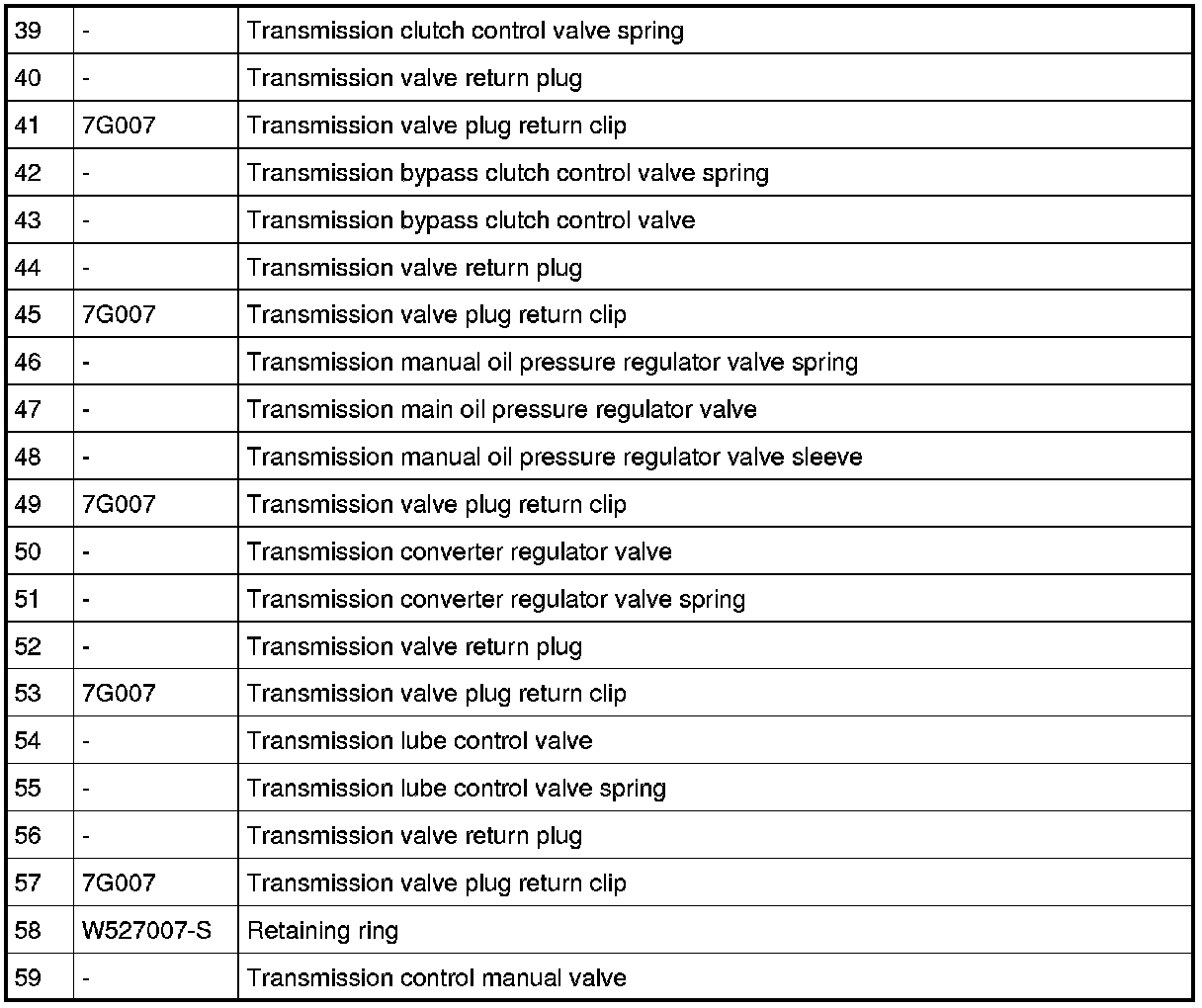

Main Control Lower Half

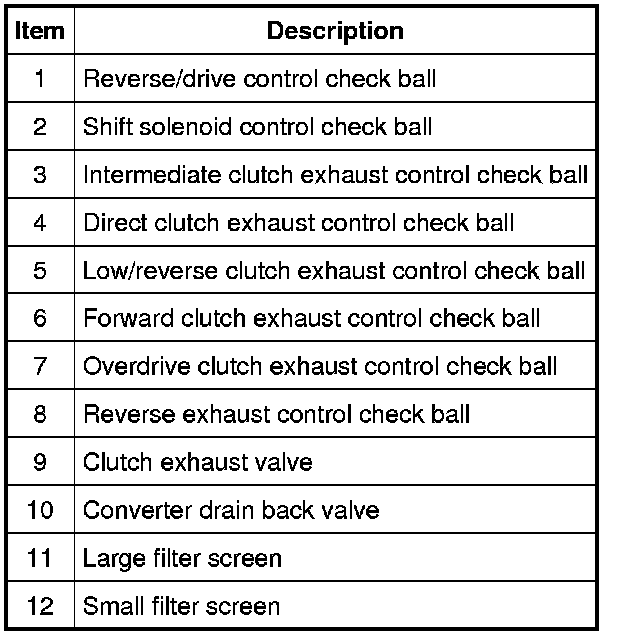

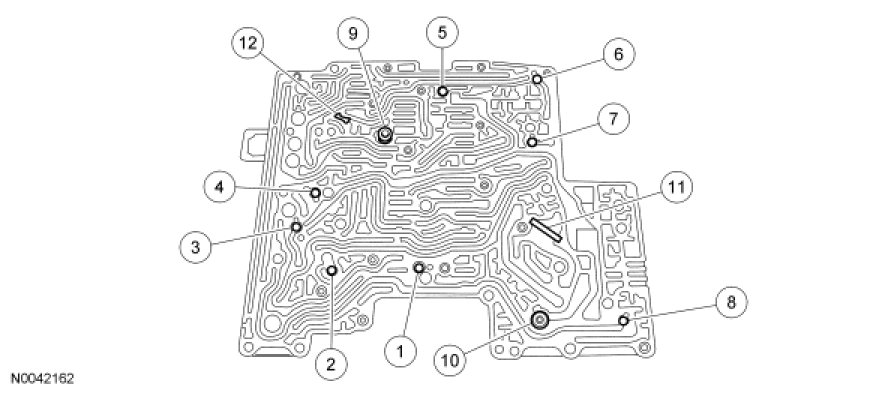

Check Ball Location

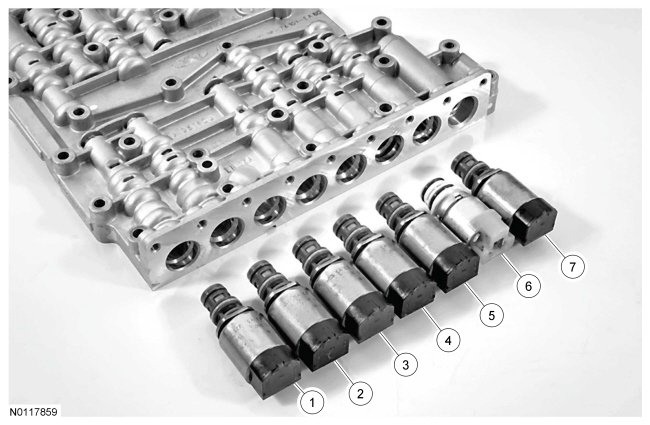

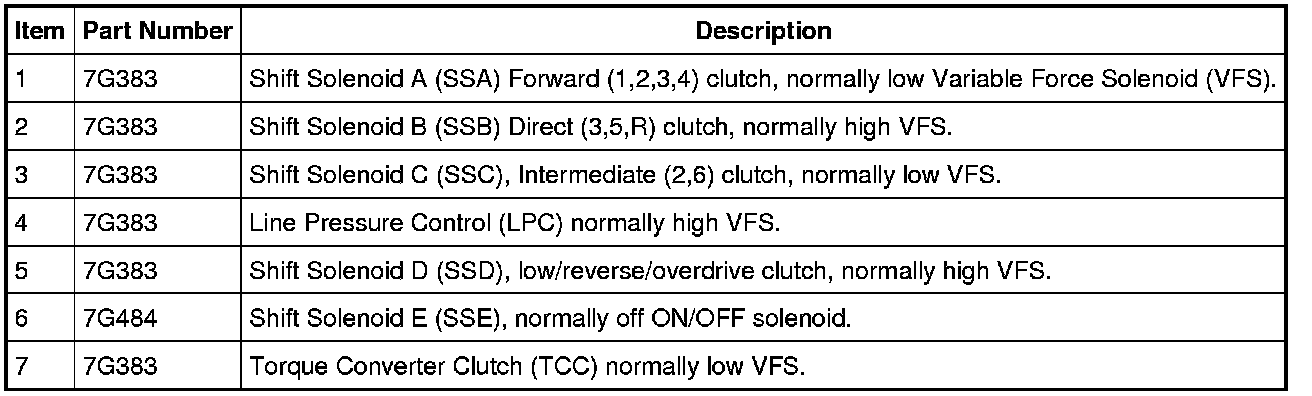

Shift Solenoid Location
