6R80

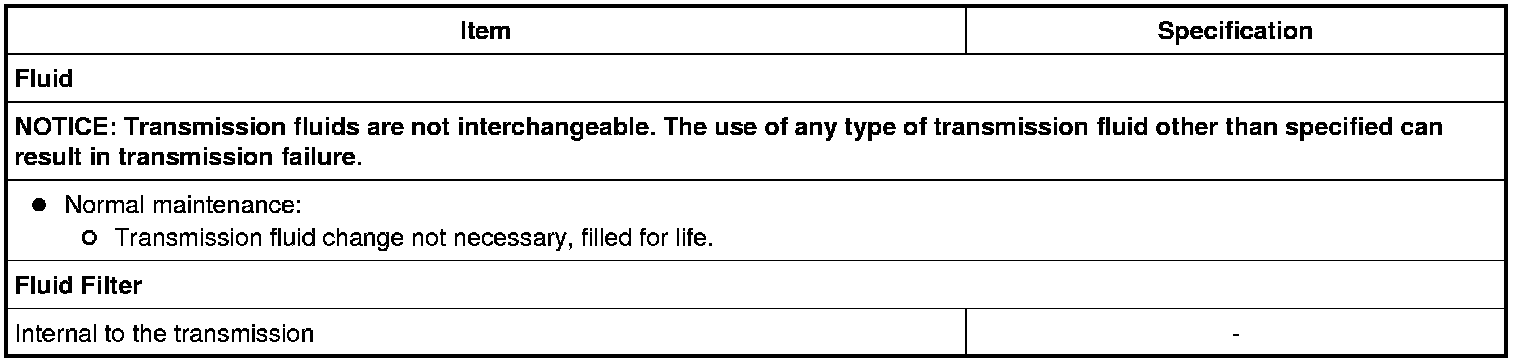

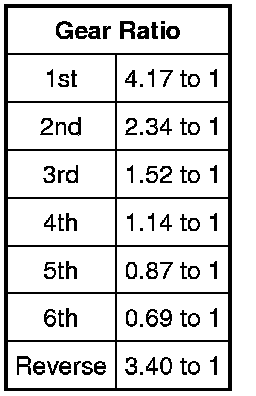

General Specifications

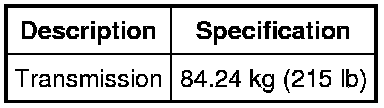

Assembly Weight

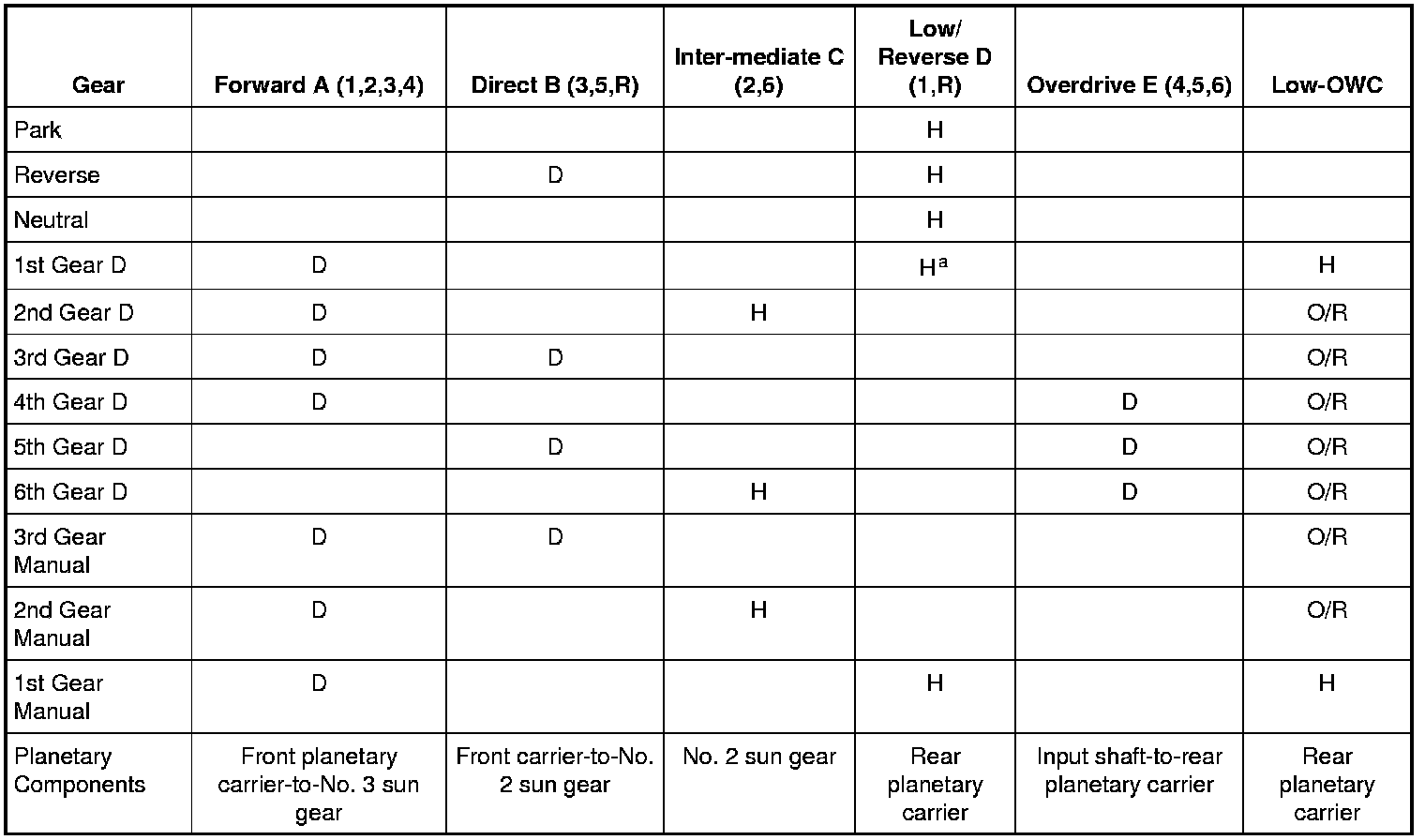

Clutch Application Chart





a Clutch released when vehicle speed is above 3 mph.

- D = Drive Clutch
- H = Hold Clutch
- O/R = Overrunning

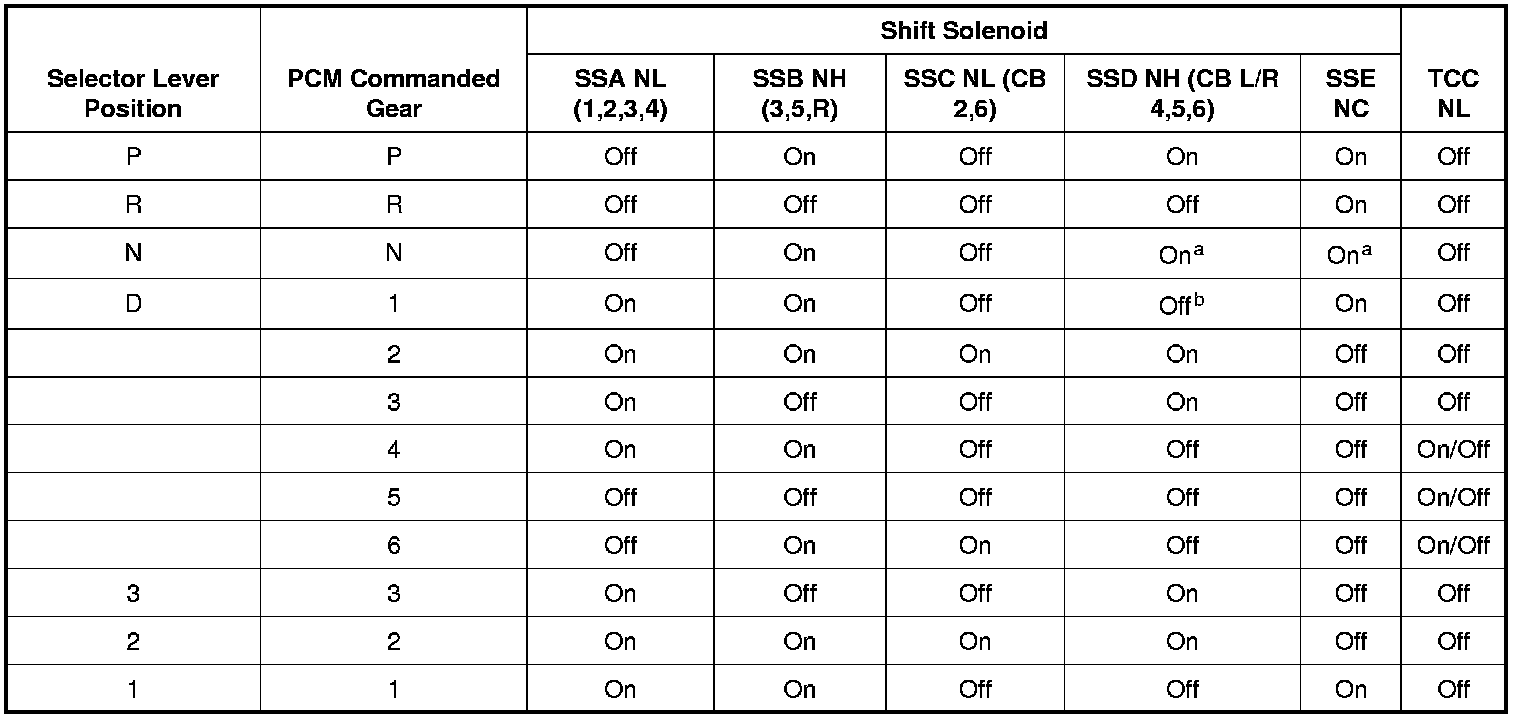

Solenoid Operation Chart





a Solenoid state changes if vehicle is moving forward with the selector lever in the NEUTRAL position.
b Solenoid is On when vehicle is above 3 mph.
CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low





Stall Speed

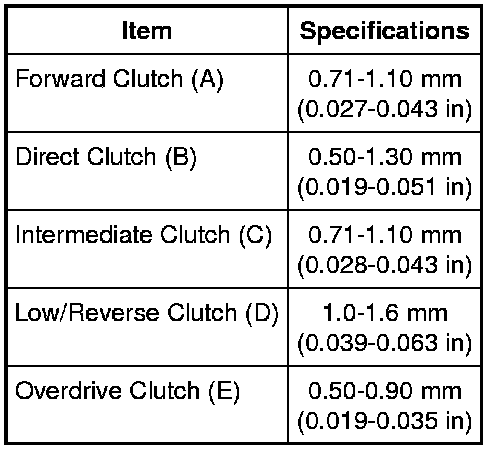

End Play

NOTE: All friction and steel plates use a wave design plate.

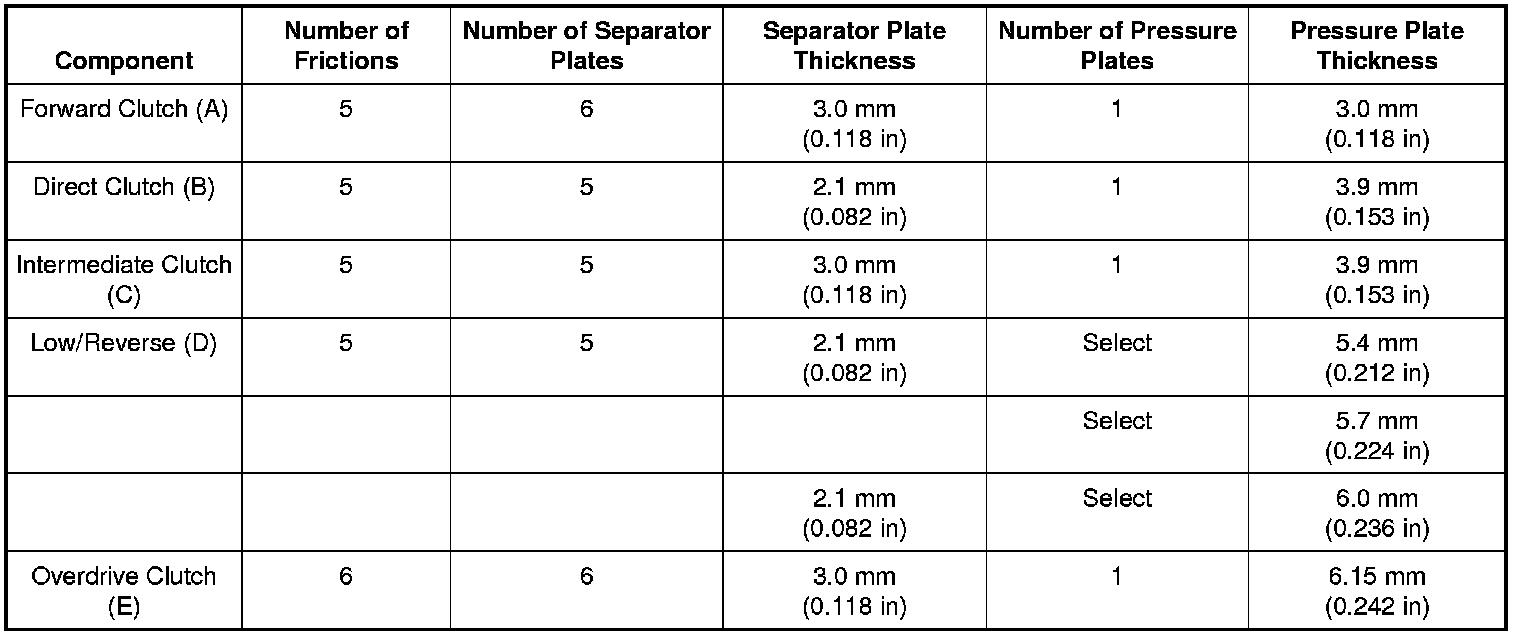

Clutch Plate Quantity 3.7L Engine





Clutch Plate Quantity 5.0L Engine

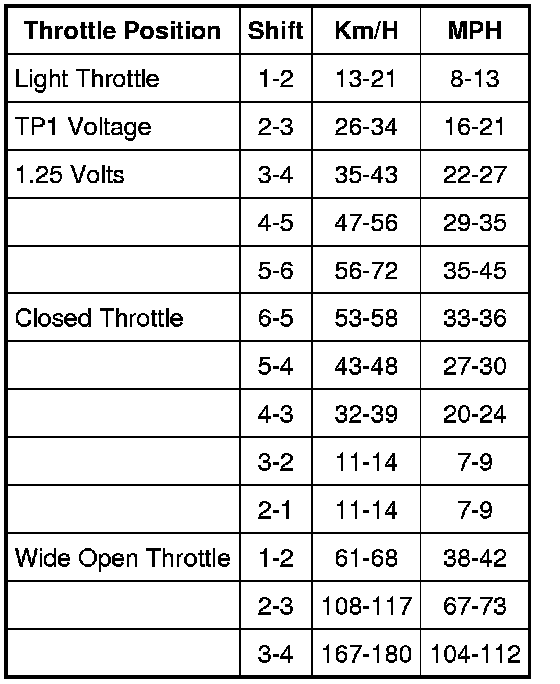

Shift Speeds

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio, tire size and application), refer to the Automatic Transmission Specification booklet.
Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.

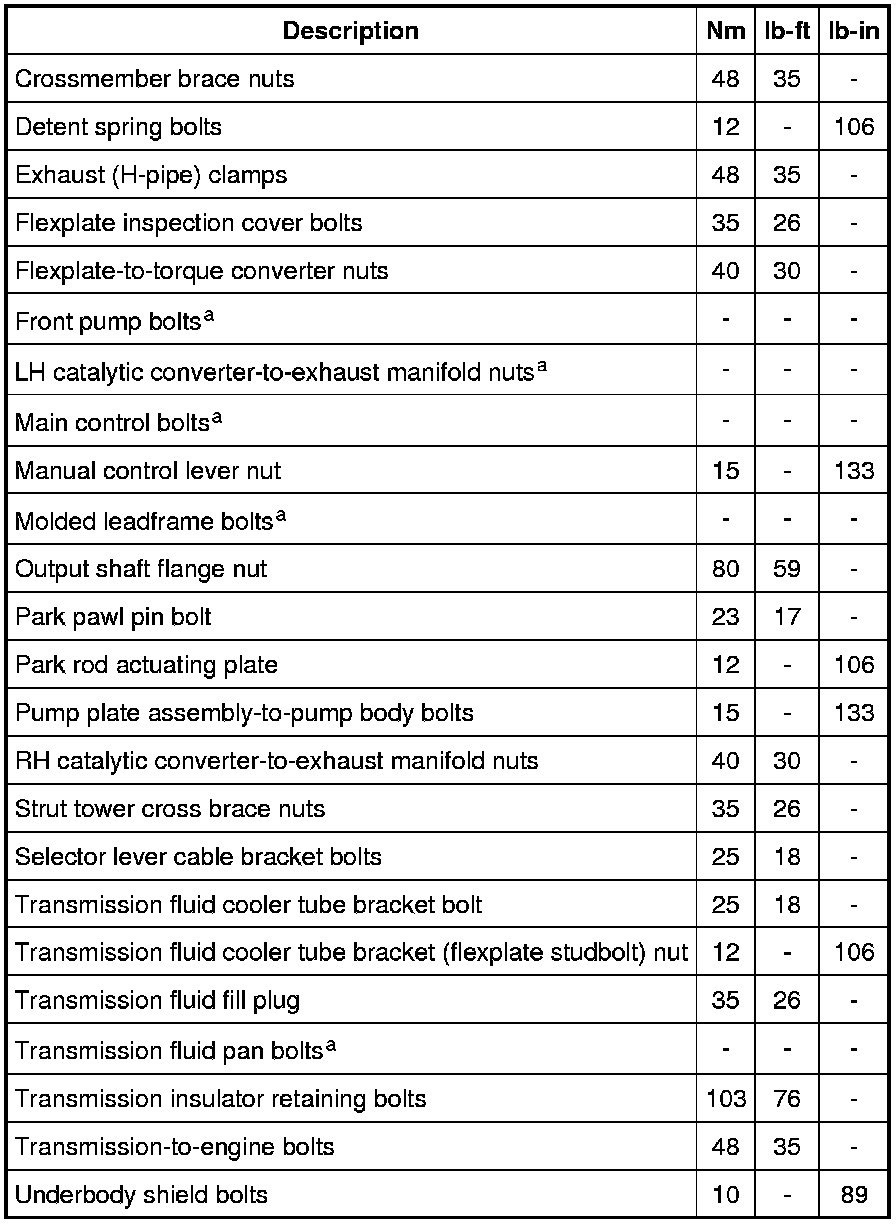

Torque Specifications





a Refer to the procedure.
