Window Shade: Service and Repair

Sunshade









Removal and Installation

1. Remove the headliner. For additional information, refer to Headliner Service and Repair.

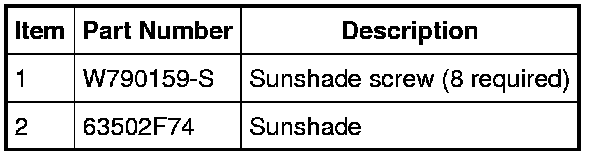

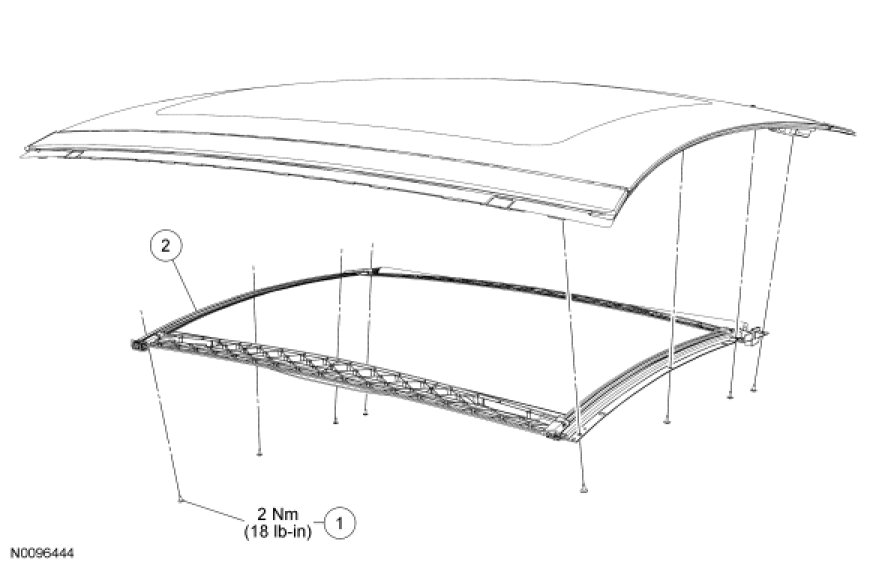

2. Remove the 8 sunshade screws.
- To install, tighten to 2 Nm (18 lb-in).

3. To install, reverse the removal procedure.
