Clutch Hydraulic System

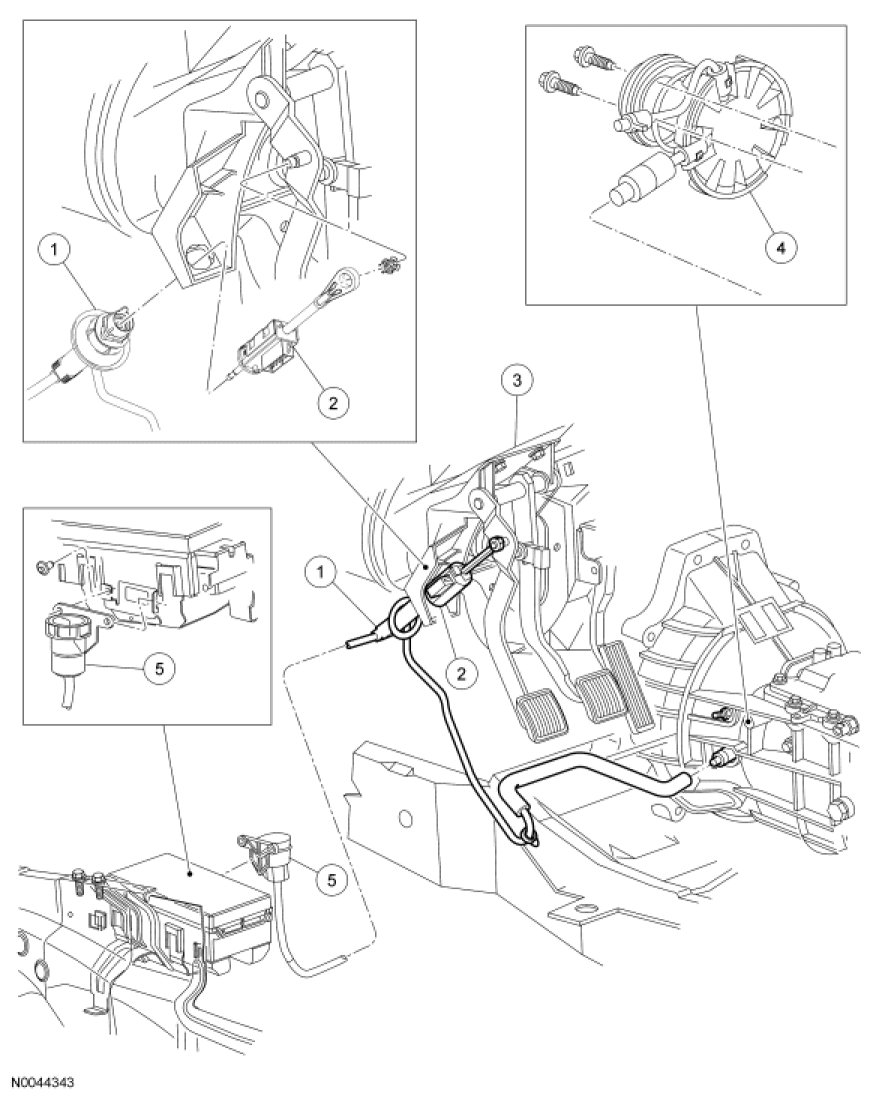

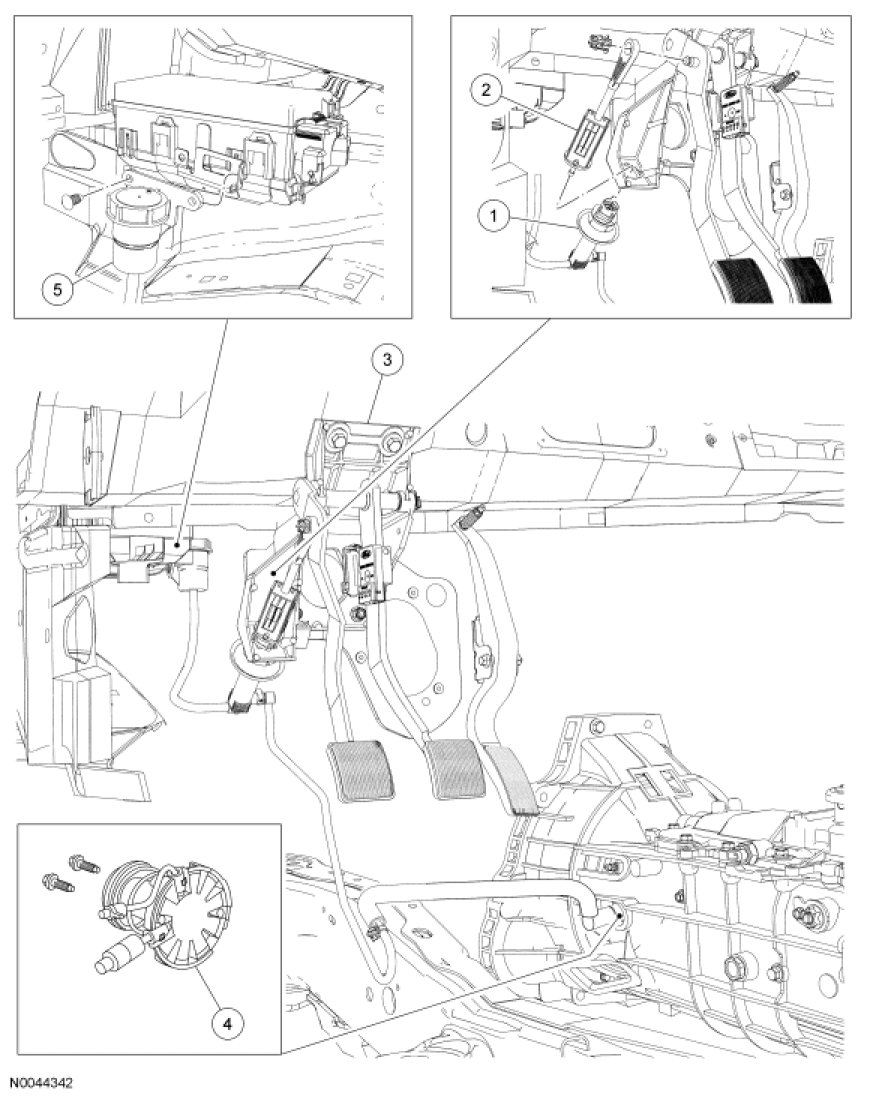

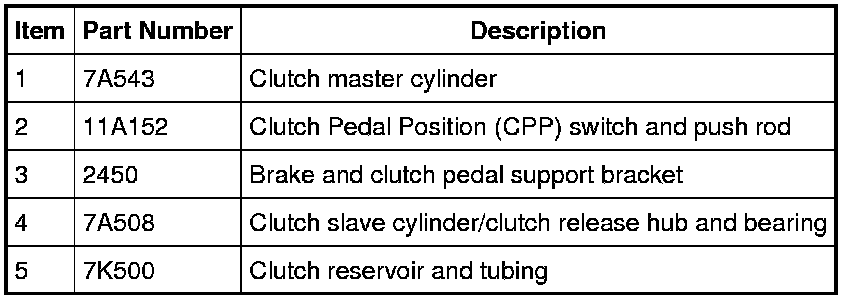

Clutch Controls - Exploded View
Clutch Controls - 2.3L Engines
Clutch Controls - 4.0L Engine
