Parking Brake System




Parking Brake - Exploded View

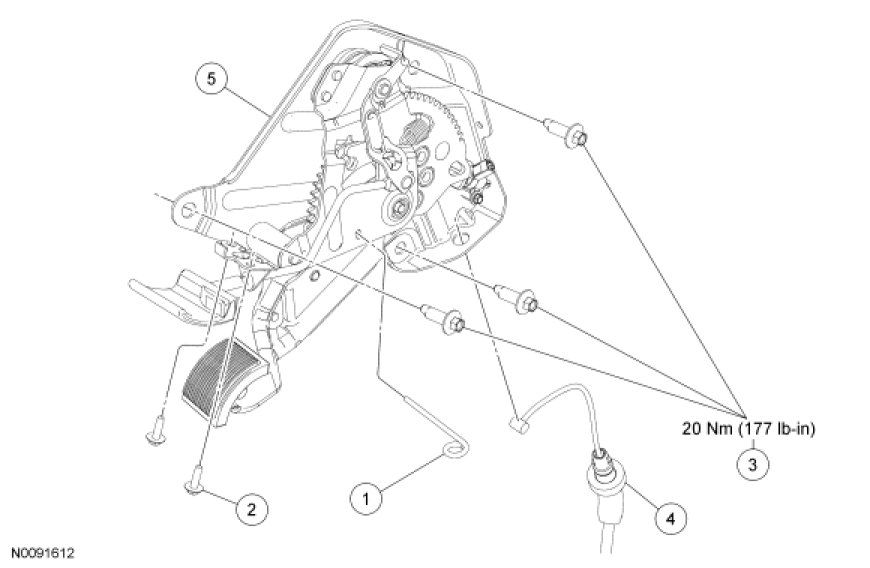

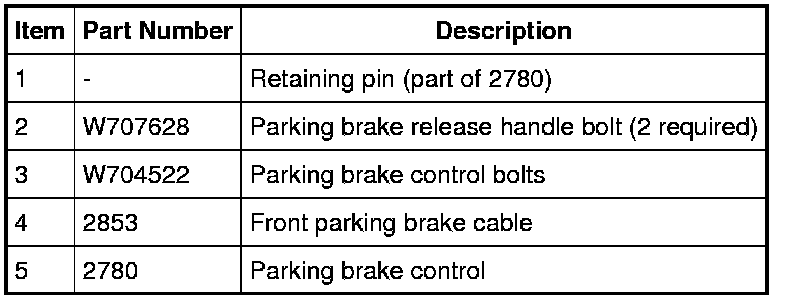

Parking Brake Control

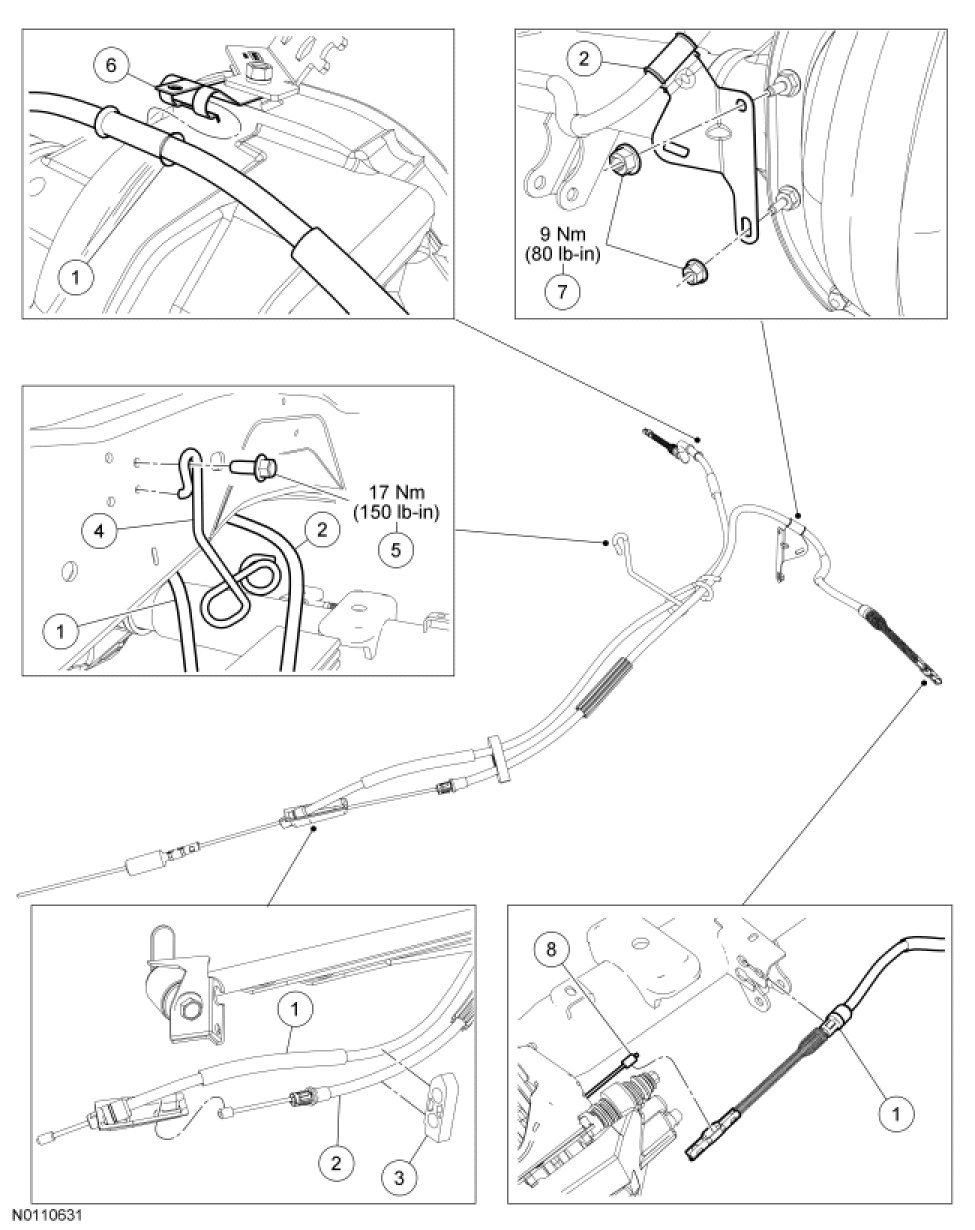

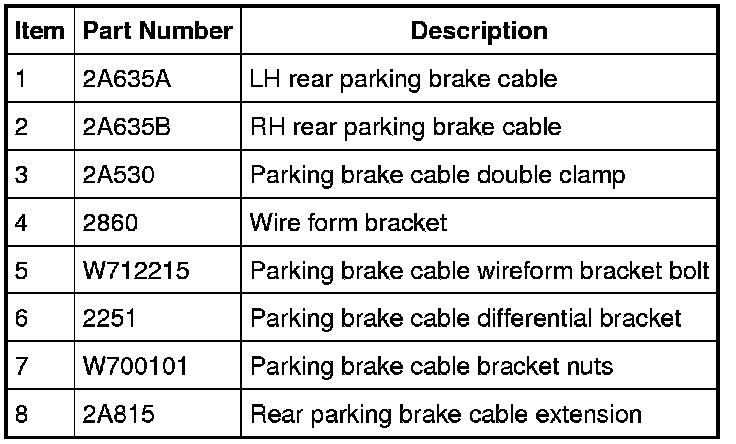

Parking Brake Cables

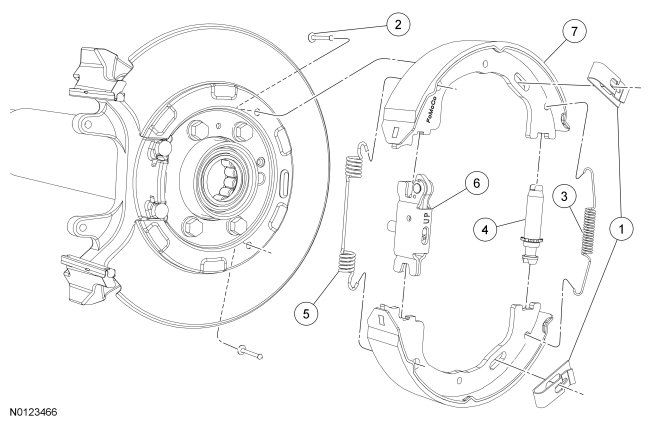

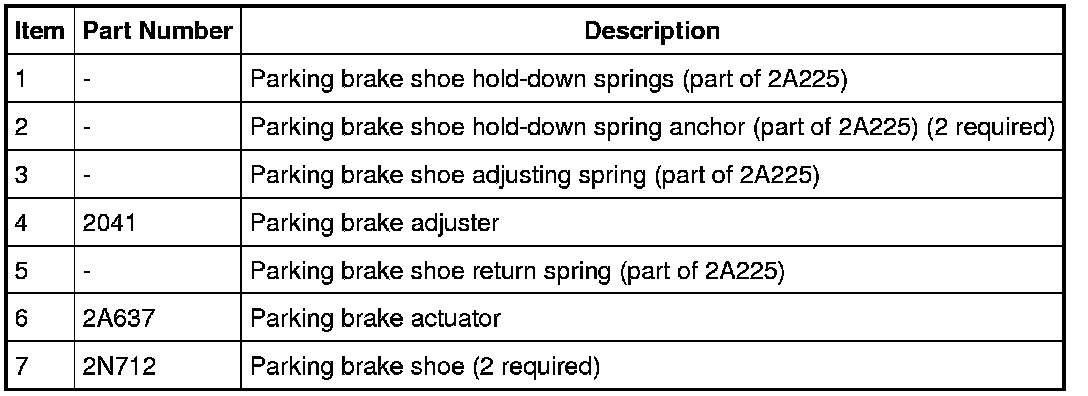

Parking Brake Shoes

NOTE: Wheel hub removed for clarity.
