Blower Motor Switch

Blower Motor Switch









Removal and Installation

1. Remove the climate control assembly. For additional information, refer to Climate Control Assembly Climate Control Assembly.

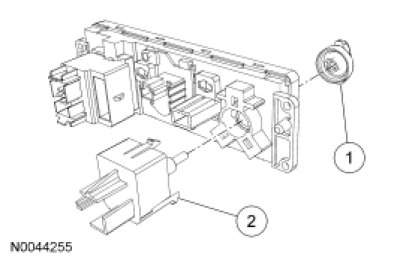

2. Gently pull and remove the blower motor switch knob.

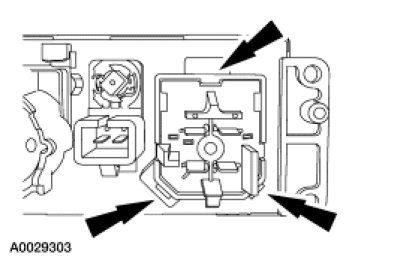

3. Release the 3 clips and remove the blower motor switch.





4. To install, reverse the removal procedure.
