Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor - 2.3L

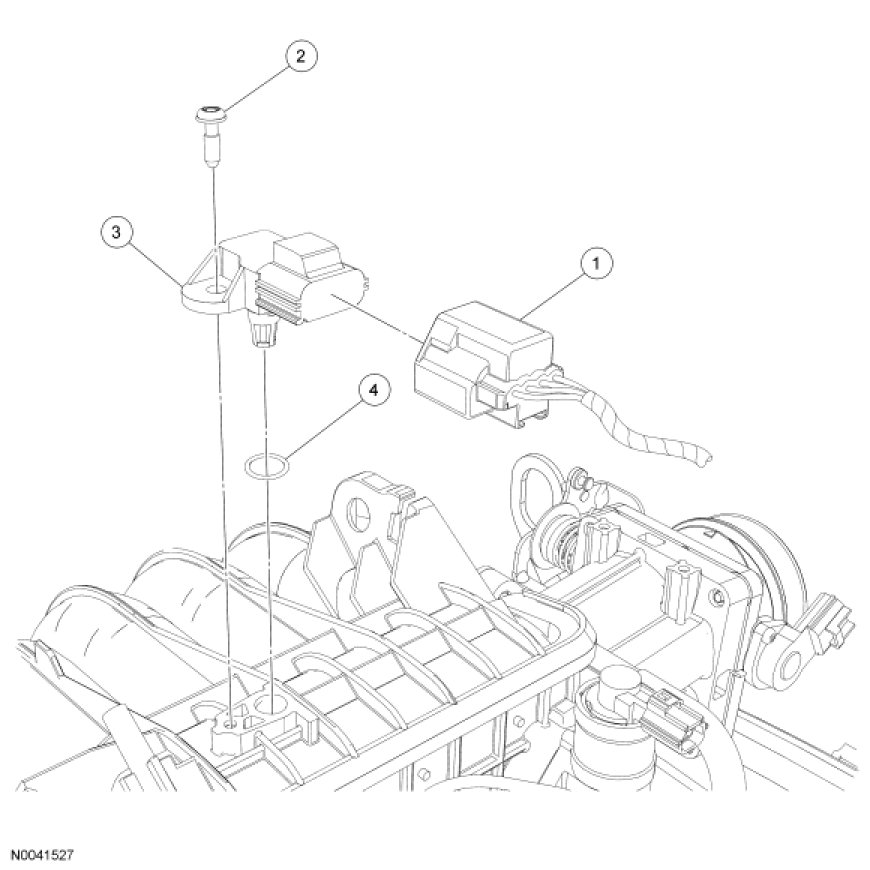

Removal and Installation

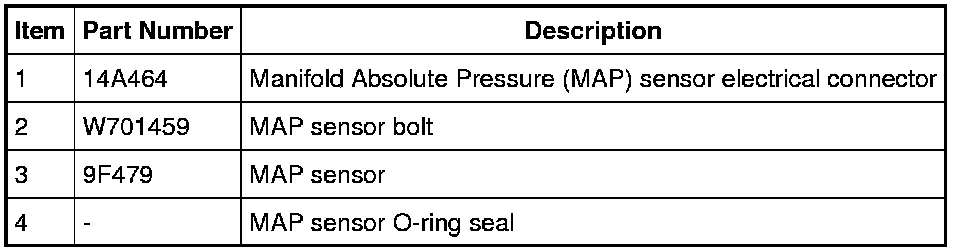

1. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.

2. Remove the bolt and lift the MAP sensor out of the intake manifold.
- Discard the O-ring seal.

3. To install, reverse the removal procedure.
- Install a new O-ring seal.
