Exploded Views




Wiper and Washer System - Exploded View

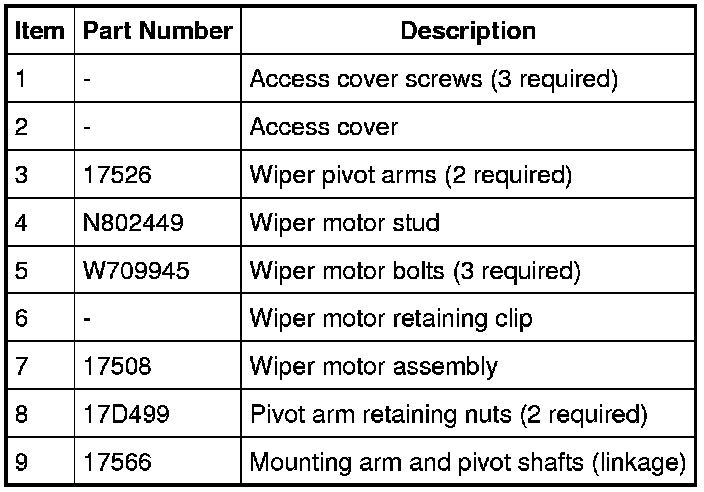

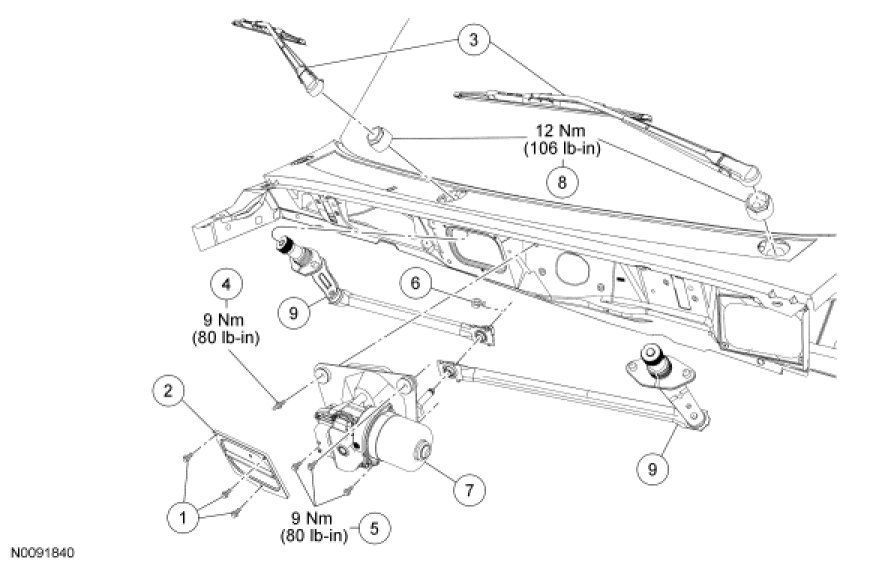

Windshield Wipers

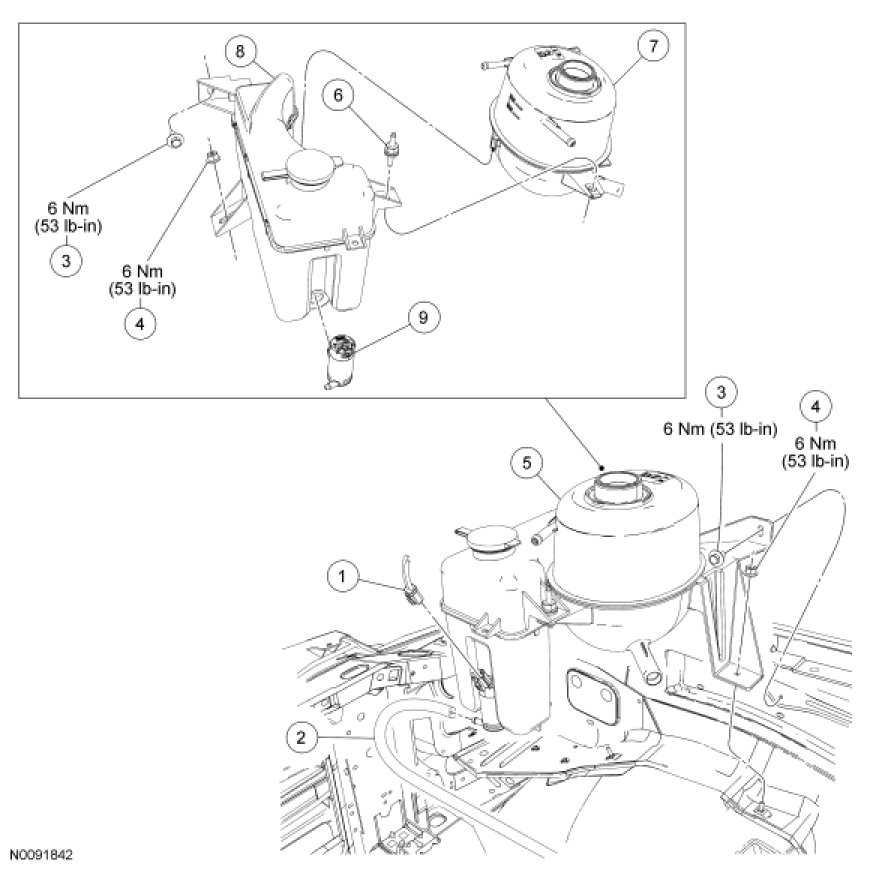

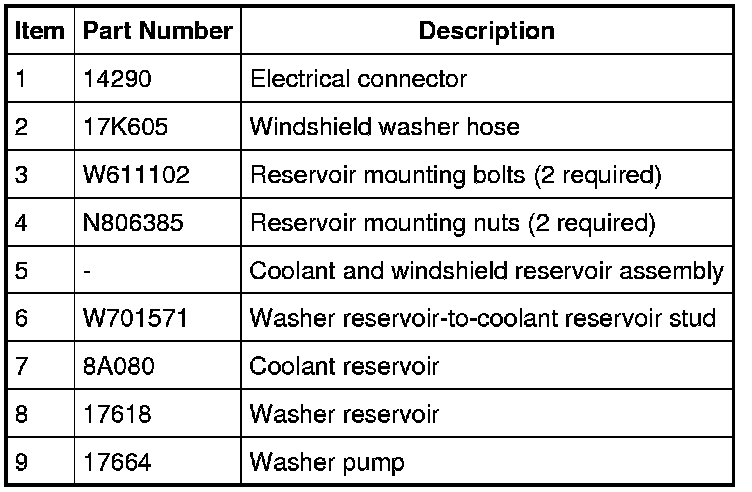

Washer Pump and Reservoir - 4.0L SOHC

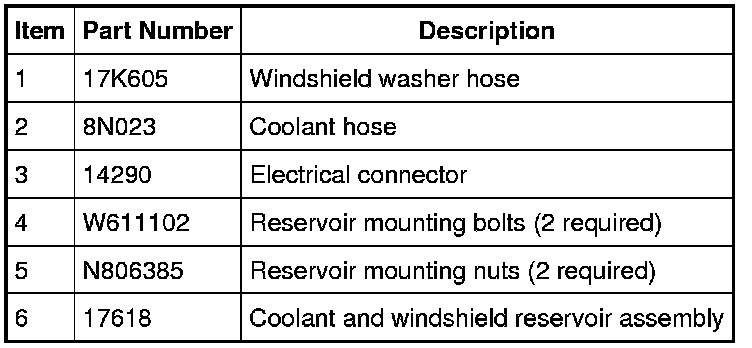

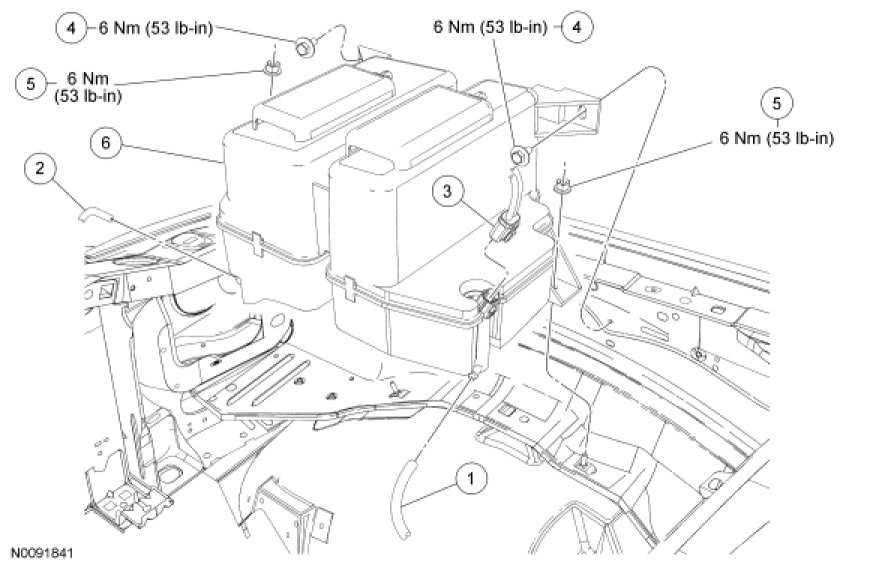

Washer Pump and Reservoir - 2.3L
