Cooling System
Radiator and Cooling Fan - Exploded View, 4.0L SOHC

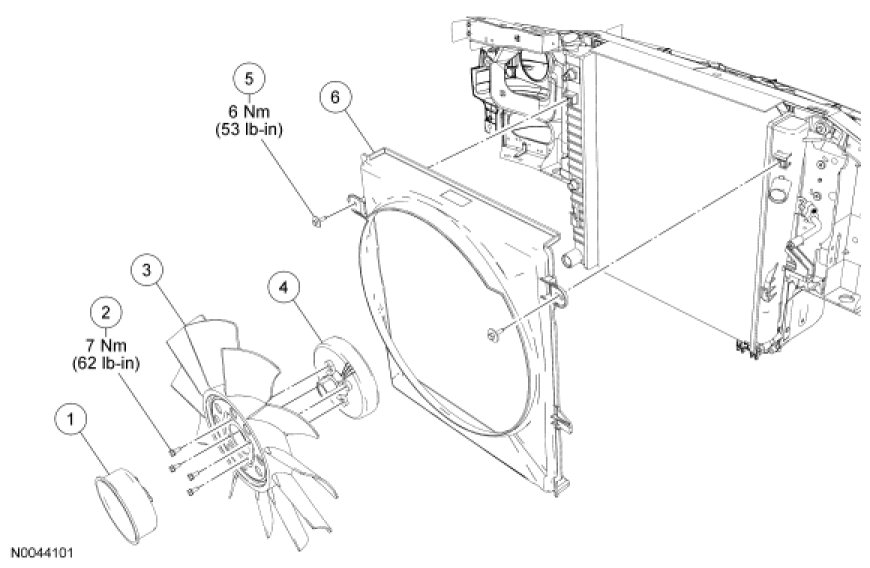

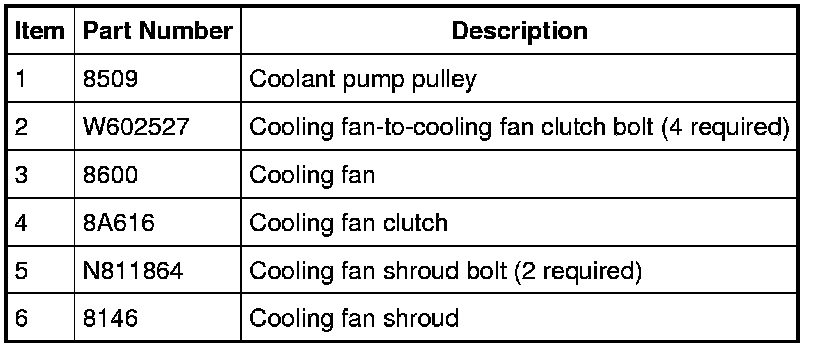

Cooling Fan and Shroud

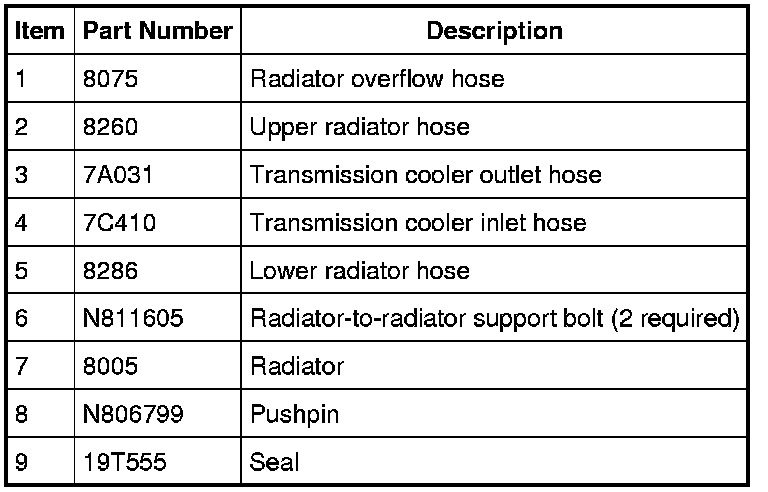

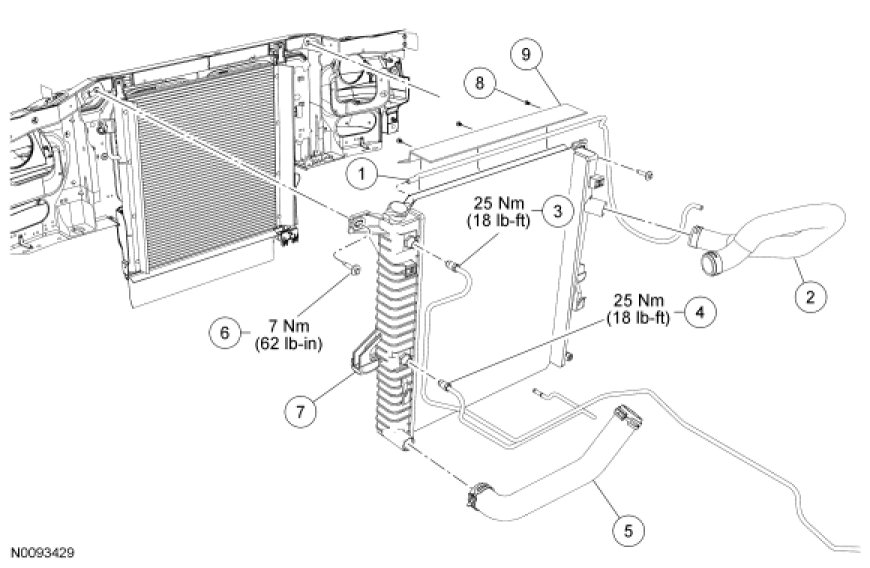

Radiator and Hoses
