Flywheel

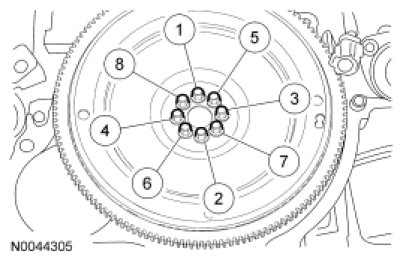

Position the flywheel and install the 8 new bolts. Tighten the bolts in the sequence shown in 3 stages.
Stage 1: Tighten to 13 Nm (115 lb-in).
Stage 2: Tighten to 50 Nm (37 lb-ft).
Stage 3: Tighten an additional 90 degrees.
