Timing Cover

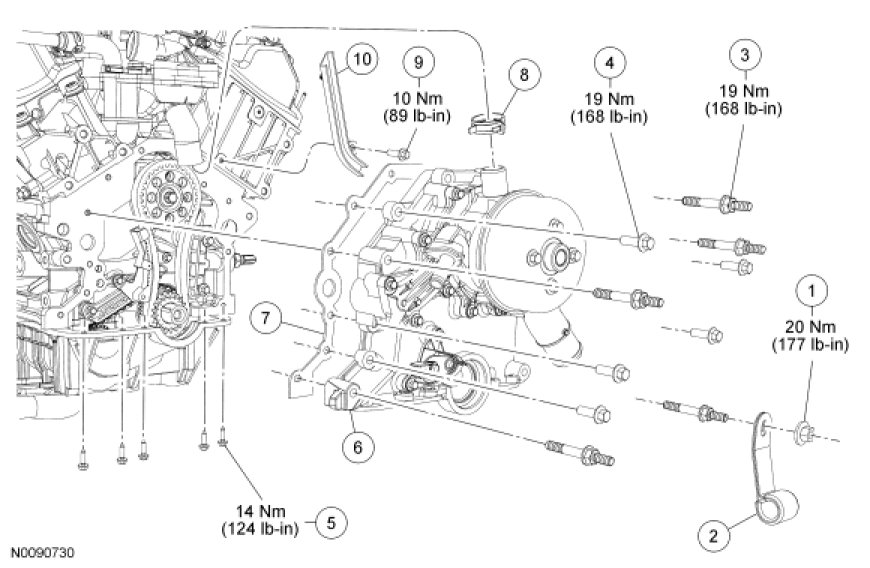

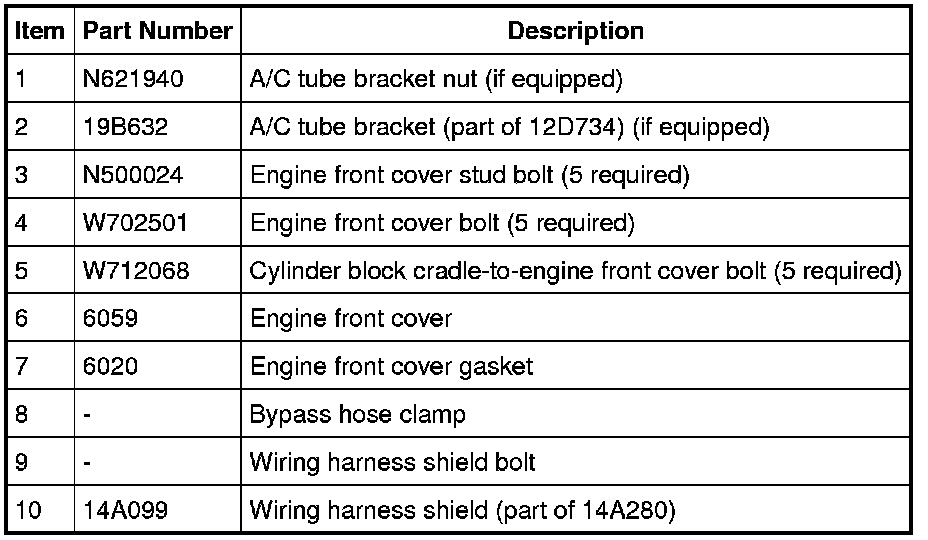

Engine Front Cover









Position the engine front cover and install the 5 bolts and 5 stud bolts.
Tighten to 19 Nm (168 lb-in).

Install the 5 cylinder block cradle-to-front cover bolts.
Tighten bolts to 14 Nm (124 lb-in).
