Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)

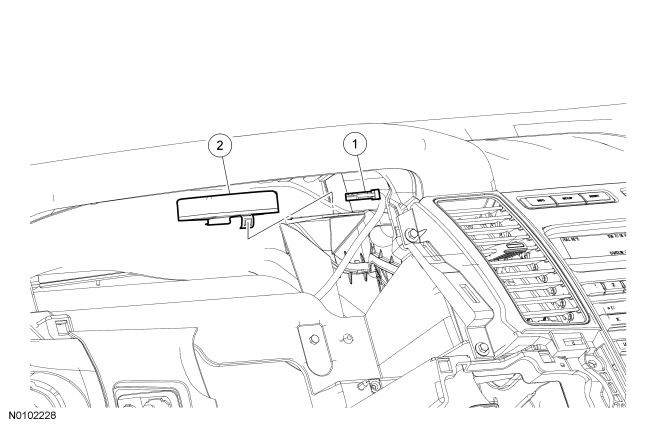

NOTE: Steering wheel shown removed for clarity only.









Removal and Installation

1. Remove the Instrument Panel Cluster (IPC). For additional information, refer to Instrumentation, Message Center, and Warning Chimes Instrument Panel Cluster (IPC).

2. Release the clip and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
