ABS Module DTC Chart
Anti-Lock Control
DTC Charts

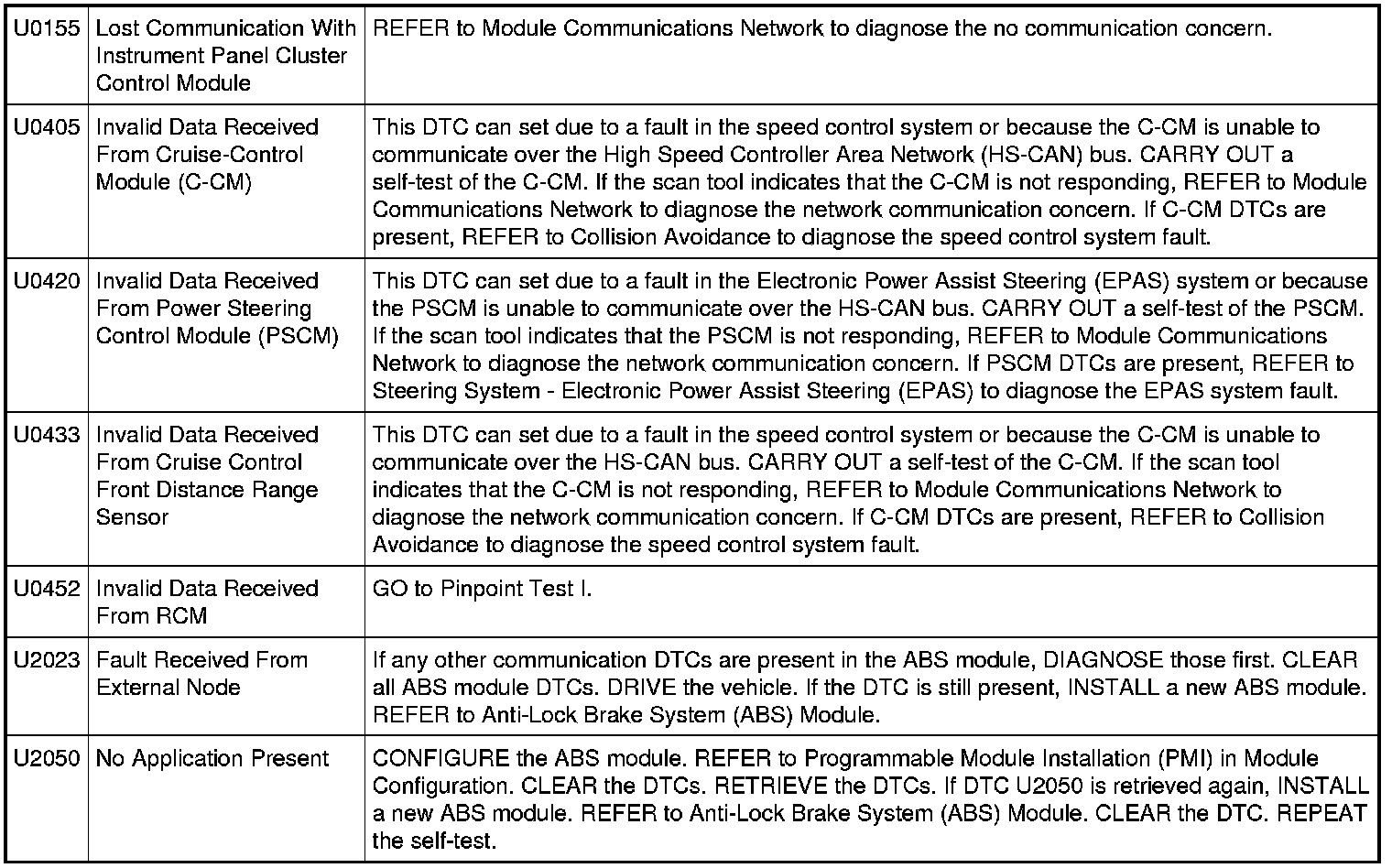

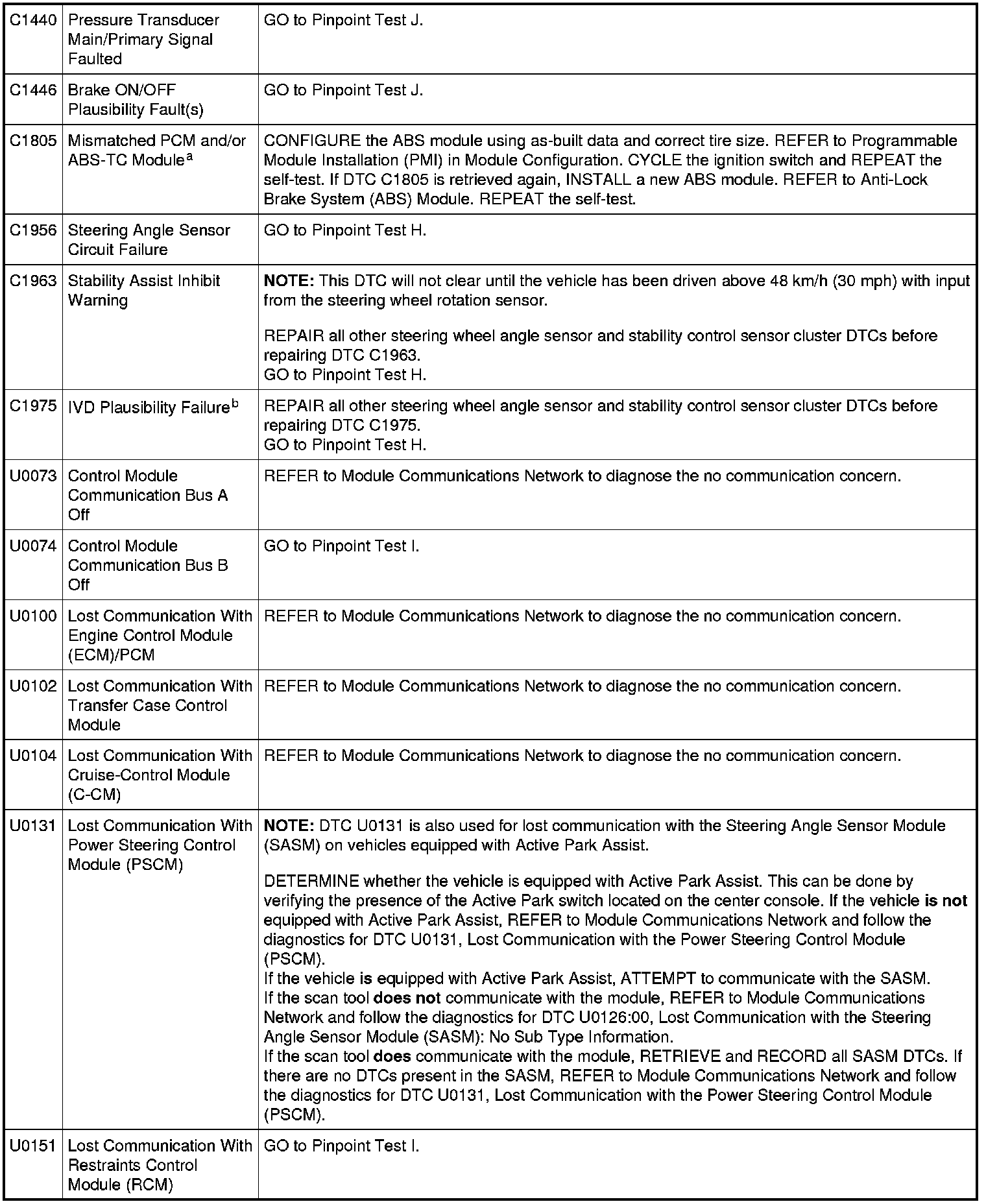

ABS Module DTC Chart
a
Traction Control
b
Interactive Vehicle Dynamics
