Compressor Clutch: Adjustments

Air Conditioning (A/C) Clutch Air Gap Adjustment

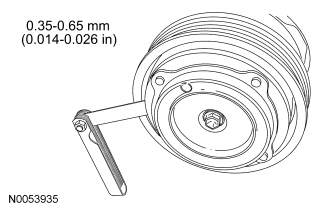

1. Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley.





2. Remove the clutch plate. Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification.
